Steel Taper Pins
| Rockwell B85, 46K PSI Breaking Strength, Dia. Tol. -0.0007" to 0.0013" | |||||||
| Part # | Large Dia | Small Dia | Length | Pin Number | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|
| Taper-258 | 0.063 | 0.052" | 1/2" | 7/0 | 25 | $19.41 | Add to Order |
| Taper-257 | 0.063 | 0.047" | 3/4" | 7/0 | 25 | $20.40 | Add to Order |
| Taper-253 | 0.078 | 0.068" | 1/2" | 6/0 | 25 | $18.94 | Add to Order |
| Taper-001 | 0.078 | 0.062" | 3/4" | 6/0 | 25 | $19.91 | Add to Order |
| Taper-002 | 0.078 | 0.057" | 1" | 6/0 | 25 | $19.91 | Add to Order |
| Taper-256 | 0.094 | 0.084" | 1/2" | 5/0 | 25 | $18.94 | Add to Order |
| Taper-901 | 0.094 | 0.078" | 3/4" | 5/0 | 25 | $15.52 | Add to Order |
| Taper-003 | 0.094 | 0.073" | 1" | 5/0 | 25 | $19.91 | Add to Order |
| Taper-252 | 0.094 | 0.063" | 1 1/2" | 5/0 | 25 | $21.40 | Add to Order |
| Taper-255 | 0.109 | 0.099" | 1/2" | 4/0 | 50 | $25.54 | Add to Order |
| Taper-254 | 0.109 | 0.088" | 1" | 4/0 | 50 | $30.01 | Add to Order |
| Taper-239 | 0.109 | 0.078" | 1 1/2" | 4/0 | 25 | $19.72 | Add to Order |
| Taper-250 | 0.125 | 0.115" | 1/2" | 4/0 | 50 | $25.54 | Add to Order |
| Taper-012 | 0.125 | 0.109" | 3/4" | 3/0 | 50 | $26.49 | Add to Order |
| Taper-013 | 0.125 | 0.104" | 1" | 3/0 | 50 | $30.01 | Add to Order |
| Taper-014 | 0.125 | 0.099" | 1 1/4" | 3/0 | 50 | $34.28 | Add to Order |
| Taper-015 | 0.125 | 0.094" | 1 1/2" | 3/0 | 25 | $19.23 | Add to Order |
| Taper-016 | 0.141 | 0.125" | 3/4" | 3/0 | 50 | $25.85 | Add to Order |
| Taper-017 | 0.141 | 0.120" | 1" | 3/0 | 50 | $30.01 | Add to Order |
| Taper-018 | 0.141 | 0.115" | 1 1/4" | 2/0 | 50 | $34.28 | Add to Order |
| Taper-019 | 0.141 | 0.110" | 1 1/2" | 2/0 | 25 | $19.23 | Add to Order |
| Taper-020 | 0.141 | 0.099" | 2" | 2/0 | 25 | $22.43 | Add to Order |
| Taper-022 | 0.141 | 0.089" | 2 1/2" | 2/0 | 25 | $27.43 | Add to Order |
| Taper-023 | 0.156 | 0.140" | 3/4" | 0 | 50 | $24.27 | Add to Order |
| Taper-024 | 0.156 | 0.135" | 1" | 0 | 50 | $28.19 | Add to Order |
| Taper-243 | 0.156 | 0.130" | 1 1/4" | 0 | 50 | $32.18 | Add to Order |
| Taper-026 | 0.156 | 0.125" | 1 1/2" | 0 | 25 | $18.06 | Add to Order |
| Taper-028 | 0.156 | 0.114" | 2" | 0 | 25 | $20.58 | Add to Order |
| Taper-030 | 0.156 | 0.094" | 3" | 0 | 25 | $33.56 | Add to Order |
| Taper-031 | 0.172 | 0.156" | 3/4" | 1 | 50 | $25.77 | Add to Order |
| Taper-032 | 0.172 | 0.151" | 1" | 1 | 50 | $29.44 | Add to Order |
| Taper-033 | 0.172 | 0.146" | 1 1/4" | 1 | 50 | $33.33 | Add to Order |
| Taper-034 | 0.172 | 0.141" | 1 1/2" | 1 | 25 | $18.57 | Add to Order |
| Taper-225 | 0.172 | 0.130" | 2" | 1 | 25 | $22.00 | Add to Order |
| Taper-038 | 0.172 | 0.110" | 3" | 1 | 25 | $32.76 | Add to Order |
| Taper-238 | 0.172 | 0.089" | 4" | 1 | 10 | $17.34 | Add to Order |
| Taper-039 | 0.193 | 0.177" | 3/4" | 2 | 50 | $28.90 | Add to Order |
| Taper-040 | 0.193 | 0.172" | 1" | 2 | 50 | $32.08 | Add to Order |
| Taper-041 | 0.193 | 0.167" | 1 1/4" | 2 | 25 | $17.98 | Add to Order |
| Taper-042 | 0.193 | 0.162" | 1 1/2" | 2 | 25 | $19.86 | Add to Order |
| Taper-044 | 0.193 | 0.151" | 2" | 2 | 25 | $23.82 | Add to Order |

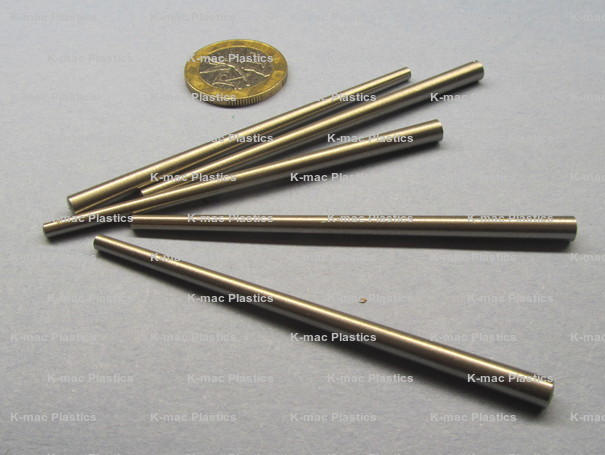

| Taper-047 | 0.193 | 0.131" | 3" | 2 | 25 | $33.99 | Add to Order |
| Taper-229 | 0.193 | 0.110" | 4" | 2 | 10 | $17.69 | Add to Order |
| Taper-260 | 0.219 | 0.203" | 3/4" | 3 | 50 | $30.69 | Add to Order |
| Taper-049 | 0.219 | 0.198" | 1" | 3 | 25 | $17.34 | Add to Order |
| Taper-050 | 0.219 | 0.193" | 1 1/4" | 3 | 25 | $19.27 | Add to Order |
| Taper-051 | 0.219 | 0.188" | 1 1/2" | 3 | 25 | $21.24 | Add to Order |
| Taper-052 | 0.219 | 0.183" | 1 3/4" | 3 | 25 | $22.45 | Add to Order |
| Taper-232 | 0.219 | 0.177" | 2" | 3 | 25 | $24.97 | Add to Order |
| Taper-055 | 0.219 | 0.167" | 2 1/2" | 3 | 25 | $30.18 | Add to Order |
| Taper-056 | 0.219 | 0.157" | 3" | 3 | 10 | $14.12 | Add to Order |
| Taper-233 | 0.219 | 0.136" | 4" | 3 | 10 | $18.20 | Add to Order |
| Taper-304 | 0.250 | 0.234" | 3/4" | 4 | 25 | $17.36 | Add to Order |
| Taper-059 | 0.250 | 0.229" | 1" | 4 | 25 | $19.27 | Add to Order |
| Taper-060 | 0.250 | 0.224" | 1 1/4" | 4 | 25 | $21.24 | Add to Order |
| Taper-061 | 0.250 | 0.219" | 1 1/2" | 4 | 25 | $22.45 | Add to Order |
| Taper-062 | 0.250 | 0.214" | 1 3/4" | 4 | 25 | $24.97 | Add to Order |
| Taper-063 | 0.250 | 0.208" | 2" | 4 | 25 | $26.94 | Add to Order |
| Taper-064 | 0.250 | 0.203" | 2 1/4" | 4 | 25 | $29.56 | Add to Order |
| Taper-066 | 0.250 | 0.198" | 2 1/2" | 4 | 25 | $32.08 | Add to Order |
| Taper-241 | 0.250 | 0.193" | 2 3/4" | 4 | 10 | $13.86 | Add to Order |
| Taper-067 | 0.250 | 0.188" | 3" | 4 | 10 | $14.88 | Add to Order |
| Taper-068 | 0.250 | 0.167" | 4" | 4 | 10 | $18.96 | Add to Order |
| Taper-240 | 0.250 | 0.156" | 4 1/2" | 4 | 10 | $21.03 | Add to Order |
| Taper-071 | 0.289 | 0.258" | 1 1/2" | 5 | 25 | $24.97 | Add to Order |
| Taper-072 | 0.289 | 0.253" | 1 3/4" | 5 | 25 | $25.71 | Add to Order |
| Taper-073 | 0.289 | 0.247" | 2" | 5 | 25 | $25.83 | Add to Order |
| Taper-903 | 0.289 | 0.242" | 2 1/4" | 5 | 25 | $24.34 | Add to Order |
| Taper-075 | 0.289 | 0.237" | 2 1/2" | 5 | 25 | $31.73 | Add to Order |
| Taper-077 | 0.289 | 0.227" | 3" | 5 | 10 | $14.60 | Add to Order |
| Taper-078 | 0.289 | 0.216" | 3 1/2" | 5 | 10 | $17.69 | Add to Order |
| Taper-079 | 0.289 | 0.206" | 4" | 5 | 10 | $19.72 | Add to Order |
| Taper-081 | 0.289 | 0.185" | 5" | 5 | 10 | $23.84 | Add to Order |
| Taper-265 | 0.289 | 0.164" | 6" | 5 | 10 | $27.96 | Add to Order |
| Taper-266 | 0.289 | 0.143" | 7" | 5 | 10 | $31.94 | Add to Order |
| Taper-084 | 0.341 | 0.310" | 1 1/2" | 6 | 25 | $33.28 | Add to Order |
| Taper-085 | 0.341 | 0.305" | 1 3/4" | 6 | 10 | $14.65 | Add to Order |
| Taper-086 | 0.341 | 0.299" | 2" | 6 | 10 | $16.77 | Add to Order |
| Taper-087 | 0.341 | 0.294" | 2 1/4" | 6 | 10 | $20.08 | Add to Order |
| Taper-088 | 0.341 | 0.289" | 2 1/2" | 6 | 10 | $18.28 | Add to Order |
| Taper-089 | 0.341 | 0.284" | 2 3/4" | 6 | 10 | $19.97 | Add to Order |
| Taper-090 | 0.341 | 0.279" | 3" | 6 | 10 | $21.28 | Add to Order |
| Taper-288 | 0.341 | 0.273" | 3 1/4" | 6 | 10 | $22.61 | Add to Order |
| Taper-091 | 0.341 | 0.268" | 3 1/2" | 6 | 10 | $23.98 | Add to Order |
| Taper-092 | 0.341 | 0.258" | 4" | 6 | 10 | $26.63 | Add to Order |
| Taper-093 | 0.341 | 0.247" | 4 1/2" | 6 | 10 | $29.80 | Add to Order |
| Taper-173 | 0.341 | 0.237" | 5" | 6 | 10 | $32.98 | Add to Order |

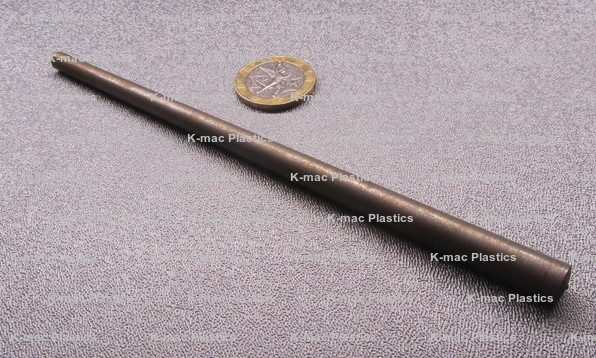

| Taper-289 | 0.341 | 0.216" | 6" | 6 | 5 | $22.70 | Add to Order |
| Taper-175 | 0.409 | 0.373" | 1 3/4" | 7 | 10 | $21.28 | Add to Order |
| Taper-176 | 0.409 | 0.367" | 2" | 7 | 10 | $22.61 | Add to Order |
| Taper-177 | 0.409 | 0.362" | 2 1/4" | 7 | 10 | $25.70 | Add to Order |
| Taper-178 | 0.409 | 0.357" | 2 1/2" | 7 | 10 | $27.40 | Add to Order |
| Taper-179 | 0.409 | 0.352" | 2 3/4" | 7 | 5 | $17.70 | Add to Order |
| Taper-180 | 0.409 | 0.347" | 3" | 7 | 10 | $32.18 | Add to Order |
| Taper-271 | 0.409 | 0.341" | 3 1/4" | 7 | 10 | $34.58 | Add to Order |
| Taper-181 | 0.409 | 0.336" | 3 1/2" | 7 | 5 | $23.90 | Add to Order |
| Taper-182 | 0.409 | 0.326" | 4" | 7 | 1 | $4.32 | Add to Order |
| Taper-183 | 0.409 | 0.315" | 4 1/2" | 7 | 5 | $24.76 | Add to Order |
| Taper-184 | 0.409 | 0.305" | 5" | 7 | 5 | $27.85 | Add to Order |
| Taper-186 | 0.409 | 0.284" | 6" | 7 | 5 | $33.18 | Add to Order |
| Taper-278 | 0.492 | 0.461" | 1 1/2" | 8 | 10 | $23.95 | Add to Order |
| Taper-188 | 0.492 | 0.450" | 2" | 8 | 10 | $29.31 | Add to Order |
| Taper-189 | 0.492 | 0.440" | 2 1/2" | 8 | 10 | $35.03 | Add to Order |
| Taper-190 | 0.492 | 0.435" | 2 3/4" | 8 | 10 | $37.88 | Add to Order |
| Taper-191 | 0.492 | 0.430" | 3" | 8 | 1 | $4.56 | Add to Order |
| Taper-192 | 0.492 | 0.419" | 3 1/2" | 8 | 1 | $4.84 | Add to Order |
| Taper-193 | 0.492 | 0.409" | 4" | 8 | 5 | $25.67 | Add to Order |
| Taper-194 | 0.492 | 0.398" | 4 1/2" | 8 | 5 | $28.70 | Add to Order |
| Taper-195 | 0.492 | 0.388" | 5" | 8 | 5 | $32.40 | Add to Order |
| Taper-196 | 0.492 | 0.378" | 5 1/2" | 8 | 5 | $35.85 | Add to Order |
| Taper-197 | 0.492 | 0.367" | 6" | 8 | 1 | $7.83 | Add to Order |
| Taper-279 | 0.492 | 0.346" | 7" | 8 | 1 | $9.51 | Add to Order |
| Taper-198 | 0.591 | 0.549" | 2" | 9 | 5 | $20.18 | Add to Order |
| Taper-200 | 0.591 | 0.539" | 2 1/2" | 9 | 5 | $23.51 | Add to Order |
| Taper-202 | 0.591 | 0.529" | 3" | 9 | 5 | $26.50 | Add to Order |
| Taper-203 | 0.591 | 0.518" | 3 1/2" | 9 | 5 | $30.53 | Add to Order |
| Taper-204 | 0.591 | 0.508" | 4" | 9 | 5 | $35.13 | Add to Order |
| Taper-205 | 0.591 | 0.497" | 4 1/2" | 9 | 5 | $39.22 | Add to Order |
| Taper-206 | 0.591 | 0.487" | 5" | 9 | 1 | $8.68 | Add to Order |
| Taper-207 | 0.591 | 0.477" | 5 1/2" | 9 | 1 | $10.40 | Add to Order |
| Taper-208 | 0.591 | 0.466" | 6" | 9 | 1 | $10.31 | Add to Order |
| Taper-293 | 0.591 | 0.445" | 7" | 9 | 1 | $14.48 | Add to Order |
| Taper-285 | 0.706 | 0.664" | 2" | 10 | 5 | $23.90 | Add to Order |
| Taper-209 | 0.706 | 0.644" | 3" | 10 | 5 | $35.42 | Add to Order |
| Taper-212 | 0.706 | 0.623" | 4" | 10 | 5 | $50.02 | Add to Order |
| Taper-213 | 0.706 | 0.612" | 4 1/2" | 10 | 1 | $10.25 | Add to Order |
| Taper-214 | 0.706 | 0.602" | 5" | 10 | 1 | $11.33 | Add to Order |
| Taper-216 | 0.706 | 0.581" | 6" | 10 | 1 | $13.61 | Add to Order |
| Taper-298 | 0.706 | 0.560" | 7" | 10 | 1 | $16.73 | Add to Order |
| Rev. 05-23, 04-23, 01-23, 12-22 | |||||||
