Metric Steel Taper Pins
Rockwell B52 Hardness - DIN 1
Rate of Taper: 1mm per 50mm
| Part # | Large Dia. (mm) | Small Dia (mm) | Dia. Tolerance (mm) | Length (mm) | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|
| Taper-308 | 3.3 | 3 | -.04 to 0 | 16 | 25 | $18.57 | Add to Order |
| Taper-309 | 3.4 | 3 | -.04 to 0 | 20 | 25 | $19.56 | Add to Order |
| Taper-310 | 3.6 | 3 | -.04 to 0 | 32 | 10 | $13.82 | Add to Order |
| Taper-311 | 3.8 | 3 | -.04 to 0 | 40 | 10 | $11.15 | Add to Order |
| Taper-312 | 4 | 3 | -.04 to 0 | 50 | 25 | $34.76 | Add to Order |
| Taper-313 | 4.2 | 3 | -.04 to 0 | 60 | 10 | $20.34 | Add to Order |
| Taper-314 | 4.4 | 4 | -.048 to 0 | 20 | 10 | $11.32 | Add to Order |
| Taper-315 | 4.5 | 4 | -0.048 to 0 | 26 | 10 | $18.70 | Add to Order |
| Taper-316 | 4.6 | 4 | -0.048 to 0 | 30 | 10 | $15.15 | Add to Order |
| Taper-317 | 4.8 | 4 | -0.048 to 0 | 40 | 10 | $17.30 | Add to Order |
| Taper-318 | 4.9 | 4 | -0.048 to 0 | 45 | 10 | $15.50 | Add to Order |
| Taper-319 | 5 | 4 | -0.048 to 0 | 50 | 10 | $20.01 | Add to Order |
| Taper-320 | 5.2 | 4 | -0.048 to 0 | 60 | 5 | $16.30 | Add to Order |
| Taper-321 | 5.4 | 5 | -0.048 to 0 | 20 | 10 | $12.50 | Add to Order |
| Taper-322 | 5.5 | 5 | -0.048 to 0 | 26 | 10 | $15.29 | Add to Order |
| Taper-323 | 5.6 | 5 | -0.048 to 0 | 30 | 10 | $22.28 | Add to Order |
| Taper-324 | 5.8 | 5 | -0.048 to 0 | 40 | 5 | $15.62 | Add to Order |
| Taper-325 | 5.9 | 5 | -0.048 to 0 | 45 | 5 | $11.21 | Add to Order |
| Taper-326 | 6 | 5 | -0.048 to 0 | 50 | 5 | $12.73 | Add to Order |
| Taper-327 | 6.1 | 5 | -0.048 to 0 | 55 | 5 | $13.43 | Add to Order |
| Taper-328 | 6.2 | 5 | -0.048 to 0 | 60 | 5 | $18.86 | Add to Order |
| Taper-329 | 6.4 | 6 | -0.048 to 0 | 20 | 25 | $34.83 | Add to Order |
| Taper-330 | 6.5 | 6 | -0.048 to 0 | 26 | 10 | $16.65 | Add to Order |
| Taper-331 | 6.6 | 6 | -0.048 to 0 | 30 | 10 | $28.31 | Add to Order |
| Taper-332 | 6.8 | 6 | -0.048 to 0 | 40 | 10 | $24.15 | Add to Order |

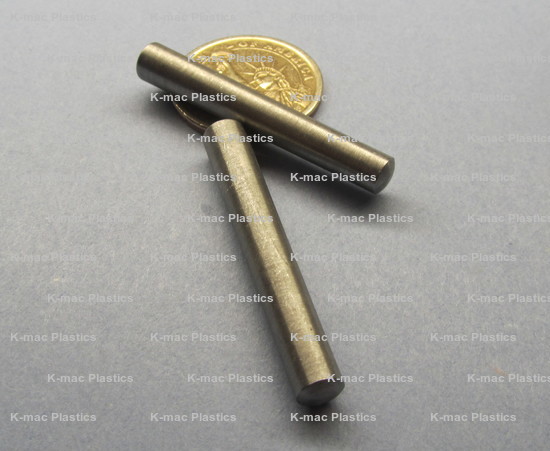

| Taper-333 | 6.9 | 6 | -0.048 to 0 | 45 | 5 | $13.47 | Add to Order |
| Taper-334 | 7 | 6 | -0.048 to 0 | 50 | 25 | $50.72 | Add to Order |

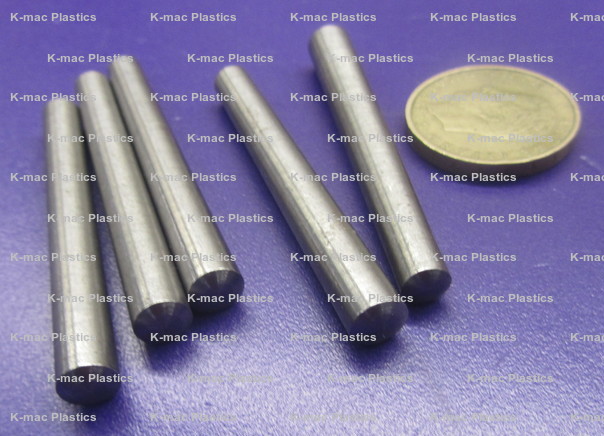

| Taper-335 | 7.1 | 6 | -0.048 to 0 | 55 | 10 | $31.62 | Add to Order |
| Taper-336 | 7.2 | 6 | -0.048 to 0 | 60 | 10 | $35.81 | Add to Order |
| Taper-337 | 7.4 | 6 | -0.048 to 0 | 70 | 5 | $30.32 | Add to Order |
| Taper-338 | 7.6 | 6 | -0.048 to 0 | 80 | 5 | $27.04 | Add to Order |

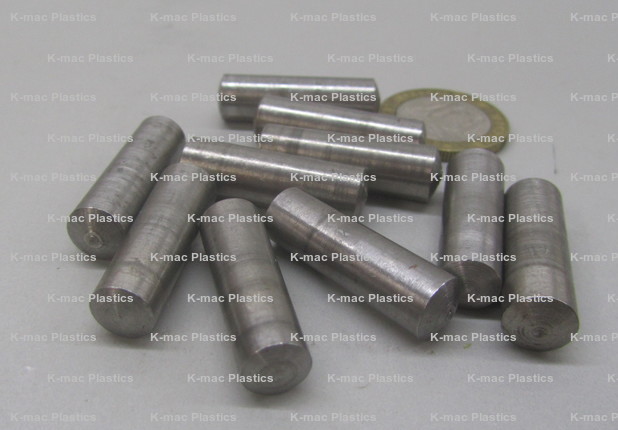

| Taper-339 | 8.5 | 8 | -0.058 to 0 | 26 | 5 | $20.77 | Add to Order |
| Taper-340 | 8.6 | 8 | -0.058 to 0 | 30 | 5 | $23.76 | Add to Order |

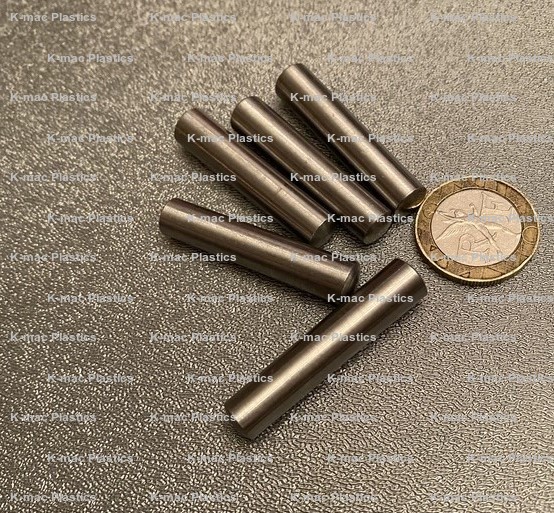

| Taper-341 | 8.8 | 8 | -0.058 to 0 | 40 | 5 | $23.70 | Add to Order |
| Taper-342 | 8.9 | 8 | -0.058 to 0 | 45 | 5 | $29.29 | Add to Order |
| Taper-343 | 9 | 8 | -0.058 to 0 | 50 | 5 | $21.09 | Add to Order |

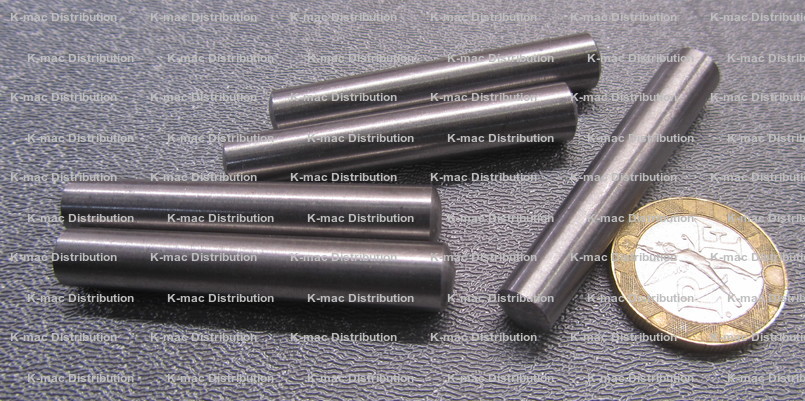

| Taper-344 | 9.1 | 8 | -0.058 to 0 | 55 | 10 | $49.72 | Add to Order |
| Taper-345 | 9.2 | 8 | -0.058 to 0 | 60 | 1 | $3.72 | Add to Order |
| Taper-346 | 9.4 | 8 | -0.058 to 0 | 70 | 1 | $3.72 | Add to Order |

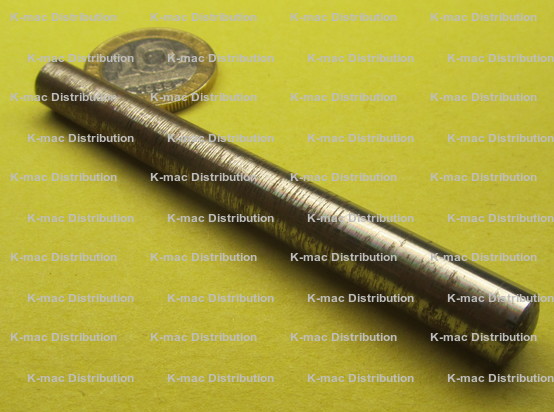

| Taper-347 | 9.6 | 8 | -0.058 to 0 | 80 | 1 | $7.22 | Add to Order |
| Taper-348 | 10.8 | 10 | -0.058 to 0 | 40 | 1 | $6.76 | Add to Order |
| Taper-349 | 10.9 | 10 | -0.058 to 0 | 45 | 5 | $25.24 | Add to Order |
| Taper-350 | 11 | 10 | -0.058 to 0 | 50 | 1 | $7.38 | Add to Order |

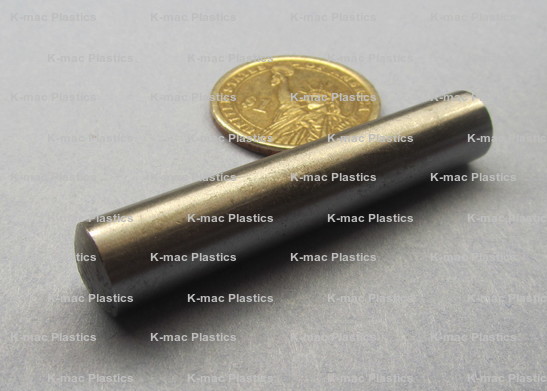

| Taper-351 | 11.1 | 10 | -0.058 to 0 | 55 | 1 | $7.11 | Add to Order |
| Taper-352 | 11.2 | 10 | -0.058 to 0 | 60 | 1 | $6.78 | Add to Order |
| Taper-353 | 11.4 | 10 | -0.058 to 0 | 70 | 1 | $5.74 | Add to Order |
| Taper-354 | 11.6 | 10 | -0.058 to 0 | 80 | 1 | $7.98 | Add to Order |
| Taper-355 | 12.8 | 12 | -0.07 to 0 | 40 | 1 | $6.00 | Add to Order |
| Taper-356 | 13 | 12 | -0.07 to 0 | 50 | 1 | $5.94 | Add to Order |
| Taper-357 | 13.1 | 12 | -0.07 to 0 | 55 | 1 | $7.40 | Add to Order |
| Taper-358 | 13.2 | 12 | -0.07 to 0 | 60 | 1 | $8.24 | Add to Order |
| Taper-359 | 13.4 | 12 | -0.07 to 0 | 70 | 1 | $7.58 | Add to Order |
| Taper-360 | 13.6 | 12 | -0.07 to 0 | 80 | 1 | $12.32 | Add to Order |
