Steel Perforated Sheets

Perforated Steel Sheets



Part # Row Type Thickness (in.) Width (in.) Length (in.) Hole Center to Center Spacing (in.) Hole Dia. Open Area % Price Each Order Online
MS-9639 Straight 0.018 24 24 0.044 0.024 23 $206.26 Add to Order
MS-9640 Straight 0.018 30 40 0.044 0.024 23 $343.76 Add to Order
MS-9641 Straight 0.024 24 24 0.055 0.033 28 $149.10 Add to Order
MS-9642 Straight 0.024 36 40 0.055 0.033 28 $298.18 Add to Order
MS-9643 Straight 0.024 24 24 0.066 0.045 37 $123.32 Add to Order
MS-9644 Straight 0.024 36 40 0.066 0.045 37 $246.62 Add to Order
MS-9645 Staggered 0.024 24 24 0.077 0.033 20 $132.66 Add to Order
MS-9646 Staggered 0.024 36 40 0.077 0.033 20 $265.30 Add to Order
MS-9647 Staggered 0.024 24 24 0.086 0.045 28 $116.30 Add to Order
MS-9648 Staggered 0.024 36 40 0.086 0.045 28 $232.58 Add to Order
MS-9649 Staggered 0.030 24 24 0.094 0.050 26 $101.10 Add to Order
MS-9650 Staggered 0.030 36 40 0.094 0.050 26 $202.18 Add to Order
MS-9655 Staggered 0.030 24 24 0.109 0.078 45 $85.10 Add to Order
MS-9656 Staggered 0.030 36 40 0.109 0.078 45 $170.18 Add to Order
MS-9652 Staggered 0.030 24 24 0.125 0.062 23 $89.80 Add to Order
MS-9653 Staggered 0.030 36 40 0.125 0.062 23 $179.58 Add to Order
MS-9658 Staggered 0.030 24 24 0.156 0.093 33 $80.88 Add to Order
MS-9659 Staggered 0.030 36 40 0.156 0.093 33 $161.76 Add to Order
MS-9661 Staggered 0.030 24 24 0.188 0.125 40 $74.16 Add to Order
MS-9662 Staggered 0.030 36 40 0.188 0.125 40 $148.30 Add to Order
MS-9664 Staggered 0.030 24 24 0.188 0.156 63 $77.52 Add to Order
MS-9665 Staggered 0.030 24 24 0.188 0.156 63 $155.02 Add to Order
MS-9781 Staggered 0.032 36 40 0.109 0.062 30 $165.92 Add to Order
MS-9780 Staggered 0.032 36 40 0.125 0.062 23 $93.28 Add to Order
MS-9673 Staggered 0.036 24 24 0.094 0.062 41 $85.30 Add to Order
MS-9673 Staggered 0.036 24 24 0.094 0.062 41 $85.30 Add to Order
MS-9674 Staggered 0.036 36 40 0.094 0.062 41 $170.60 Add to Order
MS-9676 Staggered 0.036 24 24 0.100 0.075 51 $96.68 Add to Order
MS-9677 Staggered 0.036 36 40 0.100 0.075 51 $193.36 Add to Order
MS-9670 Staggered 0.036 24 24 0.109 0.062 30 $84.14 Add to Order
MS-9671 Staggered 0.036 36 40 0.109 0.062 30 $168.28 Add to Order
MS-9679 Staggered 0.036 24 24 0.109 0.078 45 $94.30 Add to Order
MS-9680 Staggered 0.036 36 40 0.109 0.078 45 $188.60 Add to Order
MS-9667 Staggered 0.036 24 24 0.125 0.062 23 $123.22 Add to Order
MS-9668 Staggered 0.036 36 40 0.125 0.062 23 $246.44 Add to Order
MS-9682 Staggered 0.036 24 24 0.156 0.093 33 $85.50 Add to Order
MS-9683 Staggered 0.036 36 40 0.156 0.093 33 $171.00 Add to Order
MS-9685 Staggered 0.036 24 24 0.188 0.125 40 $85.06 Add to Order
MS-9686 Staggered 0.036 36 40 0.188 0.125 40 $170.14 Add to Order
MS-9688 Staggered 0.036 24 24 0.188 0.140 51 $84.40 Add to Order
MS-9689 Staggered 0.036 36 40 0.188 0.140 51 $168.82 Add to Order
MS-9691 Staggered 0.036 24 24 0.188 0.156 63 $82.68 Add to Order
MS-9692 Staggered 0.036 36 40 0.188 0.156 63 $165.36 Add to Order
MS-9694 Staggered 0.036 24 24 0.250 0.187 51 $92.76 Add to Order
MS-9695 Staggered 0.036 36 40 0.250 0.187 51 $185.52 Add to Order
MS-9700 Staggered 0.036 24 24 0.313 0.250 58 $76.04 Add to Order
MS-9701 Staggered 0.036 36 40 0.313 0.250 58 $152.08 Add to Order
MS-9697 Staggered 0.036 24 24 0.375 0.250 40 $100.26 Add to Order

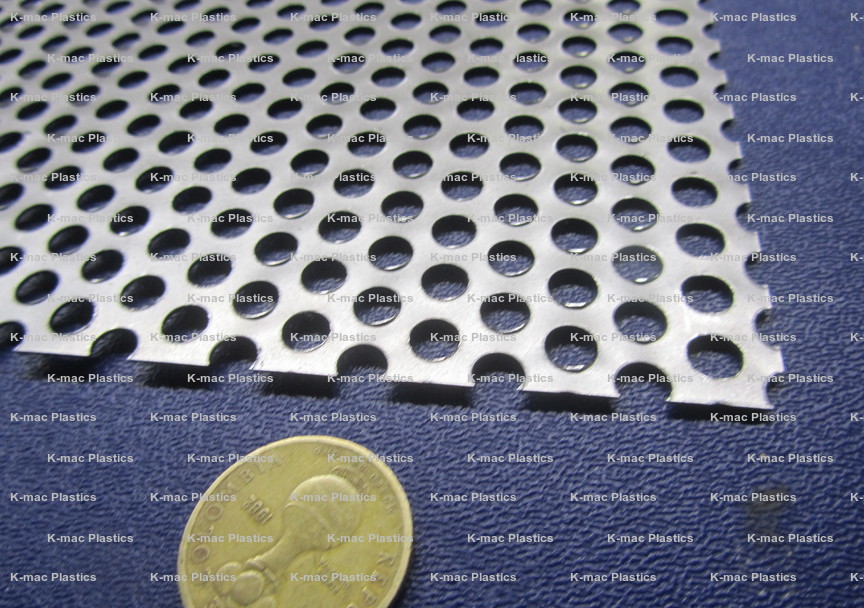

MS-9698 Staggered 0.036 36 40 0.375 0.250 40 $200.52 Add to Order
MS-9698 Staggered 0.036 36 40 0.375 0.250 40 $200.52 Add to Order
MS-9706 Staggered 0.048 24 24 0.109 0.062 30 $132.84 Add to Order
MS-9707 Staggered 0.048 36 40 0.109 0.062 30 $265.70 Add to Order
MS-9703 Staggered 0.048 24 24 0.125 0.062 23 $115.26 Add to Order
MS-9704 Staggered 0.048 36 40 0.125 0.062 23 $230.52 Add to Order
MS-9709 Staggered 0.048 24 24 0.125 0.078 36 $119.66 Add to Order
MS-9710 Staggered 0.048 36 40 0.125 0.078 36 $239.32 Add to Order
MS-9718 Staggered 0.048 24 24 0.140 0.140 51 $100.18 Add to Order
MS-9712 Staggered 0.048 24 24 0.156 0.093 33 $126.70 Add to Order
MS-9713 Staggered 0.048 36 40 0.156 0.093 33 $230.32 Add to Order
MS-9715 Staggered 0.048 24 24 0.188 0.125 40 $100.70 Add to Order
MS-9716 Staggered 0.048 36 40 0.188 0.125 40 $201.42 Add to Order
MS-9719 Staggered 0.048 36 40 0.188 0.140 51 $200.36 Add to Order
MS-9721 Staggered 0.048 24 24 0.219 0.156 46 $122.98 Add to Order
MS-9722 Staggered 0.048 36 40 0.219 0.156 46 $245.98 Add to Order
MS-9724 Staggered 0.048 24 24 0.250 0.187 51 $117.94 Add to Order
MS-9725 Staggered 0.048 36 40 0.250 0.187 51 $235.88 Add to Order
MS-9727 Staggered 0.048 24 24 0.313 0.250 58 $114.00 Add to Order
MS-9728 Staggered 0.048 36 40 0.313 0.250 58 $228.00 Add to Order
MS-9733 Staggered 0.060 24 24 0.109 0.062 30 $136.10 Add to Order
MS-9734 Staggered 0.060 36 40 0.109 0.062 30 $206.38 Add to Order
MS-9730 Staggered 0.060 24 24 0.125 0.062 23 $140.90 Add to Order
MS-9731 Staggered 0.060 36 40 0.125 0.062 23 $281.82 Add to Order
MS-9736 Staggered 0.060 24 24 0.125 0.078 36 $116.16 Add to Order
MS-9737 Staggered 0.060 36 40 0.125 0.078 36 $232.30 Add to Order
MS-9739 Staggered 0.060 24 24 0.156 0.093 33 $117.68 Add to Order
MS-9740 Staggered 0.060 36 40 0.156 0.093 33 $251.52 Add to Order
MS-9742 Staggered 0.060 24 24 0.188 0.125 40 $125.16 Add to Order
MS-9743 Staggered 0.060 36 40 0.188 0.125 40 $228.66 Add to Order
MS-9745 Staggered 0.060 24 24 0.188 0.140 51 $131.76 Add to Order
MS-9746 Staggered 0.060 36 40 0.188 0.140 51 $263.52 Add to Order
MS-9751 Staggered 0.060 24 24 0.188 0.156 63 $123.58 Add to Order
MS-9752 Staggered 0.060 36 40 0.188 0.156 63 $247.16 Add to Order
MS-9748 Staggered 0.060 24 24 0.219 0.156 46 $145.66 Add to Order
MS-9749 Staggered 0.060 36 40 0.219 0.156 46 $291.30 Add to Order
MS-9757 Staggered 0.060 24 24 0.250 0.187 51 $125.26 Add to Order
MS-9758 Staggered 0.060 36 40 0.250 0.187 51 $250.52 Add to Order
MS-9754 Staggered 0.060 24 24 0.313 0.187 33 $103.74 Add to Order
MS-9755 Staggered 0.060 36 40 0.313 0.187 33 $207.46 Add to Order
MS-9763 Staggered 0.060 24 24 0.313 0.250 58 $116.40 Add to Order
MS-9764 Staggered 0.060 36 40 0.313 0.250 58 $232.78 Add to Order
MS-9760 Staggered 0.060 24 24 0.375 0.250 40 $125.80 Add to Order
MS-9778 Staggered 0.060 24 24 0.375 0.250 40 $109.62 Add to Order
MS-9761 Staggered 0.060 36 40 0.375 0.250 40 $251.58 Add to Order
MS-9779 Staggered 0.060 36 40 0.375 0.250 40 $219.26 Add to Order
MS-9766 Staggered 0.060 24 24 0.438 0.312 47 $98.58 Add to Order
MS-9767 Staggered 0.060 36 40 0.438 0.312 47 $197.16 Add to Order
MS-9769 Staggered 0.060 24 24 0.563 0.375 40 $120.32 Add to Order
MS-9781S Staggered 0.060 24 24 0.563 0.375 40 $123.06 Add to Order
MS-9770 Staggered 0.060 36 40 0.563 0.375 40 $240.66 Add to Order
MS-9772 Staggered 0.060 24 24 0.688 0.500 48 $138.80 Add to Order
MS-9773 Staggered 0.060 36 40 0.688 0.500 48 $277.60 Add to Order
MS-9775 Staggered 0.060 24 24 1.000 0.750 51 $93.40 Add to Order
MS-9776 Staggered 0.060 36 40 1.000 0.750 51 $186.78 Add to Order

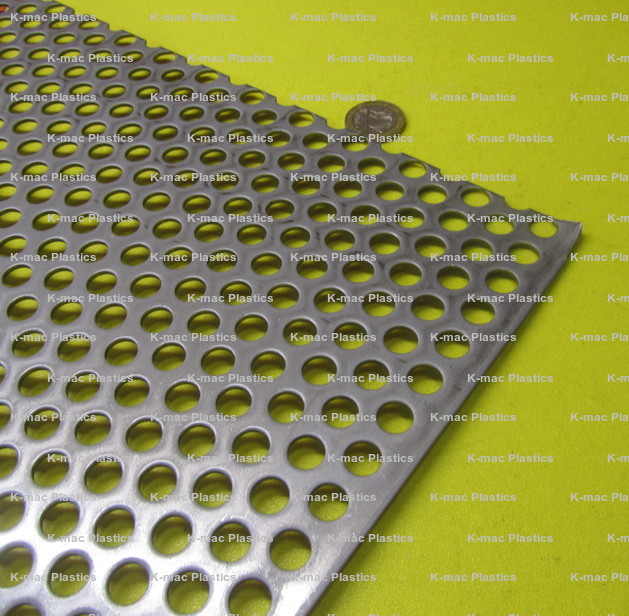

MS-9782Q Staggered 0.075 36 40 0.563 0.375 40 $246.12 Add to Order
MS-9784S Staggered 0.075 24 24 0.688 0.500 48 $113.74 Add to Order
MS-9785S Staggered 0.075 36 40 0.688 0.500 48 $227.48 Add to Order
MS-9787S Staggered 0.250 24 24 0.375 0.250 40 $584.36 Add to Order
MS-9788Q Staggered 0.250 36 40 0.375 0.250 40 $868.20 Add to Order
Rev. 10-23, 05-23, 09-22, 06-22
Perforated Steel Sheets, Straight Rows

<<
