Metric Slotted Spring Pins

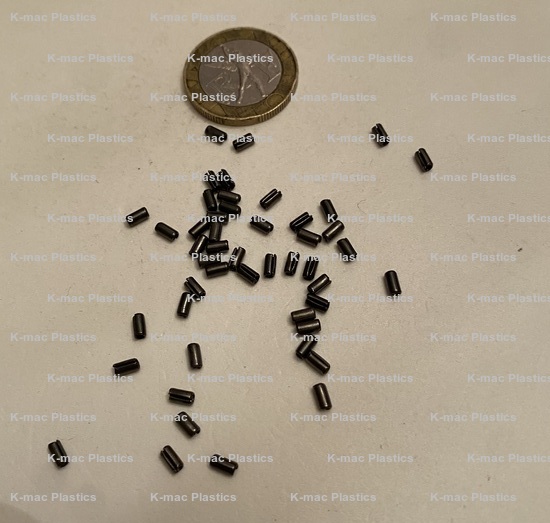

Metric Carbon Steel Slotted Spring Pins | |||||||
Part # | Dia. (mm) | Length (mm) | Wall (mm) | Breaking Strength LBS | Pkg Qty | Pkg. Price | Order Online |
---|---|---|---|---|---|---|---|
SP-1200 | 1 | 4 | 0.2 | 145 | 100 | $30.81 | Add to Order |
SP-062 | 1 | 6 | 0.2 | 145 | 100 | $14.09 | Add to Order |
SP-063 | 1 | 8 | 0.2 | 145 | 100 | $14.72 | Add to Order |
SP-1199 | 1.5 | 4 | 0.3 | 340 | 100 | $23.16 | Add to Order |
SP-1198 | 1.5 | 5 | 0.3 | 340 | 100 | $18.10 | Add to Order |
SP-1197 | 1.5 | 6 | 0.3 | 340 | 100 | $22.60 | Add to Order |
SP-1196 | 1.5 | 8 | 0.3 | 340 | 100 | $26.17 | Add to Order |
SP-065 | 1.5 | 10 | 0.3 | 340 | 100 | $11.87 | Add to Order |
SP-1194 | 1.5 | 12 | 0.3 | 340 | 100 | $20.48 | Add to Order |
SP-066 | 2 | 4 | 0.4 | 580 | 100 | $10.42 | Add to Order |
SP-355 | 2 | 5 | 0.4 | 580 | 200 | $21.95 | Add to Order |
SP-354 | 2 | 6 | 0.4 | 580 | 200 | $32.76 | Add to Order |
SP-353 | 2 | 8 | 0.4 | 580 | 100 | $12.05 | Add to Order |
SP-352 | 2 | 10 | 0.4 | 580 | 200 | $11.42 | Add to Order |
SP-351 | 2 | 12 | 0.4 | 580 | 100 | $12.05 | Add to Order |
SP-350 | 2 | 14 | 0.4 | 580 | 100 | $12.26 | Add to Order |
SP-349 | 2 | 16 | 0.4 | 580 | 100 | $12.43 | Add to Order |
SP-348 | 2 | 18 | 0.4 | 580 | 100 | $13.69 | Add to Order |
SP-334 | 2 | 20 | 0.4 | 580 | 100 | $22.53 | Add to Order |
SP-346 | 2 | 22 | 0.4 | 580 | 100 | $14.97 | Add to Order |
SP-358 | 2 | 24 | 0.4 | 580 | 100 | $23.48 | Add to Order |
SP-343 | 2 | 30 | 0.4 | 580 | 100 | $23.65 | Add to Order |
SP-1195 | 2.5 | 10 | 0.5 | 920 | 100 | $12.56 | Add to Order |
SP-336 | 2.5 | 14 | 0.5 | 920 | 100 | $14.49 | Add to Order |
SP-1193 | 2.5 | 20 | 0.5 | 920 | 100 | $22.45 | Add to Order |

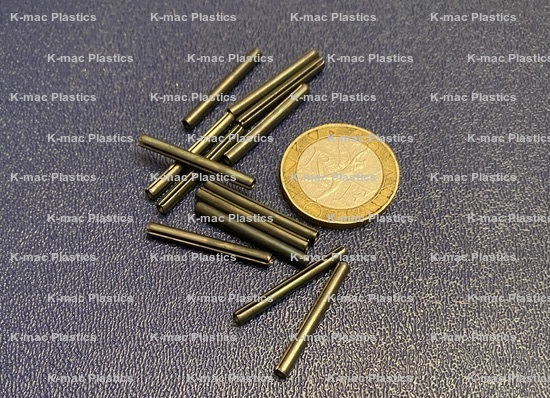

SP-382 | 2.5 | 24 | 0.5 | 920 | 100 | $16.70 | Add to Order |
SP-1192 | 2.5 | 30 | 0.5 | 920 | 100 | $16.82 | Add to Order |

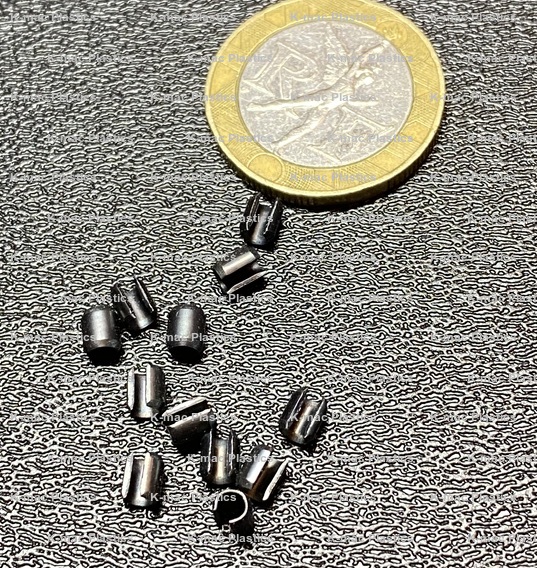

SP-378 | 3 | 4 | 0.6 | 1,350 | 200 | $27.66 | Add to Order |
SP-376 | 3 | 6 | 0.6 | 1,350 | 200 | $31.29 | Add to Order |
SP-1191 | 3 | 8 | 0.6 | 1,350 | 200 | $26.96 | Add to Order |
SP-374 | 3 | 10 | 0.6 | 1,350 | 200 | $30.64 | Add to Order |
SP-373 | 3 | 12 | 0.6 | 1,350 | 200 | $30.95 | Add to Order |

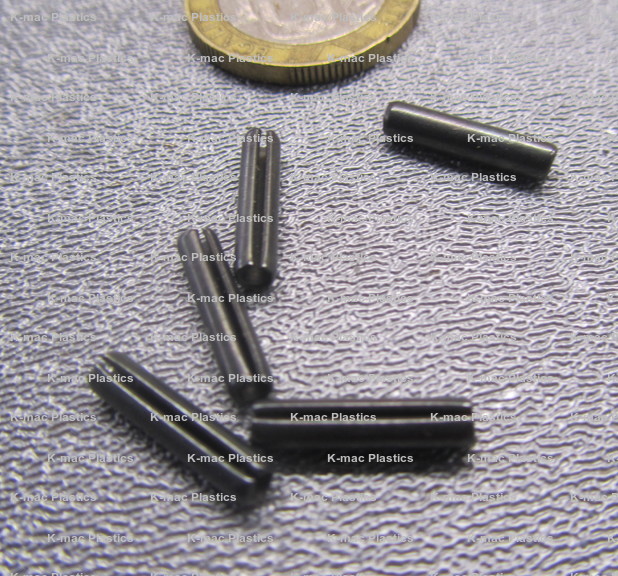

SP-359 | 3 | 14 | 0.6 | 1,350 | 200 | $32.34 | Add to Order |
SP-371 | 3 | 16 | 0.6 | 1,350 | 200 | $32.07 | Add to Order |
SP-384 | 3 | 18 | 0.6 | 1,350 | 200 | $29.27 | Add to Order |
SP-369 | 3 | 20 | 0.6 | 1,350 | 100 | $14.57 | Add to Order |

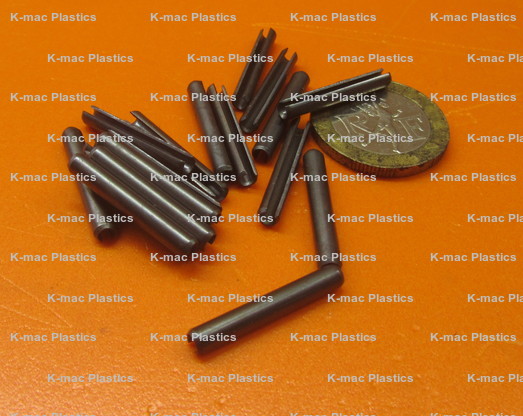

SP-368 | 3 | 22 | 0.6 | 1,350 | 100 | $15.10 | Add to Order |
SP-367 | 3 | 24 | 0.6 | 1,350 | 100 | $15.60 | Add to Order |

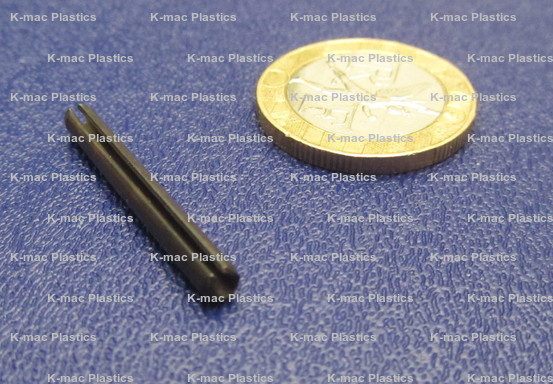

SP-366 | 3 | 26 | 0.6 | 1,350 | 100 | $15.86 | Add to Order |
SP-365 | 3 | 28 | 0.6 | 1,350 | 100 | $15.96 | Add to Order |
SP-364 | 3 | 30 | 0.6 | 1,350 | 100 | $17.14 | Add to Order |
SP-362 | 3 | 35 | 0.6 | 1,350 | 100 | $17.85 | Add to Order |
SP-361 | 3 | 40 | 0.6 | 1,350 | 100 | $22.20 | Add to Order |
SP-305 | 3.5 | 10 | 0.8 | 1,920 | 100 | $15.39 | Add to Order |
SP-299 | 3.5 | 20 | 0.8 | 1,920 | 100 | $20.03 | Add to Order |
SP-293 | 3.5 | 30 | 0.8 | 1,920 | 100 | $20.20 | Add to Order |

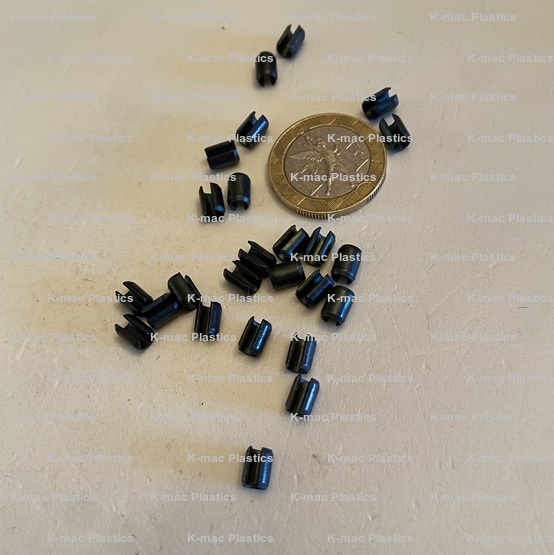

SP-286 | 4 | 6 | 0.8 | 2,450 | 100 | $19.45 | Add to Order |
SP-320 | 4 | 8 | 0.8 | 2,450 | 100 | $18.10 | Add to Order |
SP-295 | 4 | 10 | 0.8 | 2,450 | 100 | $16.82 | Add to Order |
SP-332 | 4 | 12 | 0.8 | 2,450 | 100 | $15.94 | Add to Order |
SP-331 | 4 | 14 | 0.8 | 2,450 | 100 | $16.65 | Add to Order |
SP-330 | 4 | 16 | 0.8 | 2,450 | 100 | $16.17 | Add to Order |

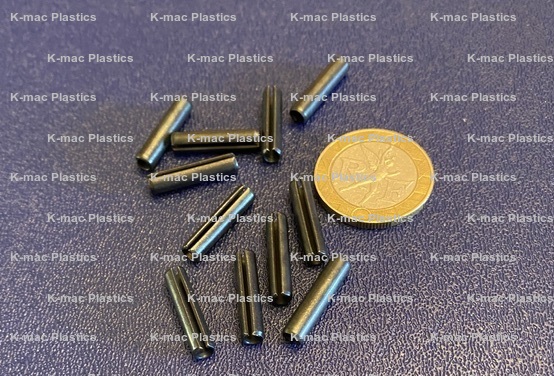

SP-329 | 4 | 18 | 0.8 | 2,450 | 100 | $17.49 | Add to Order |
SP-328 | 4 | 20 | 0.8 | 2,450 | 100 | $18.69 | Add to Order |

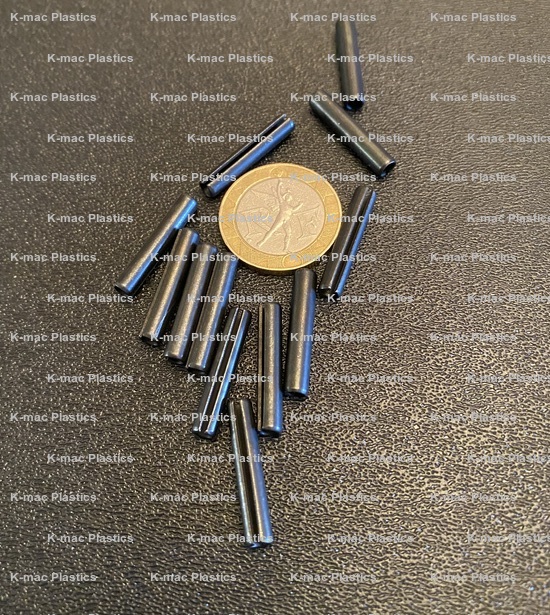

SP-327 | 4 | 22 | 0.8 | 2,450 | 100 | $18.82 | Add to Order |
SP-326 | 4 | 24 | 0.8 | 2,450 | 100 | $19.53 | Add to Order |
SP-325 | 4 | 26 | 0.8 | 2,450 | 100 | $18.75 | Add to Order |

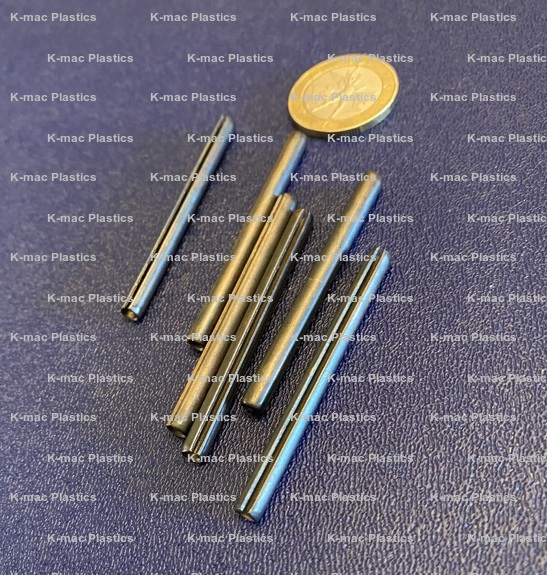

SP-309 | 4 | 30 | 0.8 | 2,450 | 100 | $21.71 | Add to Order |
SP-321 | 4 | 32 | 0.8 | 2,450 | 100 | $26.21 | Add to Order |
SP-333 | 4 | 36 | 0.8 | 2,450 | 100 | $27.03 | Add to Order |
SP-1178 | 4 | 40 | 0.8 | 2,450 | 100 | $29.99 | Add to Order |
SP-319 | 4 | 45 | 0.8 | 2,450 | 100 | $31.82 | Add to Order |

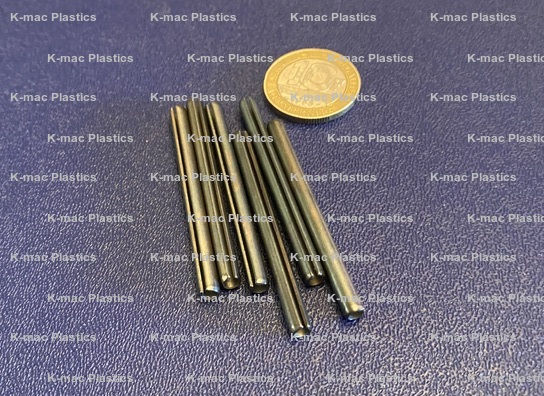

SP-318 | 4 | 50 | 0.8 | 2,450 | 50 | $23.67 | Add to Order |
SP-315 | 5 | 10 | 1 | 3,750 | 100 | $19.64 | Add to Order |
SP-314 | 5 | 12 | 1 | 3,750 | 100 | $19.57 | Add to Order |
SP-313 | 5 | 14 | 1 | 3,750 | 100 | $20.96 | Add to Order |
SP-312 | 5 | 16 | 1 | 3,750 | 100 | $23.27 | Add to Order |
SP-311 | 5 | 18 | 1 | 3,750 | 100 | $24.86 | Add to Order |
SP-310 | 5 | 20 | 1 | 3,750 | 100 | $23.94 | Add to Order |
SP-285 | 5 | 22 | 1 | 3,750 | 100 | $28.20 | Add to Order |
SP-413 | 5 | 24 | 1 | 3,750 | 100 | $29.34 | Add to Order |
SP-459 | 5 | 26 | 1 | 3,750 | 100 | $29.23 | Add to Order |
SP-458 | 5 | 28 | 1 | 3,750 | 100 | $33.68 | Add to Order |
SP-457 | 5 | 30 | 1 | 3,750 | 100 | $24.97 | Add to Order |
SP-455 | 5 | 32 | 1 | 3,750 | 100 | $35.74 | Add to Order |
SP-454 | 5 | 36 | 1 | 3,750 | 100 | $37.17 | Add to Order |

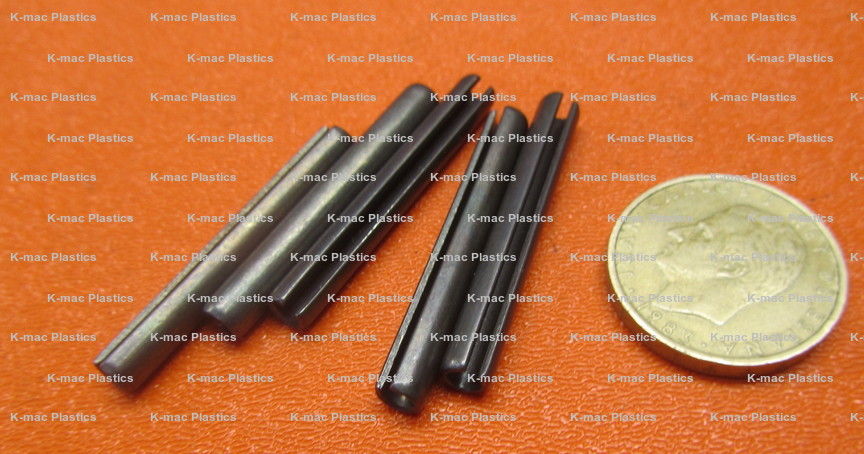

SP-453 | 5 | 40 | 1 | 3,750 | 100 | $37.42 | Add to Order |
SP-067 | 5 | 45 | 1 | 3,750 | 100 | $55.25 | Add to Order |
SP-465 | 5 | 50 | 1 | 3,750 | 50 | $21.76 | Add to Order |
SP-460 | 6 | 12 | 1.2 | 5,500 | 100 | $22.20 | Add to Order |
SP-1189 | 6 | 14 | 1.2 | 5,500 | 100 | $23.04 | Add to Order |
SP-446 | 6 | 16 | 1.2 | 5,500 | 100 | $25.39 | Add to Order |
SP-1187 | 6 | 20 | 1.2 | 5,500 | 100 | $32.19 | Add to Order |
SP-1185 | 6 | 24 | 1.2 | 5,500 | 100 | $37.63 | Add to Order |
SP-1183 | 6 | 26 | 1.2 | 5,500 | 100 | $39.90 | Add to Order |

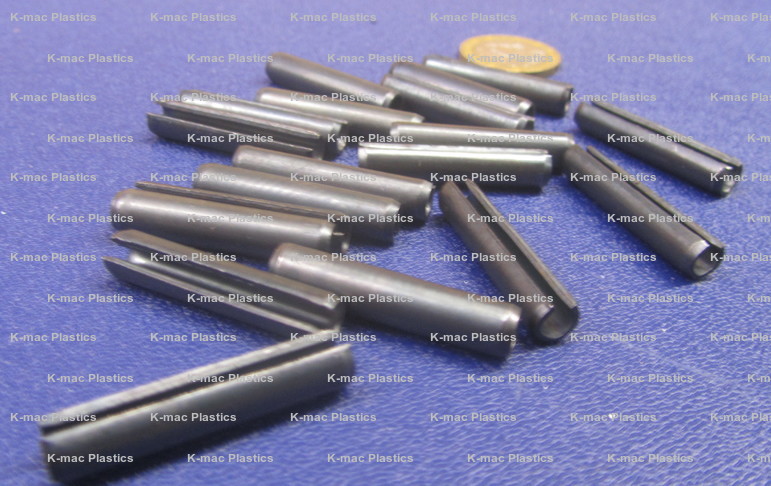

SP-1181 | 6 | 30 | 1.2 | 5,500 | 50 | $22.93 | Add to Order |

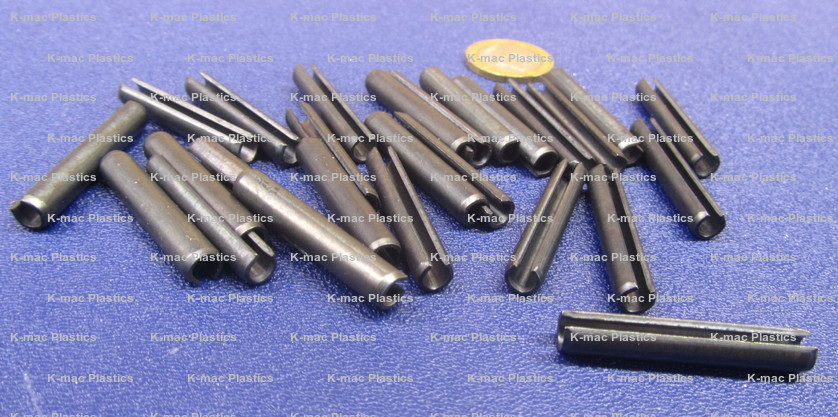

SP-1179 | 6 | 36 | 1.2 | 5,500 | 50 | $26.78 | Add to Order |
SP-1213 | 6 | 40 | 1.2 | 5,500 | 50 | $27.05 | Add to Order |
SP-1215 | 6 | 45 | 1.2 | 5,500 | 50 | $32.49 | Add to Order |
SP-1190 | 6 | 50 | 1.2 | 5,500 | 50 | $32.84 | Add to Order |
SP-1224 | 6 | 60 | 1.2 | 5,500 | 25 | $14.66 | Add to Order |

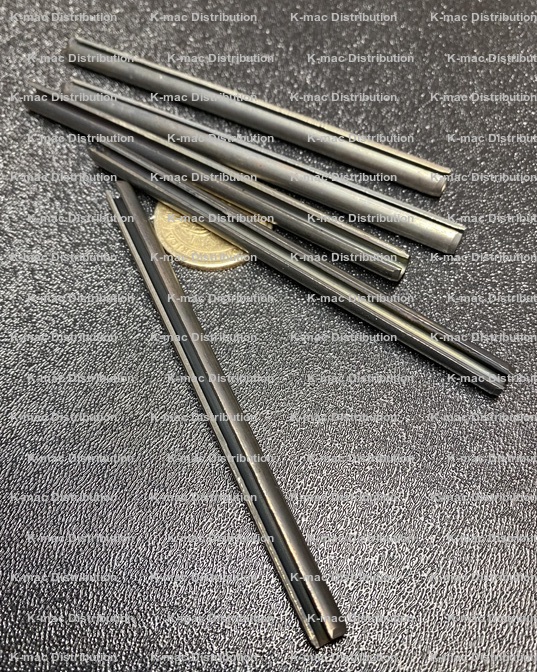

SP-483 | 6 | 100 | 1.2 | 5,500 | 10 | $26.40 | Add to Order |

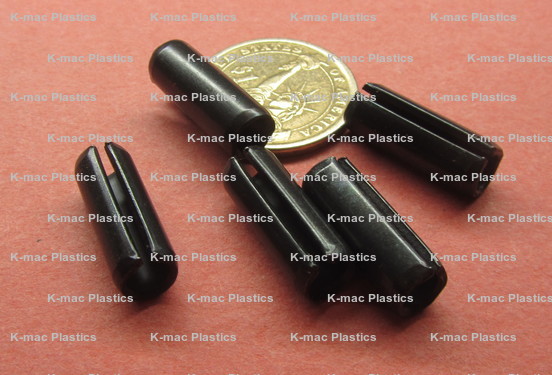

SP-461 | 8 | 22 | 1.5 | 9,000 | 50 | $25.52 | Add to Order |
SP-472 | 8 | 26 | 1.5 | 9,000 | 50 | $31.58 | Add to Order |

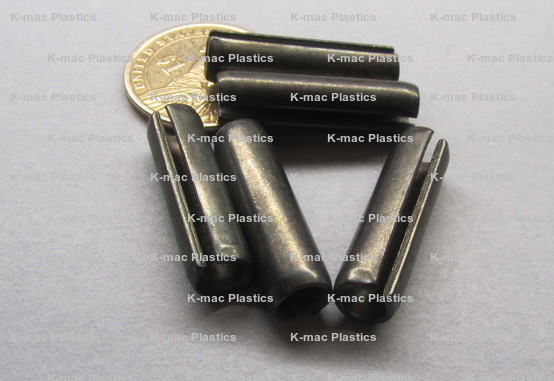

SP-469 | 8 | 30 | 1.5 | 9,000 | 50 | $35.45 | Add to Order |
SP-468 | 8 | 40 | 1.5 | 9,000 | 50 | $42.25 | Add to Order |
SP-475 | 8 | 50 | 1.5 | 9,000 | 25 | $25.24 | Add to Order |

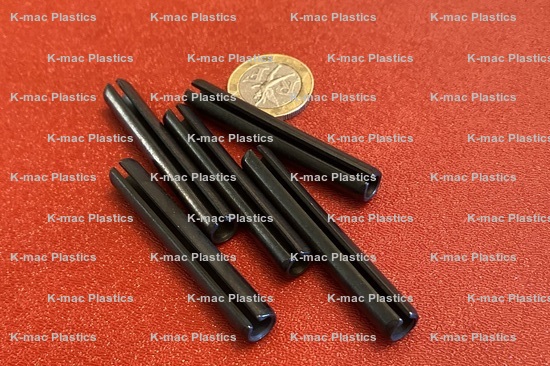

SP-476 | 8 | 55 | 1.5 | 9,000 | 25 | $29.29 | Add to Order |
SP-456 | 8 | 60 | 1.5 | 9,000 | 25 | $32.42 | Add to Order |
SP-402 | 8 | 100 | 1.5 | 9,000 | 5 | $8.40 | Add to Order |
SP-397 | 10 | 24 | 2 | 15,000 | 25 | $28.94 | Add to Order |
SP-394 | 10 | 30 | 2 | 15,000 | 25 | $25.05 | Add to Order |
SP-392 | 10 | 36 | 2 | 15,000 | 25 | $29.84 | Add to Order |
SP-391 | 10 | 40 | 2 | 15,000 | 25 | $33.03 | Add to Order |
SP-389 | 10 | 50 | 2 | 15,000 | 25 | $39.10 | Add to Order |
SP-387 | 10 | 60 | 2 | 15,000 | 10 | $21.46 | Add to Order |
SP-423 | 10 | 80 | 2 | 15,000 | 10 | $31.54 | Add to Order |
SP-432 | 10 | 100 | 2 | 15,000 | 5 | $23.08 | Add to Order |
SP-426 | 12 | 30 | 2.5 | 20,000 | 5 | $22.49 | Add to Order |
SP-410 | 12 | 40 | 2.5 | 20,000 | 10 | $41.29 | Add to Order |
SP-420 | 12 | 50 | 2.5 | 20,000 | 10 | $29.13 | Add to Order |

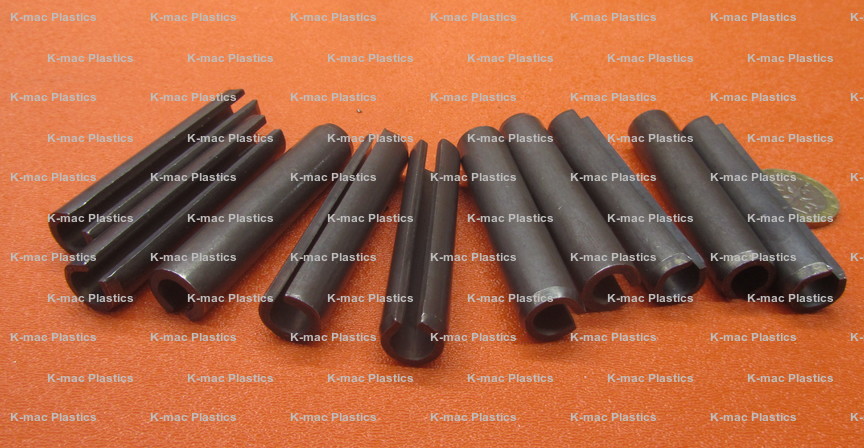

SP-418 | 12 | 60 | 2.5 | 20,000 | 10 | $34.65 | Add to Order |
Rev. 03-24, 04-23, 12-22, 05-22 |
Tolerances |
|
Lengths 0-1.0" | +/-.015" |
Lengths 1.125"-2.0" | +/-.020" |
Lengths 2.25"-3.0" | +/-.025" |
Lengths 3.25" and up | +/-.030" |
Lengths 0-24mm | +/- .40mm |
Lengths 26mm-50mm | +/- .50mm |
Lengths 55mm-60mm | +/- .60mm |
Lengths 80mm and up | +/- .75mm |
Metric | Imperial Inches | ||||||||||||||||||||
Nominal Dia. | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | 1/16" | 5/64" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | |
Act. Dia | Min. mm | 2.13 | 2.65 | 3.15 | 4.20 | 5.25 | 6.25 | 8.30 | 0.066 | 0.083 | 0.099 | 0.131 | 0.162 | 0.194 | 0.226 | 0.258 | 0.321 | 0.385 | 0.448 | 0.513 | 0.640 |
Max. mm | 2.25 | 2.78 | 3.30 | 4.40 | 5.50 | 6.50 | 8.63 | 0.069 | 0.086 | 0.103 | 0.135 | 0.137 | 0.199 | 0.232 | 0.264 | 0.330 | 0.395 | 0.459 | 0.524 | 0.653 | |
Wall Thickness | * | * | * | * | * | * | * | 0.012 | 0.018 | 0.022 | 0.028 | 0.032 | 0.040 | 0.048 | 0.048 | 0.062 | 0.077 | 0.077 | 0.094 | 0.125 | |
Suggested | Min. mm | 2.00 | 2.50 | 3.00 | 4.00 | 5.10 | 6.00 | 8.00 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.312 | 0.375 | 0.437 | 0.500 | 0.625 |
Hole Size | Max. mm | 2.10 | 2.60 | 3.10 | 4.12 | 5.12 | 6.12 | 8.15 | 0.065 | 0.081 | 0.097 | 0.129 | 0.160 | 0.192 | 0.224 | 0.256 | 0.318 | 0.382 | 0.445 | 0.510 | 0.636 |
Shear Strength Lbs | 562 | 876 | 1236 | 2158 | 3372 | 4945 | 8767 | * | * | * | * | * | * | * | * | * | * | * | * | * | |
Shear Strength Lbs 18-8 SS | * | * | * | * | * | * | * | 250 | 460 | 670 | 1090 | 1600 | 2425 | 3400 | 4100 | 6300 | 9500 | 11500 | 15800 | 18800 | |
Shear Strength Lbs 420 SS | * | * | * | * | * | * | * | 430 | 800 | 1150 | 1875 | 2750 | 4150 | 5850 | 7050 | 10800 | 16300 | 19800 | 27100 | 46000 |
