Coiled Steel Spring Pins
Heavy Duty Spring Pins Further Below

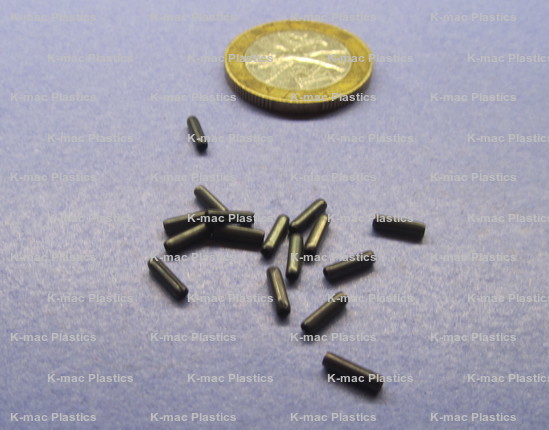

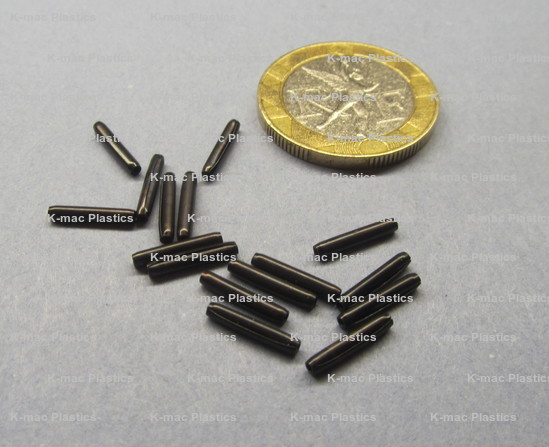

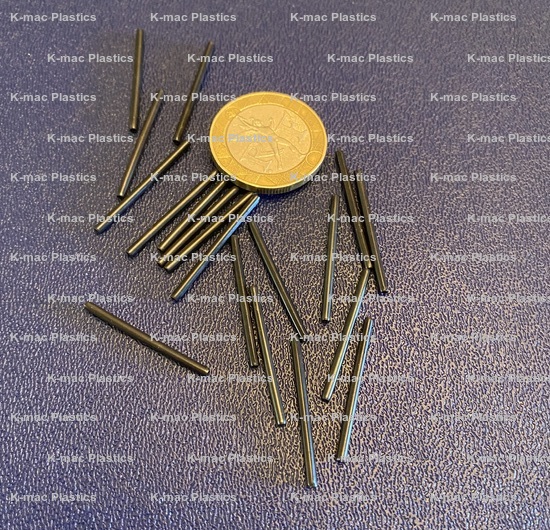

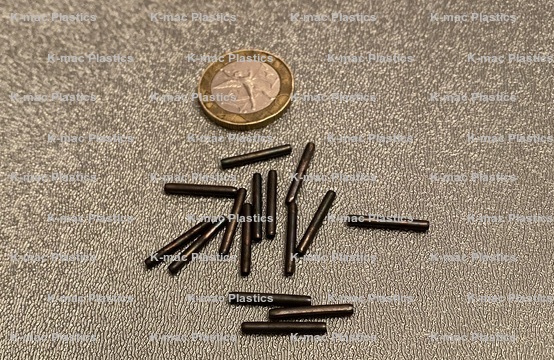

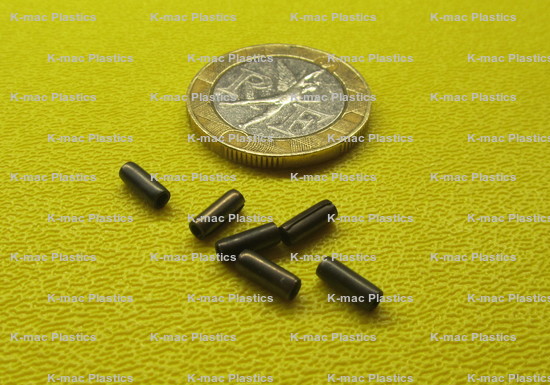

| High Carbon Steel Coiled Spring Pins | ||||||
| Part # | Dia. | Length | Breaking Strength LBS | Pkg Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|
| SP-990 | 1/16" | 1/4" | 285 | 100 | $16.15 | Add to Order |
| SP-1055 | 1/16" | 5/16" | 285 | 100 | $11.55 | Add to Order |
| SP-001C | 1/16" | 3/8" | 285 | 100 | $15.83 | Add to Order |
| SP-978 | 1/16" | 1/2" | 285 | 100 | $12.56 | Add to Order |
| SP-004 | 1/16" | 5/8" | 285 | 100 | $12.54 | Add to Order |
| SP-1051 | 1/16" | 3/4" | 285 | 100 | $12.24 | Add to Order |
| SP-1050 | 1/16" | 1" | 285 | 100 | $14.74 | Add to Order |
| SP-1049 | 5/64" | 5/16" | 525 | 100 | $16.04 | Add to Order |
| SP-1048 | 5/64" | 3/8" | 525 | 100 | $16.23 | Add to Order |
| SP-1047 | 5/64" | 1/2" | 525 | 100 | $16.95 | Add to Order |
| SP-1046 | 5/64" | 5/8" | 525 | 100 | $17.41 | Add to Order |
| SP-1045 | 5/64" | 3/4" | 525 | 100 | $16.76 | Add to Order |
| SP-1044 | 5/64" | 1" | 525 | 100 | $17.45 | Add to Order |
| SP-1043 | 3/32" | 1/4" | 750 | 100 | $17.05 | Add to Order |
| SP-1029 | 3/32" | 3/8" | 750 | 100 | $13.67 | Add to Order |
| SP-1041 | 3/32" | 1/2" | 750 | 100 | $14.36 | Add to Order |

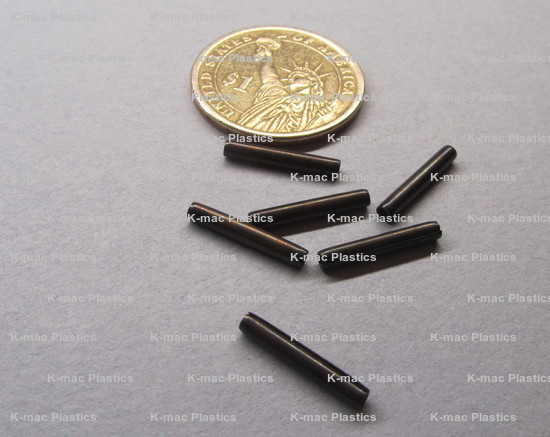

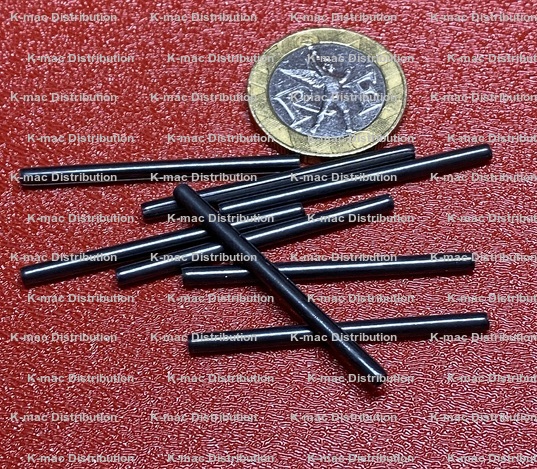

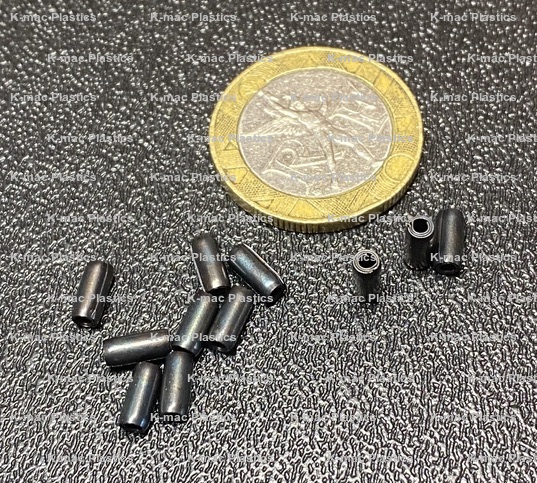

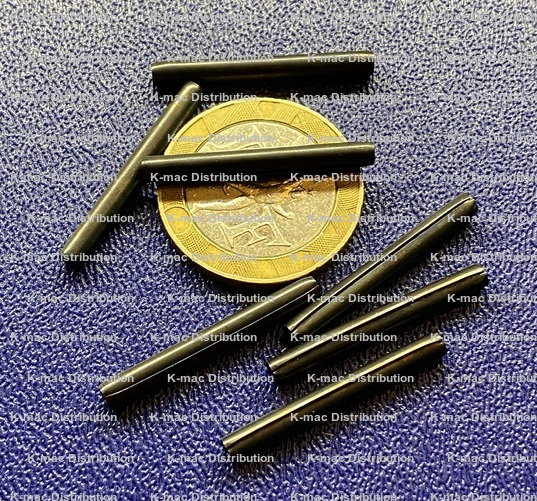

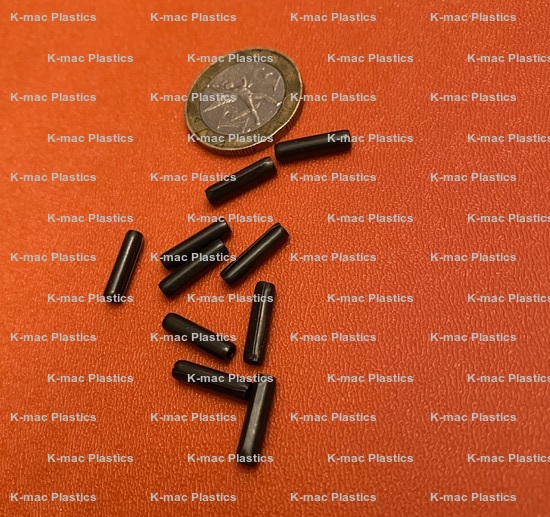

| SP-1053 | 3/32" | 5/8" | 750 | 100 | $14.99 | Add to Order |
| SP-1039 | 3/32" | 3/4" | 750 | 100 | $15.16 | Add to Order |
| SP-1037 | 3/32" | 1" | 750 | 100 | $16.72 | Add to Order |
| SP-1036 | 3/32" | 1 1/2" | 750 | 100 | $25.54 | Add to Order |
| SP-1351 | 7/64" | 1/4" | 1,000 | 50 | $31.50 | Add to Order |
| SP-1352H | 7/64" | 1/2" | 1,000 | 50 | $22.62 | Add to Order |
| SP-1352 | 7/64" | 3/4" | 1,000 | 50 | $21.55 | Add to Order |
| SP-1353 | 7/64" | 1" | 1,000 | 50 | $31.16 | Add to Order |
| SP-1354 | 7/64" | 1 1/2" | 1,000 | 25 | $43.68 | Add to Order |
| SP-1035 | 1/8" | 3/8" | 1,400 | 100 | $15.69 | Add to Order |
| SP-1355 | 1/8" | 7/16" | 1,400 | 100 | $14.36 | Add to Order |
| SP-1034 | 1/8" | 1/2" | 1,400 | 100 | $21.17 | Add to Order |
| SP-1033 | 1/8" | 5/8" | 1,400 | 100 | $18.69 | Add to Order |
| SP-1031 | 1/8" | 3/4" | 1,400 | 100 | $22.51 | Add to Order |
| SP-1356 | 1/8" | 7/8" | 1,400 | 100 | $21.08 | Add to Order |
| SP-1065 | 1/8" | 1" | 1,400 | 100 | $22.47 | Add to Order |
| SP-1040 | 1/8" | 1 1/4" | 1,400 | 100 | $25.26 | Add to Order |
| SP-1042 | 1/8" | 1 1/2" | 1,400 | 100 | $29.74 | Add to Order |

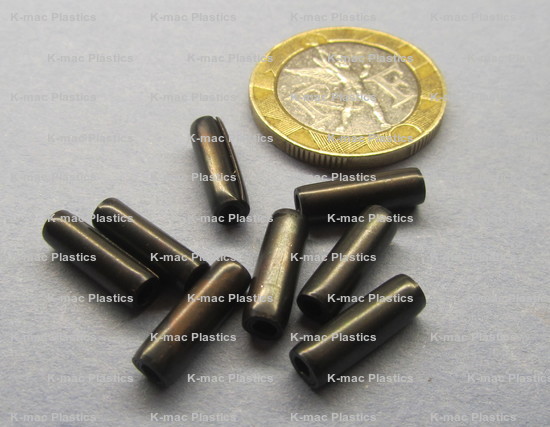

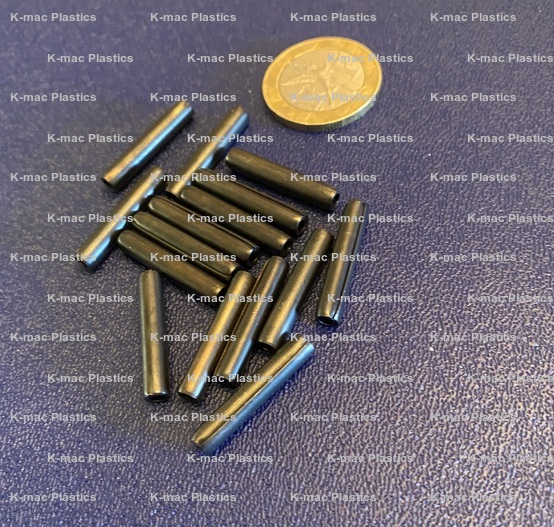

| SP-1032 | 5/32" | 1/2" | 2,000 | 100 | $23.46 | Add to Order |
| SP-1076 | 5/32" | 5/8" | 2,000 | 100 | $25.14 | Add to Order |
| SP-1075 | 5/32" | 3/4" | 2,000 | 100 | $25.33 | Add to Order |
| SP-1074 | 5/32" | 7/8" | 2,000 | 100 | $31.54 | Add to Order |

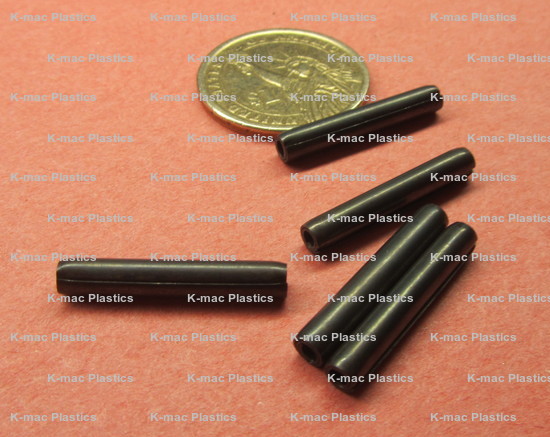

| SP-1073 | 5/32" | 1" | 2,000 | 100 | $30.20 | Add to Order |
| SP-1072 | 5/32" | 1 1/2" | 2,000 | 50 | $22.34 | Add to Order |
| SP-1071 | 5/32" | 2" | 2,000 | 50 | $29.27 | Add to Order |
| SP-1070 | 3/16" | 1/2" | 3,000 | 50 | $18.02 | Add to Order |
| SP-039 | 3/16" | 5/8" | 3,000 | 50 | $16.34 | Add to Order |
| SP-1069 | 3/16" | 3/4" | 3,000 | 50 | $20.85 | Add to Order |
| SP-042 | 3/16" | 7/8" | 3,000 | 50 | $20.56 | Add to Order |
| SP-1054 | 3/16" | 1" | 3,000 | 50 | $19.68 | Add to Order |

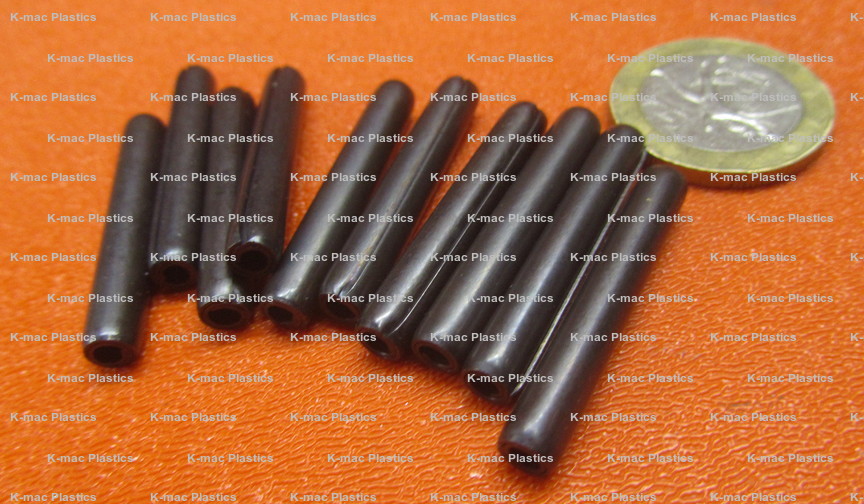

| SP-045 | 3/16" | 1 1/4" | 3,000 | 50 | $24.53 | Add to Order |
| SP-1066 | 3/16" | 1 1/2" | 3,000 | 50 | $21.40 | Add to Order |

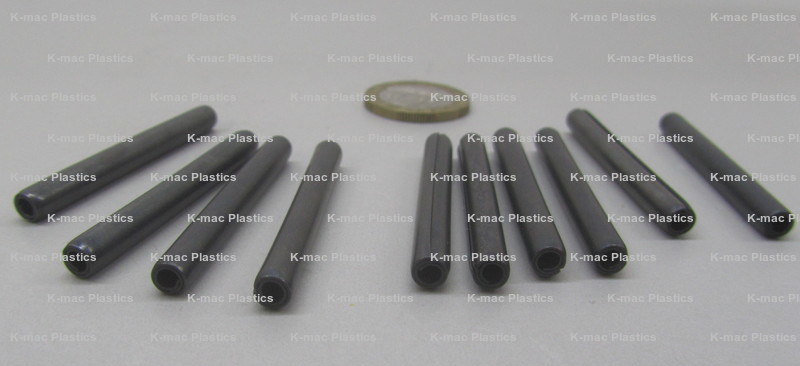

| SP-048 | 3/16" | 1 3/4" | 3,000 | 25 | $23.52 | Add to Order |
| SP-1078 | 3/16" | 2" | 3,000 | 25 | $20.75 | Add to Order |

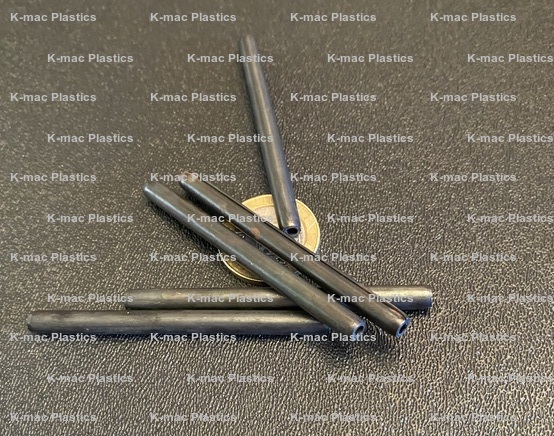

| SP-1064 | 3/16" | 2 1/2" | 3,000 | 25 | $29.76 | Add to Order |
| SP-1068 | 7/32" | 3/4" | 4,000 | 50 | $22.87 | Add to Order |
| SP-1063 | 7/32" | 1" | 4,000 | 50 | $27.36 | Add to Order |
| SP-1062 | 7/32" | 1 1/2" | 4,000 | 50 | $35.30 | Add to Order |

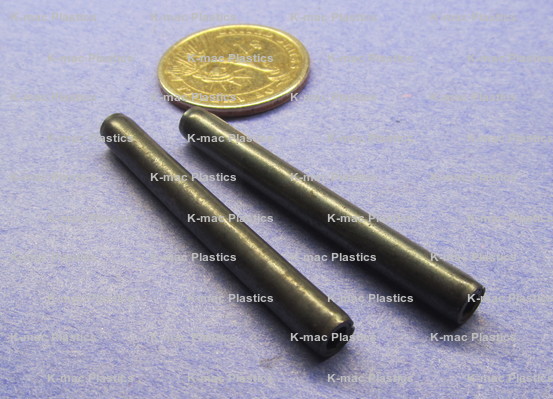

| SP-1060 | 7/32" | 2" | 4,000 | 50 | $43.74 | Add to Order |

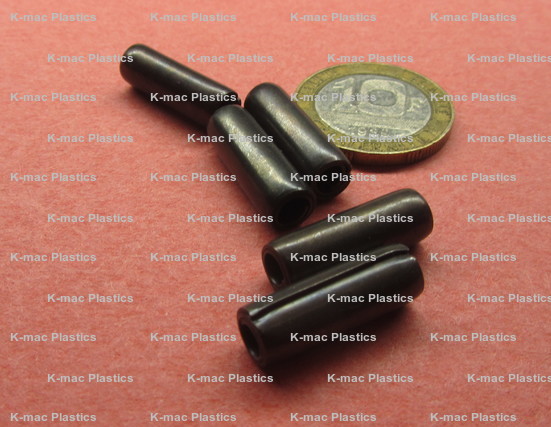

| SP-521 | 1/4" | 3/4" | 5,000 | 25 | $9.24 | Add to Order |
| SP-1061 | 1/4" | 1" | 5,000 | 50 | $20.54 | Add to Order |

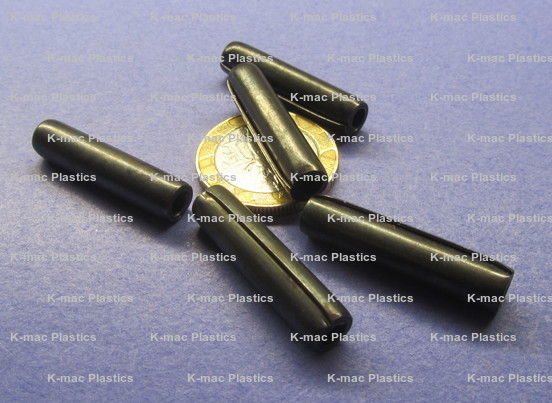

| SP-1059 | 1/4" | 1 1/8" | 5,000 | 50 | $34.25 | Add to Order |
| SP-1058 | 1/4" | 1 1/4" | 5,000 | 50 | $28.71 | Add to Order |
| SP-060 | 1/4" | 1 3/8" | 5,000 | 25 | $36.71 | Add to Order |
| SP-1057 | 1/4" | 1 1/2" | 5,000 | 25 | $24.42 | Add to Order |
| SP-059 | 1/4" | 1 3/4" | 5,000 | 25 | $28.35 | Add to Order |
| SP-1056 | 1/4" | 2" | 5,000 | 25 | $25.22 | Add to Order |

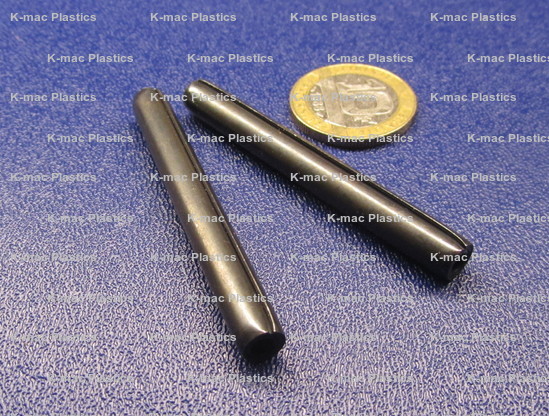

| SP-061 | 1/4" | 2 1/4" | 5,000 | 10 | $15.58 | Add to Order |

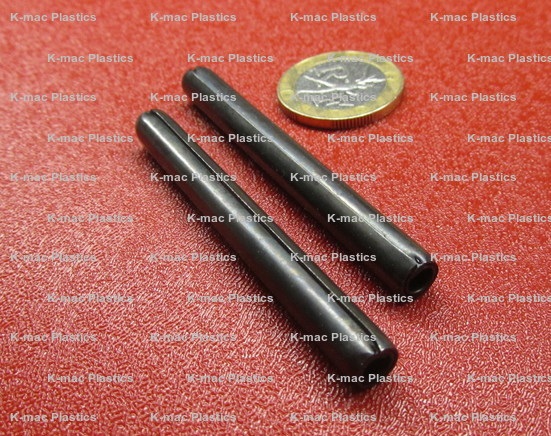

| SP-1030 | 1/4" | 2 1/2" | 5,000 | 25 | $26.52 | Add to Order |

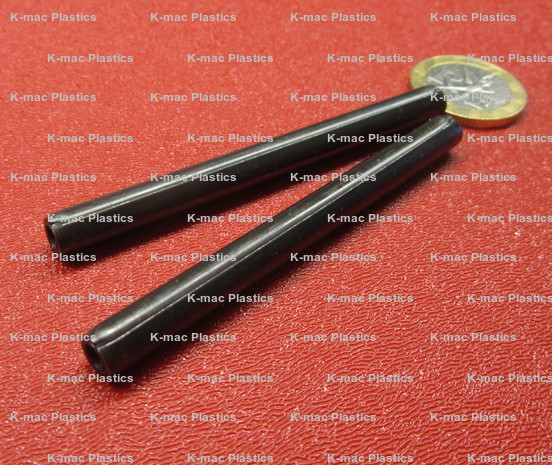

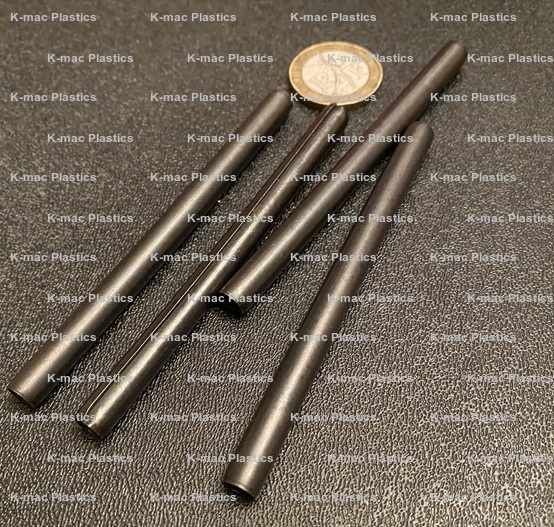

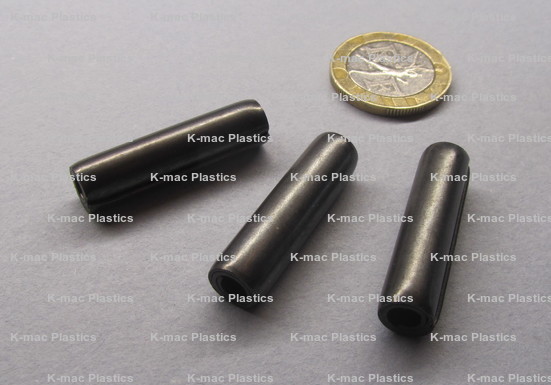

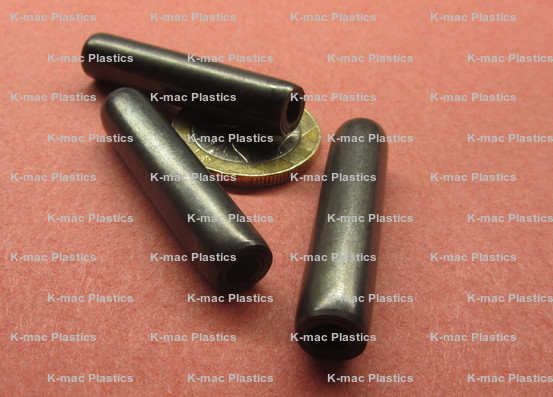

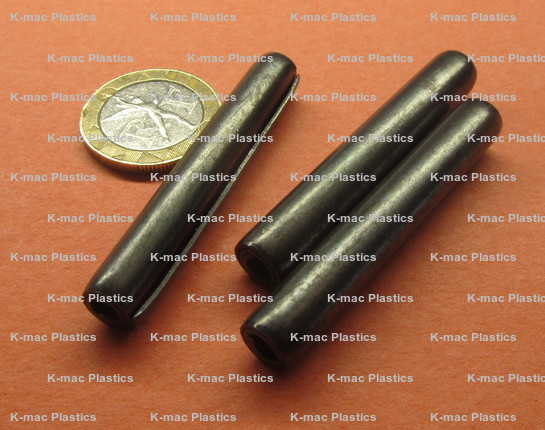

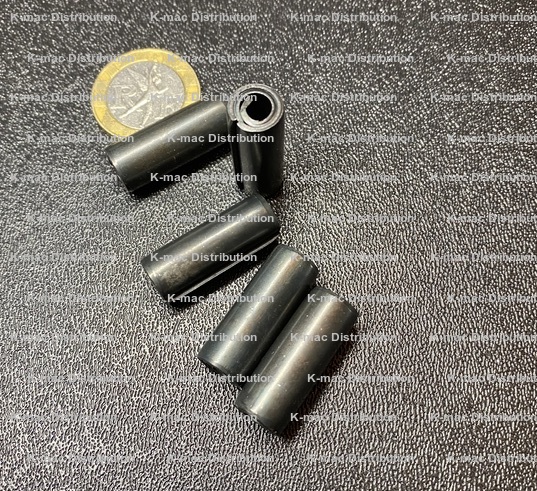

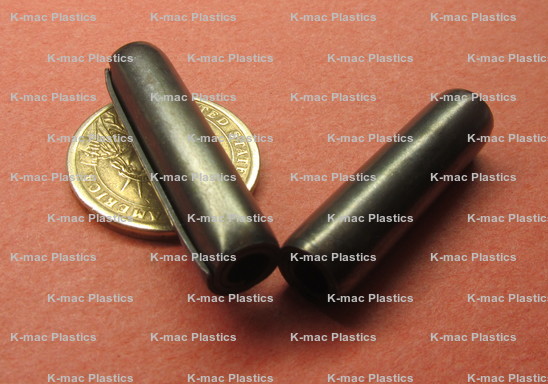

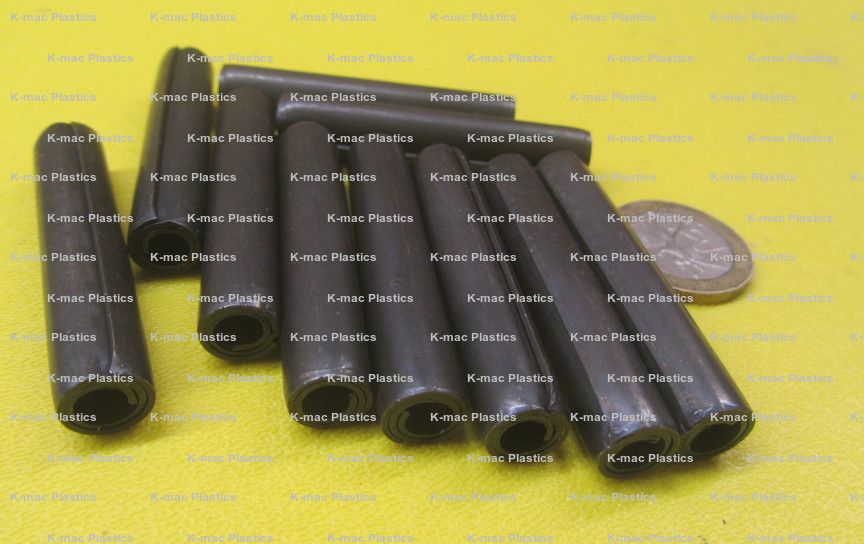

| SP-1002 | 1/4" | 3" | 5,000 | 10 | $15.56 | Add to Order |
| SP-1001 | 1/4" | 3 1/2" | 5,000 | 10 | $17.91 | Add to Order |
| SP-1067 | 5/16" | 1" | 8,500 | 25 | $21.55 | Add to Order |
| SP-1000 | 5/16" | 1 1/4" | 8,500 | 25 | $27.68 | Add to Order |
| SP-999 | 5/16" | 1 1/2" | 8,500 | 25 | $28.69 | Add to Order |
| SP-998 | 5/16" | 1 3/4" | 8,500 | 25 | $36.31 | Add to Order |
| SP-997 | 5/16" | 2" | 8,500 | 25 | $36.67 | Add to Order |
| SP-995 | 5/16" | 2 1/2" | 8,500 | 25 | $52.92 | Add to Order |
| SP-994 | 5/16" | 3" | 8,500 | 10 | $22.64 | Add to Order |
| SP-993 | 5/16" | 4" | 8,500 | 10 | $27.41 | Add to Order |
| SP-996 | 3/8" | 1" | 12,000 | 10 | $32.68 | Add to Order |
| SP-980 | 3/8" | 1 1/2" | 12,000 | 5 | $17.07 | Add to Order |
| SP-991 | 3/8" | 2" | 12,000 | 10 | $29.90 | Add to Order |

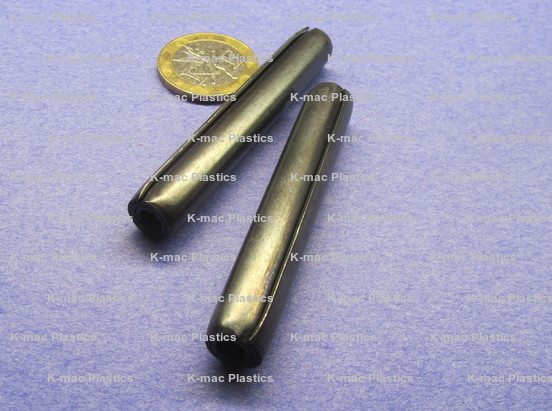

| SP-1003 | 3/8" | 2 1/2" | 12,000 | 5 | $28.90 | Add to Order |
| SP-989 | 3/8" | 3" | 12,000 | 5 | $26.08 | Add to Order |
| SP-987 | 3/8" | 3 1/2" | 12,000 | 5 | $31.58 | Add to Order |
| Rev. 10-23, 04-23, 01-23, 12-22 | ||||||
| Heavy Duty Steel Coiled Spring Pins, Rockwell C42, ASME B18.8.2 |
||||||
| Part # | Dia. | Length | Breaking Strength LBS | Pkg Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|
| SP-1366 | 1/16" | 1/4" | 450 | 50 | $30.49 | Add to Order |
| SP-1367 | 1/16" | 1/2" | 450 | 50 | $41.94 | Add to Order |
| SP-1368 | 1/16" | 1" | 450 | 10 | $44.63 | Add to Order |
| SP-1369 | 3/32" | 1/4" | 1,000 | 100 | $24.30 | Add to Order |
| SP-1370 | 3/32" | 3/8" | 1,000 | 100 | $24.65 | Add to Order |
| SP-1371 | 3/32" | 1/2" | 1,000 | 100 | $25.47 | Add to Order |
| SP-1372 | 3/32" | 5/8" | 1,000 | 100 | $26.73 | Add to Order |
| SP-1373 | 3/32" | 3/4" | 1,000 | 100 | $27.72 | Add to Order |
| SP-1374 | 3/32" | 1" | 1,000 | 100 | $29.97 | Add to Order |
| SP-1375 | 3/32" | 1 1/2" | 1,000 | 100 | $36.52 | Add to Order |
| SP-1376 | 1/8" | 1/4" | 2,000 | 100 | $34.44 | Add to Order |
| SP-1377 | 1/8" | 3/8" | 2,000 | 100 | $29.82 | Add to Order |
| SP-1378 | 1/8" | 7/16" | 2,000 | 100 | $31.73 | Add to Order |
| SP-1379 | 1/8" | 1/2" | 2,000 | 100 | $32.21 | Add to Order |
| SP-1380 | 1/8" | 5/8" | 2,000 | 100 | $34.84 | Add to Order |
| SP-1381 | 1/8" | 3/4" | 2,000 | 100 | $37.32 | Add to Order |
| SP-1382 | 1/8" | 7/8" | 2,000 | 100 | $39.77 | Add to Order |
| SP-1383 | 1/8" | 1" | 2,000 | 100 | $62.50 | Add to Order |
| SP-1384 | 1/8" | 1 1/4" | 2,000 | 100 | $47.17 | Add to Order |
| SP-1385 | 1/8" | 1 1/2" | 2,000 | 50 | $28.46 | Add to Order |
| SP-1386 | 1/8" | 2" | 2,000 | 50 | $33.64 | Add to Order |
| SP-1387 | 3/16" | 1/2" | 4,500 | 50 | $29.51 | Add to Order |
| SP-1388 | 3/16" | 5/8" | 4,500 | 50 | $31.56 | Add to Order |
| SP-1389 | 3/16" | 3/4" | 4,500 | 50 | $33.94 | Add to Order |
| SP-1390 | 3/16" | 7/8" | 4,500 | 50 | $37.76 | Add to Order |
| SP-1391 | 3/16" | 1" | 4,500 | 50 | $38.64 | Add to Order |
| SP-1392 | 3/16" | 1 1/4" | 4,500 | 25 | $23.96 | Add to Order |
| SP-1393 | 3/16" | 1 1/2" | 4,500 | 25 | $29.17 | Add to Order |
| SP-1394 | 3/16" | 1 3/4" | 4,500 | 10 | $19.68 | Add to Order |
| SP-1395 | 3/16" | 2" | 4,500 | 10 | $14.22 | Add to Order |
| SP-1396 | 3/16" | 2 1/2" | 4,500 | 10 | $14.30 | Add to Order |
| SP-1397 | 1/4" | 3/4" | 7,800 | 50 | $29.65 | Add to Order |
| SP-1398 | 1/4" | 1" | 7,800 | 25 | $29.97 | Add to Order |
| SP-1399 | 1/4" | 1 1/8" | 7,800 | 25 | $31.96 | Add to Order |
| SP-1400 | 1/4" | 1 1/4" | 7,800 | 25 | $33.64 | Add to Order |
| SP-1401 | 1/4" | 1 3/8" | 7,800 | 10 | $13.61 | Add to Order |
| SP-1402 | 1/4" | 1 1/2" | 7,800 | 10 | $18.14 | Add to Order |
| SP-1403 | 1/4" | 1 3/4" | 7,800 | 10 | $17.07 | Add to Order |
| SP-1404 | 1/4" | 2" | 7,800 | 10 | $21.95 | Add to Order |
| SP-1406 | 1/4" | 3" | 7,800 | 5 | $18.33 | Add to Order |
| SP-1407 | 5/16" | 1" | 12,000 | 5 | $40.80 | Add to Order |
| SP-1408 | 5/16" | 1 1/4" | 12,000 | 5 | $17.26 | Add to Order |
| SP-1409 | 5/16" | 1 1/2" | 12,000 | 5 | $42.95 | Add to Order |
| SP-1410 | 5/16" | 1 3/4" | 12,000 | 1 | $2.23 | Add to Order |
| SP-1411 | 5/16" | 2" | 12,000 | 1 | $2.44 | Add to Order |
| SP-1412 | 5/16" | 2 1/2" | 12,000 | 1 | $2.96 | Add to Order |
| SP-1413 | 5/16" | 3" | 12,000 | 1 | $3.49 | Add to Order |
| SP-1414 | 3/8" | 1" | Not Rated | 10 | $34.99 | Add to Order |
| SP-1415 | 3/8" | 1 1/4" | Not Rated | 5 | $18.46 | Add to Order |
| SP-1416 | 3/8" | 1 1/2" | Not Rated | 5 | $21.80 | Add to Order |
| SP-1417 | 3/8" | 2" | Not Rated | 5 | $28.46 | Add to Order |
| SP-1418 | 3/8" | 2 1/2" | Not Rated | 5 | $35.13 | Add to Order |
| SP-1419 | 3/8" | 3" | Not Rated | 1 | $8.36 | Add to Order |
| SP-1420 | 1/2" | 1 1/4" | Not Rated | 5 | $28.46 | Add to Order |
| SP-1421 | 1/2" | 1 1/2" | Not Rated | 5 | $29.65 | Add to Order |
| SP-1422 | 1/2" | 1 3/4" | Not Rated | 1 | $6.87 | Add to Order |
| SP-1423 | 1/2" | 2" | Not Rated | 1 | $8.02 | Add to Order |
| SP-1424 | 1/2" | 2 1/2" | Not Rated | 1 | $10.35 | Add to Order |
| SP-1425 | 1/2" | 3" | Not Rated | 1 | $12.71 | Add to Order |
| SP-1426 | 5/8" | 2 1/2" | Not Rated | 1 | $12.62 | Add to Order |
| SP-1427 | 5/8" | 3 1/2" | Not Rated | 1 | $28.58 | Add to Order |
| SP-1428 | 3/4" | 2" | Not Rated | 1 | $26.06 | Add to Order |
| SP-1429 | 3/4" | 3" | Not Rated | 1 | $45.93 | Add to Order |
| SP-1430 | 3/4" | 4" | Not Rated | 1 | $64.11 | Add to Order |
| SP-1431 | 3/4" | 5" | Not Rated | 1 | $92.65 | Add to Order |
| Rev. 04-23, 12-22, 03-22 | ||||||
|
Tolerances |
|
| Lengths 0-1.0" | +/-.015" |
| Lengths 1.125"-2.0" | +/-.020" |
| Lengths 2.25"-3.0" | +/-.025" |
| Lengths 3.25" and up | +/-.030" |
| Lengths 0-24mm | +/- .40mm |
| Lengths 26mm-50mm | +/- .50mm |
| Lengths 55mm-60mm | +/- .60mm |
| Lengths 80mm and up | +/- .75mm |
| Metric | Imperial Inches | ||||||||||||||||||||
| Nominal Dia. | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | 1/16" | 5/64" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | |
| Act. Dia | Min. mm | 2.13 | 2.65 | 3.15 | 4.20 | 5.25 | 6.25 | 8.30 | 0.066 | 0.083 | 0.099 | 0.131 | 0.162 | 0.194 | 0.226 | 0.258 | 0.321 | 0.385 | 0.448 | 0.513 | 0.640 |
| Max. mm | 2.25 | 2.78 | 3.30 | 4.40 | 5.50 | 6.50 | 8.63 | 0.069 | 0.086 | 0.103 | 0.135 | 0.137 | 0.199 | 0.232 | 0.264 | 0.330 | 0.395 | 0.459 | 0.524 | 0.653 | |
| Wall Thickness | * | * | * | * | * | * | * | 0.012 | 0.018 | 0.022 | 0.028 | 0.032 | 0.040 | 0.048 | 0.048 | 0.062 | 0.077 | 0.077 | 0.094 | 0.125 | |
| Suggested | Min. mm | 2.00 | 2.50 | 3.00 | 4.00 | 5.10 | 6.00 | 8.00 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.312 | 0.375 | 0.437 | 0.500 | 0.625 |
| Hole Size | Max. mm | 2.10 | 2.60 | 3.10 | 4.12 | 5.12 | 6.12 | 8.15 | 0.065 | 0.081 | 0.097 | 0.129 | 0.160 | 0.192 | 0.224 | 0.256 | 0.318 | 0.382 | 0.445 | 0.510 | 0.636 |
| Shear Strength Lbs | 562 | 876 | 1236 | 2158 | 3372 | 4945 | 8767 | * | * | * | * | * | * | * | * | * | * | * | * | * | |
| Shear Strength Lbs 18-8 SS | * | * | * | * | * | * | * | 250 | 460 | 670 | 1090 | 1600 | 2425 | 3400 | 4100 | 6300 | 9500 | 11500 | 15800 | 18800 | |
| Shear Strength Lbs 420 SS | * | * | * | * | * | * | * | 430 | 800 | 1150 | 1875 | 2750 | 4150 | 5850 | 7050 | 10800 | 16300 | 19800 | 27100 | 46000 | |
