Coiled 420 Stainless Spring Pins
Heavy Duty Series Further Below
| Passivated 420 Stainless Steel Coiled Spring Pins | ||||||
| Part # | Dia. | Length | Breaking Strength LBS | Pkg Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|
| SP-1432 | 1/32" | 1/8" | 80 | 50 | $27.15 | Add to Order |
| SP-1433 | 1/32" | 3/16" | 80 | 50 | $25.12 | Add to Order |
| SP-1434 | 1/32" | 1/4" | 80 | 50 | $36.08 | Add to Order |
| SP-1435 | 1/32" | 3/8" | 80 | 50 | $34.02 | Add to Order |
| SP-1436 | 1/32" | 1/2" | 80 | 50 | $44.35 | Add to Order |
| SP-1437 | 1/32" | 5/8" | 80 | 25 | $41.48 | Add to Order |
| SP-1438 | 0.039" | 3/16" | 120 | 25 | $31.35 | Add to Order |
| SP-1439 | 0.039" | 1/4" | 120 | 25 | $33.33 | Add to Order |
| SP-1440 | 0.039" | 3/8" | 120 | 25 | $26.42 | Add to Order |
| SP-1441 | 0.039" | 1/2" | 120 | 25 | $32.74 | Add to Order |
| SP-1442 | 3/64" | 1/8" | 175 | 50 | $26.57 | Add to Order |
| SP-1443 | 3/64" | 3/16" | 175 | 50 | $26.17 | Add to Order |
| SP-1444 | 3/64" | 1/4" | 175 | 50 | $26.50 | Add to Order |
| SP-1445 | 3/64" | 3/8" | 175 | 50 | $30.32 | Add to Order |
| SP-1446 | 3/64" | 1/2" | 175 | 50 | $30.07 | Add to Order |
| SP-1447 | 3/64" | 5/8" | 175 | 25 | $22.51 | Add to Order |
| SP-1448 | 0.052" | 1/8" | 225 | 25 | $27.36 | Add to Order |
| SP-1449 | 0.052" | 1/4" | 225 | 25 | $27.95 | Add to Order |
| SP-1450 | 0.052" | 3/8" | 225 | 25 | $23.98 | Add to Order |
| SP-1451 | 0.052" | 1/2" | 225 | 25 | $45.72 | Add to Order |
| SP-1452 | 1/16" | 1/4" | 275 | 50 | $25.96 | Add to Order |
| SP-958 | 1/16" | 5/16" | 275 | 50 | $20.14 | Add to Order |
| SP-1453 | 1/16" | 3/8" | 275 | 50 | $20.96 | Add to Order |
| SP-957 | 1/16" | 1/2" | 275 | 50 | $21.06 | Add to Order |
| SP-1454 | 1/16" | 5/8" | 275 | 50 | $22.93 | Add to Order |
| SP-956 | 1/16" | 3/4" | 275 | 50 | $23.33 | Add to Order |
| SP-903 | 1/16" | 1" | 275 | 50 | $24.09 | Add to Order |
| SP-929 | 5/64" | 5/16" | 500 | 50 | $21.08 | Add to Order |
| SP-902 | 5/64" | 3/8" | 500 | 50 | $21.46 | Add to Order |
| SP-892 | 5/64" | 1/2" | 500 | 50 | $23.60 | Add to Order |
| SP-901 | 5/64" | 5/8" | 500 | 50 | $24.38 | Add to Order |
| SP-900 | 5/64" | 3/4" | 500 | 50 | $25.24 | Add to Order |
| SP-899 | 5/64" | 1" | 500 | 50 | $25.64 | Add to Order |
| SP-898 | 3/32" | 1/4" | 750 | 50 | $23.42 | Add to Order |
| SP-897 | 3/32" | 3/8" | 750 | 50 | $24.40 | Add to Order |
| SP-896 | 3/32" | 1/2" | 750 | 50 | $25.31 | Add to Order |
| SP-895 | 3/32" | 5/8" | 750 | 50 | $26.46 | Add to Order |
| SP-882 | 3/32" | 3/4" | 750 | 50 | $27.53 | Add to Order |
| SP-893 | 3/32" | 1" | 750 | 50 | $29.59 | Add to Order |
| SP-905 | 3/32" | 1 1/2" | 750 | 50 | $39.25 | Add to Order |
| SP-1455 | 7/64" | 1/4" | 1,000 | 25 | $25.07 | Add to Order |
| SP-1456 | 7/64" | 1/2" | 1,000 | 25 | $32.49 | Add to Order |
| SP-1457 | 7/64" | 3/4" | 1,000 | 10 | $16.38 | Add to Order |
| SP-1458 | 7/64" | 1" | 1,000 | 10 | $20.52 | Add to Order |
| SP-891 | 1/8" | 3/8" | 1,250 | 50 | $27.76 | Add to Order |
| SP-941 | 1/8" | 7/16" | 1,250 | 50 | $29.00 | Add to Order |
| SP-890 | 1/8" | 1/2" | 1,250 | 50 | $32.57 | Add to Order |
| SP-889 | 1/8" | 5/8" | 1,250 | 50 | $32.76 | Add to Order |
| SP-888 | 1/8" | 3/4" | 1,250 | 50 | $35.15 | Add to Order |
| SP-887 | 1/8" | 7/8" | 1,250 | 25 | $19.19 | Add to Order |
| SP-886 | 1/8" | 1" | 1,250 | 25 | $18.84 | Add to Order |
| SP-885 | 1/8" | 1 1/4" | 1,250 | 25 | $21.06 | Add to Order |
| SP-884 | 1/8" | 1 1/2" | 1,250 | 25 | $27.47 | Add to Order |
| SP-883 | 1/8" | 2" | 1,250 | 25 | $30.64 | Add to Order |
| SP-917 | 5/32" | 1/2" | 2,000 | 25 | $19.45 | Add to Order |
| SP-919 | 5/32" | 3/4" | 2,000 | 25 | $21.84 | Add to Order |
| SP-894 | 5/32" | 1" | 2,000 | 25 | $27.53 | Add to Order |
| SP-928 | 5/32" | 1 1/2" | 2,000 | 25 | $33.10 | Add to Order |
| SP-927 | 5/32" | 2" | 2,000 | 10 | $16.32 | Add to Order |
| SP-926 | 3/16" | 1/2" | 3,000 | 25 | $26.57 | Add to Order |
| SP-1459 | 3/16" | 5/8" | 3,000 | 10 | $12.83 | Add to Order |
| SP-925 | 3/16" | 3/4" | 3,000 | 10 | $13.17 | Add to Order |
| SP-1460 | 3/16" | 7/8" | 3,000 | 10 | $20.45 | Add to Order |

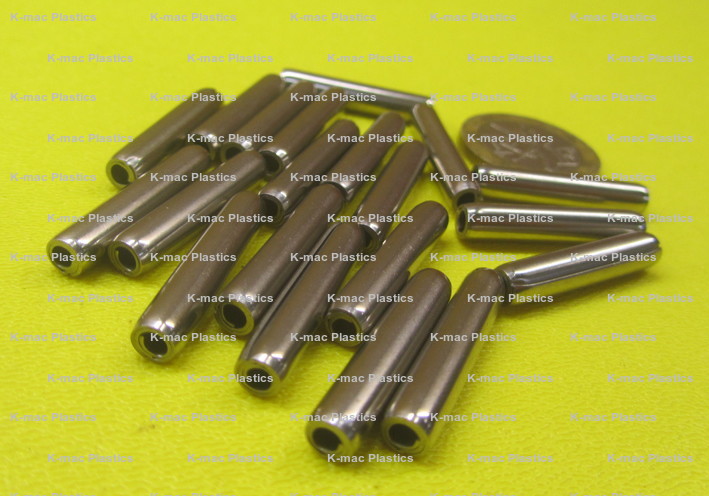

| SP-924 | 3/16" | 1" | 3,000 | 10 | $14.89 | Add to Order |
| SP-923 | 3/16" | 1 1/2" | 3,000 | 10 | $16.49 | Add to Order |

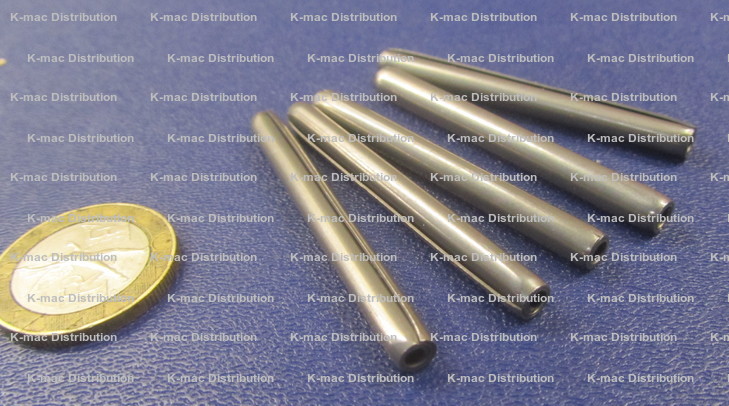

| SP-922 | 3/16" | 2" | 3,000 | 10 | $20.20 | Add to Order |
| SP-921 | 7/32" | 3/4" | 4,000 | 25 | $35.83 | Add to Order |
| SP-920 | 7/32" | 1" | 4,000 | 10 | $16.13 | Add to Order |
| SP-906 | 7/32" | 1 1/2" | 4,000 | 10 | $20.41 | Add to Order |
| SP-918 | 7/32" | 2" | 4,000 | 10 | $30.60 | Add to Order |
| SP-1461 | 1/4" | 3/4" | 5,500 | 10 | $28.20 | Add to Order |
| SP-930 | 1/4" | 1" | 5,500 | 10 | $20.01 | Add to Order |
| SP-916 | 1/4" | 1 1/8" | 5,500 | 10 | $20.45 | Add to Order |
| SP-915 | 1/4" | 1 1/4" | 5,500 | 10 | $21.61 | Add to Order |
| SP-1462 | 1/4" | 1 3/8" | 5,500 | 5 | $20.98 | Add to Order |
| SP-914 | 1/4" | 1 1/2" | 5,500 | 5 | $13.33 | Add to Order |
| SP-1463 | 1/4" | 1 3/4" | 5,500 | 5 | $15.29 | Add to Order |
| SP-913 | 1/4" | 2" | 5,500 | 5 | $15.79 | Add to Order |
| SP-912 | 1/4" | 2 1/2" | 5,500 | 5 | $18.33 | Add to Order |
| SP-1464 | 1/4" | 3" | 5,500 | 1 | $12.71 | Add to Order |
| SP-911 | 5/16" | 1" | 8,500 | 10 | $30.22 | Add to Order |
| SP-910 | 5/16" | 1 1/2" | 8,500 | 5 | $19.74 | Add to Order |

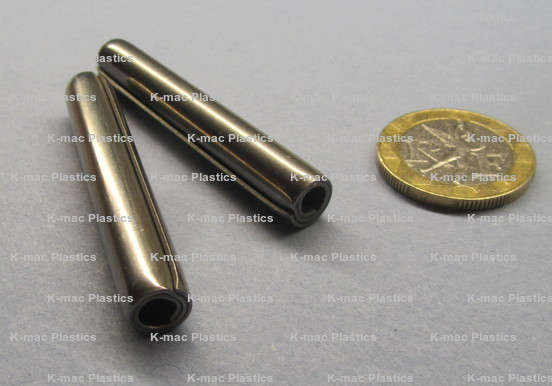

| SP-909 | 5/16" | 2" | 8,500 | 5 | $26.71 | Add to Order |
| SP-908 | 5/16" | 2 1/2" | 8,500 | 1 | $8.13 | Add to Order |
| SP-907 | 5/16" | 2 3/4" | 8,500 | 1 | $8.48 | Add to Order |
| Rev. 04-23, 12-22, 03-22 | ||||||
| Passivated Heavy Duty 420 Stainless Steel Coiled Spring Pins,
Rockwell C46, ASME B18.8.2 |
||||||
| Part # | Dia. | Length | Breaking Strength LBS | Pkg Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|
| SP-1465 | 3/32" | 1/4" | 1,100 | 50 | $34.76 | Add to Order |
| SP-1466 | 3/32" | 3/8" | 1,100 | 50 | $36.50 | Add to Order |
| SP-1467 | 3/32" | 1/2" | 1,100 | 50 | $37.93 | Add to Order |
| SP-1468 | 3/32" | 5/8" | 1,100 | 25 | $18.59 | Add to Order |
| SP-1469 | 3/32" | 3/4" | 1,100 | 25 | $19.51 | Add to Order |
| SP-1470 | 3/32" | 1" | 1,100 | 25 | $21.04 | Add to Order |
| SP-1471 | 3/32" | 1 1/2" | 1,100 | 25 | $26.71 | Add to Order |
| SP-1472 | 1/8" | 3/8" | 2,000 | 25 | $20.33 | Add to Order |
| SP-1473 | 1/8" | 7/16" | 2,000 | 25 | $20.96 | Add to Order |
| SP-1474 | 1/8" | 1/2" | 2,000 | 25 | $22.01 | Add to Order |
| SP-1475 | 1/8" | 5/8" | 2,000 | 25 | $23.69 | Add to Order |
| SP-1476 | 1/8" | 3/4" | 2,000 | 25 | $24.34 | Add to Order |
| SP-1477 | 1/8" | 7/8" | 2,000 | 25 | $28.56 | Add to Order |
| SP-1478 | 1/8" | 1" | 2,000 | 25 | $30.20 | Add to Order |
| SP-1479 | 1/8" | 1 1/4" | 2,000 | 25 | $33.64 | Add to Order |
| SP-1480 | 1/8" | 1 1/2" | 2,000 | 10 | $15.50 | Add to Order |
| SP-1481 | 1/8" | 2" | 2,000 | 10 | $21.36 | Add to Order |
| SP-1482 | 3/16" | 1/2" | 4,500 | 10 | $16.11 | Add to Order |
| SP-1483 | 3/16" | 3/4" | 4,500 | 10 | $18.61 | Add to Order |
| SP-1484 | 3/16" | 7/8" | 4,500 | 10 | $10.79 | Add to Order |
| SP-1485 | 3/16" | 1" | 4,500 | 10 | $21.23 | Add to Order |
| SP-1486 | 3/16" | 1 1/4" | 4,500 | 5 | $38.58 | Add to Order |
| SP-1487 | 3/16" | 1 1/2" | 4,500 | 5 | $14.13 | Add to Order |
| SP-1488 | 3/16" | 1 3/4" | 4,500 | 5 | $11.84 | Add to Order |
| SP-1489 | 3/16" | 2" | 4,500 | 5 | $17.43 | Add to Order |
| SP-1490 | 3/16" | 2 1/2" | 4,500 | 5 | $22.91 | Add to Order |
| SP-1491 | 1/4" | 1/2" | 7,800 | 5 | $16.55 | Add to Order |
| SP-1492 | 1/4" | 3/4" | 7,800 | 5 | $23.63 | Add to Order |
| SP-1493 | 1/4" | 1" | 7,800 | 5 | $20.29 | Add to Order |
| SP-1494 | 1/4" | 1 1/8" | 7,800 | 5 | $19.26 | Add to Order |
| SP-1495 | 1/4" | 1 1/4" | 7,800 | 5 | $20.24 | Add to Order |
| SP-1496 | 1/4" | 1 3/8" | 7,800 | 5 | $39.29 | Add to Order |
| SP-1497 | 1/4" | 1 1/2" | 7,800 | 5 | $23.90 | Add to Order |
| SP-1498 | 1/4" | 1 3/4" | 7,800 | 5 | $23.39 | Add to Order |
| SP-1499 | 1/4" | 2" | 7,800 | 5 | $25.98 | Add to Order |
| SP-1500 | 1/4" | 2 1/2" | 7,800 | 5 | $30.62 | Add to Order |
| Rev. 12-22, 03-22 | ||||||
|
Tolerances |
|
| Lengths 0-1.0" | +/-.015" |
| Lengths 1.125"-2.0" | +/-.020" |
| Lengths 2.25"-3.0" | +/-.025" |
| Lengths 3.25" and up | +/-.030" |
| Lengths 0-24mm | +/- .40mm |
| Lengths 26mm-50mm | +/- .50mm |
| Lengths 55mm-60mm | +/- .60mm |
| Lengths 80mm and up | +/- .75mm |
| Metric | Imperial Inches | ||||||||||||||||||||
| Nominal Dia. | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | 1/16" | 5/64" | 3/32" | 1/8" | 5/32" | 3/16" | 7/32" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | |
| Act. Dia | Min. mm | 2.13 | 2.65 | 3.15 | 4.20 | 5.25 | 6.25 | 8.30 | 0.066 | 0.083 | 0.099 | 0.131 | 0.162 | 0.194 | 0.226 | 0.258 | 0.321 | 0.385 | 0.448 | 0.513 | 0.640 |
| Max. mm | 2.25 | 2.78 | 3.30 | 4.40 | 5.50 | 6.50 | 8.63 | 0.069 | 0.086 | 0.103 | 0.135 | 0.137 | 0.199 | 0.232 | 0.264 | 0.330 | 0.395 | 0.459 | 0.524 | 0.653 | |
| Wall Thickness | * | * | * | * | * | * | * | 0.012 | 0.018 | 0.022 | 0.028 | 0.032 | 0.040 | 0.048 | 0.048 | 0.062 | 0.077 | 0.077 | 0.094 | 0.125 | |
| Suggested | Min. mm | 2.00 | 2.50 | 3.00 | 4.00 | 5.10 | 6.00 | 8.00 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 | 0.312 | 0.375 | 0.437 | 0.500 | 0.625 |
| Hole Size | Max. mm | 2.10 | 2.60 | 3.10 | 4.12 | 5.12 | 6.12 | 8.15 | 0.065 | 0.081 | 0.097 | 0.129 | 0.160 | 0.192 | 0.224 | 0.256 | 0.318 | 0.382 | 0.445 | 0.510 | 0.636 |
| Shear Strength Lbs | 562 | 876 | 1236 | 2158 | 3372 | 4945 | 8767 | * | * | * | * | * | * | * | * | * | * | * | * | * | |
| Shear Strength Lbs 18-8 SS | * | * | * | * | * | * | * | 250 | 460 | 670 | 1090 | 1600 | 2425 | 3400 | 4100 | 6300 | 9500 | 11500 | 15800 | 18800 | |
| Shear Strength Lbs 420 SS | * | * | * | * | * | * | * | 430 | 800 | 1150 | 1875 | 2750 | 4150 | 5850 | 7050 | 10800 | 16300 | 19800 | 27100 | 46000 | |
