1/32" Wall Canvas Tubes

Canvas Phenolic Tubes 1/32" Wall

NEMA Grade C Canvas-Cotton-Cloth Reinforced Phenolic has a natural color of "light tan to brown". C grades are composed of a continuous cotton woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation.

NEMA C certs to Mil-I-24768/16 FBM, IEC 60893-3 Type 4, PF CC 201

Tolerances  •  Technical Data  •  Chemical Resistance  •  Other Canvas Tubes

Tubes are manufactured in random lengths between 30" and 36".
The pricing and minimum orders are based on the 36".

Tubes can also be produced in 42" to 48" random lengths for the same price per foot.
Measured lengths of 36"±1" and 48"±1" are also available (call for pricing)

.031" Wall Thickness C Laminate Tubes
Part # OD (in.) ID (in.) Wall (in.) Minimum Order Price Per Foot Order Online
KM-2000 .250 .187 0.031 9 Feet $6.68 Add to Order

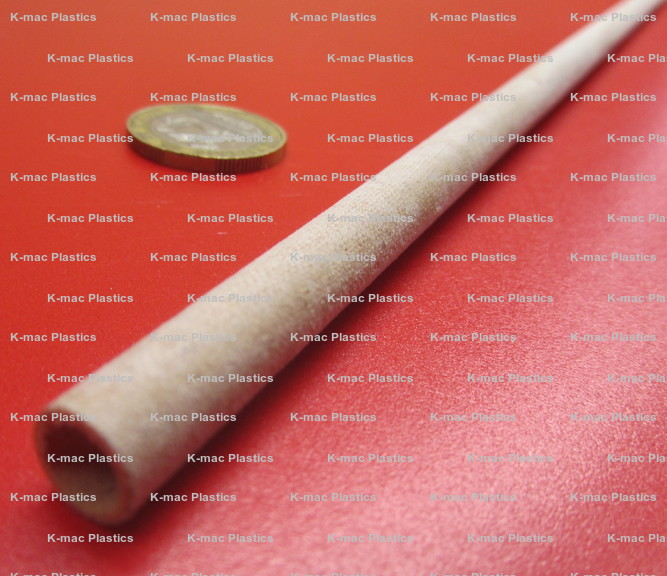

KM-2004 .313 .250 0.031 9 Feet $7.52 Add to Order
KM-2008 .375 .312 0.031 9 Feet $12.95 Add to Order
KM-2012 .438 .375 0.031 81 Feet $8.60 Add to Order
KM-2020 .563 .500 0.031 75 Feet $13.35 Add to Order
KM-2026 .625 .562 0.031 75 Feet $13.80 Add to Order
KM-2031 .688 .625 0.031 72 Feet $14.25 Add to Order
KM-2037 .750 .687 0.031 69 Feet $14.70 Add to Order
KM-2040 .813 .750 0.031 66 Feet $15.58 Add to Order
KM-2051 1.063 1.00 0.031 60 Feet $17.43 Add to Order
KM-5058 1.562 1.500 0.031 48 Feet $21.10 Add to Order
Rev. 03-24, 05-23, 04-23, 08-22

Phenolic Tube Tolerances
3 Foot Lengths: 33" ± 3"
4 Foot Lengths: 45" ± 3"
Tighter tolerances of 36" ± 1"
and 48" ± 1" can be quoted on request.
↑ Length ↑ ↓ Inside Diameter ↓
↓ Outside Diameter ↓ Turned OD
Tolerance		 Steel
Mandrel		 Built-up
Mandrel
0.125"  to  0.749" ±.005" ±.003" -
0.750"  to  1.999" ±.005" ±.004" -
2.000"  to  4.000" ±.008" ±.006" -
4.001"  -  12.000" ±.025" ** ±.010" -
12.001" - 18.000" ±.030" ** ±.030" ±.060"
18.001" - 24.000" ±.035" ** ±.040" ±.075"
24.001" - 48.000" ±.040" ** ±.060" ±.090"

   ** Tubes over 8.00" OD are supplied as wound, which
  are always fractions of an inch larger than listed OD.

   ** Tubes turned to the listed OD tolerance
  can be quoted on request.
<<
