Zinc Plated Steel Round Head Slotted Drive Machine Screws
Machine Screws - Round Head Slotted Drive, Zinc Plated, Class 2A.
| Zinc Plated Steel Round Head Slotted Machine Screws | |||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|
| MSS-9163 | 2-56 | 1/8" | 0.162" | 0.069" | 100 | $12.98 | Add to Order |
| MSS-9164 | 2-56 | 3/16" | 0.162" | 0.069" | 100 | $12.81 | Add to Order |
| MSS-9165 | 2-56 | 1/4" | 0.162" | 0.069" | 100 | $24.78 | Add to Order |
| MSS-9166 | 2-56 | 3/8" | 0.162" | 0.069" | 100 | $12.50 | Add to Order |
| MSS-9167B | 2-56 | 1/2" | 0.162" | 0.069" | 100 | $30.03 | Add to Order |
| MSS-2312 | 3-48 | 1/2" | 0.187" | 0.078" | 100 | $12.62 | Add to Order |
| MSS-2313 | 3-48 | 3/4" | 0.187" | 0.078" | 100 | $22.49 | Add to Order |
| MSS-2326 | 3-48 | 1" | 0.187" | 0.078" | 100 | $16.80 | Add to Order |
| MSS-2315 | 4-40 | 1/8" | 0.211" | 0.086" | 100 | $13.21 | Add to Order |
| MSS-2304 | 4-40 | 3/16" | 0.211" | 0.086" | 100 | $16.30 | Add to Order |
| MSS-2317 | 4-40 | 1/4" | 0.211" | 0.086" | 100 | $6.87 | Add to Order |
| MSS-2318 | 4-40 | 5/16" | 0.211" | 0.086" | 100 | $16.34 | Add to Order |
| MSS-2319 | 4-40 | 3/8" | 0.211" | 0.086" | 100 | $5.46 | Add to Order |
| MSS-2320 | 4-40 | 1/2" | 0.211" | 0.086" | 100 | $5.13 | Add to Order |
| MSS-2321 | 4-40 | 5/8" | 0.211" | 0.086" | 100 | $5.78 | Add to Order |
| MSS-2322 | 4-40 | 3/4" | 0.211" | 0.086" | 100 | $6.53 | Add to Order |
| MSS-2323 | 4-40 | 7/8" | 0.211" | 0.086" | 100 | $10.02 | Add to Order |
| MSS-2324 | 4-40 | 1" | 0.211" | 0.086" | 100 | $7.08 | Add to Order |
| MSS-2469 | 4-40 | 1 1/4" | 0.211" | 0.086" | 100 | $16.07 | Add to Order |
| MSS-2281 | 4-40 | 1 1/2" | 0.211" | 0.086" | 100 | $14.62 | Add to Order |
| MSS-2443 | 5-40 | 3/16" | 0.236" | 0.095" | 100 | $11.55 | Add to Order |
| MSS-2563 | 5-40 | 1/4" | 0.236" | 0.095" | 100 | $9.37 | Add to Order |
| MSS-2564 | 5-40 | 3/8" | 0.236" | 0.095" | 100 | $10.77 | Add to Order |
| MSS-2565 | 5-40 | 1/2" | 0.236" | 0.095" | 100 | $16.46 | Add to Order |
| MSS-2566 | 5-40 | 5/8" | 0.236" | 0.095" | 100 | $11.53 | Add to Order |
| MSS-2567 | 5-40 | 3/4" | 0.236" | 0.095" | 100 | $23.25 | Add to Order |
| MSS-2568 | 5-40 | 1" | 0.236" | 0.095" | 100 | $22.45 | Add to Order |
| MSS-2569 | 5-40 | 1 1/4" | 0.236" | 0.095" | 100 | $14.78 | Add to Order |
| MSS-2570 | 5-40 | 1 1/2" | 0.236" | 0.095" | 100 | $20.83 | Add to Order |
| MSS-2571 | 5-40 | 2" | 0.236" | 0.095" | 100 | $21.55 | Add to Order |
| MSS-2585 | 6-32 | 1/8" | 0.260" | 0.103" | 100 | $19.68 | Add to Order |
| MSS-2573 | 6-32 | 3/16" | 0.260" | 0.103" | 100 | $6.89 | Add to Order |
| MSS-2562 | 6-32 | 1/4" | 0.260" | 0.103" | 100 | $6.01 | Add to Order |
| MSS-2575 | 6-32 | 5/16" | 0.260" | 0.103" | 100 | $6.64 | Add to Order |
| MSS-2576 | 6-32 | 3/8" | 0.260" | 0.103" | 100 | $8.40 | Add to Order |
| MSS-2577 | 6-32 | 7/16" | 0.260" | 0.103" | 100 | $9.22 | Add to Order |
| MSS-2578 | 6-32 | 1/2" | 0.260" | 0.103" | 100 | $5.52 | Add to Order |
| MSS-2579 | 6-32 | 5/8" | 0.260" | 0.103" | 100 | $6.49 | Add to Order |
| MSS-2580 | 6-32 | 3/4" | 0.260" | 0.103" | 100 | $6.87 | Add to Order |
| MSS-2581 | 6-32 | 7/8" | 0.260" | 0.103" | 100 | $6.78 | Add to Order |
| MSS-2582 | 6-32 | 1" | 0.260" | 0.103" | 100 | $9.94 | Add to Order |
| MSS-2583 | 6-32 | 1 1/4" | 0.260" | 0.103" | 100 | $8.65 | Add to Order |
| MSS-2551 | 6-32 | 1 1/2" | 0.260" | 0.103" | 100 | $9.70 | Add to Order |
| MSS-2574 | 6-32 | 1 3/4" | 0.260" | 0.103" | 100 | $11.45 | Add to Order |
| MSS-2572 | 6-32 | 2" | 0.260" | 0.103" | 100 | $14.51 | Add to Order |
| MSS-2540 | 6-32 | 2 1/2" | 0.260" | 0.103" | 100 | $14.43 | Add to Order |
| MSS-2541 | 6-32 | 3" | 0.260" | 0.103" | 100 | $19.15 | Add to Order |
| MSS-2542 | 6-32 | 4" | 0.260" | 0.103" | 100 | $25.18 | Add to Order |
| MSS-2543 | 8-32 | 3/16" | 0.309" | 0.120" | 100 | $9.43 | Add to Order |
| MSS-2544 | 8-32 | 1/4" | 0.309" | 0.120" | 100 | $7.58 | Add to Order |
| MSS-2545 | 8-32 | 5/16" | 0.309" | 0.120" | 100 | $6.09 | Add to Order |
| MSS-2546 | 8-32 | 3/8" | 0.309" | 0.120" | 100 | $7.06 | Add to Order |
| MSS-2547 | 8-32 | 7/16" | 0.309" | 0.120" | 100 | $11.53 | Add to Order |
| MSS-2548 | 8-32 | 1/2" | 0.309" | 0.120" | 100 | $8.13 | Add to Order |
| MSS-2561 | 8-32 | 5/8" | 0.309" | 0.120" | 100 | $8.02 | Add to Order |
| MSS-2454 | 8-32 | 3/4" | 0.309" | 0.120" | 100 | $10.12 | Add to Order |
| MSS-2467 | 8-32 | 7/8" | 0.309" | 0.120" | 100 | $10.96 | Add to Order |
| MSS-2456 | 8-32 | 1" | 0.309" | 0.120" | 100 | $13.31 | Add to Order |
| MSS-2445 | 8-32 | 1 1/4" | 0.309" | 0.120" | 100 | $13.00 | Add to Order |
| MSS-2458 | 8-32 | 1 1/2" | 0.309" | 0.120" | 100 | $15.83 | Add to Order |
| MSS-2459 | 8-32 | 1 3/4" | 0.309" | 0.120" | 100 | $22.60 | Add to Order |
| MSS-2460 | 8-32 | 2" | 0.309" | 0.120" | 100 | $19.87 | Add to Order |
| MSS-2461 | 8-32 | 2 1/4" | 0.309" | 0.120" | 100 | $24.34 | Add to Order |
| MSS-2462 | 8-32 | 2 1/2" | 0.309" | 0.120" | 100 | $30.40 | Add to Order |
| MSS-2463 | 8-32 | 2 3/4" | 0.309" | 0.120" | 100 | $51.41 | Add to Order |
| MSS-2464 | 8-32 | 3" | 0.309" | 0.120" | 100 | $30.81 | Add to Order |
| MSS-2465 | 8-32 | 3 1/2" | 0.309" | 0.120" | 100 | $32.55 | Add to Order |
| MSS-2502 | 8-32 | 4" | 0.309" | 0.120" | 100 | $33.89 | Add to Order |
| MSS-2455 | 8-32 | 5" | 0.309" | 0.120" | 10 | $24.04 | Add to Order |
| MSS-2490 | 8-32 | 6" | 0.309" | 0.120" | 10 | $36.02 | Add to Order |
| MSS-2516 | 10-24 | 1/4" | 0.359" | 0.137" | 100 | $8.06 | Add to Order |
| MSS-2517 | 10-24 | 5/16" | 0.359" | 0.137" | 100 | $8.04 | Add to Order |
| MSS-2518 | 10-24 | 3/8" | 0.359" | 0.137" | 100 | $8.63 | Add to Order |
| MSS-2519 | 10-24 | 1/2" | 0.359" | 0.137" | 100 | $9.83 | Add to Order |
| MSS-2520 | 10-24 | 5/8" | 0.359" | 0.137" | 100 | $10.06 | Add to Order |
| MSS-2521 | 10-24 | 3/4" | 0.359" | 0.137" | 100 | $10.54 | Add to Order |
| MSS-2522 | 10-24 | 7/8" | 0.359" | 0.137" | 100 | $10.44 | Add to Order |
| MSS-2523 | 10-24 | 1" | 0.359" | 0.137" | 100 | $16.36 | Add to Order |
| MSS-2524 | 10-24 | 1 1/4" | 0.359" | 0.137" | 100 | $23.04 | Add to Order |
| MSS-2538 | 10-24 | 1 1/2" | 0.359" | 0.137" | 100 | $20.43 | Add to Order |
| MSS-2526 | 10-24 | 1 3/4" | 0.359" | 0.137" | 100 | $38.24 | Add to Order |
| MSS-2515 | 10-24 | 2" | 0.359" | 0.137" | 100 | $37.21 | Add to Order |
| MSS-2528 | 10-24 | 2 1/4" | 0.359" | 0.137" | 100 | $32.21 | Add to Order |
| MSS-2529 | 10-24 | 2 1/2" | 0.359" | 0.137" | 100 | $28.96 | Add to Order |
| MSS-2530 | 10-24 | 2 3/4" | 0.359" | 0.137" | 100 | $67.28 | Add to Order |
| MSS-2531 | 10-24 | 3" | 0.359" | 0.137" | 100 | $54.45 | Add to Order |
| MSS-2532 | 10-24 | 3 1/2" | 0.359" | 0.137" | 100 | $47.08 | Add to Order |
| MSS-2533 | 10-24 | 4" | 0.359" | 0.137" | 100 | $27.59 | Add to Order |
| MSS-2534 | 10-24 | 5" | 0.359" | 0.137" | 50 | $36.14 | Add to Order |
| MSS-2535 | 10-24 | 6" | 0.359" | 0.137" | 50 | $49.31 | Add to Order |
| MSS-2536 | 10-32 | 1/4" | 0.359" | 0.137" | 100 | $10.35 | Add to Order |
| MSS-2504 | 10-32 | 5/16" | 0.359" | 0.137" | 100 | $23.63 | Add to Order |
| MSS-2527 | 10-32 | 3/8" | 0.359" | 0.137" | 100 | $11.60 | Add to Order |
| MSS-2525 | 10-32 | 7/16" | 0.359" | 0.137" | 100 | $9.81 | Add to Order |
| MSS-2493 | 10-32 | 1/2" | 0.359" | 0.137" | 100 | $11.80 | Add to Order |
| MSS-2494 | 10-32 | 5/8" | 0.359" | 0.137" | 100 | $10.71 | Add to Order |
| MSS-2495 | 10-32 | 3/4" | 0.359" | 0.137" | 100 | $13.10 | Add to Order |
| MSS-2496 | 10-32 | 7/8" | 0.359" | 0.137" | 100 | $19.89 | Add to Order |
| MSS-2497 | 10-32 | 1" | 0.359" | 0.137" | 100 | $14.43 | Add to Order |
| MSS-2498 | 10-32 | 1 1/8" | 0.359" | 0.137" | 100 | $54.16 | Add to Order |
| MSS-2499 | 10-32 | 1 1/4" | 0.359" | 0.137" | 100 | $15.71 | Add to Order |
| MSS-2500 | 10-32 | 1 1/2" | 0.359" | 0.137" | 100 | $17.89 | Add to Order |
| MSS-2501 | 10-32 | 1 3/4" | 0.359" | 0.137" | 100 | $21.65 | Add to Order |
| MSS-2514 | 10-32 | 2" | 0.359" | 0.137" | 100 | $23.60 | Add to Order |
| MSS-2503 | 10-32 | 2 1/4" | 0.359" | 0.137" | 100 | $26.73 | Add to Order |
| MSS-2492 | 10-32 | 2 1/2" | 0.359" | 0.137" | 100 | $28.46 | Add to Order |
| MSS-2505 | 10-32 | 2 3/4" | 0.359" | 0.137" | 50 | $44.63 | Add to Order |
| MSS-9167 | 10-32 | 3" | 0.359" | 0.137" | 50 | $30.72 | Add to Order |
| MSS-9168 | 10-32 | 3 1/2" | 0.359" | 0.137" | 50 | $24.19 | Add to Order |
| MSS-9169 | 10-32 | 4" | 0.359" | 0.137" | 50 | $59.05 | Add to Order |
| MSS-9170 | 10-32 | 5" | 0.359" | 0.137" | 50 | $31.42 | Add to Order |
| MSS-9171 | 10-32 | 6" | 0.359" | 0.137" | 25 | $21.97 | Add to Order |
| MSS-9172 | 12-24 | 1/4" | 0.408" | 0.153" | 100 | $16.15 | Add to Order |
| MSS-9173 | 12-24 | 3/8" | 0.408" | 0.153" | 100 | $13.80 | Add to Order |
| MSS-9174 | 12-24 | 1/2" | 0.408" | 0.153" | 100 | $13.99 | Add to Order |
| MSS-9175 | 12-24 | 5/8" | 0.408" | 0.153" | 100 | $18.14 | Add to Order |
| MSS-9176 | 12-24 | 3/4" | 0.408" | 0.153" | 100 | $18.50 | Add to Order |
| MSS-2506 | 12-24 | 1" | 0.408" | 0.153" | 100 | $20.31 | Add to Order |
| MSS-2507 | 12-24 | 1 1/4" | 0.408" | 0.153" | 100 | $17.18 | Add to Order |
| MSS-2508 | 12-24 | 1 1/2" | 0.408" | 0.153" | 100 | $27.11 | Add to Order |
| MSS-2509 | 12-24 | 2" | 0.408" | 0.153" | 100 | $27.66 | Add to Order |
| MSS-2510 | 12-24 | 2 1/2" | 0.408" | 0.153" | 50 | $20.85 | Add to Order |
| MSS-2511 | 12-24 | 3" | 0.408" | 0.153" | 50 | $22.11 | Add to Order |
| MSS-2512 | 1/4"-20 | 1/4" | 0.472" | 0.175" | 100 | $37.70 | Add to Order |
| MSS-1503 | 1/4"-20 | 5/16" | 0.472" | 0.175" | 100 | $39.94 | Add to Order |
| MSS-2751 | 1/4"-20 | 3/8" | 0.472" | 0.175" | 100 | $16.00 | Add to Order |
| MSS-1623 | 1/4"-20 | 1/2" | 0.472" | 0.175" | 100 | $19.68 | Add to Order |
| MSS-495 | 1/4"-20 | 5/8" | 0.472" | 0.175" | 100 | $17.91 | Add to Order |
| MSS-496 | 1/4"-20 | 3/4" | 0.472" | 0.175" | 100 | $18.40 | Add to Order |
| MSS-497 | 1/4"-20 | 7/8" | 0.472" | 0.175" | 100 | $17.75 | Add to Order |

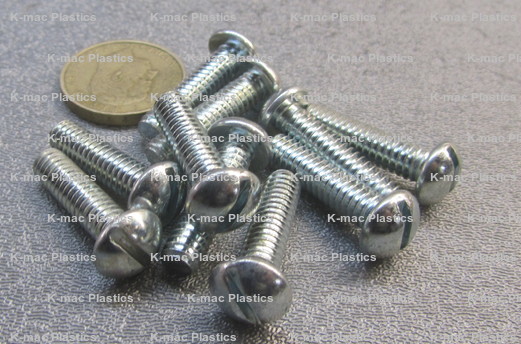

| MSS-498 | 1/4"-20 | 1" | 0.472" | 0.175" | 100 | $24.68 | Add to Order |
| MSS-499 | 1/4"-20 | 1 1/8" | 0.472" | 0.175" | 100 | $27.01 | Add to Order |
| MSS-500 | 1/4"-20 | 1 1/4" | 0.472" | 0.175" | 100 | $11.30 | Add to Order |
| MSS-501 | 1/4"-20 | 1 1/2" | 0.472" | 0.175" | 100 | $29.65 | Add to Order |
| MSS-502 | 1/4"-20 | 1 3/4" | 0.472" | 0.175" | 100 | $30.41 | Add to Order |
| MSS-503 | 1/4"-20 | 2" | 0.472" | 0.175" | 100 | $32.51 | Add to Order |
| MSS-517 | 1/4"-20 | 2 1/4" | 0.472" | 0.175" | 100 | $38.96 | Add to Order |
| MSS-505 | 1/4"-20 | 2 1/2" | 0.472" | 0.175" | 100 | $37.44 | Add to Order |
| MSS-494 | 1/4"-20 | 2 3/4" | 0.472" | 0.175" | 50 | $22.01 | Add to Order |
| MSS-507 | 1/4"-20 | 3" | 0.472" | 0.175" | 50 | $23.56 | Add to Order |
| MSS-508 | 1/4"-20 | 3 1/2" | 0.472" | 0.175" | 50 | $41.10 | Add to Order |
| MSS-509 | 1/4"-20 | 4" | 0.472" | 0.175" | 50 | $30.51 | Add to Order |
| MSS-510 | 1/4"-20 | 4 1/2" | 0.472" | 0.175" | 25 | $19.49 | Add to Order |
| MSS-511 | 1/4"-20 | 5" | 0.472" | 0.175" | 25 | $18.84 | Add to Order |
| MSS-512 | 1/4"-20 | 6" | 0.472" | 0.175" | 25 | $23.18 | Add to Order |
| MSS-513 | 1/4"-28 | 1/2" | 0.472" | 0.175" | 100 | $57.90 | Add to Order |
| MSS-514 | 1/4"-28 | 3/4" | 0.472" | 0.175" | 100 | $39.77 | Add to Order |
| MSS-515 | 1/4"-28 | 1" | 0.472" | 0.175" | 50 | $26.46 | Add to Order |
| MSS-483 | 1/4"-28 | 1 1/2" | 0.472" | 0.175" | 50 | $51.74 | Add to Order |
| MSS-506 | 1/4"-28 | 2" | 0.472" | 0.175" | 50 | $30.85 | Add to Order |
| MSS-504 | 5/16"-18 | 3/8" | 0.590" | 0.216" | 50 | $19.26 | Add to Order |
| MSS-472 | 5/16"-18 | 1/2" | 0.590" | 0.216" | 100 | $44.60 | Add to Order |
| MSS-473 | 5/16"-18 | 5/8" | 0.590" | 0.216" | 50 | $41.16 | Add to Order |
| MSS-474 | 5/16"-18 | 3/4" | 0.590" | 0.216" | 100 | $28.10 | Add to Order |
| MSS-475 | 5/16"-18 | 1" | 0.590" | 0.216" | 50 | $23.56 | Add to Order |
| MSS-476 | 5/16"-18 | 1 1/4" | 0.590" | 0.216" | 50 | $49.25 | Add to Order |
| MSS-477 | 5/16"-18 | 1 1/2" | 0.590" | 0.216" | 50 | $50.44 | Add to Order |
| MSS-478 | 5/16"-18 | 2" | 0.590" | 0.216" | 25 | $16.57 | Add to Order |
| MSS-479 | 5/16"-18 | 2 1/4" | 0.590" | 0.216" | 25 | $35.36 | Add to Order |
| MSS-480 | 5/16"-18 | 2 1/2" | 0.590" | 0.216" | 25 | $20.37 | Add to Order |
| MSS-493 | 5/16"-18 | 3" | 0.590" | 0.216" | 25 | $22.03 | Add to Order |
| MSS-482 | 5/16"-18 | 4" | 0.590" | 0.216" | 50 | $63.34 | Add to Order |
| MSS-471 | 5/16"-18 | 5" | 0.590" | 0.216" | 10 | $17.03 | Add to Order |
| MSS-9177 | 3/8"-16 | 1/2" | 0.708" | 0.256" | 100 | $78.23 | Add to Order |
| MSS-9178 | 3/8"-16 | 3/4" | 0.708" | 0.256" | 25 | $18.79 | Add to Order |
| MSS-9179 | 3/8"-16 | 1" | 0.708" | 0.256" | 25 | $18.96 | Add to Order |
| MSS-9180 | 3/8"-16 | 1 1/2" | 0.708" | 0.256" | 25 | $22.49 | Add to Order |
| MSS-9181 | 3/8"-16 | 2" | 0.708" | 0.256" | 25 | $27.38 | Add to Order |
| MSS-9182 | 3/8"-16 | 3" | 0.708" | 0.256" | 10 | $20.18 | Add to Order |
| MSS-9183 | 3/8"-16 | 4" | 0.708" | 0.256" | 10 | $21.84 | Add to Order |
| MSS-488 | 3/8"-16 | 5" | 0.708" | 0.256" | 10 | $23.10 | Add to Order |
| MSS-489 | 1/2"-13 | 1" | 0.813" | 0.355" | 10 | $42.21 | Add to Order |
| MSS-490 | 1/2"-13 | 1 1/2" | 0.813" | 0.355" | 10 | $27.59 | Add to Order |
| MSS-491 | 1/2"-13 | 2" | 0.813" | 0.355" | 10 | $29.88 | Add to Order |
| MSS-528 | 1/2"-13 | 3" | 0.813" | 0.355" | 10 | $28.85 | Add to Order |
| MSS-481 | 1/2"-13 | 4" | 0.813" | 0.355" | 5 | $19.53 | Add to Order |
| Rev. 03-25, 01-24, 10-23, 08-23 | |||||||
