18-8 Stainless Round Head Phillips Machine Screws
Machine Screws - Round Head Phillips Drive, Class 2A, *Fully Threaded.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic.
| 18-8 Stainless Steel Round Head Phillips Machine Screws Full Threads, Unless Noted with "PT". Partial threads have 1.50" Minimum of thread length. |
||||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-2864 | 0-80 | 1/8" | 0.113" | 0.053" | No. 0 | 100 | $14.72 | Add to Order |
| MSS-2865 | 0-80 | 3/16" | 0.113" | 0.053" | No. 0 | 100 | $15.16 | Add to Order |
| MSS-2833 | 0-80 | 1/4" | 0.113" | 0.053" | No. 0 | 100 | $15.62 | Add to Order |
| MSS-2856 | 0-80 | 3/8" | 0.113" | 0.053" | No. 0 | 100 | $16.38 | Add to Order |
| MSS-2854 | 0-80 | 1/2" | 0.113" | 0.053" | No. 0 | 100 | $16.76 | Add to Order |
| MSS-2822 | 0-80 | 3/4" | 0.113" | 0.053" | No. 0 | 100 | $19.19 | Add to Order |
| MSS-2823 | 0-80 | 1" | 0.113" | 0.053" | No. 0 | 100 | $28.41 | Add to Order |
| MSS-2824 | 1-64 | 3/16" | 0.137" | 0.061" | No. 0 | 100 | $19.09 | Add to Order |
| MSS-2825 | 1-64 | 1/4" | 0.137" | 0.061" | No. 0 | 100 | $20.56 | Add to Order |
| MSS-2826 | 1-64 | 3/8" | 0.137" | 0.061" | No. 0 | 100 | $22.01 | Add to Order |
| MSS-2827 | 1-64 | 1/2" | 0.137" | 0.061" | No. 0 | 100 | $24.00 | Add to Order |
| MSS-6030 | 1-64 | 1" | 0.137" | 0.061" | No. 0 | 50 | $20.85 | Add to Order |
| MSS-2716 | 1-72 | 3/16" | 0.137" | 0.061" | No. 0 | 100 | $19.85 | Add to Order |
| MSS-2717 | 1-72 | 1/4" | 0.137" | 0.061" | No. 0 | 100 | $21.36 | Add to Order |
| MSS-2718 | 1-72 | 3/8" | 0.137" | 0.061" | No. 0 | 100 | $22.89 | Add to Order |
| MSS-2719 | 1-72 | 1/2" | 0.137" | 0.061" | No. 0 | 100 | $24.95 | Add to Order |
| MSS-2720 | 1-72 | 3/4" | 0.137" | 0.061" | No. 0 | 50 | $15.35 | Add to Order |
| MSS-2721 | 1-72 | 1" | 0.137" | 0.061" | No. 0 | 50 | $20.85 | Add to Order |

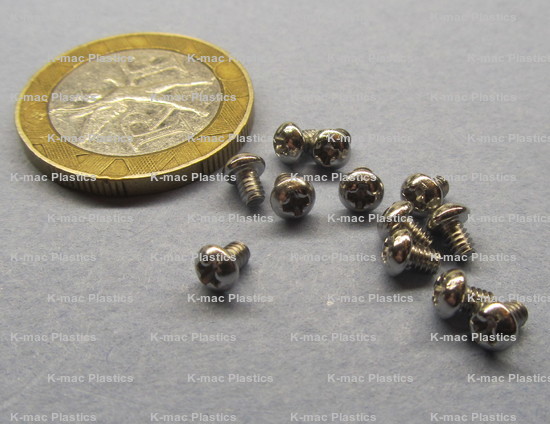

| MSS-2722 | 2-56 | 1/8" | 0.162" | 0.069" | No. 1 | 100 | $9.35 | Add to Order |
| MSS-2723 | 2-56 | 3/16" | 0.162" | 0.069" | No. 1 | 100 | $7.56 | Add to Order |
| MSS-2724 | 2-56 | 1/4" | 0.162" | 0.069" | No. 1 | 100 | $7.73 | Add to Order |

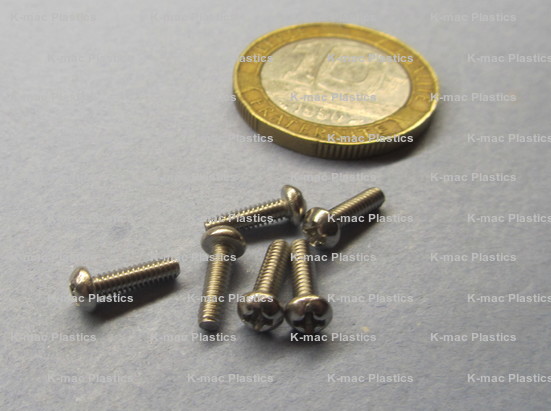

| MSS-2692 | 2-56 | 5/16" | 0.162" | 0.069" | No. 1 | 100 | $8.34 | Add to Order |
| MSS-2715 | 2-56 | 3/8" | 0.162" | 0.069" | No. 1 | 100 | $8.53 | Add to Order |
| MSS-2713 | 2-56 | 1/2" | 0.162" | 0.069" | No. 1 | 100 | $9.32 | Add to Order |
| MSS-2681 | 2-56 | 5/8" | 0.162" | 0.069" | No. 1 | 100 | $10.12 | Add to Order |

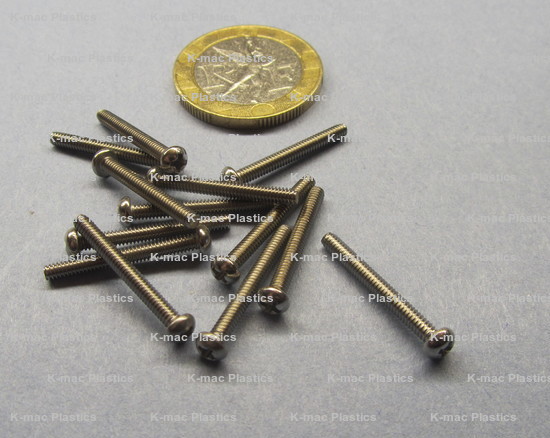

| MSS-2682 | 2-56 | 3/4" | 0.162" | 0.069" | No. 1 | 100 | $9.56 | Add to Order |
| MSS-2683 | 2-56 | 7/8" | 0.162" | 0.069" | No. 1 | 100 | $9.45 | Add to Order |
| MSS-2684 | 2-56 | 1" | 0.162" | 0.069" | No. 1 | 100 | $10.04 | Add to Order |
| MSS-2685 | 2-56 | 1 1/4" | 0.162" | 0.069" | No. 1 | 100 | $22.55 | Add to Order |
| MSS-2686 | 2-56 | 1 1/2" | 0.162" | 0.069" | No. 1 | 50 | $23.35 | Add to Order |
| MSS-2687 | 3-48 | 1/4" | 0.187" | 0.078" | No. 1 | 100 | $14.57 | Add to Order |
| MSS-2688 | 3-48 | 3/8" | 0.187" | 0.078" | No. 1 | 100 | $15.94 | Add to Order |
| MSS-2689 | 3-48 | 1/2" | 0.187" | 0.078" | No. 1 | 100 | $16.97 | Add to Order |
| MSS-2691 | 3-48 | 5/8" | 0.187" | 0.078" | No. 1 | 100 | $19.40 | Add to Order |
| MSS-2680 | 3-48 | 3/4" | 0.187" | 0.078" | No. 1 | 100 | $22.89 | Add to Order |
| MSS-2693 | 3-48 | 1" | 0.187" | 0.078" | No. 1 | 50 | $13.25 | Add to Order |
| MSS-2694 | 4-40 | 1/8" | 0.211" | 0.086" | No. 1 | 100 | $14.81 | Add to Order |
| MSS-2695 | 4-40 | 3/16" | 0.211" | 0.086" | No. 1 | 100 | $8.19 | Add to Order |
| MSS-2696 | 4-40 | 1/4" | 0.211" | 0.086" | No. 1 | 100 | $6.01 | Add to Order |
| MSS-2697 | 4-40 | 5/16" | 0.211" | 0.086" | No. 1 | 100 | $6.89 | Add to Order |
| MSS-2698 | 4-40 | 3/8" | 0.211" | 0.086" | No. 1 | 100 | $6.41 | Add to Order |
| MSS-6374 | 4-40 | 7/16" | 0.211" | 0.086" | No. 1 | 100 | $7.83 | Add to Order |
| MSS-2700 | 4-40 | 1/2" | 0.211" | 0.086" | No. 1 | 100 | $9.28 | Add to Order |
| MSS-2842 | 4-40 | 5/8" | 0.211" | 0.086" | No. 1 | 100 | $10.37 | Add to Order |
| MSS-6375 | 4-40 | 3/4" | 0.211" | 0.086" | No. 1 | 100 | $6.41 | Add to Order |
| MSS-2819 | 4-40 | 1" | 0.211" | 0.086" | No. 1 | 100 | $13.02 | Add to Order |
| MSS-2875 | 4-40 | 1 1/4" | 0.211" | 0.086" | No. 1 | 100 | $17.62 | Add to Order |
| MSS-6376 | 4-40 | 1 1/2" | 0.211" | 0.086" | No. 1 | 100 | $17.81 | Add to Order |
| MSS-2877 | 4-48 | 1/4" | 0.211" | 0.086" | No. 1 | 100 | $21.76 | Add to Order |
| MSS-2890 | 4-48 | 1/2" | 0.211" | 0.086" | No. 1 | 50 | $13.67 | Add to Order |
| MSS-2879 | 4-48 | 1" | 0.211" | 0.086" | No. 1 | 50 | $21.99 | Add to Order |
| MSS-2868 | 5-40 | 3/16" | 0.236" | 0.095" | No. 2 | 100 | $14.45 | Add to Order |
| MSS-2881 | 5-40 | 1/4" | 0.236" | 0.095" | No. 2 | 100 | $11.17 | Add to Order |
| MSS-2378 | 5-40 | 3/8" | 0.236" | 0.095" | No. 2 | 100 | $13.25 | Add to Order |
| MSS-2379 | 5-40 | 1/2" | 0.236" | 0.095" | No. 2 | 100 | $14.60 | Add to Order |
| MSS-2380 | 5-40 | 3/4" | 0.236" | 0.095" | No. 2 | 100 | $17.60 | Add to Order |
| MSS-2381 | 5-40 | 1" | 0.236" | 0.095" | No. 2 | 50 | $14.26 | Add to Order |
| MSS-2382 | 6-32 | 1/8" | 0.260" | 0.103" | No. 2 | 100 | $16.44 | Add to Order |
| MSS-2383 | 6-32 | 3/16" | 0.260" | 0.103" | No. 2 | 100 | $8.67 | Add to Order |
| MSS-2397 | 6-32 | 1/4" | 0.260" | 0.103" | No. 2 | 100 | $5.52 | Add to Order |
| MSS-2385 | 6-32 | 5/16" | 0.260" | 0.103" | No. 2 | 100 | $2.84 | Add to Order |
| MSS-2374 | 6-32 | 3/8" | 0.260" | 0.103" | No. 2 | 100 | $4.24 | Add to Order |
| MSS-2387 | 6-32 | 1/2" | 0.260" | 0.103" | No. 2 | 100 | $7.39 | Add to Order |
| MSS-2389 | 6-32 | 5/8" | 0.260" | 0.103" | No. 2 | 100 | $6.72 | Add to Order |
| MSS-2940 | 6-32 | 3/4" | 0.260" | 0.103" | No. 2 | 100 | $10.00 | Add to Order |
| MSS-2941 | 6-32 | 7/8" | 0.260" | 0.103" | No. 2 | 100 | $14.70 | Add to Order |
| MSS-2942 | 6-32 | 1" | 0.260" | 0.103" | No. 2 | 100 | $6.93 | Add to Order |
| MSS-2943 | 6-32 | 1 1/4" | 0.260" | 0.103" | No. 2 | 100 | $18.04 | Add to Order |
| MSS-2944 | 6-32 | 1 1/2" | 0.260" | 0.103" | No. 2 | 100 | $11.21 | Add to Order |
| MSS-2945 | 6-32 | 1 3/4" | 0.260" | 0.103" | No. 2 | 100 | $23.81 | Add to Order |
| MSS-2946 | 6-32 | 2" | 0.260" | 0.103" | No. 2 | 100 | $30.72 | Add to Order |
| MSS-1869 | 6-32 | 2 1/2" PT | 0.260" | 0.103" | No. 2 | 50 | $22.32 | Add to Order |
| MSS-1867 | 6-32 | 3" PT | 0.260" | 0.103" | No. 2 | 50 | $23.84 | Add to Order |
| MSS-1835 | 8-32 | 3/16" | 0.309" | 0.120" | No. 2 | 100 | $14.76 | Add to Order |
| MSS-1836 | 8-32 | 1/4" | 0.309" | 0.120" | No. 2 | 100 | $10.69 | Add to Order |
| MSS-1837 | 8-32 | 5/16" | 0.309" | 0.120" | No. 2 | 100 | $7.62 | Add to Order |
| MSS-1838 | 8-32 | 3/8" | 0.309" | 0.120" | No. 2 | 100 | $7.69 | Add to Order |
| MSS-1839 | 8-32 | 1/2" | 0.309" | 0.120" | No. 2 | 100 | $10.69 | Add to Order |
| MSS-1840 | 8-32 | 5/8" | 0.309" | 0.120" | No. 2 | 100 | $13.86 | Add to Order |
| MSS-1841 | 8-32 | 3/4" | 0.309" | 0.120" | No. 2 | 100 | $14.53 | Add to Order |
| MSS-1842 | 8-32 | 7/8" | 0.309" | 0.120" | No. 2 | 100 | $20.96 | Add to Order |
| MSS-1843 | 8-32 | 1" | 0.309" | 0.120" | No. 2 | 100 | $14.36 | Add to Order |
| MSS-1856 | 8-32 | 1 1/4" | 0.309" | 0.120" | No. 2 | 100 | $10.71 | Add to Order |
| MSS-1845 | 8-32 | 1 1/2" | 0.309" | 0.120" | No. 2 | 100 | $13.02 | Add to Order |

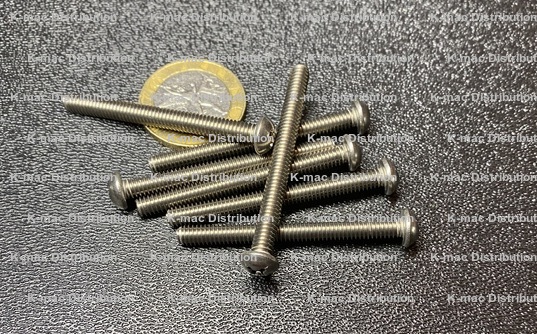

| MSS-1834 | 8-32 | 1 3/4" | 0.309" | 0.120" | No. 2 | 50 | $19.45 | Add to Order |

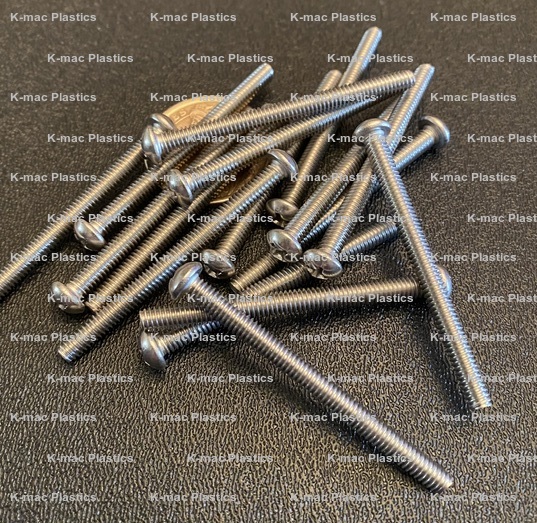

| MSS-1847 | 8-32 | 2" | 0.309" | 0.120" | No. 2 | 50 | $21.55 | Add to Order |
| MSS-1848 | 8-32 | 2 1/2" PT | 0.309" | 0.120" | No. 2 | 50 | $28.56 | Add to Order |
| MSS-1849 | 8-32 | 3" PT | 0.309" | 0.120" | No. 2 | 25 | $16.36 | Add to Order |
| MSS-1850 | 8-32 | 4" PT | 0.309" | 0.120" | No. 2 | 10 | $10.44 | Add to Order |
| MSS-1851 | 10-24 | 1/4" | 0.359" | 0.137" | No. 2 | 100 | $10.27 | Add to Order |
| MSS-1852 | 10-24 | 3/8" | 0.359" | 0.137" | No. 2 | 100 | $10.04 | Add to Order |
| MSS-1853 | 10-24 | 7/16" | 0.359" | 0.137" | No. 2 | 100 | $14.11 | Add to Order |
| MSS-1854 | 10-24 | 1/2" | 0.359" | 0.137" | No. 2 | 100 | $13.02 | Add to Order |
| MSS-1855 | 10-24 | 5/8" | 0.359" | 0.137" | No. 2 | 100 | $18.63 | Add to Order |

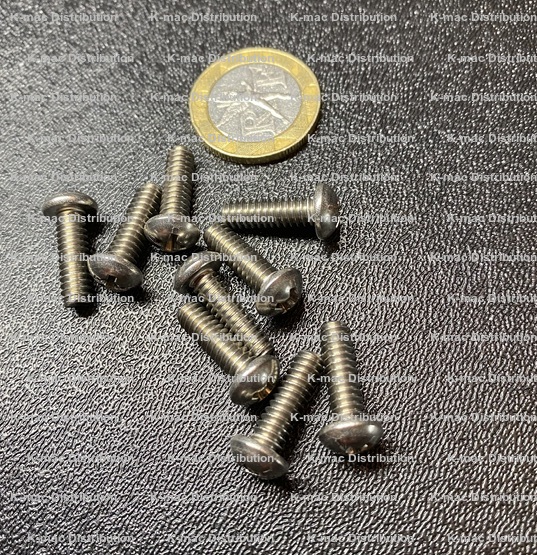

| MSS-1785 | 10-24 | 3/4" | 0.359" | 0.137" | No. 2 | 100 | $12.73 | Add to Order |

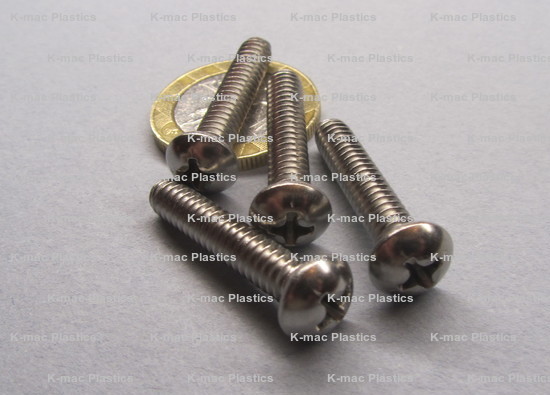

| MSS-1714 | 10-24 | 1" | 0.359" | 0.137" | No. 2 | 100 | $24.40 | Add to Order |
| MSS-1808 | 10-24 | 1 1/4" | 0.359" | 0.137" | No. 2 | 100 | $22.30 | Add to Order |
| MSS-1718 | 10-24 | 1 1/2" | 0.359" | 0.137" | No. 2 | 100 | $32.36 | Add to Order |
| MSS-1719 | 10-24 | 1 3/4" | 0.359" | 0.137" | No. 2 | 50 | $29.72 | Add to Order |
| MSS-1720 | 10-24 | 2" | 0.359" | 0.137" | No. 2 | 50 | $15.71 | Add to Order |
| MSS-1721 | 10-24 | 2 1/2" PT | 0.359" | 0.137" | No. 2 | 25 | $22.05 | Add to Order |
| MSS-1722 | 10-24 | 3" PT | 0.359" | 0.137" | No. 2 | 25 | $24.30 | Add to Order |
| MSS-2753 | 10-24 | 4" PT | 0.359" | 0.137" | No. 2 | 10 | $14.68 | Add to Order |
| MSS-2754 | 10-32 | 1/4" | 0.359" | 0.137" | No. 2 | 100 | $18.27 | Add to Order |
| MSS-2755 | 10-32 | 5/16" | 0.359" | 0.137" | No. 2 | 100 | $20.48 | Add to Order |

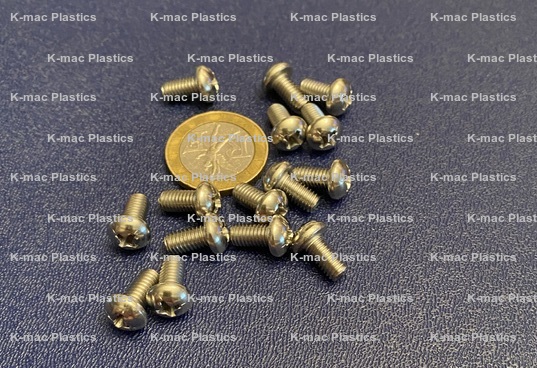

| MSS-2756 | 10-32 | 3/8" | 0.359" | 0.137" | No. 2 | 100 | $20.75 | Add to Order |

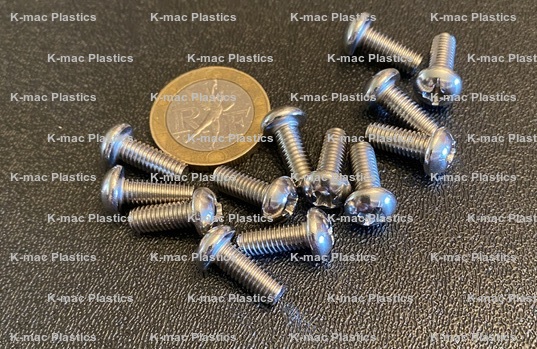

| MSS-2757 | 10-32 | 1/2" | 0.359" | 0.137" | No. 2 | 100 | $21.99 | Add to Order |

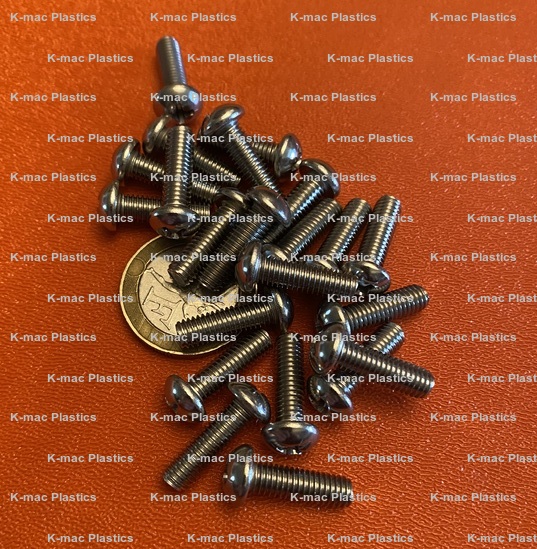

| MSS-2758 | 10-32 | 5/8" | 0.359" | 0.137" | No. 2 | 100 | $22.51 | Add to Order |
| MSS-2759 | 10-32 | 3/4" | 0.359" | 0.137" | No. 2 | 100 | $28.88 | Add to Order |
| MSS-2773 | 10-32 | 7/8" | 0.359" | 0.137" | No. 2 | 100 | $28.10 | Add to Order |
| MSS-2761 | 10-32 | 1" | 0.359" | 0.137" | No. 2 | 50 | $19.38 | Add to Order |
| MSS-2750 | 10-32 | 1 1/8" | 0.359" | 0.137" | No. 2 | 50 | $19.68 | Add to Order |
| MSS-2390 | 10-32 | 1 1/4" | 0.359" | 0.137" | No. 2 | 50 | $23.27 | Add to Order |
| MSS-2391 | 10-32 | 1 1/2" | 0.359" | 0.137" | No. 2 | 50 | $27.07 | Add to Order |
| MSS-2392 | 10-32 | 1 3/4" | 0.359" | 0.137" | No. 2 | 50 | $29.72 | Add to Order |
| MSS-2393 | 10-32 | 2" | 0.359" | 0.137" | No. 2 | 50 | $33.26 | Add to Order |
| MSS-6032 | 10-32 | 2 1/2" PT | 0.359" | 0.137" | No. 2 | 25 | $20.18 | Add to Order |
| MSS-6031 | 10-32 | 3" PT | 0.359" | 0.137" | No. 2 | 25 | $24.30 | Add to Order |
| MSS-2363 | 12-24 | 1/2" | 0.408" | 0.153" | No. 3 | 50 | $20.90 | Add to Order |
| MSS-2386 | 12-24 | 3/4" | 0.408" | 0.153" | No. 3 | 50 | $25.01 | Add to Order |
| MSS-2384 | 12-24 | 1" | 0.408" | 0.153" | No. 3 | 50 | $28.75 | Add to Order |
| MSS-2353 | 12-24 | 1 1/2" | 0.408" | 0.153" | No. 3 | 25 | $19.15 | Add to Order |
| MSS-2354 | 12-24 | 2" | 0.408" | 0.153" | No. 3 | 25 | $24.36 | Add to Order |
| MSS-2355 | 1/4"-20 | 1/4" | 0.472" | 0.175" | No. 3 | 50 | $15.90 | Add to Order |
| MSS-2356 | 1/4"-20 | 3/8" | 0.472" | 0.175" | No. 3 | 25 | $9.16 | Add to Order |
| MSS-2357 | 1/4"-20 | 1/2" | 0.472" | 0.175" | No. 3 | 50 | $15.90 | Add to Order |
| MSS-2358 | 1/4"-20 | 5/8" | 0.472" | 0.175" | No. 3 | 50 | $12.35 | Add to Order |
| MSS-2359 | 1/4"-20 | 3/4" | 0.472" | 0.175" | No. 3 | 25 | $14.93 | Add to Order |
| MSS-2360 | 1/4"-20 | 7/8" | 0.472" | 0.175" | No. 3 | 25 | $18.08 | Add to Order |
| MSS-6038 | 1/4"-20 | 1" | 0.472" | 0.175" | No. 3 | 50 | $19.61 | Add to Order |
| MSS-2763 | 1/4"-20 | 1 1/4" | 0.472" | 0.175" | No. 3 | 50 | $22.68 | Add to Order |
| MSS-2764 | 1/4"-20 | 1 1/2" | 0.472" | 0.175" | No. 3 | 50 | $24.11 | Add to Order |
| MSS-2765 | 1/4"-20 | 1 3/4" | 0.472" | 0.175" | No. 3 | 25 | $20.85 | Add to Order |
| MSS-2766 | 1/4"-20 | 2" | 0.472" | 0.175" | No. 3 | 25 | $21.48 | Add to Order |
| MSS-2767 | 1/4"-20 | 2 1/4" PT | 0.472" | 0.175" | No. 3 | 25 | $26.25 | Add to Order |
| MSS-2768 | 1/4"-20 | 2 1/2" PT | 0.472" | 0.175" | No. 3 | 10 | $13.36 | Add to Order |
| MSS-2769 | 1/4"-20 | 3" PT | 0.472" | 0.175" | No. 3 | 10 | $13.86 | Add to Order |
| MSS-2770 | 1/4"-20 | 3 1/2" PT | 0.472" | 0.175" | No. 3 | 10 | $16.63 | Add to Order |
| MSS-2771 | 1/4"-20 | 4" PT | 0.472" | 0.175" | No. 3 | 10 | $19.53 | Add to Order |
| MSS-2739 | 1/4"-28 | 1/2" | 0.472" | 0.175" | No. 3 | 50 | $22.81 | Add to Order |
| MSS-2762 | 1/4"-28 | 5/8" | 0.472" | 0.175" | No. 3 | 50 | $26.31 | Add to Order |
| MSS-2760 | 1/4"-28 | 3/4" | 0.472" | 0.175" | No. 3 | 25 | $15.86 | Add to Order |
| MSS-2728 | 1/4"-28 | 1" | 0.472" | 0.175" | No. 3 | 25 | $18.56 | Add to Order |
| MSS-2729 | 1/4"-28 | 1 1/4" | 0.472" | 0.175" | No. 3 | 25 | $22.26 | Add to Order |
| MSS-2730 | 1/4"-28 | 1 1/2" | 0.472" | 0.175" | No. 3 | 25 | $22.68 | Add to Order |
| MSS-2906 | 5/16"-18 | 1/2" | 0.590" | 0.216" | No. 3 | 25 | $21.36 | Add to Order |
| MSS-6048 | 5/16"-18 | 5/8" | 0.590" | 0.216" | No. 3 | 25 | $21.57 | Add to Order |
| MSS-6049 | 5/16"-18 | 3/4" | 0.590" | 0.216" | No. 3 | 25 | $22.01 | Add to Order |
| MSS-2908 | 5/16"-18 | 1" | 0.590" | 0.216" | No. 3 | 10 | $9.91 | Add to Order |
| MSS-2909 | 5/16"-18 | 1 1/4" | 0.590" | 0.216" | No. 3 | 10 | $14.95 | Add to Order |
| MSS-2910 | 5/16"-18 | 1 1/2" | 0.590" | 0.216" | No. 3 | 10 | $13.31 | Add to Order |
| MSS-2911 | 5/16"-18 | 2" | 0.590" | 0.216" | No. 3 | 10 | $15.56 | Add to Order |
| MSS-2912 | 5/16"-18 | 2 1/2" PT | 0.590" | 0.216" | No. 3 | 10 | $18.84 | Add to Order |
| MSS-2880 | 5/16"-18 | 3" PT | 0.590" | 0.216" | No. 3 | 5 | $12.50 | Add to Order |
| MSS-2903 | 5/16"-18 | 3 1/2" PT | 0.590" | 0.216" | No. 3 | 5 | $12.75 | Add to Order |
| MSS-2901 | 3/8"-16 | 3/4" | 0.708" | 0.256" | No. 4 | 10 | $13.59 | Add to Order |
| MSS-2869 | 3/8"-16 | 1" | 0.708" | 0.256" | No. 4 | 10 | $16.53 | Add to Order |
| MSS-2870 | 3/8"-16 | 1 1/2" | 0.708" | 0.256" | No. 4 | 10 | $22.28 | Add to Order |
| MSS-2872 | 3/8"-16 | 2" | 0.708" | 0.256" | No. 4 | 5 | $14.32 | Add to Order |
| MSS-2873 | 3/8"-16 | 3" PT | 0.708" | 0.256" | No. 4 | 5 | $21.00 | Add to Order |
| MSS-2874 | 3/8"-16 | 4" PT | 0.708" | 0.256" | No. 4 | 5 | $24.65 | Add to Order |
| Rev. 03-24, 10-23, 08-23, 02-23 | ||||||||
