Zinc Plated Slotted Pan Head Metric Machine Screws
Machine Screws - Metric, Pan Head, Slotted Drive, Zinc Plated, Class 6h, DIN 85, Fully Threaded.
Steel / Zinc Plated - Good rust resistance.
| Zinc Plated Steel Metric FT Pan Head Slotted Machine Screws | ||||||||
| Part # | Thread Size | Pitch (mm) | Length (mm) | Head Dia. (mm) | Head Height (mm) | Pkg Qty. | Pkg Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-9004 | M2 | 0.4 | 4 | 4 | 1.3 | 100 | $10.10 | Add to Order |
| MSS-9005 | M2 | 0.4 | 5 | 4 | 1.3 | 100 | $27.28 | Add to Order |
| MSS-9006 | M2 | 0.4 | 6 | 4 | 1.3 | 100 | $33.41 | Add to Order |

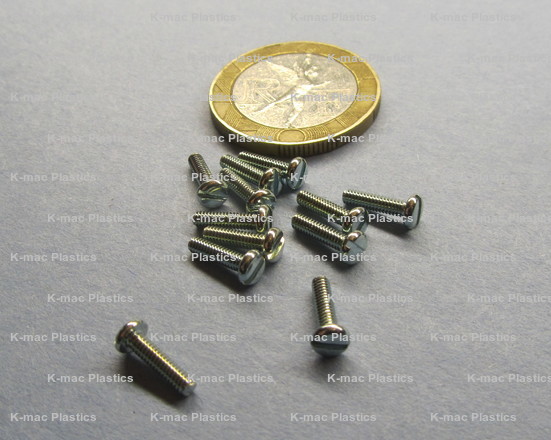

| MSS-9007 | M2 | 0.4 | 8 | 4 | 1.3 | 100 | $10.10 | Add to Order |

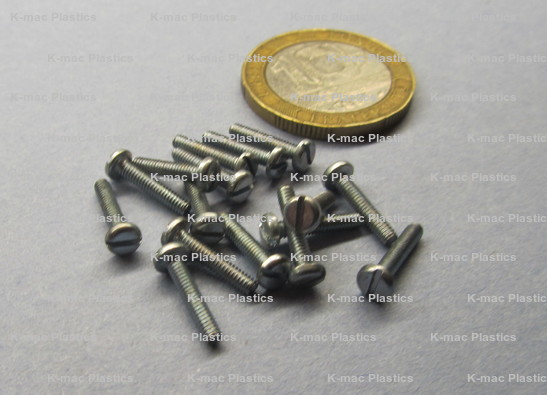

| MSS-9008 | M2 | 0.4 | 10 | 4 | 1.3 | 100 | $10.40 | Add to Order |

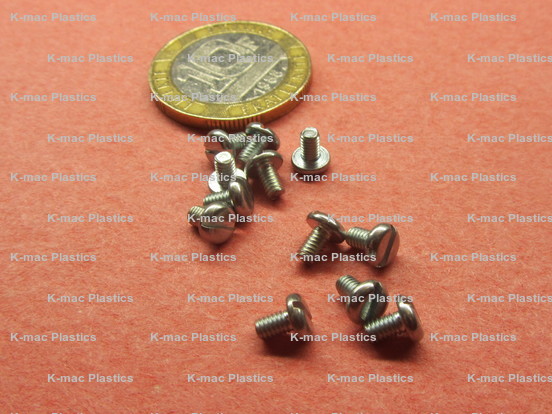

| MSS-1859 | M2.5 | 0.45 | 4 | 5 | 1.5 | 100 | $31.12 | Add to Order |

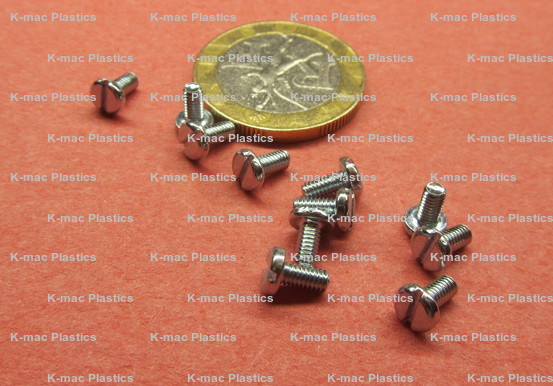

| MSS-1860 | M2.5 | 0.45 | 5 | 5 | 1.5 | 100 | $11.47 | Add to Order |
| MSS-1861 | M2.5 | 0.45 | 6 | 5 | 1.5 | 100 | $9.11 | Add to Order |
| MSS-1862 | M2.5 | 0.45 | 8 | 5 | 1.5 | 100 | $9.28 | Add to Order |
| MSS-1863 | M2.5 | 0.45 | 10 | 5 | 1.5 | 100 | $10.19 | Add to Order |

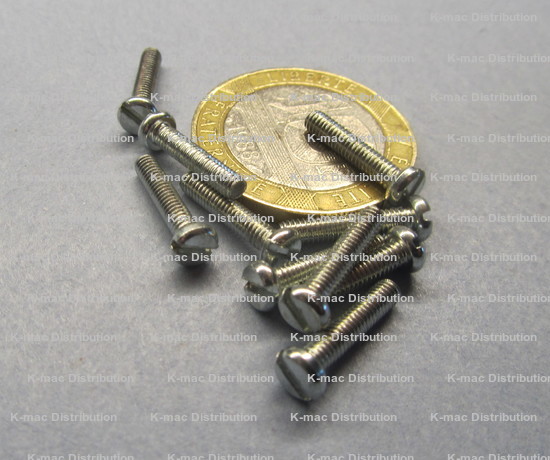

| MSS-1864 | M2.5 | 0.45 | 12 | 5 | 1.5 | 100 | $10.33 | Add to Order |
| MSS-1865 | M2.5 | 0.45 | 20 | 5 | 1.5 | 100 | $12.08 | Add to Order |
| MSS-1866 | M2.6 | 0.45 | 4 | 5 | 1.5 | 100 | $11.63 | Add to Order |

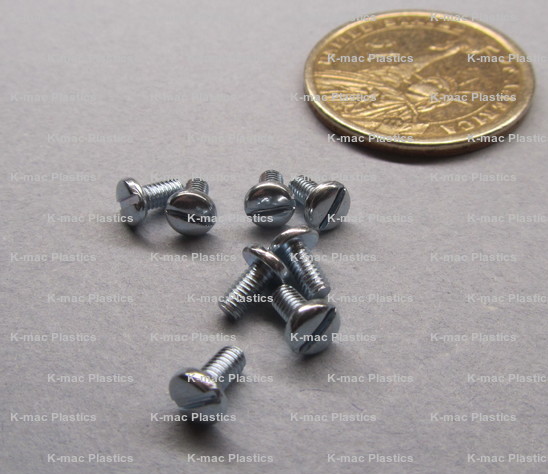

| MSS-1880 | M2.6 | 0.45 | 5 | 5 | 1.5 | 100 | $11.78 | Add to Order |

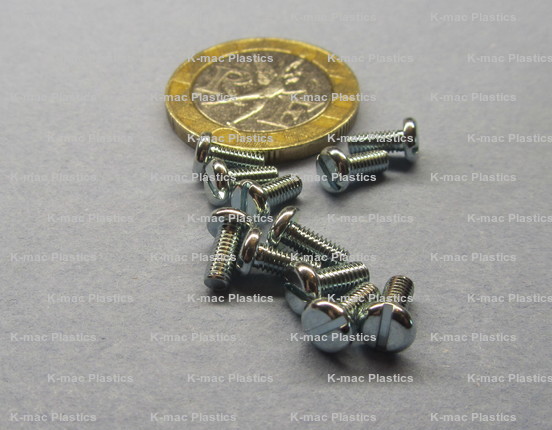

| MSS-1868 | M2.6 | 0.45 | 6 | 5 | 1.5 | 100 | $15.06 | Add to Order |
| MSS-1857 | M2.6 | 0.45 | 8 | 5 | 1.5 | 100 | $12.64 | Add to Order |
| MSS-1870 | M2.6 | 0.45 | 10 | 5 | 1.5 | 100 | $12.20 | Add to Order |

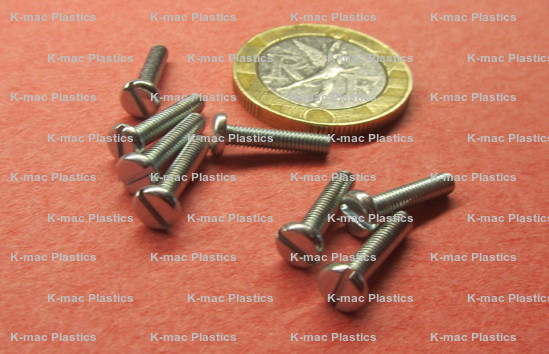

| MSS-1871 | M2.6 | 0.45 | 12 | 5 | 1.5 | 100 | $14.66 | Add to Order |

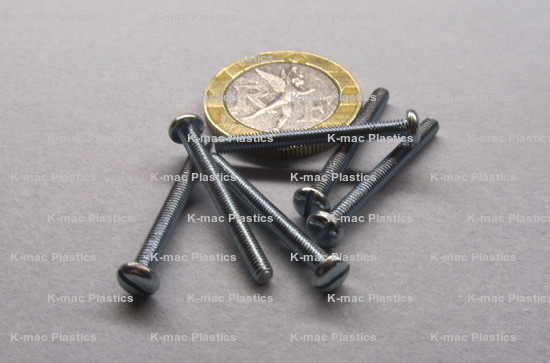

| MSS-1872 | M2.6 | 0.45 | 25 | 5 | 1.5 | 100 | $29.78 | Add to Order |

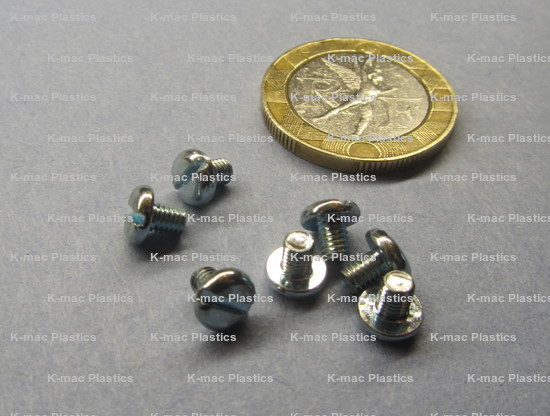

| MSS-9009 | M3 | 0.5 | 4 | 6 | 1.8 | 100 | $8.84 | Add to Order |
| MSS-1873 | M3 | 0.5 | 5 | 6 | 1.8 | 100 | $10.19 | Add to Order |
| MSS-1874 | M3 | 0.5 | 6 | 6 | 1.8 | 100 | $8.02 | Add to Order |
| MSS-1875 | M3 | 0.5 | 8 | 6 | 1.8 | 100 | $7.52 | Add to Order |
| MSS-1876 | M3 | 0.5 | 10 | 6 | 1.8 | 100 | $7.39 | Add to Order |
| MSS-1877 | M3 | 0.5 | 12 | 6 | 1.8 | 100 | $10.08 | Add to Order |
| MSS-1878 | M3 | 0.5 | 16 | 6 | 1.8 | 100 | $3.19 | Add to Order |

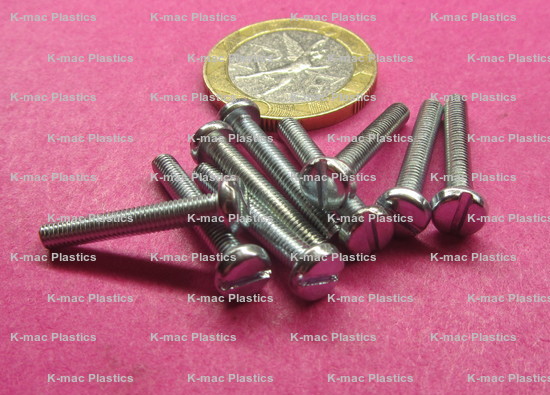

| MSS-1846 | M3 | 0.5 | 20 | 6 | 1.8 | 100 | $10.08 | Add to Order |
| MSS-1723 | M3 | 0.5 | 25 | 6 | 1.8 | 100 | $11.36 | Add to Order |
| MSS-1724 | M3 | 0.5 | 30 | 6 | 1.8 | 100 | $15.14 | Add to Order |

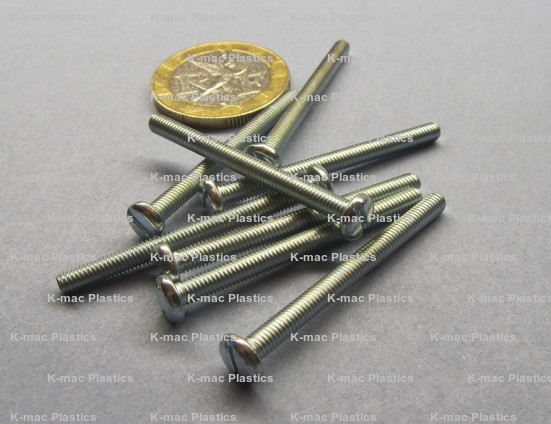

| MSS-1725 | M3 | 0.5 | 35 | 6 | 1.8 | 100 | $10.84 | Add to Order |
| MSS-1739 | M3 | 0.5 | 40 | 6 | 1.8 | 100 | $16.30 | Add to Order |

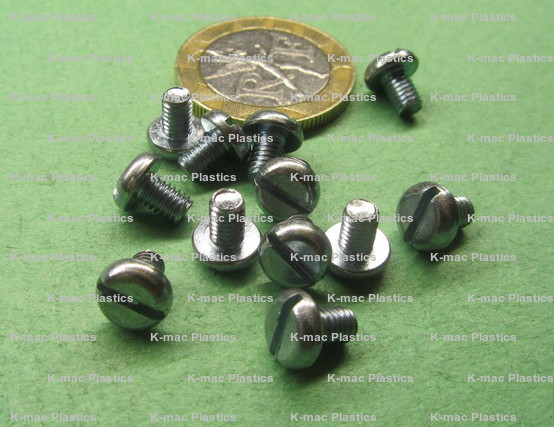

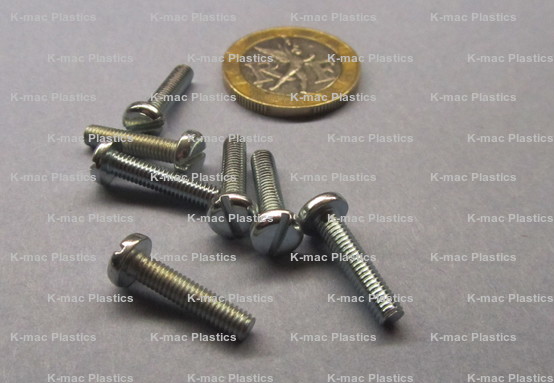

| MSS-1727 | M3.5 | 0.6 | 5 | 7 | 2.1 | 100 | $12.62 | Add to Order |

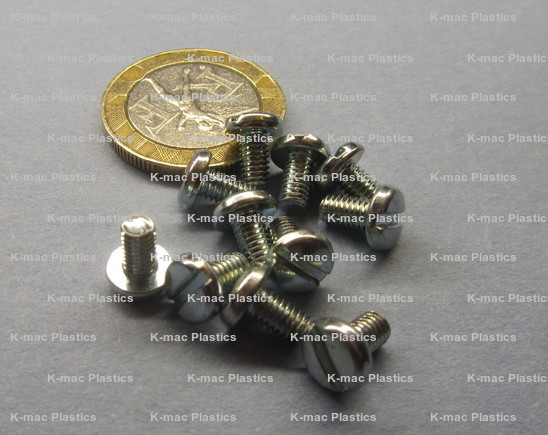

| MSS-1716 | M3.5 | 0.6 | 6 | 7 | 2.1 | 100 | $10.14 | Add to Order |
| MSS-1729 | M3.5 | 0.6 | 8 | 7 | 2.1 | 100 | $9.05 | Add to Order |
| MSS-1730 | M3.5 | 0.6 | 10 | 7 | 2.1 | 100 | $7.79 | Add to Order |
| MSS-1731 | M3.5 | 0.6 | 12 | 7 | 2.1 | 100 | $10.37 | Add to Order |
| MSS-1732 | M3.5 | 0.6 | 16 | 7 | 2.1 | 100 | $13.90 | Add to Order |
| MSS-1733 | M3.5 | 0.6 | 20 | 7 | 2.1 | 100 | $12.20 | Add to Order |

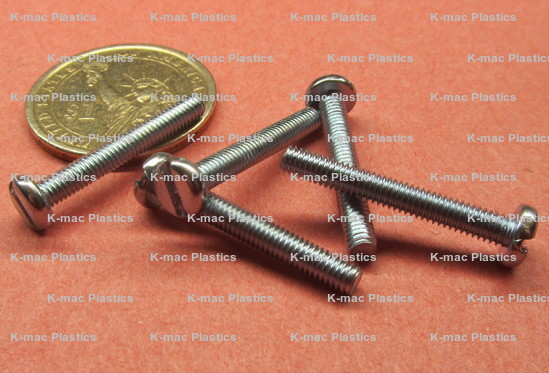

| MSS-1734 | M3.5 | 0.6 | 25 | 7 | 2.1 | 100 | $12.08 | Add to Order |
| MSS-1735 | M3.5 | 0.6 | 30 | 7 | 2.1 | 100 | $17.66 | Add to Order |

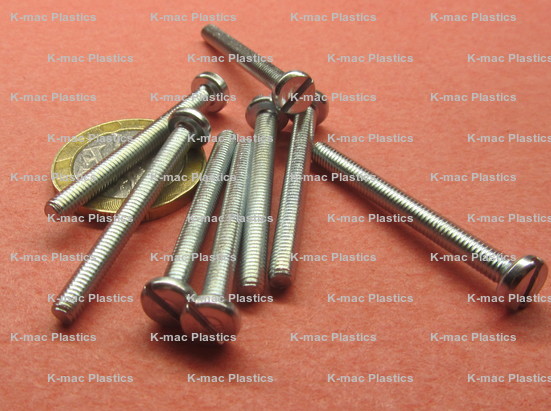

| MSS-1736 | M3.5 | 0.6 | 35 | 7 | 2.1 | 100 | $20.16 | Add to Order |
| MSS-1737 | M4 | 0.7 | 6 | 8 | 2.4 | 100 | $9.03 | Add to Order |

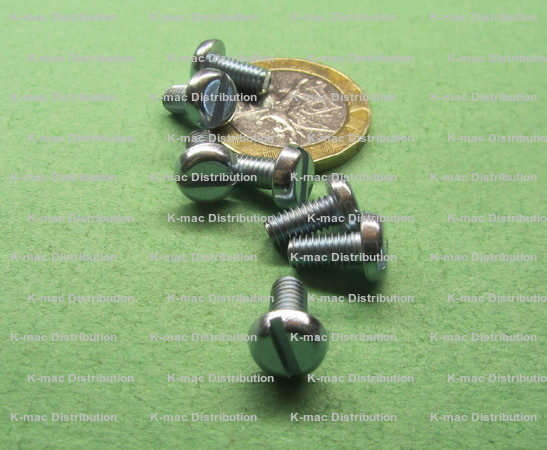

| MSS-1705 | M4 | 0.7 | 8 | 8 | 2.4 | 100 | $9.26 | Add to Order |
| MSS-1728 | M4 | 0.7 | 10 | 8 | 2.4 | 100 | $9.87 | Add to Order |
| MSS-1726 | M4 | 0.7 | 12 | 8 | 2.4 | 100 | $10.12 | Add to Order |
| MSS-1694 | M4 | 0.7 | 14 | 8 | 2.4 | 100 | $13.36 | Add to Order |
| MSS-1695 | M4 | 0.7 | 16 | 8 | 2.4 | 100 | $10.94 | Add to Order |
| MSS-1696 | M4 | 0.7 | 20 | 8 | 2.4 | 100 | $11.87 | Add to Order |

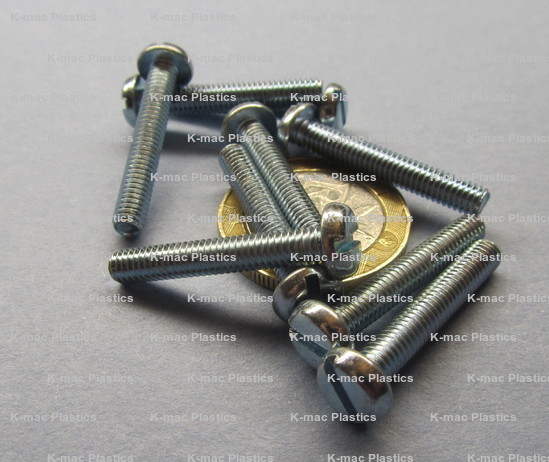

| MSS-1697 | M4 | 0.7 | 25 | 8 | 2.4 | 100 | $13.82 | Add to Order |
| MSS-1698 | M4 | 0.7 | 30 | 8 | 2.4 | 100 | $17.66 | Add to Order |
| MSS-1699 | M4 | 0.7 | 35 | 8 | 2.4 | 100 | $23.75 | Add to Order |

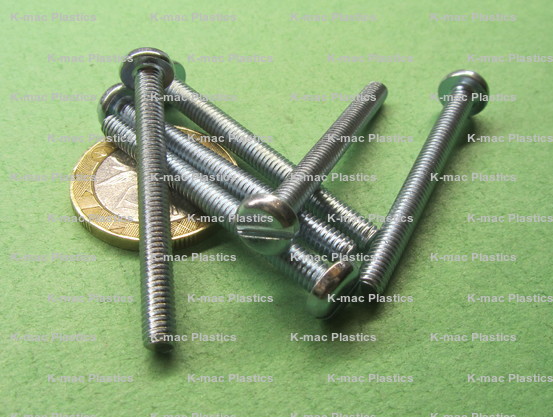

| MSS-1700 | M4 | 0.7 | 40 | 8 | 2.4 | 100 | $10.37 | Add to Order |
| MSS-1701 | M5 | 0.8 | 6 | 10 | 3 | 100 | $6.38 | Add to Order |
| MSS-1702 | M5 | 0.8 | 8 | 10 | 3 | 100 | $13.42 | Add to Order |
| MSS-1715 | M5 | 0.8 | 10 | 10 | 3 | 100 | $16.42 | Add to Order |
| MSS-1704 | M5 | 0.8 | 12 | 10 | 3 | 100 | $16.42 | Add to Order |
| MSS-1693 | M5 | 0.8 | 16 | 10 | 3 | 100 | $15.75 | Add to Order |
| MSS-1706 | M5 | 0.8 | 20 | 10 | 3 | 100 | $22.70 | Add to Order |
| MSS-1707 | M5 | 0.8 | 25 | 10 | 3 | 100 | $17.60 | Add to Order |
| MSS-1708 | M5 | 0.8 | 30 | 10 | 3 | 100 | $29.02 | Add to Order |
| MSS-1709 | M5 | 0.8 | 40 | 10 | 3 | 100 | $34.08 | Add to Order |
| MSS-1710 | M6 | 1 | 10 | 12 | 3.6 | 100 | $18.50 | Add to Order |
| MSS-1711 | M6 | 1 | 12 | 12 | 3.6 | 100 | $19.72 | Add to Order |
| MSS-1712 | M6 | 1 | 14 | 12 | 3.6 | 100 | $25.58 | Add to Order |
| MSS-1713 | M6 | 1 | 16 | 12 | 3.6 | 100 | $24.82 | Add to Order |
| MSS-1750 | M6 | 1 | 20 | 12 | 3.6 | 100 | $29.42 | Add to Order |
| MSS-1703 | M6 | 1 | 25 | 12 | 3.6 | 100 | $22.89 | Add to Order |
| MSS-9010 | M8 | 1.25 | 12 | 16 | 4.8 | 10 | $20.03 | Add to Order |
| MSS-9011 | M8 | 1.25 | 16 | 16 | 4.8 | 25 | $31.48 | Add to Order |
| MSS-9012 | M8 | 1.25 | 20 | 16 | 4.8 | 25 | $36.27 | Add to Order |
| MSS-9013 | M8 | 1.25 | 25 | 16 | 4.8 | 25 | $23.52 | Add to Order |
| MSS-9014 | M8 | 1.25 | 30 | 16 | 4.8 | 10 | $23.86 | Add to Order |
| MSS-9015 | M10 | 1.5 | 20 | 20 | 6 | 5 | $23.39 | Add to Order |
| MSS-9016 | M10 | 1.5 | 25 | 20 | 6 | 5 | $28.62 | Add to Order |
| MSS-9017 | M10 | 1.5 | 30 | 20 | 6 | 5 | $31.48 | Add to Order |
| Rev. 01-24, 10-23, 02-23, 11-22 | ||||||||
