Brass Pan Head Slotted Metric Machine Screws
Machine Screws - Metric Pan Head Slotted Drive, Class 6g, DIN 85, Fully Threaded.
Brass - Non-magnetic and good corrosion resistance.
| Metric Brass Pan Head Slotted FT DIN 85 Machine Screws | ||||||||
| Part # | Thread Size | Pitch | Length (mm) | Head Dia. (mm) | Head Height (mm) | Pkg Qty. | Pkg Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-1765 | M2.5 | 0.45 mm | 5 | 5 | 1.5 | 50 | $35.22 | Add to Order |

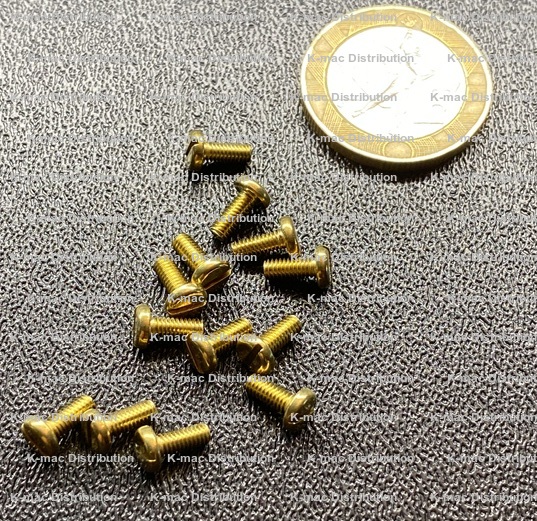

| MSS-1764 | M2.5 | 0.45 mm | 6 | 5 | 1.5 | 25 | $14.99 | Add to Order |

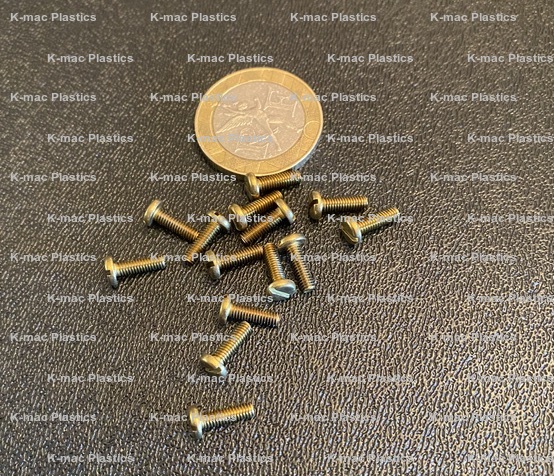

| MSS-1766 | M2.5 | 0.45 mm | 8 | 5 | 1.5 | 25 | $14.11 | Add to Order |

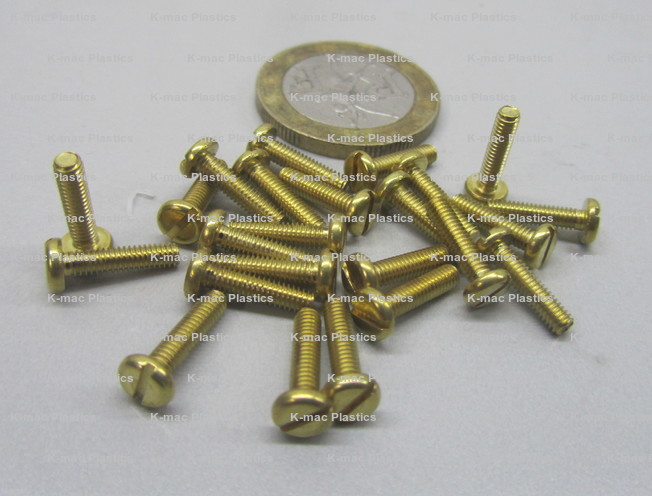

| MSS-1767 | M2.5 | 0.45 mm | 10 | 5 | 1.5 | 25 | $11.91 | Add to Order |
| MSS-1768 | M3 | 0.5 mm | 5 | 6 | 1.8 | 50 | $15.81 | Add to Order |
| MSS-1769 | M3 | 0.5 mm | 6 | 6 | 1.8 | 50 | $27.09 | Add to Order |
| MSS-1770 | M3 | 0.5 mm | 8 | 6 | 1.8 | 50 | $24.91 | Add to Order |
| MSS-1771 | M3 | 0.5 mm | 10 | 6 | 1.8 | 50 | $28.83 | Add to Order |
| MSS-1772 | M3 | 0.5 mm | 12 | 6 | 1.8 | 50 | $17.37 | Add to Order |
| MSS-1786 | M3 | 0.5 mm | 16 | 6 | 1.8 | 50 | $28.29 | Add to Order |
| MSS-1774 | M3 | 0.5 mm | 20 | 6 | 1.8 | 25 | $14.20 | Add to Order |
| MSS-1763 | M3 | 0.5 mm | 25 | 6 | 1.8 | 25 | $14.39 | Add to Order |
| MSS-1776 | M4 | 0.7 mm | 6 | 8 | 2.4 | 25 | $14.49 | Add to Order |

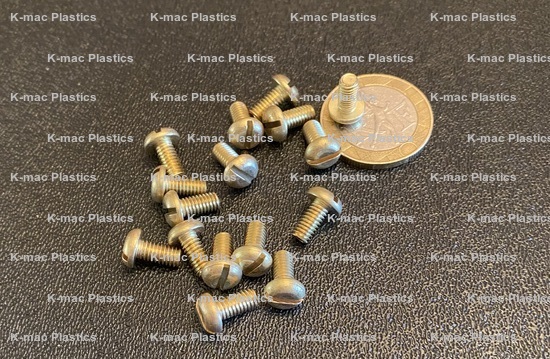

| MSS-1777 | M4 | 0.7 mm | 8 | 8 | 2.4 | 25 | $16.30 | Add to Order |
| MSS-1778 | M4 | 0.7 mm | 10 | 8 | 2.4 | 25 | $18.10 | Add to Order |
| MSS-1779 | M4 | 0.7 mm | 12 | 8 | 2.4 | 50 | $28.48 | Add to Order |
| MSS-1780 | M4 | 0.7 mm | 16 | 8 | 2.4 | 25 | $31.35 | Add to Order |
| MSS-1781 | M4 | 0.7 mm | 20 | 8 | 2.4 | 25 | $15.56 | Add to Order |

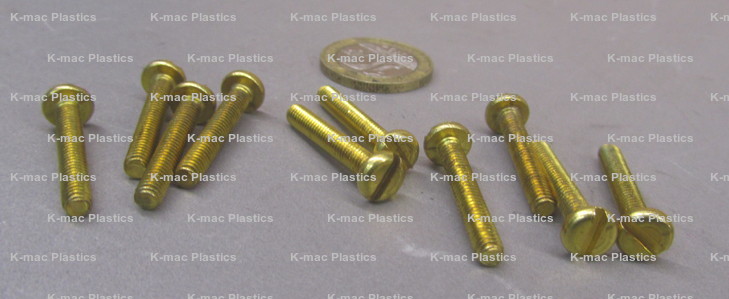

| MSS-1782 | M4 | 0.7 mm | 25 | 8 | 2.4 | 10 | $17.93 | Add to Order |
| MSS-1783 | M5 | 0.8 mm | 8 | 10 | 3 | 10 | $17.30 | Add to Order |
| MSS-1784 | M5 | 0.8 mm | 10 | 10 | 3 | 10 | $17.62 | Add to Order |
| MSS-1752 | M5 | 0.8 mm | 12 | 10 | 3 | 10 | $18.25 | Add to Order |
| MSS-1775 | M5 | 0.8 mm | 16 | 10 | 3 | 10 | $20.64 | Add to Order |
| MSS-1773 | M5 | 0.8 mm | 20 | 10 | 3 | 10 | $20.48 | Add to Order |

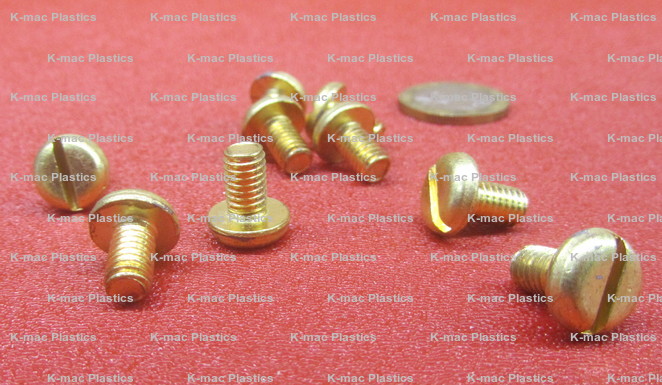

| MSS-1741 | M6 | 1 mm | 10 | 12 | 3.6 | 10 | $15.94 | Add to Order |

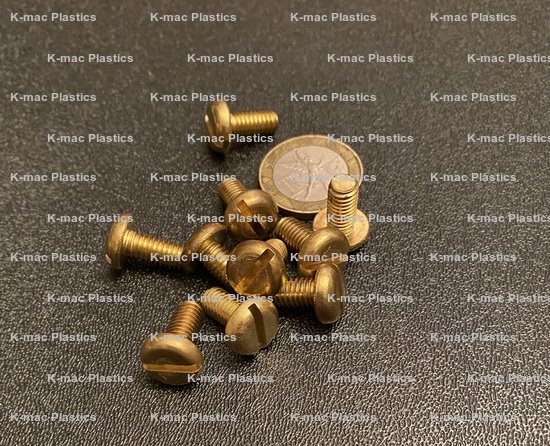

| MSS-1742 | M6 | 1 mm | 12 | 12 | 3.6 | 10 | $17.39 | Add to Order |

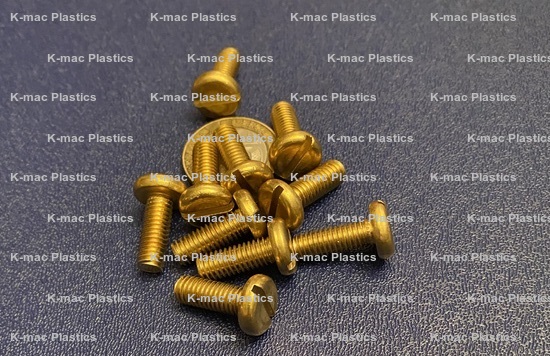

| MSS-1743 | M6 | 1 mm | 16 | 12 | 3.6 | 10 | $17.39 | Add to Order |
| MSS-1744 | M6 | 1 mm | 20 | 12 | 3.6 | 10 | $18.25 | Add to Order |
| MSS-9019 | M6 | 1 mm | 25 | 12 | 3.6 | 10 | $35.45 | Add to Order |
| Rev. 06-24, 10-23, 02-23, 11-22 | ||||||||
