PEEK Pan Head Phillips Machine Screws
Machine Screws - Pan Head Phillips Drive, Class 2A, fully threaded.
PEEK - water and steam resistant. Maximum temperature is 500°F. Tan.
| PEEK Pan Head Phillips Machine Screws, Full Thread, Beige, ASME B18.6.3, -60° to 500° |
||||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-7382 | 4-40 | 1/4" | 0.210" | 0.050" | No. 0 | 5 | $20.96 | Add to Order |
| MSS-7383 | 4-40 | 3/8" | 0.210" | 0.050" | No. 0 | 5 | $21.27 | Add to Order |
| MSS-7384 | 4-40 | 1/2" | 0.210" | 0.050" | No. 0 | 5 | $23.88 | Add to Order |
| MSS-7385 | 4-40 | 3/4" | 0.210" | 0.050" | No. 0 | 5 | $24.59 | Add to Order |
| MSS-7386 | 6-32 | 1/4" | 0.270" | 0.080" | No. 1 | 1 | $5.57 | Add to Order |
| MSS-3826 | 6-32 | 3/8" | 0.268" | 0.082" | No. 2 | 1 | $11.21 | Add to Order |
| MSS-3827 | 6-32 | 1/2" | 0.268" | 0.082" | No. 2 | 1 | $11.36 | Add to Order |
| MSS-3828 | 6-32 | 3/4" | 0.268" | 0.082" | No. 2 | 1 | $11.45 | Add to Order |
| MSS-7387 | 6-32 | 1" | 0.270" | 0.080" | No. 1 | 1 | $11.47 | Add to Order |
| MSS-7388 | 8-32 | 1/4" | 0.320" | 0.100" | No. 1 | 1 | $8.32 | Add to Order |
| MSS-3829 | 8-32 | 3/8" | 0.314" | 0.096" | No. 2 | 1 | $11.51 | Add to Order |
| MSS-3974 | 8-32 | 1/2" | 0.314" | 0.096" | No. 2 | 1 | $11.76 | Add to Order |
| MSS-3786 | 8-32 | 3/4" | 0.314" | 0.096" | No. 2 | 1 | $11.91 | Add to Order |
| MSS-7389 | 8-32 | 1" | 0.320" | 0.100" | No. 1 | 1 | $11.70 | Add to Order |

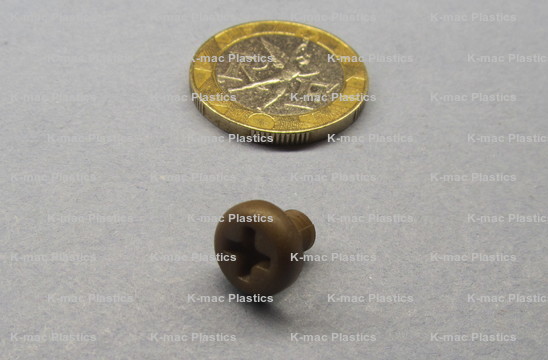

| MSS-7390 | 10-32 | 1/4" | 0.370" | 0.110" | No. 1 | 1 | $10.98 | Add to Order |
| MSS-3948 | 10-32 | 3/8" | 0.370" | 0.110" | No. 2 | 1 | $11.91 | Add to Order |
| MSS-4068 | 10-32 | 1/2" | 0.370" | 0.110" | No. 2 | 1 | $12.18 | Add to Order |
| MSS-4069 | 10-32 | 3/4" | 0.370" | 0.110" | No. 2 | 1 | $12.45 | Add to Order |
| MSS-7391 | 10-32 | 1" | 0.370" | 0.110" | No. 1 | 1 | $13.99 | Add to Order |
| MSS-7392 | 1/4"-20 | 3/8" | 0.490" | 0.140" | No. 2 | 1 | $12.58 | Add to Order |
| MSS-7393 | 1/4"-20 | 1/2" | 0.490" | 0.140" | No. 2 | 1 | $13.02 | Add to Order |
| MSS-7394 | 1/4"-20 | 3/4" | 0.490" | 0.140" | No. 2 | 1 | $13.08 | Add to Order |
| MSS-7395 | 1/4"-20 | 1" | 0.490" | 0.140" | No. 2 | 1 | $14.18 | Add to Order |
| Rev. 11-22, 03-22 | ||||||||
