18-8 Stainless Steel Oval Head Slotted Drive Metric Machine Screws
Machine Screws - Oval Head Slotted Drive, *fully threaded, 82° bevel under head with decorative rounded top, for use in countersunk holes.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic, Rockwell hardness is B80, tensile strength 75,000 psi.
| Metric Stainless Steel Slotted Oval Head Machine Screws | ||||||||||
| Part # | Thread Size (mm) | Pitch mm | Length (mm) | Head Dia. (mm) | Head Height. (mm) | Head Height | Oval Top Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|---|---|
| MSS-10757 | M3 | 0.5 mm | 5 | FT | 5.6 | 2.4 | 0.75 | 100 | $12.16 | Add to Order |
| MSS-10758 | M3 | 0.5 mm | 6 | FT | 5.6 | 2.4 | 0.75 | 100 | $12.88 | Add to Order |

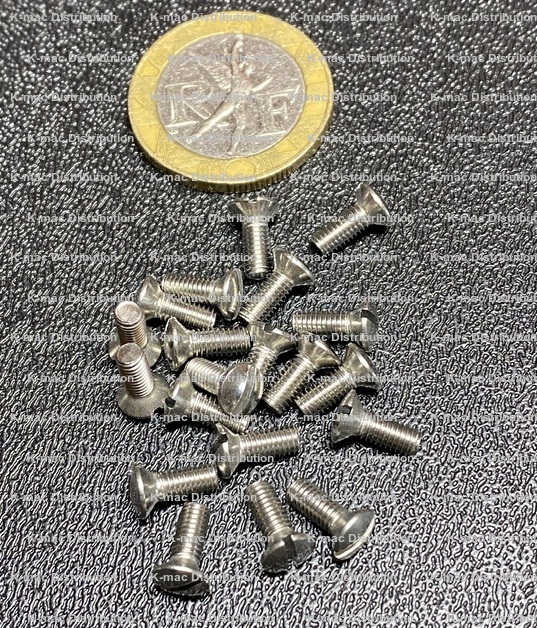

| MSS-10759 | M3 | 0.5 mm | 8 | FT | 5.6 | 2.4 | 0.75 | 100 | $15.02 | Add to Order |
| MSS-10760 | M3 | 0.5 mm | 10 | FT | 5.6 | 2.4 | 0.75 | 100 | $16.46 | Add to Order |

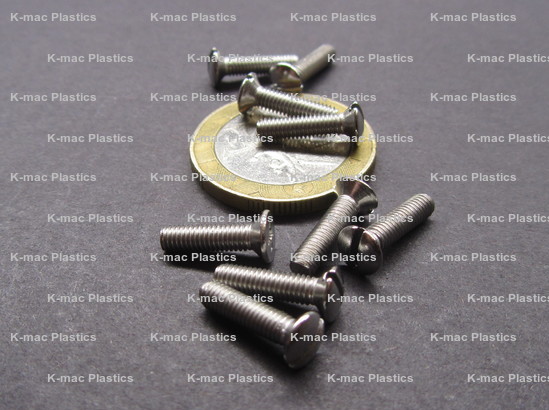

| MSS-10761 | M3 | 0.5 mm | 12 | FT | 5.6 | 2.4 | 0.75 | 100 | $22.16 | Add to Order |

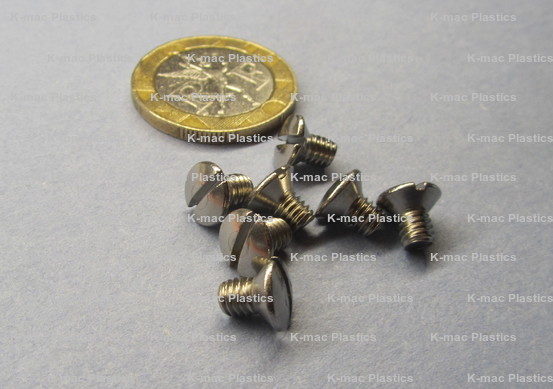

| MSS-10762 | M4 | 0.7 mm | 6 | FT | 7.5 | 3.2 | 1 | 100 | $15.02 | Add to Order |
| MSS-10763 | M4 | 0.7 mm | 8 | FT | 7.5 | 3.2 | 1 | 100 | $17.88 | Add to Order |
| MSS-10764 | M4 | 0.7 mm | 10 | FT | 7.5 | 3.2 | 1 | 100 | $20.02 | Add to Order |

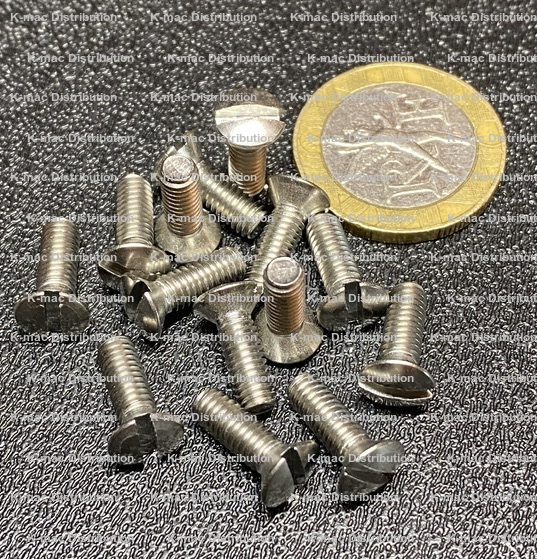

| MSS-10765 | M4 | 0.7 mm | 12 | FT | 7.5 | 3.2 | 1 | 100 | $22.16 | Add to Order |

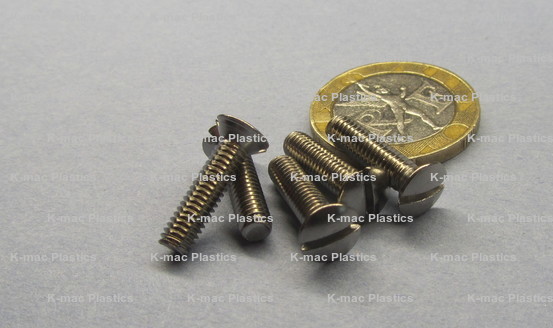

| MSS-10766 | M4 | 0.7 mm | 16 | FT | 7.5 | 3.2 | 1 | 100 | $23.60 | Add to Order |
| MSS-10767 | M5 | 0.8 mm | 8 | FT | 9.2 | 3.75 | 1.25 | 50 | $11.44 | Add to Order |
| MSS-10768 | M5 | 0.8 mm | 10 | FT | 9.2 | 3.75 | 1.25 | 50 | $14.66 | Add to Order |
| MSS-10769 | M5 | 0.8 mm | 12 | FT | 9.2 | 3.75 | 1.25 | 50 | $18.60 | Add to Order |
| MSS-10770 | M5 | 0.8 mm | 16 | FT | 9.2 | 3.75 | 1.25 | 50 | $20.02 | Add to Order |
| MSS-10771 | M5 | 0.8 mm | 20 | FT | 9.2 | 3.75 | 1.25 | 50 | $23.60 | Add to Order |
| MSS-10772 | M6 | 1 mm | 12 | FT | 11 | 4.5 | 1.5 | 50 | $20.02 | Add to Order |
| MSS-10773 | M6 | 1 mm | 16 | FT | 11 | 4.5 | 1.5 | 50 | $21.82 | Add to Order |
| MSS-10774 | M6 | 1 mm | 20 | FT | 11 | 4.5 | 1.5 | 50 | $23.60 | Add to Order |
| MSS-10775 | M6 | 1 mm | 25 | FT | 11 | 4.5 | 1.5 | 50 | $25.38 | Add to Order |

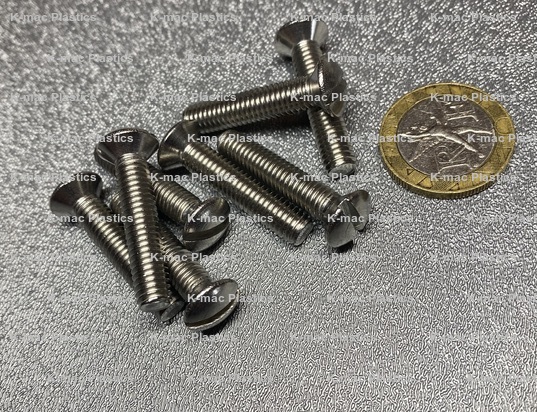

| MSS-10776 | M6 | 1 mm | 30 | FT | 11 | 4.5 | 1.5 | 50 | $27.18 | Add to Order |
| MSS-10777 | M8 | 1.25 mm | 16 | FT | 14.5 | 6 | 2 | 25 | $23.60 | Add to Order |
| MSS-10778 | M8 | 1.25 mm | 20 | FT | 14.5 | 6 | 2 | 25 | $23.60 | Add to Order |
| MSS-10779 | M8 | 1.25 mm | 25 | FT | 14.5 | 6 | 2 | 25 | $25.38 | Add to Order |
| MSS-10780 | M8 | 1.25 mm | 30 | FT | 14.5 | 6 | 2 | 10 | $12.16 | Add to Order |
