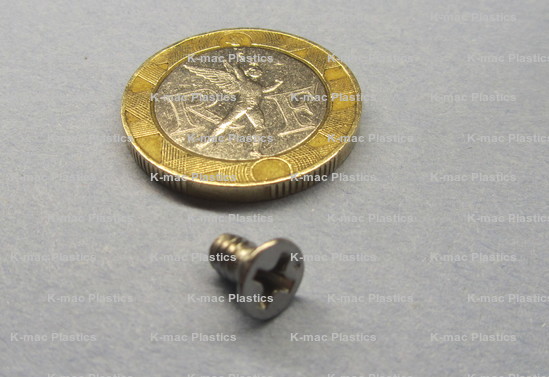

316 Stainless Steel Flat Head Slotted Drive Machine Screws
Machine Screws - Flat Head Slotted Drive, Class 2A, *fully threaded, 82° bevel under the head, provides flush surface within countersunk holes.
316 Stainless Steel - Excellent corrosion resistance, withstands chemicals, solvents and chlorides, mildly magnetic. Rockwell Hardness B80, tensile strength 75,000 psi.
| 316 Stainless Steel Slotted Flat Head Machine Screws ASME B18.6.3 - 70,000 PSI Tensile Strength |
||||||||
| Part # | Thread Size | Length | Head Profile | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-10475 | 4-40 | 3/16" | Undercut | 0.212" | 0.067" | 25 | $16.02 | Add to Order |
| MSS-10476 | 4-40 | 1/4" | Standard | 0.212" | 0.067" | 100 | $18.67 | Add to Order |
| MSS-10477 | 4-40 | 5/16" | Standard | 0.212" | 0.067" | 50 | $13.67 | Add to Order |
| MSS-10478 | 4-40 | 3/8" | Standard | 0.212" | 0.067" | 100 | $18.86 | Add to Order |
| MSS-10479 | 4-40 | 1/2" | Standard | 0.212" | 0.067" | 100 | $18.98 | Add to Order |
| MSS-5006 | 6-32 | 1/4" | Standard | 0.262" | 0.083" | 100 | $30.62 | Add to Order |
| MSS-10480 | 6-32 | 5/16" | Standard | 0.262" | 0.083" | 50 | $15.33 | Add to Order |
| MSS-5007 | 6-32 | 3/8" | Standard | 0.262" | 0.083" | 100 | $25.73 | Add to Order |
| MSS-5008 | 6-32 | 1/2" | Standard | 0.262" | 0.083" | 100 | $30.64 | Add to Order |
| MSS-5009 | 6-32 | 3/4" | Standard | 0.262" | 0.083" | 100 | $37.30 | Add to Order |
| MSS-5010 | 6-32 | 1" | Standard | 0.262" | 0.083" | 50 | $22.79 | Add to Order |
| MSS-5011 | 6-32 | 1 1/2" | Standard | 0.262" | 0.083" | 25 | $17.93 | Add to Order |
| MSS-10481 | 8-32 | 1/4" | Undercut | 0.312" | 0.100" | 100 | $27.32 | Add to Order |
| MSS-5024 | 8-32 | 3/8" | Standard | 0.312" | 0.100" | 100 | $31.40 | Add to Order |
| MSS-5013 | 8-32 | 1/2" | Standard | 0.312" | 0.100" | 50 | $18.40 | Add to Order |
| MSS-10482 | 8-32 | 5/8" | Standard | 0.312" | 0.100" | 50 | $16.82 | Add to Order |
| MSS-5002 | 8-32 | 3/4" | Standard | 0.312" | 0.100" | 50 | $22.83 | Add to Order |
| MSS-5015 | 8-32 | 1" | Standard | 0.312" | 0.100" | 50 | $27.26 | Add to Order |
| MSS-5016 | 8-32 | 1 1/2" | Standard | 0.312" | 0.100" | 25 | $19.13 | Add to Order |
| MSS-3569 | 10-24 | 3/8" | Standard | 0.362" | 0.116" | 50 | $25.24 | Add to Order |
| MSS-3570 | 10-24 | 1/2" | Standard | 0.362" | 0.116" | 50 | $24.82 | Add to Order |
| MSS-10483 | 10-24 | 5/8" | Standard | 0.362" | 0.116" | 50 | $22.07 | Add to Order |
| MSS-3571 | 10-24 | 3/4" | Standard | 0.362" | 0.116" | 50 | $25.85 | Add to Order |
| MSS-3539 | 10-24 | 1" | Standard | 0.362" | 0.116" | 25 | $17.03 | Add to Order |
| MSS-3562 | 10-24 | 1 1/4" | Standard | 0.362" | 0.116" | 25 | $20.18 | Add to Order |
| MSS-3560 | 10-24 | 1 1/2" | Standard | 0.362" | 0.116" | 25 | $25.01 | Add to Order |
| MSS-3528 | 10-32 | 3/8" | Standard | 0.362" | 0.116" | 50 | $25.24 | Add to Order |
| MSS-3529 | 10-32 | 1/2" | Standard | 0.362" | 0.116" | 50 | $24.82 | Add to Order |
| MSS-10484 | 10-32 | 5/8" | Standard | 0.362" | 0.116" | 50 | $23.88 | Add to Order |
| MSS-3530 | 10-32 | 3/4" | Standard | 0.362" | 0.116" | 50 | $28.79 | Add to Order |
| MSS-3531 | 10-32 | 1" | Standard | 0.362" | 0.116" | 25 | $17.03 | Add to Order |
| MSS-3532 | 10-32 | 1 1/2" | Standard | 0.362" | 0.116" | 25 | $25.01 | Add to Order |
| MSS-3533 | 1/4"-20 | 1/2" | Standard | 0.477" | 0.153" | 25 | $23.16 | Add to Order |
| MSS-10485 | 1/4"-20 | 5/8" | Standard | 0.477" | 0.153" | 25 | $21.63 | Add to Order |
| MSS-3534 | 1/4"-20 | 3/4" | Standard | 0.477" | 0.153" | 25 | $26.40 | Add to Order |
| MSS-3535 | 1/4"-20 | 1" | Standard | 0.477" | 0.153" | 10 | $14.60 | Add to Order |
| MSS-3536 | 1/4"-20 | 1 1/4" | Standard | 0.477" | 0.153" | 10 | $14.95 | Add to Order |
| MSS-3549 | 1/4"-20 | 1 1/2" | Standard | 0.477" | 0.153" | 10 | $16.61 | Add to Order |
| MSS-3538 | 1/4"-20 | 2" | Standard | 0.477" | 0.153" | 10 | $17.96 | Add to Order |
| MSS-3527 | 1/4"-20 | 2 1/2" | Standard | 0.477" | 0.153" | 10 | $23.21 | Add to Order |
| MSS-3540 | 1/4"-20 | 3" | Standard | 0.477" | 0.153" | 10 | $27.01 | Add to Order |
| MSS-3541 | 5/16"-18 | 1/2" | Undercut | 0.597" | 0.134" | 10 | $21.88 | Add to Order |
| MSS-3542 | 5/16"-18 | 3/4" | Standard | 0.597" | 0.191" | 10 | $22.13 | Add to Order |
| MSS-3543 | 5/16"-18 | 1" | Standard | 0.597" | 0.191" | 10 | $22.60 | Add to Order |
| MSS-3544 | 5/16"-18 | 1 1/4" | Standard | 0.597" | 0.191" | 10 | $26.80 | Add to Order |
| MSS-3545 | 5/16"-18 | 1 1/2" | Standard | 0.597" | 0.191" | 5 | $16.02 | Add to Order |
| MSS-3546 | 5/16"-18 | 2" | Standard | 0.597" | 0.191" | 5 | $18.38 | Add to Order |
| MSS-3547 | 5/16"-18 | 2 1/2" | Standard | 0.597" | 0.191" | 5 | $23.06 | Add to Order |
| MSS-3548 | 3/8"-16 | 3/4" | Standard | 0.717" | 0.230" | 5 | $14.28 | Add to Order |
| MSS-3478 | 3/8"-16 | 1" | Standard | 0.717" | 0.230" | 5 | $14.66 | Add to Order |
| MSS-5473 | 3/8"-16 | 1 1/4" | Standard | 0.717" | 0.230" | 5 | $18.46 | Add to Order |
| MSS-3407 | 3/8"-16 | 1 1/2" | Standard | 0.717" | 0.230" | 5 | $21.88 | Add to Order |
| MSS-3501 | 3/8"-16 | 2" | Standard | 0.717" | 0.230" | 1 | $5.80 | Add to Order |
| MSS-3411 | 3/8"-16 | 2 1/2" | Standard | 0.717" | 0.230" | 1 | $6.17 | Add to Order |
| MSS-3412 | 3/8"-16 | 3" | Standard | 0.717" | 0.230" | 1 | $6.80 | Add to Order |
| MSS-3413 | 1/2"-13 | 1" | Standard | 0.815" | 0.223" | 5 | $24.99 | Add to Order |
| MSS-10486 | 1/2"-13 | 1 1/4" | Standard | 0.815" | 0.223" | 1 | $6.30 | Add to Order |
| MSS-3414 | 1/2"-13 | 1 1/2" | Standard | 0.815" | 0.223" | 1 | $7.12 | Add to Order |
| MSS-10487 | 1/2"-13 | 1 3/4" | Standard | 0.815" | 0.223" | 1 | $7.71 | Add to Order |
| MSS-5508 | 1/2"-13 | 2" | Standard | 0.815" | 0.223" | 1 | $8.72 | Add to Order |
| Rev. 11-22, 03-22 | ||||||||
