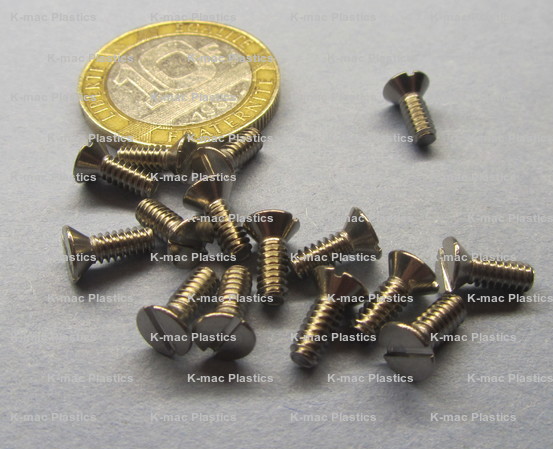

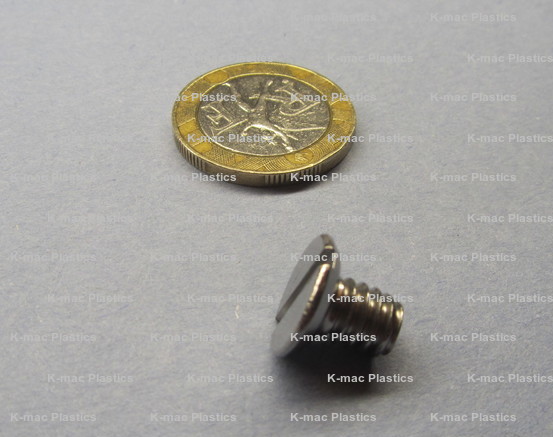

18-8 Stainless Steel Flat Head Slotted Drive Machine Screws
Machine Screws - Flat Head Slotted Drive, Class 2A, *fully threaded, 82° bevel under head provides flush surface within countersunk holes.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic, Rockwell hardness is B80, tensile strength 75,000 psi.
.JPG)
| 18-8
Stainless Steel Slotted Flat Head Machine Screws ASME B18.6.3, 80,000 PSI Tensile, Full Threads unless noted. PT threads have over 1.50" of thread length |
||||||||
| Part # | Thread Size | Length | Head Profile | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-10433 | 0000-160 | 1/16" | Standard | 0.040" | 0.011" | 1 | $24.99 | Add to Order |
| MSS-10434 | 0000-160 | 3/32" | Standard | 0.040" | 0.011" | 1 | $25.52 | Add to Order |
| MSS-10435 | 0000-160 | 1/8" | Standard | 0.040" | 0.011" | 1 | $26.02 | Add to Order |
| MSS-10436 | 0000-160 | 5/32" | Standard | 0.040" | 0.011" | 1 | $26.59 | Add to Order |
| MSS-10437 | 000-120 | 3/32" | Standard | 0.061" | 0.016" | 1 | $9.07 | Add to Order |
| MSS-10438 | 000-120 | 1/8" | Standard | 0.061" | 0.016" | 1 | $9.28 | Add to Order |
| MSS-10439 | 000-120 | 3/16" | Standard | 0.061" | 0.016" | 1 | $9.53 | Add to Order |
| MSS-10440 | 000-120 | 1/4" | Standard | 0.061" | 0.016" | 1 | $13.04 | Add to Order |
| MSS-10441 | 00-90 | 3/32" | Standard | 0.089" | 0.028" | 5 | $38.72 | Add to Order |
| MSS-10442 | 00-90 | 1/8" | Standard | 0.089" | 0.028" | 5 | $38.72 | Add to Order |
| MSS-10443 | 00-90 | 3/16" | Standard | 0.089" | 0.028" | 5 | $38.72 | Add to Order |
| MSS-10444 | 00-90 | 1/4" | Standard | 0.089" | 0.028" | 5 | $38.72 | Add to Order |
| MSS-6044 | 0-80 | 1/8" | Undercut | 0.112" | 0.025" | 100 | $19.97 | Add to Order |
| MSS-6034 | 0-80 | 3/16" | Standard | 0.112" | 0.035" | 100 | $21.88 | Add to Order |
| MSS-6024 | 0-80 | 1/4" | Standard | 0.112" | 0.035" | 100 | $22.41 | Add to Order |
| MSS-6036 | 0-80 | 3/8" | Standard | 0.112" | 0.035" | 100 | $25.52 | Add to Order |
| MSS-6037 | 0-80 | 7/16" | Standard | 0.112" | 0.035" | 100 | $27.99 | Add to Order |
| MSS-6039 | 0-80 | 1/2" | Standard | 0.112" | 0.035" | 50 | $15.65 | Add to Order |
| MSS-6029 | 0-80 | 1" | Standard | 0.112" | 0.035" | 50 | $19.15 | Add to Order |
| MSS-6050 | 1-64 | 1/8" | Undercut | 0.137" | 0.031" | 50 | $15.67 | Add to Order |
| MSS-6028 | 1-64 | 3/16" | Standard | 0.137" | 0.043" | 50 | $16.74 | Add to Order |
| MSS-6035 | 1-64 | 1/4" | Standard | 0.137" | 0.043" | 50 | $16.82 | Add to Order |
| MSS-6362 | 1-64 | 1" | Standard | 0.137" | 0.043" | 50 | $23.58 | Add to Order |
| MSS-6026 | 1-72 | 1/8" | Undercut | 0.137" | 0.031" | 100 | $22.03 | Add to Order |
| MSS-6025 | 1-72 | 3/16" | Standard | 0.137" | 0.043" | 100 | $22.13 | Add to Order |
| MSS-6057 | 1-72 | 1/4" | Standard | 0.137" | 0.043" | 50 | $13.57 | Add to Order |
| MSS-6061 | 1-72 | 3/8" | Standard | 0.137" | 0.043" | 50 | $13.80 | Add to Order |
| MSS-6062 | 1-72 | 3/4" | Standard | 0.137" | 0.043" | 50 | $21.32 | Add to Order |
| MSS-6063 | 2-56 | 1/8" | Undercut | 0.162" | 0.036" | 100 | $18.96 | Add to Order |

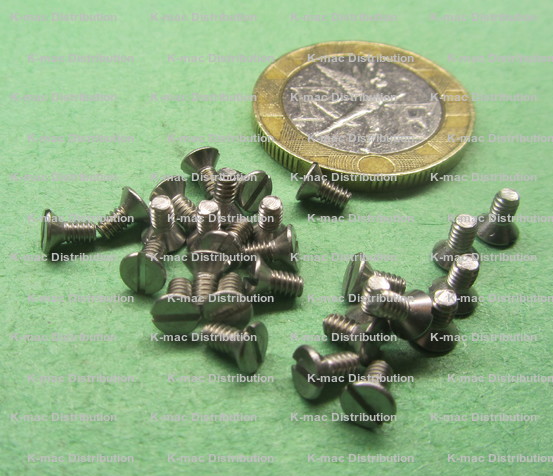

| MSS-6064 | 2-56 | 3/16" | Standard | 0.162" | 0.051" | 100 | $7.58 | Add to Order |

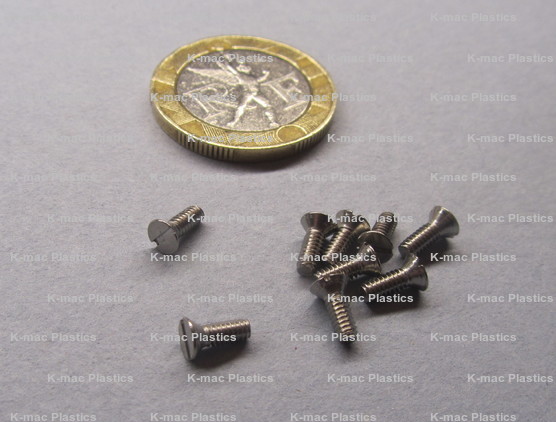

| MSS-10445 | 2-56 | 1/4" | Standard | 0.162" | 0.051" | 100 | $5.52 | Add to Order |

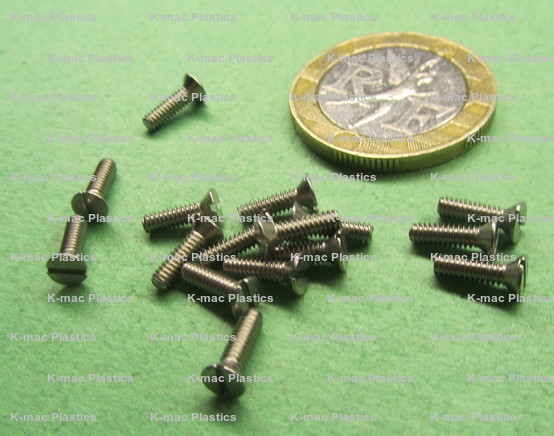

| MSS-6065 | 2-56 | 5/16" | Standard | 0.162" | 0.051" | 100 | $9.37 | Add to Order |
| MSS-6066 | 2-56 | 3/8" | Standard | 0.162" | 0.051" | 100 | $4.49 | Add to Order |
| MSS-6059 | 2-56 | 1/2" | Standard | 0.162" | 0.051" | 100 | $7.14 | Add to Order |
| MSS-6056 | 2-56 | 5/8" | Standard | 0.162" | 0.051" | 100 | $11.57 | Add to Order |
| MSS-6055 | 2-56 | 3/4" | Standard | 0.162" | 0.051" | 100 | $12.14 | Add to Order |
| MSS-6053 | 2-56 | 1" | Standard | 0.162" | 0.051" | 100 | $13.06 | Add to Order |
| MSS-6045 | 2-56 | 1 1/4" | Standard | 0.162" | 0.051" | 50 | $18.73 | Add to Order |
| MSS-6051 | 2-56 | 1 1/2" | Standard | 0.162" | 0.051" | 25 | $16.04 | Add to Order |
| MSS-3521 | 3-48 | 1/4" | Standard | 0.187" | 0.059" | 100 | $13.67 | Add to Order |
| MSS-3522 | 3-48 | 1/2" | Standard | 0.187" | 0.059" | 100 | $17.85 | Add to Order |
| MSS-3523 | 4-40 | 1/8" | Undercut | 0.212" | 0.047" | 100 | $23.94 | Add to Order |

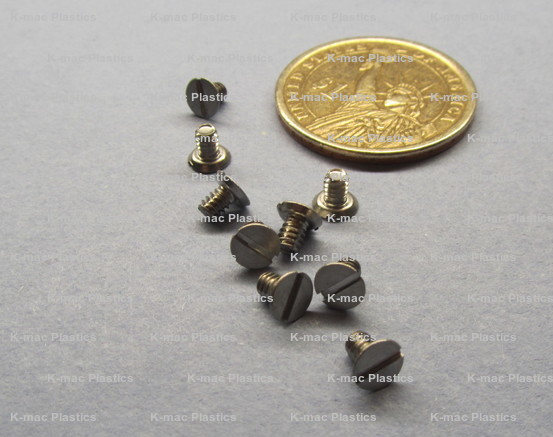

| MSS-3524 | 4-40 | 3/16" | Undercut | 0.212" | 0.047" | 100 | $12.60 | Add to Order |
| MSS-3492 | 4-40 | 1/4" | Standard | 0.212" | 0.067" | 100 | $8.44 | Add to Order |
| MSS-3515 | 4-40 | 5/16" | Standard | 0.212" | 0.067" | 100 | $9.01 | Add to Order |
| MSS-3513 | 4-40 | 3/8" | Standard | 0.212" | 0.067" | 100 | $8.61 | Add to Order |

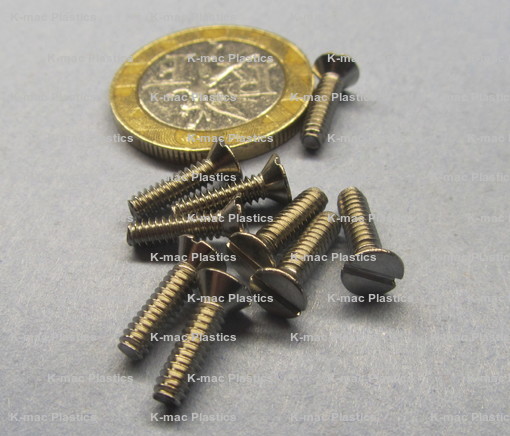

| MSS-3481 | 4-40 | 7/16" | Standard | 0.212" | 0.067" | 100 | $8.11 | Add to Order |
| MSS-3482 | 4-40 | 1/2" | Standard | 0.212" | 0.067" | 100 | $7.18 | Add to Order |
| MSS-3483 | 4-40 | 5/8" | Standard | 0.212" | 0.067" | 100 | $8.55 | Add to Order |
| MSS-3484 | 4-40 | 3/4" | Standard | 0.212" | 0.067" | 100 | $6.03 | Add to Order |
| MSS-3485 | 4-40 | 7/8" | Standard | 0.212" | 0.067" | 100 | $8.19 | Add to Order |
| MSS-3486 | 4-40 | 1" | Standard | 0.212" | 0.067" | 100 | $8.51 | Add to Order |
| MSS-3487 | 4-40 | 1 1/4" | Standard | 0.212" | 0.067" | 100 | $17.03 | Add to Order |

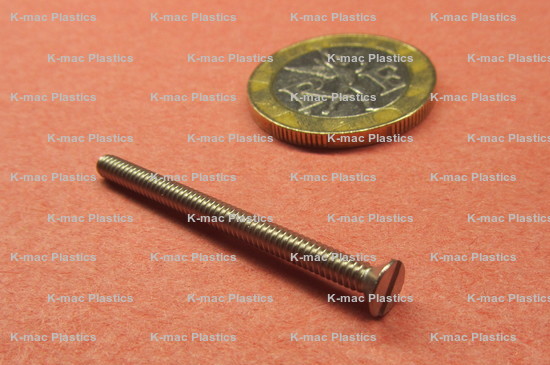

| MSS-3488 | 4-40 | 1 1/2" | Standard | 0.212" | 0.067" | 100 | $13.33 | Add to Order |
| MSS-3489 | 4-40 | 2" | Standard | 0.212" | 0.067" | 50 | $14.83 | Add to Order |

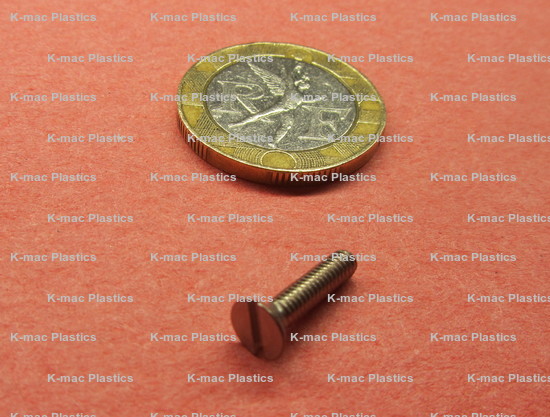

| MSS-3502 | 4-48 | 1/2" | Standard | 0.212" | 0.067" | 50 | $18.33 | Add to Order |
| MSS-3491 | 5-40 | 3/16" | Undercut | 0.237" | 0.053" | 100 | $18.69 | Add to Order |
| MSS-3480 | 5-40 | 1/4" | Standard | 0.237" | 0.075" | 100 | $10.19 | Add to Order |
| MSS-3493 | 5-40 | 3/8" | Standard | 0.237" | 0.075" | 100 | $13.63 | Add to Order |
| MSS-3494 | 5-40 | 1/2" | Standard | 0.237" | 0.075" | 100 | $14.51 | Add to Order |
| MSS-3495 | 5-40 | 1" | Standard | 0.237" | 0.075" | 100 | $13.57 | Add to Order |
| MSS-3496 | 6-32 | 3/16" | Undercut | 0.262" | 0.059" | 100 | $12.01 | Add to Order |
| MSS-3497 | 6-32 | 1/4" | Standard | 0.262" | 0.083" | 100 | $7.10 | Add to Order |
| MSS-3498 | 6-32 | 5/16" | Standard | 0.262" | 0.083" | 100 | $10.61 | Add to Order |
| MSS-3499 | 6-32 | 3/8" | Standard | 0.262" | 0.083" | 100 | $9.66 | Add to Order |

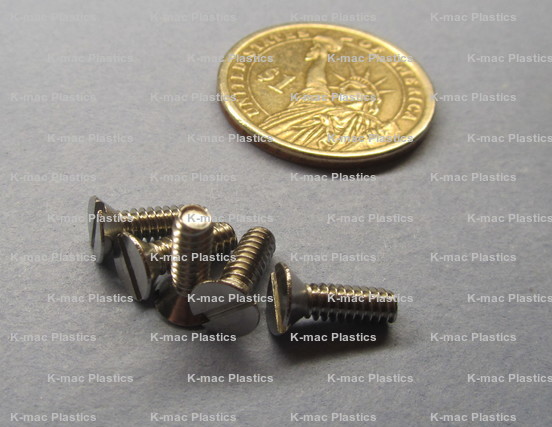

| MSS-3500 | 6-32 | 7/16" | Standard | 0.262" | 0.083" | 100 | $13.02 | Add to Order |
| MSS-3537 | 6-32 | 1/2" | Standard | 0.262" | 0.083" | 100 | $9.43 | Add to Order |
| MSS-3490 | 6-32 | 5/8" | Standard | 0.262" | 0.083" | 100 | $10.46 | Add to Order |
| MSS-3525 | 6-32 | 3/4" | Standard | 0.262" | 0.083" | 100 | $11.47 | Add to Order |
| MSS-3551 | 6-32 | 7/8" | Standard | 0.262" | 0.083" | 100 | $16.97 | Add to Order |
| MSS-3552 | 6-32 | 1" | Standard | 0.262" | 0.083" | 100 | $13.57 | Add to Order |
| MSS-3553 | 6-32 | 1 1/4" | Standard | 0.262" | 0.083" | 100 | $12.14 | Add to Order |
| MSS-3554 | 6-32 | 1 1/2" | Standard | 0.262" | 0.083" | 100 | $13.88 | Add to Order |
| MSS-6363 | 6-32 | 1 3/4" | Standard | 0.262" | 0.083" | 50 | $15.71 | Add to Order |
| MSS-3555 | 6-32 | 2" | Standard | 0.262" | 0.083" | 100 | $18.10 | Add to Order |

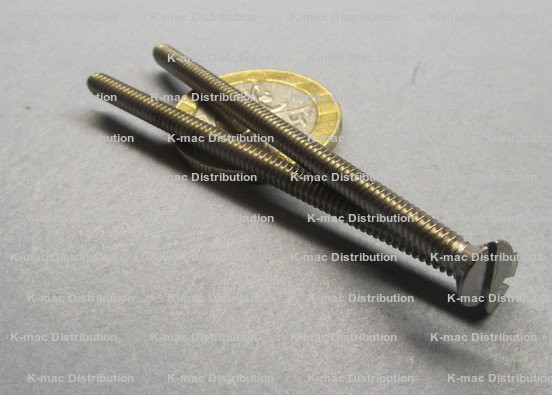

| MSS-3556 | 6-32 | 2 1/2" | Standard | 0.262" | 0.083" | 100 | $26.42 | Add to Order |

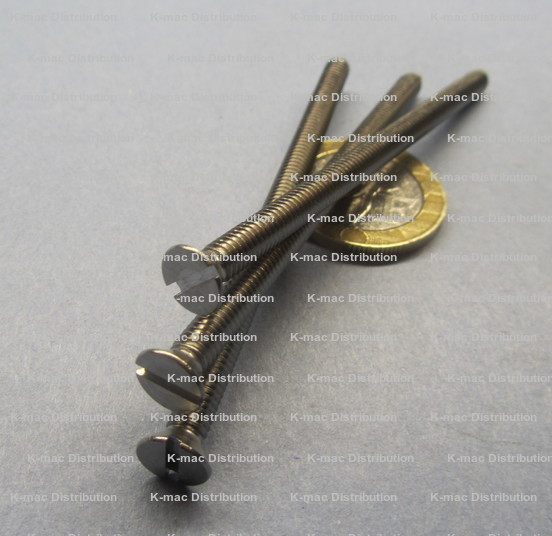

| MSS-3557 | 6-32 | 3" PT | Standard | 0.262" | 0.083" | 50 | $17.93 | Add to Order |
| MSS-3558 | 8-32 | 3/16" | Undercut | 0.312" | 0.070" | 100 | $25.52 | Add to Order |
| MSS-3559 | 8-32 | 1/4" | Undercut | 0.312" | 0.070" | 100 | $14.81 | Add to Order |
| MSS-3573 | 8-32 | 5/16" | Standard | 0.312" | 0.100" | 100 | $13.33 | Add to Order |
| MSS-3561 | 8-32 | 3/8" | Standard | 0.312" | 0.100" | 100 | $13.57 | Add to Order |
| MSS-3550 | 8-32 | 7/16" | Standard | 0.312" | 0.100" | 100 | $18.96 | Add to Order |
| MSS-3563 | 8-32 | 1/2" | Standard | 0.312" | 0.100" | 100 | $12.64 | Add to Order |
| MSS-3564 | 8-32 | 5/8" | Standard | 0.312" | 0.100" | 100 | $9.70 | Add to Order |
| MSS-4782 | 8-32 | 3/4" | Standard | 0.312" | 0.100" | 100 | $14.55 | Add to Order |
| MSS-4783 | 8-32 | 7/8" | Standard | 0.312" | 0.100" | 100 | $13.06 | Add to Order |
| MSS-4784 | 8-32 | 1" | Standard | 0.312" | 0.100" | 100 | $7.10 | Add to Order |
| MSS-4785 | 8-32 | 1 1/4" | Standard | 0.312" | 0.100" | 100 | $14.51 | Add to Order |
| MSS-4786 | 8-32 | 1 1/2" | Standard | 0.312" | 0.100" | 100 | $25.18 | Add to Order |
| MSS-4823 | 8-32 | 2" | Standard | 0.312" | 0.100" | 50 | $22.03 | Add to Order |
| MSS-5670 | 8-32 | 3" PT | Standard | 0.312" | 0.100" | 50 | $17.93 | Add to Order |
| MSS-5671 | 8-32 | 3 1/2" PT | Standard | 0.312" | 0.100" | 10 | $11.05 | Add to Order |
| MSS-4837 | 8-32 | 4" | Standard | 0.312" | 0.100" | 10 | $16.25 | Add to Order |
| MSS-4838 | 10-24 | 1/4" | Undercut | 0.362" | 0.081" | 100 | $22.76 | Add to Order |
| MSS-4839 | 10-24 | 5/16" | Undercut | 0.362" | 0.081" | 100 | $19.45 | Add to Order |
| MSS-4840 | 10-24 | 3/8" | Standard | 0.362" | 0.116" | 100 | $12.85 | Add to Order |
| MSS-4841 | 10-24 | 1/2" | Standard | 0.362" | 0.116" | 100 | $15.50 | Add to Order |
| MSS-4842 | 10-24 | 5/8" | Standard | 0.362" | 0.116" | 100 | $7.10 | Add to Order |
| MSS-5681 | 10-24 | 3/4" | Standard | 0.362" | 0.116" | 100 | $18.00 | Add to Order |
| MSS-4844 | 10-24 | 1" | Standard | 0.362" | 0.116" | 50 | $4.64 | Add to Order |
| MSS-5673 | 10-24 | 1 1/4" | Standard | 0.362" | 0.116" | 100 | $16.49 | Add to Order |
| MSS-4859 | 10-24 | 1 1/2" | Standard | 0.362" | 0.116" | 50 | $24.76 | Add to Order |
| MSS-5666 | 10-24 | 2" | Standard | 0.362" | 0.116" | 50 | $32.63 | Add to Order |
| MSS-4836 | 10-24 | 2 1/4" PT | Standard | 0.362" | 0.116" | 25 | $16.84 | Add to Order |
| MSS-5675 | 10-24 | 2 1/2" PT | Standard | 0.362" | 0.116" | 50 | $24.95 | Add to Order |
| MSS-5676 | 10-24 | 2 3/4" PT | Standard | 0.362" | 0.116" | 50 | $15.56 | Add to Order |
| MSS-5677 | 10-24 | 3" PT | Standard | 0.362" | 0.116" | 50 | $36.73 | Add to Order |
| MSS-5678 | 10-24 | 3 1/2" PT | Standard | 0.362" | 0.116" | 25 | $32.09 | Add to Order |

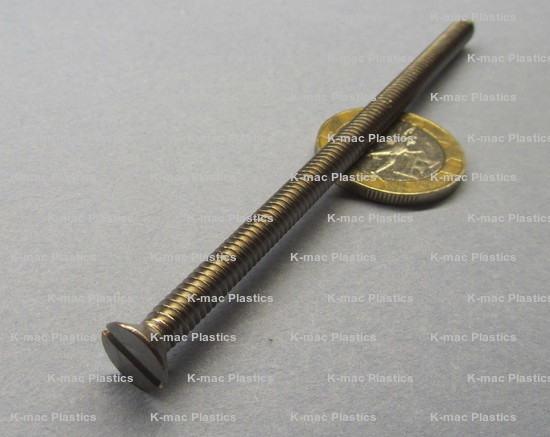

| MSS-5679 | 10-24 | 4" PT | Standard | 0.362" | 0.116" | 25 | $20.12 | Add to Order |

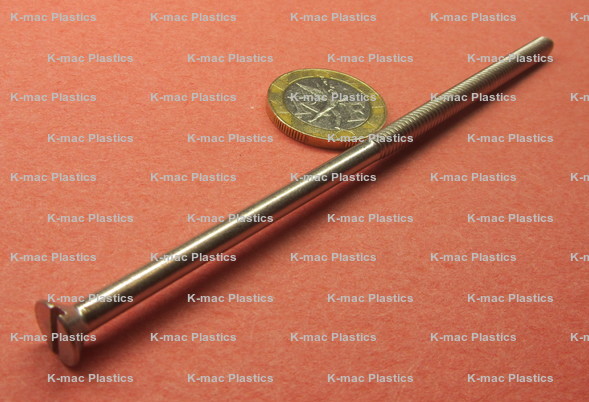

| MSS-5651 | 10-24 | 5" PT | Standard | 0.362" | 0.116" | 5 | $19.95 | Add to Order |
| MSS-4855 | 10-24 | 6" PT | Standard | 0.362" | 0.116" | 5 | $22.26 | Add to Order |
| MSS-4856 | 10-32 | 1/4" | Undercut | 0.362" | 0.081" | 100 | $22.76 | Add to Order |
| MSS-4857 | 10-32 | 5/16" | Undercut | 0.362" | 0.081" | 100 | $19.45 | Add to Order |
| MSS-4825 | 10-32 | 3/8" | Standard | 0.362" | 0.116" | 100 | $19.24 | Add to Order |
| MSS-5674 | 10-32 | 1/2" | Standard | 0.362" | 0.116" | 100 | $21.06 | Add to Order |
| MSS-5672 | 10-32 | 5/8" | Standard | 0.362" | 0.116" | 100 | $25.39 | Add to Order |
| MSS-5664 | 10-32 | 3/4" | Standard | 0.362" | 0.116" | 100 | $24.40 | Add to Order |
| MSS-4815 | 10-32 | 7/8" | Standard | 0.362" | 0.116" | 50 | $18.04 | Add to Order |
| MSS-4816 | 10-32 | 1" | Standard | 0.362" | 0.116" | 100 | $32.24 | Add to Order |
| MSS-4817 | 10-32 | 1 1/4" | Standard | 0.362" | 0.116" | 50 | $23.60 | Add to Order |
| MSS-4818 | 10-32 | 1 1/2" | Standard | 0.362" | 0.116" | 50 | $30.05 | Add to Order |
| MSS-4819 | 10-32 | 1 3/4" | Standard | 0.362" | 0.116" | 25 | $16.19 | Add to Order |
| MSS-4820 | 10-32 | 2" | Standard | 0.362" | 0.116" | 25 | $16.30 | Add to Order |

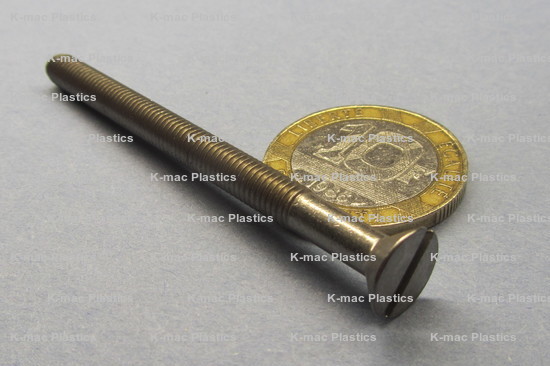

| MSS-5663 | 10-32 | 2 1/4" PT | Standard | 0.362" | 0.116" | 25 | $20.08 | Add to Order |
| MSS-4822 | 10-32 | 2 1/2" PT | Standard | 0.362" | 0.116" | 25 | $22.95 | Add to Order |
| MSS-5662 | 10-32 | 3" PT | Standard | 0.362" | 0.116" | 25 | $25.39 | Add to Order |
| MSS-4824 | 10-32 | 3 1/2" PT | Standard | 0.362" | 0.116" | 10 | $14.30 | Add to Order |
| MSS-5661 | 10-32 | 4" PT | Standard | 0.362" | 0.116" | 10 | $14.57 | Add to Order |
| MSS-5660 | 12-24 | 3/8" | Undercut | 0.412" | 0.092" | 100 | $30.89 | Add to Order |
| MSS-4827 | 12-24 | 1/2" | Standard | 0.412" | 0.132" | 100 | $26.94 | Add to Order |
| MSS-4828 | 12-24 | 3/4" | Standard | 0.412" | 0.132" | 50 | $14.30 | Add to Order |
| MSS-4829 | 12-24 | 1" | Standard | 0.412" | 0.132" | 100 | $24.74 | Add to Order |
| MSS-4830 | 12-24 | 2" | Standard | 0.412" | 0.132" | 25 | $20.08 | Add to Order |

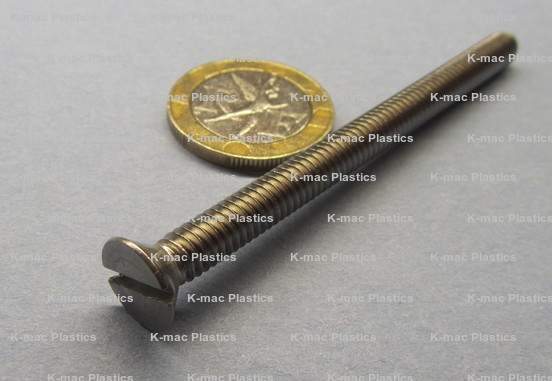

| MSS-5659 | 12-24 | 3" PT | Standard | 0.412" | 0.132" | 10 | $12.58 | Add to Order |
| MSS-4832 | 1/4"-20 | 3/8" | Undercut | 0.477" | 0.107" | 50 | $14.47 | Add to Order |
| MSS-4833 | 1/4"-20 | 1/2" | Standard | 0.477" | 0.153" | 50 | $16.82 | Add to Order |
| MSS-5658 | 1/4"-20 | 5/8" | Standard | 0.477" | 0.153" | 50 | $17.39 | Add to Order |
| MSS-5657 | 1/4"-20 | 3/4" | Standard | 0.477" | 0.153" | 50 | $20.90 | Add to Order |
| MSS-5656 | 1/4"-20 | 7/8" | Standard | 0.477" | 0.153" | 25 | $13.08 | Add to Order |
| MSS-5073 | 1/4"-20 | 1" | Standard | 0.477" | 0.153" | 25 | $9.45 | Add to Order |
| MSS-5074 | 1/4"-20 | 1 1/4" | Standard | 0.477" | 0.153" | 50 | $17.93 | Add to Order |
| MSS-5075 | 1/4"-20 | 1 1/2" | Standard | 0.477" | 0.153" | 50 | $19.45 | Add to Order |
| MSS-5076 | 1/4"-20 | 1 3/4" | Standard | 0.477" | 0.153" | 25 | $18.96 | Add to Order |
| MSS-5077 | 1/4"-20 | 2" | Standard | 0.477" | 0.153" | 25 | $23.69 | Add to Order |
| MSS-3964 | 1/4"-20 | 2 1/4" PT | Standard | 0.477" | 0.153" | 10 | $11.21 | Add to Order |
| MSS-3965 | 1/4"-20 | 2 1/2" PT | Standard | 0.477" | 0.153" | 10 | $12.73 | Add to Order |
| MSS-3966 | 1/4"-20 | 2 3/4" PT | Standard | 0.477" | 0.153" | 10 | $13.29 | Add to Order |
| MSS-3967 | 1/4"-20 | 3" PT | Standard | 0.477" | 0.153" | 10 | $9.91 | Add to Order |
| MSS-3968 | 1/4"-20 | 3 1/2" PT | Standard | 0.477" | 0.153" | 25 | $20.60 | Add to Order |
| MSS-3969 | 1/4"-20 | 4" PT | Standard | 0.477" | 0.153" | 10 | $14.26 | Add to Order |
| MSS-3970 | 1/4"-20 | 4 1/2" PT | Standard | 0.477" | 0.153" | 10 | $15.58 | Add to Order |
| MSS-4007 | 1/4"-20 | 5" PT | Standard | 0.477" | 0.153" | 10 | $17.85 | Add to Order |
| MSS-3960 | 1/4"-20 | 6" PT | Standard | 0.477" | 0.153" | 5 | $20.90 | Add to Order |
| MSS-3995 | 1/4"-28 | 1/2" | Standard | 0.477" | 0.153" | 50 | $22.07 | Add to Order |
| MSS-10446 | 1/4"-28 | 5/8" | Standard | 0.477" | 0.153" | 25 | $12.96 | Add to Order |
| MSS-4021 | 1/4"-28 | 3/4" | Standard | 0.477" | 0.153" | 25 | $15.20 | Add to Order |
| MSS-4022 | 1/4"-28 | 1" | Standard | 0.477" | 0.153" | 25 | $18.96 | Add to Order |
| MSS-4023 | 5/16"-18 | 1/2" | Undercut | 0.597" | 0.134" | 25 | $18.56 | Add to Order |
| MSS-10447 | 5/16"-18 | 5/8" | Standard | 0.597" | 0.191" | 25 | $18.77 | Add to Order |

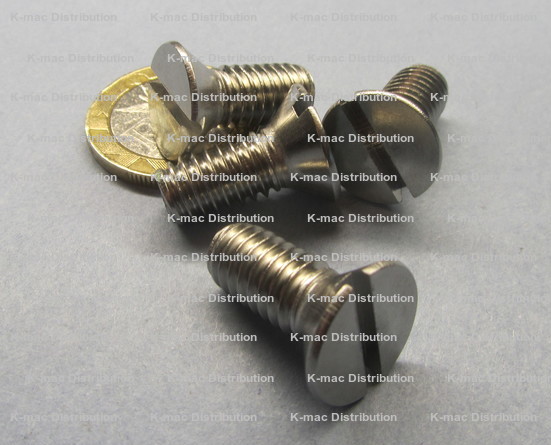

| MSS-4024 | 5/16"-18 | 3/4" | Standard | 0.597" | 0.191" | 25 | $13.13 | Add to Order |
| MSS-4025 | 5/16"-18 | 1" | Standard | 0.597" | 0.191" | 10 | $9.70 | Add to Order |
| MSS-4026 | 5/16"-18 | 1 1/4" | Standard | 0.597" | 0.191" | 10 | $12.08 | Add to Order |
| MSS-4027 | 5/16"-18 | 1 1/2" | Standard | 0.597" | 0.191" | 10 | $13.17 | Add to Order |
| MSS-4028 | 5/16"-18 | 1 3/4" | Standard | 0.597" | 0.191" | 10 | $14.51 | Add to Order |
| MSS-4029 | 5/16"-18 | 2" | Standard | 0.597" | 0.191" | 10 | $12.81 | Add to Order |
| MSS-4043 | 5/16"-18 | 2 1/2" PT | Standard | 0.597" | 0.191" | 10 | $9.77 | Add to Order |
| MSS-4031 | 5/16"-18 | 3" PT | Standard | 0.597" | 0.191" | 10 | $17.56 | Add to Order |
| MSS-4020 | 5/16"-18 | 4" PT | Standard | 0.597" | 0.191" | 10 | $14.76 | Add to Order |
| MSS-4033 | 5/16"-18 | 5" PT | Standard | 0.597" | 0.191" | 10 | $28.69 | Add to Order |
| MSS-4034 | 5/16"-18 | 6" PT | Standard | 0.597" | 0.191" | 1 | $11.82 | Add to Order |
| MSS-4035 | 3/8"-16 | 1/2" | Undercut | 0.717" | 0.161" | 10 | $13.29 | Add to Order |
| MSS-4036 | 3/8"-16 | 3/4" | Standard | 0.717" | 0.230" | 10 | $13.40 | Add to Order |
| MSS-4037 | 3/8"-16 | 1" | Standard | 0.717" | 0.230" | 10 | $16.42 | Add to Order |
| MSS-4038 | 3/8"-16 | 1 1/4" | Standard | 0.717" | 0.230" | 10 | $17.96 | Add to Order |
| MSS-4039 | 3/8"-16 | 1 1/2" | Standard | 0.717" | 0.230" | 10 | $20.24 | Add to Order |

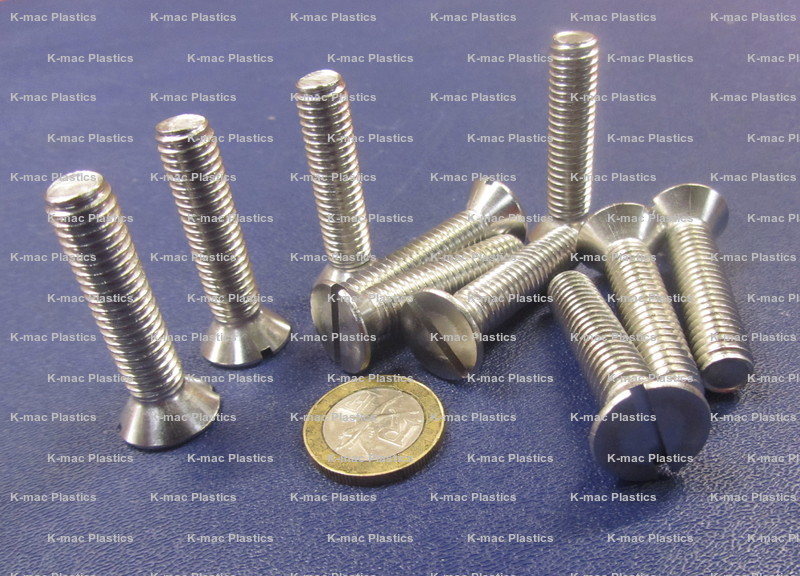

| MSS-4040 | 3/8"-16 | 1 3/4" | Standard | 0.717" | 0.230" | 10 | $22.47 | Add to Order |
| MSS-4041 | 3/8"-16 | 2" | Standard | 0.717" | 0.230" | 5 | $12.79 | Add to Order |
| MSS-4009 | 3/8"-16 | 2 1/2" PT | Standard | 0.717" | 0.230" | 10 | $19.78 | Add to Order |
| MSS-4032 | 3/8"-16 | 3" PT | Standard | 0.717" | 0.230" | 10 | $25.81 | Add to Order |
| MSS-4030 | 3/8"-16 | 3 1/2" PT | Standard | 0.717" | 0.230" | 5 | $19.19 | Add to Order |
| MSS-3998 | 3/8"-16 | 4" PT | Standard | 0.717" | 0.230" | 10 | $33.89 | Add to Order |
| MSS-3999 | 3/8"-16 | 5" PT | Standard | 0.717" | 0.230" | 1 | $8.67 | Add to Order |
| MSS-4000 | 3/8"-16 | 6" PT | Standard | 0.717" | 0.230" | 1 | $11.09 | Add to Order |
| MSS-4001 | 1/2"-13 | 3/4" | Undercut | 0.815" | 0.156" | 10 | $56.70 | Add to Order |
| MSS-4002 | 1/2"-13 | 1" | Standard | 0.815" | 0.223" | 5 | $16.30 | Add to Order |
| MSS-4003 | 1/2"-13 | 1 1/4" | Standard | 0.815" | 0.223" | 10 | $23.23 | Add to Order |
| MSS-4004 | 1/2"-13 | 1 1/2" | Standard | 0.815" | 0.223" | 5 | $17.51 | Add to Order |
| MSS-10448 | 1/2"-13 | 1 3/4" | Standard | 0.815" | 0.223" | 5 | $19.59 | Add to Order |
| MSS-4005 | 1/2"-13 | 2" | Standard | 0.815" | 0.223" | 10 | $33.14 | Add to Order |
| MSS-4006 | 1/2"-13 | 2 1/2" PT | Standard | 0.815" | 0.223" | 5 | $12.98 | Add to Order |
| MSS-4019 | 1/2"-13 | 3" PT | Standard | 0.815" | 0.223" | 1 | $5.75 | Add to Order |
| MSS-4008 | 1/2"-13 | 3 1/2" PT | Standard | 0.815" | 0.223" | 1 | $5.69 | Add to Order |
| MSS-3997 | 1/2"-13 | 4" PT | Standard | 0.815" | 0.223" | 1 | $8.95 | Add to Order |
| Rev. 01-24, 10-23, 08-23, 02-23 | ||||||||
