Zinc Plated Flat Head Phillips Machine Screws
Machine Screws - 82°Flat Head Phillips Drive, Zinc Plated, Class 2A, *Fully Threaded, Bevel under head
Steel / Zinc Plated - Good rust resistance.
| 82° Flat Head Phillips Drive Zinc Plated Machine Screws | |||||||||
| Part # | Threads | Length | Style | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|---|
| MSS-10232 | 0-80 | 3/16" | Standard | 0.112" | 0.035" | No. 0 | 50 | $21.71 | Add to Order |
| MSS-10233 | 0-80 | 1/4" | Standard | 0.112" | 0.035" | No. 0 | 50 | $22.34 | Add to Order |
| MSS-10234 | 2-56 | 1/8" | Undercut | 0.162" | 0.048" | No. 1 | 100 | $20.12 | Add to Order |
| MSS-10235 | 2-56 | 3/16" | Standard | 0.162" | 0.051" | No. 1 | 100 | $44.35 | Add to Order |
| MSS-10236 | 2-56 | 1/4" | Standard | 0.162" | 0.051" | No. 1 | 100 | $20.79 | Add to Order |
| MSS-10237 | 2-56 | 5/16" | Standard | 0.162" | 0.051" | No. 1 | 100 | $19.32 | Add to Order |
| MSS-10238 | 2-56 | 3/8" | Standard | 0.162" | 0.051" | No. 1 | 100 | $25.62 | Add to Order |
| MSS-10239 | 2-56 | 1/2" | Standard | 0.162" | 0.051" | No. 1 | 100 | $24.13 | Add to Order |
| MSS-10240 | 4-40 | 1/8" | Undercut | 0.212" | 0.07" | No. 1 | 100 | $23.79 | Add to Order |
| MSS-5262 | 4-40 | 3/16" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $19.36 | Add to Order |
| MSS-5263 | 4-40 | 1/4" | Standard | 0.212" | 0.067" | No. 1 | 100 | $2.21 | Add to Order |
| MSS-5264 | 4-40 | 5/16" | Standard | 0.212" | 0.067" | No. 1 | 100 | $10.29 | Add to Order |
| MSS-5265 | 4-40 | 3/8" | Standard | 0.212" | 0.067" | No. 1 | 100 | $1.85 | Add to Order |
| MSS-10241 | 4-40 | 7/16" | Standard | 0.212" | 0.067" | No. 1 | 100 | $12.60 | Add to Order |
| MSS-5266 | 4-40 | 1/2" | Standard | 0.212" | 0.067" | No. 1 | 100 | $2.31 | Add to Order |
| MSS-5267 | 4-40 | 5/8" | Standard | 0.212" | 0.067" | No. 1 | 100 | $6.72 | Add to Order |
| MSS-5268 | 4-40 | 3/4" | Standard | 0.212" | 0.067" | No. 1 | 100 | $3.02 | Add to Order |
| MSS-5269 | 4-40 | 7/8" | Standard | 0.212" | 0.067" | No. 1 | 100 | $10.65 | Add to Order |
| MSS-5283 | 4-40 | 1" | Standard | 0.212" | 0.067" | No. 1 | 100 | $4.16 | Add to Order |
| MSS-10242 | 4-40 | 1 1/4" | Standard | 0.212" | 0.067" | No. 1 | 100 | $21.82 | Add to Order |
| MSS-5271 | 4-40 | 1 1/2" | Standard | 0.212" | 0.067" | No. 1 | 100 | $8.06 | Add to Order |
| MSS-10243 | 5-40 | 1/4" | Standard | 0.237" | 0.075" | No. 2 | 100 | $20.60 | Add to Order |
| MSS-10244 | 5-40 | 3/8" | Standard | 0.237" | 0.075" | No. 2 | 100 | $15.54 | Add to Order |
| MSS-10245 | 5-40 | 1/2" | Standard | 0.237" | 0.075" | No. 2 | 100 | $22.89 | Add to Order |
| MSS-5260 | 6-32 | 3/16" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $19.24 | Add to Order |
| MSS-5273 | 6-32 | 1/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $3.26 | Add to Order |
| MSS-5274 | 6-32 | 5/16" | Standard | 0.262" | 0.083" | No. 2 | 100 | $9.77 | Add to Order |
| MSS-5275 | 6-32 | 3/8" | Standard | 0.262" | 0.083" | No. 2 | 100 | $1.83 | Add to Order |
| MSS-5276 | 6-32 | 7/16" | Standard | 0.262" | 0.083" | No. 2 | 100 | $8.17 | Add to Order |
| MSS-5277 | 6-32 | 1/2" | Standard | 0.262" | 0.083" | No. 2 | 100 | $2.90 | Add to Order |
| MSS-5278 | 6-32 | 5/8" | Standard | 0.262" | 0.083" | No. 2 | 100 | $3.82 | Add to Order |
| MSS-5279 | 6-32 | 3/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $2.54 | Add to Order |
| MSS-5280 | 6-32 | 7/8" | Standard | 0.262" | 0.083" | No. 2 | 100 | $14.09 | Add to Order |
| MSS-5281 | 6-32 | 1" | Standard | 0.262" | 0.083" | No. 2 | 100 | $4.22 | Add to Order |
| MSS-5249 | 6-32 | 1 1/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $3.19 | Add to Order |
| MSS-5272 | 6-32 | 1 1/2" | Standard | 0.262" | 0.083" | No. 2 | 100 | $7.50 | Add to Order |
| MSS-10246 | 6-32 | 1 3/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $11.21 | Add to Order |
| MSS-5270 | 6-32 | 2" | Standard | 0.262" | 0.083" | No. 2 | 100 | $10.94 | Add to Order |
| MSS-5238 | 6-32 | 2 1/2" | Standard | 0.262" | 0.083" | No. 2 | 100 | $26.88 | Add to Order |
| MSS-5239 | 6-32 | 3" | Standard | 0.262" | 0.083" | No. 2 | 100 | $31.33 | Add to Order |
| MSS-10247 | 8-32 | 3/16" | Undercut | 0.312" | 0.094" | No. 2 | 100 | $17.83 | Add to Order |
| MSS-5240 | 8-32 | 1/4" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $12.50 | Add to Order |
| MSS-5241 | 8-32 | 5/16" | Standard | 0.312" | 0.1" | No. 2 | 100 | $14.85 | Add to Order |
| MSS-5242 | 8-32 | 3/8" | Standard | 0.312" | 0.1" | No. 2 | 100 | $4.77 | Add to Order |
| MSS-5243 | 8-32 | 7/16" | Standard | 0.312" | 0.1" | No. 2 | 100 | $9.95 | Add to Order |
| MSS-5244 | 8-32 | 1/2" | Standard | 0.312" | 0.1" | No. 2 | 100 | $10.50 | Add to Order |
| MSS-5245 | 8-32 | 5/8" | Standard | 0.312" | 0.1" | No. 2 | 100 | $3.49 | Add to Order |
| MSS-5246 | 8-32 | 3/4" | Standard | 0.312" | 0.1" | No. 2 | 100 | $6.43 | Add to Order |
| MSS-5259 | 8-32 | 7/8" | Standard | 0.312" | 0.1" | No. 2 | 100 | $13.36 | Add to Order |
| MSS-5248 | 8-32 | 1" | Standard | 0.312" | 0.1" | No. 2 | 100 | $7.73 | Add to Order |
| MSS-5237 | 8-32 | 1 1/4" | Standard | 0.312" | 0.1" | No. 2 | 100 | $6.78 | Add to Order |
| MSS-5250 | 8-32 | 1 1/2" | Standard | 0.312" | 0.1" | No. 2 | 100 | $9.35 | Add to Order |
| MSS-10248 | 8-32 | 1 3/4" | Standard | 0.312" | 0.1" | No. 2 | 100 | $10.02 | Add to Order |
| MSS-5251 | 8-32 | 2" | Standard | 0.312" | 0.1" | No. 2 | 100 | $12.03 | Add to Order |
| MSS-5252 | 8-32 | 2 1/2" | Standard | 0.312" | 0.1" | No. 2 | 100 | $12.56 | Add to Order |
| MSS-5253 | 8-32 | 3" | Standard | 0.312" | 0.1" | No. 2 | 100 | $14.89 | Add to Order |
| MSS-10249 | 10-24 | 1/4" | Undercut | 0.362" | 0.11" | No. 2 | 100 | $18.35 | Add to Order |
| MSS-5254 | 10-24 | 5/16" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $15.23 | Add to Order |
| MSS-5255 | 10-24 | 3/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $7.33 | Add to Order |
| MSS-5256 | 10-24 | 7/16" | Standard | 0.362" | 0.116" | No. 2 | 100 | $20.48 | Add to Order |
| MSS-5257 | 10-24 | 1/2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $6.36 | Add to Order |
| MSS-5294 | 10-24 | 5/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $5.50 | Add to Order |
| MSS-5247 | 10-24 | 3/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $6.55 | Add to Order |
| MSS-10250 | 10-24 | 7/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $32.80 | Add to Order |
| MSS-5282 | 10-24 | 1" | Standard | 0.362" | 0.116" | No. 2 | 100 | $7.58 | Add to Order |
| MSS-5308 | 10-24 | 1 1/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $7.58 | Add to Order |
| MSS-5309 | 10-24 | 1 1/2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $12.31 | Add to Order |
| MSS-10251 | 10-24 | 1 3/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $36.73 | Add to Order |
| MSS-5310 | 10-24 | 2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $7.35 | Add to Order |
| MSS-5311 | 10-24 | 2 1/2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $22.53 | Add to Order |
| MSS-5312 | 10-24 | 3" | Standard | 0.362" | 0.116" | No. 2 | 100 | $18.50 | Add to Order |
| MSS-5313 | 10-24 | 4" | Standard | 0.362" | 0.116" | No. 2 | 50 | $28.48 | Add to Order |
| MSS-5315 | 10-32 | 1/4" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $19.59 | Add to Order |
| MSS-5316 | 10-32 | 5/16" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $22.93 | Add to Order |
| MSS-5330 | 10-32 | 3/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $11.13 | Add to Order |
| MSS-5318 | 10-32 | 7/16" | Standard | 0.362" | 0.116" | No. 2 | 100 | $21.59 | Add to Order |
| MSS-5307 | 10-32 | 1/2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $9.51 | Add to Order |
| MSS-5320 | 10-32 | 5/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $10.21 | Add to Order |
| MSS-5321 | 10-32 | 3/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $13.92 | Add to Order |
| MSS-5322 | 10-32 | 7/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $22.26 | Add to Order |
| MSS-5323 | 10-32 | 1" | Standard | 0.362" | 0.116" | No. 2 | 100 | $11.55 | Add to Order |
| MSS-5324 | 10-32 | 1 1/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $9.77 | Add to Order |
| MSS-5325 | 10-32 | 1 1/2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $20.62 | Add to Order |
| MSS-10252 | 10-32 | 1 3/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $29.78 | Add to Order |
| MSS-5326 | 10-32 | 2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $16.49 | Add to Order |
| MSS-5327 | 10-32 | 2 1/2" | Standard | 0.362" | 0.116" | No. 2 | 50 | $20.45 | Add to Order |

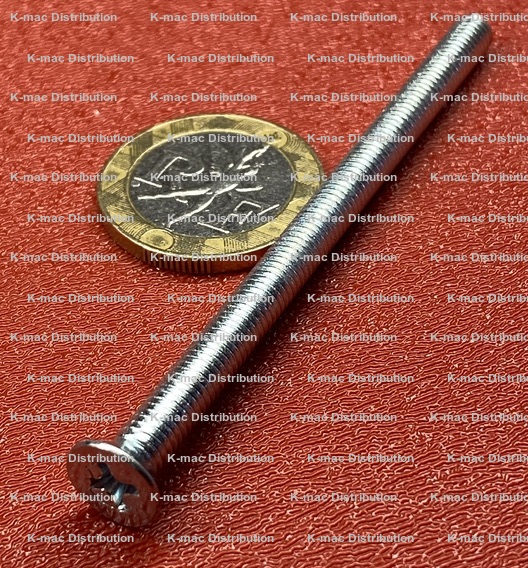

| MSS-5328 | 10-32 | 3" | Standard | 0.362" | 0.116" | No. 2 | 50 | $21.46 | Add to Order |

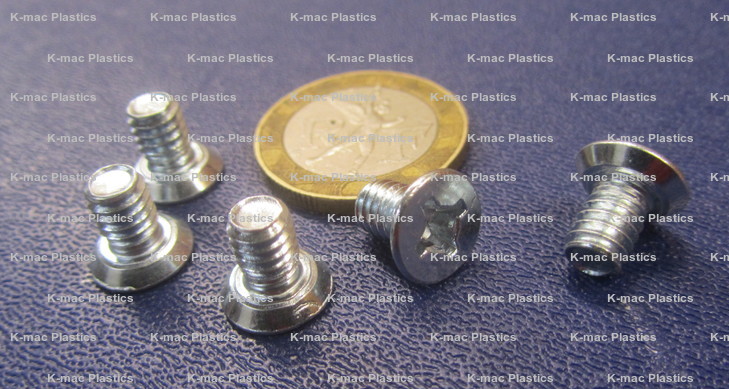

| MSS-5296 | 12-24 | 3/8" | Undercut | 0.412" | 0.092" | No. 3 | 100 | $17.22 | Add to Order |
| MSS-5319 | 12-24 | 1/2" | Standard | 0.412" | 0.132" | No. 3 | 100 | $9.20 | Add to Order |
| MSS-5317 | 12-24 | 5/8" | Standard | 0.412" | 0.132" | No. 3 | 100 | $21.23 | Add to Order |
| MSS-5285 | 12-24 | 3/4" | Standard | 0.412" | 0.132" | No. 3 | 100 | $9.91 | Add to Order |
| MSS-5286 | 12-24 | 7/8" | Standard | 0.412" | 0.132" | No. 3 | 50 | $18.48 | Add to Order |
| MSS-5287 | 12-24 | 1" | Standard | 0.412" | 0.132" | No. 3 | 100 | $7.75 | Add to Order |

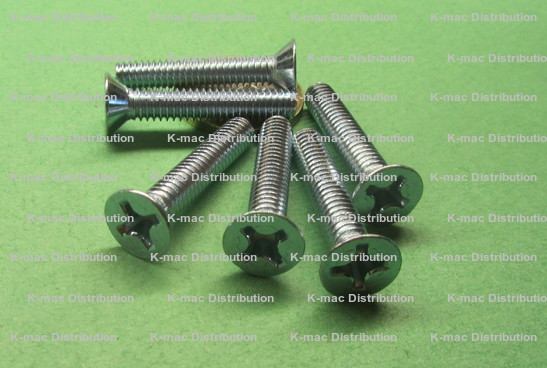

| MSS-5288 | 12-24 | 1 1/4" | Standard | 0.412" | 0.132" | No. 3 | 100 | $13.88 | Add to Order |
| MSS-5289 | 12-24 | 1 1/2" | Standard | 0.412" | 0.132" | No. 3 | 50 | $4.60 | Add to Order |

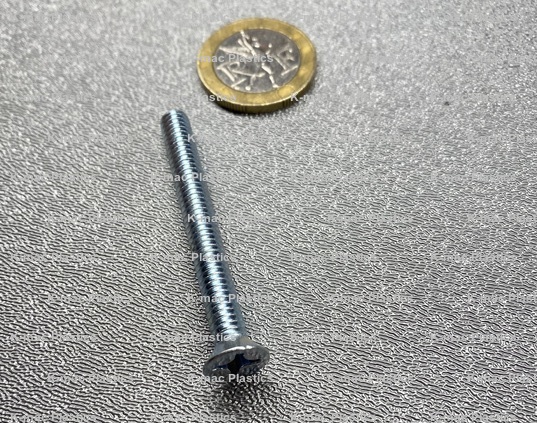

| MSS-10253 | 12-24 | 2" | Standard | 0.412" | 0.132" | No. 3 | 50 | $26.90 | Add to Order |
| MSS-4111 | 1/4"-20 | 3/8" | Undercut | 0.477" | 0.107" | No. 3 | 100 | $19.30 | Add to Order |
| MSS-4112 | 1/4"-20 | 1/2" | Standard | 0.477" | 0.153" | No. 3 | 100 | $10.46 | Add to Order |
| MSS-4042 | 1/4"-20 | 5/8" | Standard | 0.477" | 0.153" | No. 3 | 100 | $6.51 | Add to Order |

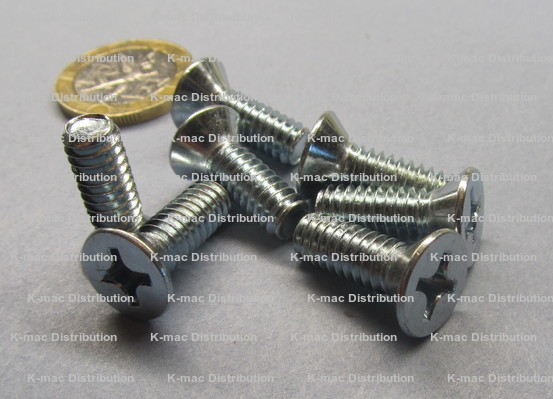

| MSS-3971 | 1/4"-20 | 3/4" | Standard | 0.477" | 0.153" | No. 3 | 100 | $6.89 | Add to Order |
| MSS-4065 | 1/4"-20 | 7/8" | Standard | 0.477" | 0.153" | No. 3 | 100 | $25.20 | Add to Order |
| MSS-3975 | 1/4"-20 | 1" | Standard | 0.477" | 0.153" | No. 3 | 100 | $12.08 | Add to Order |
| MSS-10254 | 1/4"-20 | 1 1/8" | Standard | 0.477" | 0.153" | No. 3 | 100 | $19.53 | Add to Order |
| MSS-3976 | 1/4"-20 | 1 1/4" | Standard | 0.477" | 0.153" | No. 3 | 100 | $14.83 | Add to Order |
| MSS-3977 | 1/4"-20 | 1 1/2" | Standard | 0.477" | 0.153" | No. 3 | 100 | $16.95 | Add to Order |
| MSS-3978 | 1/4"-20 | 1 3/4" | Standard | 0.477" | 0.153" | No. 3 | 50 | $21.88 | Add to Order |
| MSS-3979 | 1/4"-20 | 2" | Standard | 0.477" | 0.153" | No. 3 | 100 | $22.81 | Add to Order |
| MSS-3980 | 1/4"-20 | 2 1/4" | Standard | 0.477" | 0.153" | No. 3 | 50 | $21.42 | Add to Order |

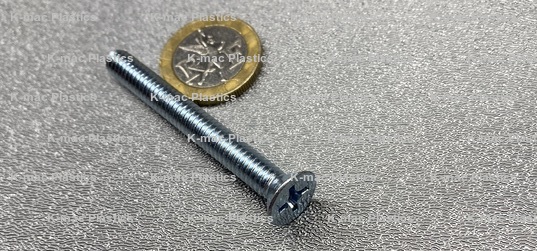

| MSS-3981 | 1/4"-20 | 2 1/2" | Standard | 0.477" | 0.153" | No. 3 | 100 | $21.86 | Add to Order |
| MSS-10255 | 1/4"-20 | 2 3/4" | Standard | 0.477" | 0.153" | No. 3 | 25 | $32.07 | Add to Order |
| MSS-3982 | 1/4"-20 | 3" | Standard | 0.477" | 0.153" | No. 3 | 50 | $14.70 | Add to Order |
| MSS-3996 | 1/4"-20 | 3 1/2" | Standard | 0.477" | 0.153" | No. 3 | 100 | $30.53 | Add to Order |
| MSS-3984 | 1/4"-20 | 4" | Standard | 0.477" | 0.153" | No. 3 | 100 | $37.00 | Add to Order |
| MSS-10256 | 1/4"-20 | 5" | Standard | 0.477" | 0.153" | No. 3 | 25 | $77.20 | Add to Order |
| MSS-10257 | 1/4"-20 | 6" | Standard | 0.477" | 0.153" | No. 3 | 10 | $41.94 | Add to Order |

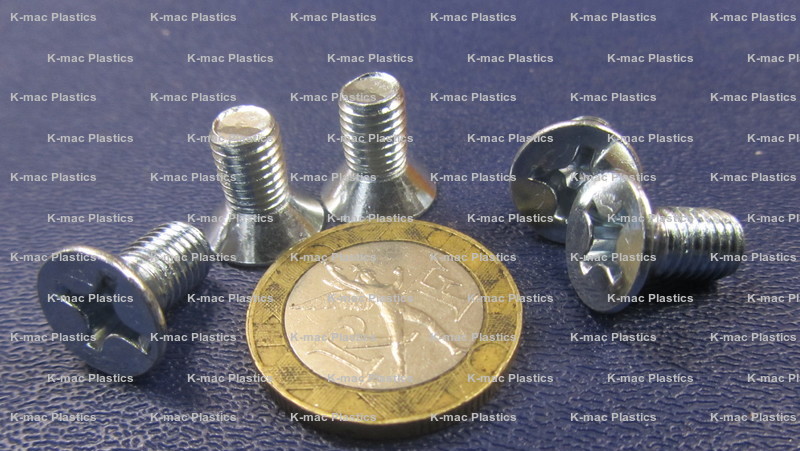

| MSS-3973 | 1/4"-28 | 1/2" | Standard | 0.477" | 0.153" | No. 3 | 50 | $24.42 | Add to Order |

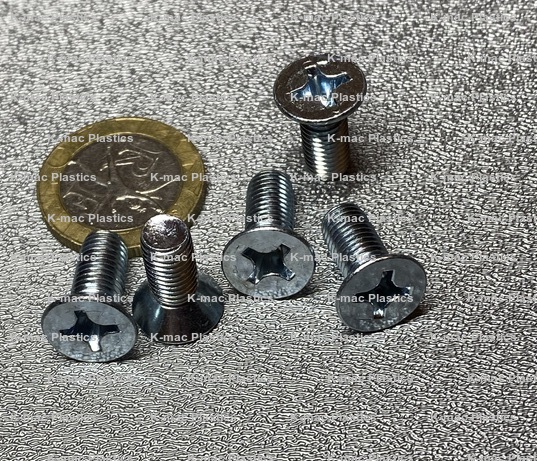

| MSS-10258 | 1/4"-28 | 5/8" | Standard | 0.477" | 0.153" | No. 4 | 50 | $26.33 | Add to Order |
| MSS-3986 | 1/4"-28 | 3/4" | Standard | 0.477" | 0.153" | No. 3 | 50 | $35.39 | Add to Order |
| MSS-10259 | 1/4"-28 | 1" | Standard | 0.477" | 0.153" | No. 4 | 25 | $59.85 | Add to Order |
| MSS-3987 | 5/16"-18 | 1/2" | Undercut | 0.597" | 0.134" | No. 4 | 50 | $20.92 | Add to Order |
| MSS-10260 | 5/16"-18 | 5/8" | Standard | 0.597" | 0.191" | No. 4 | 50 | $46.01 | Add to Order |
| MSS-3988 | 5/16"-18 | 3/4" | Standard | 0.597" | 0.191" | No. 4 | 50 | $23.56 | Add to Order |
| MSS-10261 | 5/16"-18 | 7/8" | Standard | 0.597" | 0.191" | No. 4 | 100 | $69.30 | Add to Order |
| MSS-3989 | 5/16"-18 | 1" | Standard | 0.597" | 0.191" | No. 4 | 50 | $23.81 | Add to Order |
| MSS-3990 | 5/16"-18 | 1 1/4" | Standard | 0.597" | 0.191" | No. 4 | 50 | $26.08 | Add to Order |
| MSS-3991 | 5/16"-18 | 1 1/2" | Standard | 0.597" | 0.191" | No. 4 | 50 | $31.00 | Add to Order |
| MSS-10262 | 5/16"-18 | 1 3/4" | Standard | 0.597" | 0.191" | No. 4 | 25 | $46.89 | Add to Order |
| MSS-3993 | 5/16"-18 | 2" | Standard | 0.597" | 0.191" | No. 4 | 10 | $12.03 | Add to Order |
| MSS-3994 | 5/16"-18 | 2 1/2" | Standard | 0.597" | 0.191" | No. 4 | 10 | $8.88 | Add to Order |
| MSS-3962 | 5/16"-18 | 3" | Standard | 0.597" | 0.191" | No. 4 | 10 | $16.40 | Add to Order |
| MSS-10263 | 5/16"-18 | 3 1/2" | Standard | 0.597" | 0.191" | No. 4 | 10 | $18.31 | Add to Order |
| MSS-10264 | 5/16"-18 | 4" | Standard | 0.597" | 0.191" | No. 4 | 10 | $19.47 | Add to Order |
| MSS-10265 | 3/8"-16 | 1/2" | Undercut | 0.717" | 0.161" | No. 4 | 25 | $16.17 | Add to Order |
| MSS-10266 | 3/8"-16 | 5/8" | Standard | 0.717" | 0.23" | No. 4 | 25 | $27.76 | Add to Order |
| MSS-10267 | 3/8"-16 | 3/4" | Standard | 0.717" | 0.23" | No. 4 | 25 | $31.48 | Add to Order |
| MSS-3985 | 3/8"-16 | 1" | Standard | 0.717" | 0.23" | No. 4 | 25 | $19.43 | Add to Order |
| MSS-10268 | 3/8"-16 | 1 1/4" | Standard | 0.717" | 0.23" | No. 4 | 25 | $32.63 | Add to Order |
| MSS-3983 | 3/8"-16 | 1 1/2" | Standard | 0.717" | 0.23" | No. 4 | 10 | $8.90 | Add to Order |
| MSS-10269 | 3/8"-16 | 1 3/4" | Standard | 0.717" | 0.23" | No. 4 | 10 | $49.75 | Add to Order |
| MSS-10270 | 3/8"-16 | 2" | Standard | 0.717" | 0.23" | No. 4 | 10 | $24.04 | Add to Order |
| MSS-10271 | 3/8"-16 | 2 1/2" | Standard | 0.717" | 0.23" | No. 4 | 10 | $28.62 | Add to Order |
| MSS-3951 | 3/8"-16 | 3" | Standard | 0.717" | 0.23" | No. 4 | 10 | $15.94 | Add to Order |
| MSS-10272 | 3/8"-16 | 3 1/2" | Standard | 0.717" | 0.23" | No. 4 | 10 | $15.94 | Add to Order |
| MSS-10273 | 3/8"-16 | 4" | Standard | 0.717" | 0.23" | No. 4 | 5 | $24.61 | Add to Order |
| MSS-10274 | 1/2"-13 | 1" | Standard | 0.815" | 0.223" | No. 4 | 10 | $28.62 | Add to Order |
| MSS-10275 | 1/2"-13 | 1 1/4" | Standard | 0.815" | 0.223" | No. 4 | 10 | $60.80 | Add to Order |
| MSS-10276 | 1/2"-13 | 1 1/2" | Standard | 0.815" | 0.223" | No. 4 | 50 | $37.17 | Add to Order |
| MSS-10277 | 1/2"-13 | 1 3/4" | Standard | 0.815" | 0.223" | No. 4 | 1 | $54.60 | Add to Order |
| MSS-10278 | 1/2"-13 | 2" | Standard | 0.815" | 0.223" | No. 4 | 5 | $70.81 | Add to Order |
| MSS-10279 | 1/2"-13 | 3" | Standard | 0.815" | 0.223" | No. 4 | 5 | $49.41 | Add to Order |
| Rev. 10-23, 08-23, 02-23, 11-22 | |||||||||
