Brass Flat Head Phillips Machine Screws
Machine Screws - Flat Head Phillips Drive, Class 2A, *Fully Threaded, 82° Bevel under the head
Brass - Nonmagnetic and good corrosion resistance
| Brass Phillips Flat Head Machine Screws ASME B18.6.3, 50,00 PSI Tensile, FT * Asterisk Lengths are Undercut Heads * |
||||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-10327 | 2-56 | 3/16" | 0.162" | 0.051" | No. 1 | 100 | $15.23 | Add to Order |
| MSS-10328 | 2-56 | 1/4" | 0.162" | 0.051" | No. 1 | 100 | $15.50 | Add to Order |
| MSS-10329 | 2-56 | 3/8" | 0.162" | 0.051" | No. 1 | 100 | $16.76 | Add to Order |
| MSS-10330 | 4-40 | 3/16" * | 0.212" | 0.067" | No. 1 | 100 | $15.44 | Add to Order |
| MSS-5177 | 4-40 | 1/4" | 0.212" | 0.067" | No. 1 | 100 | $13.48 | Add to Order |
| MSS-10331 | 4-40 | 5/16" | 0.212" | 0.067" | No. 1 | 100 | $16.42 | Add to Order |
| MSS-5166 | 4-40 | 3/8" | 0.212" | 0.067" | No. 1 | 100 | $6.47 | Add to Order |
| MSS-5179 | 4-40 | 1/2" | 0.212" | 0.067" | No. 1 | 100 | $13.27 | Add to Order |
| MSS-10332 | 4-40 | 5/8" | 0.212" | 0.067" | No. 1 | 100 | $21.74 | Add to Order |
| MSS-10333 | 4-40 | 3/4" | 0.212" | 0.067" | No. 1 | 100 | $23.46 | Add to Order |
| MSS-10334 | 6-32 | 3/16" * | 0.262" | 0.083" | No. 2 | 100 | $19.07 | Add to Order |
| MSS-5180 | 6-32 | 1/4" | 0.262" | 0.083" | No. 2 | 100 | $16.97 | Add to Order |
| MSS-10335 | 6-32 | 5/16" | 0.262" | 0.083" | No. 2 | 100 | $22.09 | Add to Order |
| MSS-3673 | 6-32 | 3/8" | 0.262" | 0.083" | No. 2 | 100 | $7.85 | Add to Order |
| MSS-5182 | 6-32 | 1/2" | 0.262" | 0.083" | No. 2 | 100 | $16.32 | Add to Order |
| MSS-5183 | 6-32 | 5/8" | 0.262" | 0.083" | No. 2 | 100 | $26.00 | Add to Order |
| MSS-3676 | 6-32 | 3/4" | 0.262" | 0.083" | No. 2 | 100 | $8.40 | Add to Order |
| MSS-5185 | 6-32 | 1" | 0.262" | 0.083" | No. 2 | 100 | $10.02 | Add to Order |
| MSS-3690B | 6-32 | 1 1/4" | 0.262" | 0.083" | No. 2 | 100 | $39.35 | Add to Order |
| MSS-5187 | 6-32 | 1 1/2" | 0.262" | 0.083" | No. 2 | 50 | $21.02 | Add to Order |
| MSS-5155 | 6-32 | 2" | 0.262" | 0.083" | No. 2 | 25 | $19.19 | Add to Order |
| MSS-10336 | 8-32 | 1/4" | 0.312" | 0.1" | No. 2 | 100 | $30.16 | Add to Order |
| MSS-10337 | 8-32 | 5/16" | 0.312" | 0.1" | No. 2 | 50 | $14.07 | Add to Order |
| MSS-5178 | 8-32 | 3/8" | 0.312" | 0.1" | No. 2 | 100 | $28.81 | Add to Order |
| MSS-3684 | 8-32 | 1/2" | 0.312" | 0.1" | No. 2 | 100 | $27.97 | Add to Order |
| MSS-5144 | 8-32 | 5/8" | 0.312" | 0.1" | No. 2 | 100 | $35.28 | Add to Order |
| MSS-5145 | 8-32 | 3/4" | 0.312" | 0.1" | No. 2 | 50 | $13.59 | Add to Order |

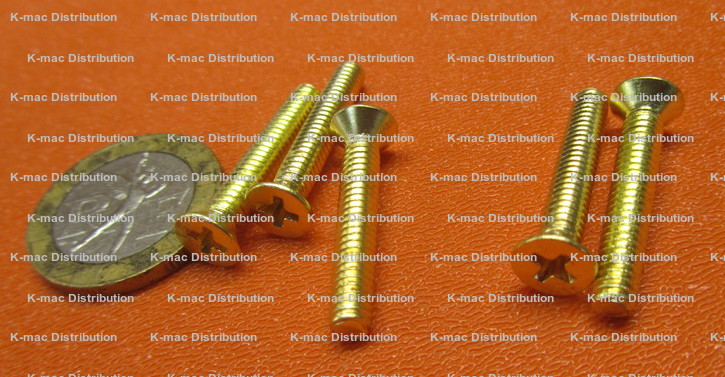

| MSS-5146 | 8-32 | 1" | 0.312" | 0.1" | No. 2 | 50 | $17.12 | Add to Order |

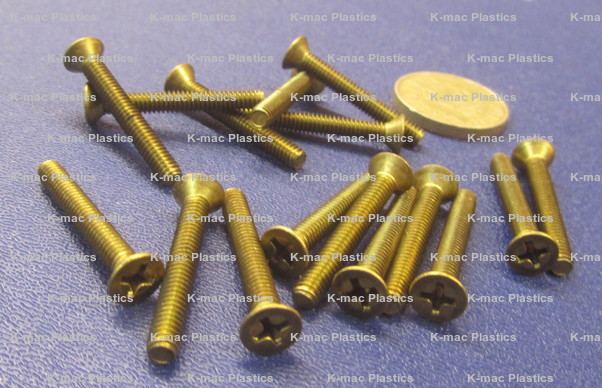

| MSS-5147 | 8-32 | 1 1/4" | 0.312" | 0.1" | No. 2 | 50 | $21.40 | Add to Order |
| MSS-3725B | 8-32 | 1 1/2" | 0.312" | 0.1" | No. 2 | 50 | $21.67 | Add to Order |
| MSS-5149 | 8-32 | 2" | 0.312" | 0.1" | No. 2 | 25 | $29.13 | Add to Order |

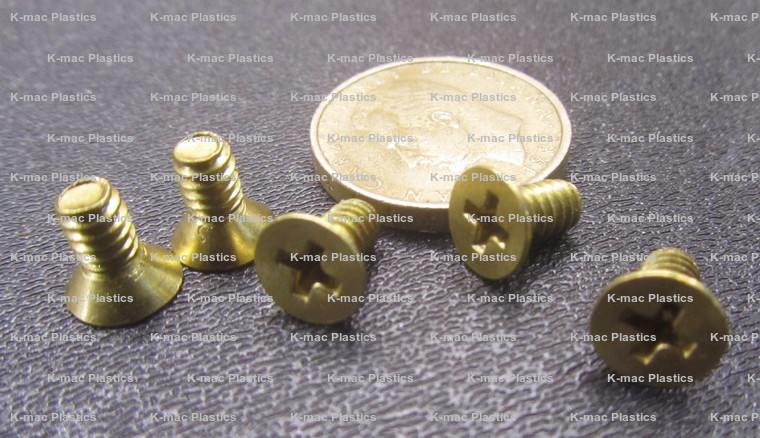

| MSS-5150 | 10-24 | 3/8" | 0.362" | 0.116" | No. 2 | 100 | $51.28 | Add to Order |
| MSS-5151 | 10-24 | 1/2" | 0.362" | 0.116" | No. 2 | 50 | $14.57 | Add to Order |
| MSS-10338 | 10-24 | 5/8" | 0.362" | 0.116" | No. 2 | 50 | $32.42 | Add to Order |

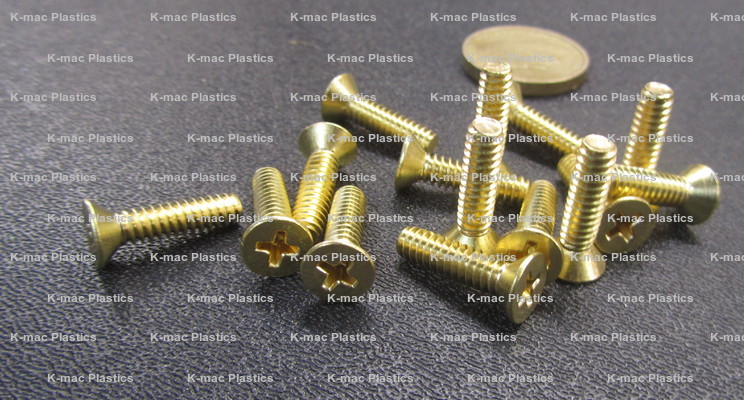

| MSS-5152 | 10-24 | 3/4" | 0.362" | 0.116" | No. 2 | 50 | $17.85 | Add to Order |
| MSS-5165 | 10-24 | 1" | 0.362" | 0.116" | No. 2 | 25 | $16.99 | Add to Order |
| MSS-5154 | 10-24 | 1 1/4" | 0.362" | 0.116" | No. 2 | 25 | $17.49 | Add to Order |
| MSS-5143 | 10-24 | 1 1/2" | 0.362" | 0.116" | No. 2 | 50 | $34.82 | Add to Order |

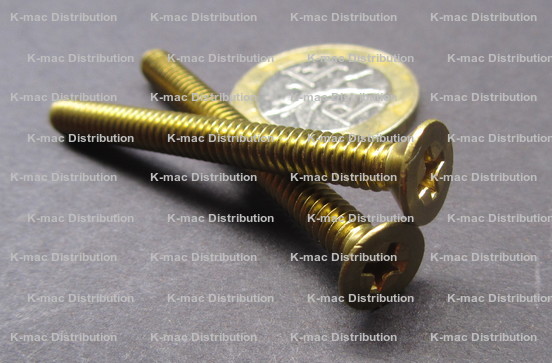

| MSS-5156 | 10-24 | 2" | 0.362" | 0.116" | No. 2 | 50 | $25.56 | Add to Order |
| MSS-10339 | 10-32 | 1/4" * | 0.362" | 0.116" | No. 2 | 100 | $30.09 | Add to Order |
| MSS-5157 | 10-32 | 3/8" | 0.362" | 0.116" | No. 2 | 100 | $29.88 | Add to Order |
| MSS-5158 | 10-32 | 1/2" | 0.362" | 0.116" | No. 2 | 50 | $21.88 | Add to Order |
| MSS-10340 | 10-32 | 5/8" | 0.362" | 0.116" | No. 2 | 50 | $26.71 | Add to Order |
| MSS-5159 | 10-32 | 3/4" | 0.362" | 0.116" | No. 2 | 50 | $27.28 | Add to Order |
| MSS-5160 | 10-32 | 1" | 0.362" | 0.116" | No. 2 | 25 | $16.99 | Add to Order |
| MSS-5161 | 10-32 | 1 1/4" | 0.362" | 0.116" | No. 2 | 25 | $17.49 | Add to Order |

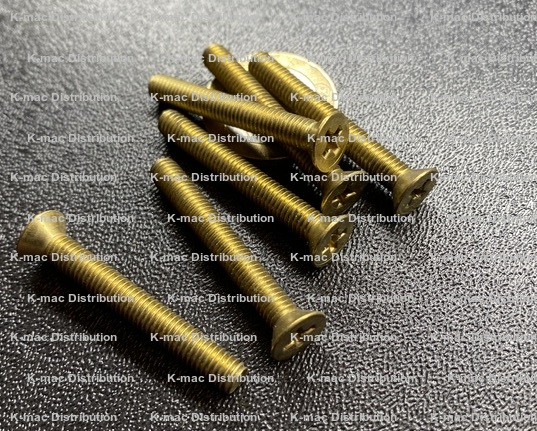

| MSS-5162 | 10-32 | 1 1/2" | 0.362" | 0.116" | No. 2 | 25 | $21.82 | Add to Order |
| MSS-5163 | 10-32 | 2" | 0.362" | 0.116" | No. 2 | 25 | $32.61 | Add to Order |
| MSS-10341 | 1/4"-20 | 3/8" * | 0.477" | 0.153" | No. 3 | 25 | $24.78 | Add to Order |
| MSS-5200 | 1/4"-20 | 1/2" | 0.477" | 0.153" | No. 3 | 25 | $20.60 | Add to Order |
| MSS-10342 | 1/4"-20 | 5/8" | 0.477" | 0.153" | No. 3 | 25 | $26.31 | Add to Order |
| MSS-5153 | 1/4"-20 | 3/4" | 0.477" | 0.153" | No. 3 | 25 | $24.78 | Add to Order |
| MSS-5188 | 1/4"-20 | 1" | 0.477" | 0.153" | No. 3 | 25 | $29.80 | Add to Order |

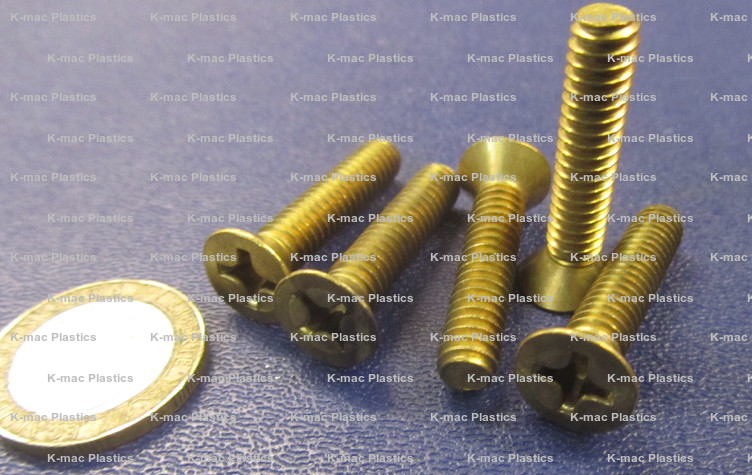

| MSS-5214 | 1/4"-20 | 1 1/4" | 0.477" | 0.153" | No. 3 | 100 | $31.25 | Add to Order |

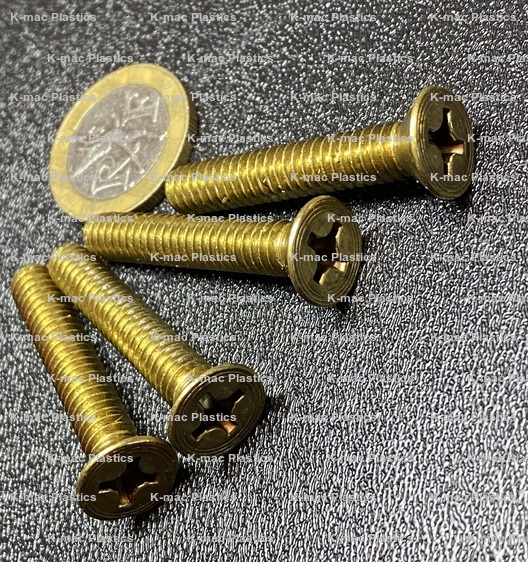

| MSS-5215 | 1/4"-20 | 1 1/2" | 0.477" | 0.153" | No. 3 | 10 | $17.45 | Add to Order |
| MSS-10343 | 1/4"-20 | 1 3/4" | 0.477" | 0.153" | No. 3 | 10 | $22.43 | Add to Order |
| MSS-5216 | 1/4"-20 | 2" | 0.477" | 0.153" | No. 3 | 10 | $21.63 | Add to Order |

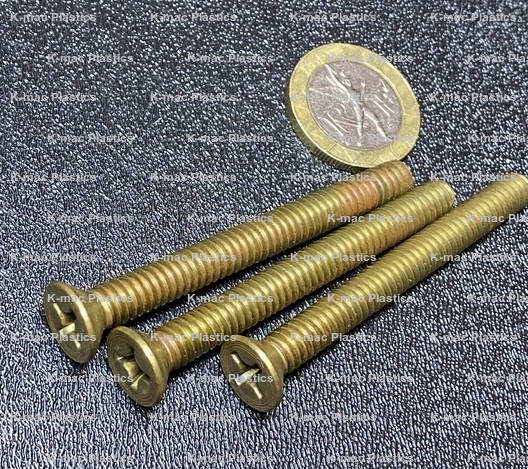

| MSS-10344 | 1/4"-20 | 2 1/2" | 0.477" | 0.153" | No. 3 | 5 | $16.55 | Add to Order |
| MSS-5217 | 1/4"-20 | 3" PT | 0.477" | 0.153" | No. 3 | 5 | $14.55 | Add to Order |
| MSS-10345 | 5/16"-18 | 5/8" | 0.597" | 0.191" | No. 4 | 10 | $21.63 | Add to Order |
| MSS-10346 | 5/16"-18 | 3/4" | 0.597" | 0.191" | No. 4 | 10 | $18.98 | Add to Order |
| MSS-10347 | 5/16"-18 | 1" | 0.597" | 0.191" | No. 4 | 10 | $23.79 | Add to Order |
| MSS-10348 | 5/16"-18 | 1 1/4" | 0.597" | 0.191" | No. 4 | 10 | $25.87 | Add to Order |
| MSS-10349 | 5/16"-18 | 1 1/2" | 0.597" | 0.191" | No. 4 | 5 | $14.97 | Add to Order |
| MSS-10350 | 3/8"-16 | 3/4" | 0.717" | 0.23" | No. 4 | 5 | $20.77 | Add to Order |
| MSS-10351 | 3/8"-16 | 1" | 0.717" | 0.23" | No. 4 | 5 | $22.76 | Add to Order |
| MSS-10352 | 3/8"-16 | 1 1/4" | 0.717" | 0.23" | No. 4 | 5 | $26.08 | Add to Order |
| MSS-10353 | 3/8"-16 | 1 1/2" | 0.717" | 0.23" | No. 4 | 5 | $32.53 | Add to Order |
| MSS-10354 | 3/8"-16 | 2" | 0.717" | 0.23" | No. 4 | 1 | $5.84 | Add to Order |
| MSS-10355 | 1/2"-13 | 1" | 0.815" | 0.223" | No. 4 | 1 | $6.09 | Add to Order |
| MSS-10356 | 1/2"-13 | 1 1/4" | 0.815" | 0.223" | No. 4 | 1 | $6.74 | Add to Order |
| MSS-10357 | 1/2"-13 | 1 1/2" | 0.815" | 0.223" | No. 4 | 1 | $7.67 | Add to Order |
| MSS-10358 | 1/2"-13 | 2" | 0.815" | 0.223" | No. 4 | 1 | $9.32 | Add to Order |
| Rev. 06-24, 10-23, 08-23, 02-23 | ||||||||
