18-8 Stainless Flat Head Phillips Machine Screws
Machine Screws - Flat Head Phillips Drive, *Fully Threaded, 82° bevel under head.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic.
| Passivated 18-8 Stainless Steel Phillips Flat Head Machine Screws | |||||||||
| Part # | Thread Size | Length | Type | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|---|
| MSS-10016 | 0-80 | 3/32" | Undercut | 0.112" | 0.035" | No. 0 | 100 | $28.92 | Add to Order |
| MSS-4543 | 0-80 | 1/8" | Undercut | 0.112" | 0.025" | No. 0 | 100 | $14.26 | Add to Order |
| MSS-6418 | 0-80 | 5/32" | Standard | 0.112" | 0.035" | No. 0 | 100 | $21.06 | Add to Order |
| MSS-5853 | 0-80 | 3/16" | Standard | 0.112" | 0.035" | No. 0 | 100 | $14.91 | Add to Order |
| MSS-6419 | 0-80 | 7/32" | Standard | 0.112" | 0.035" | No. 0 | 100 | $58.25 | Add to Order |
| MSS-5851 | 0-80 | 1/4" | Standard | 0.112" | 0.035" | No. 0 | 100 | $15.10 | Add to Order |
| MSS-6420 | 0-80 | 9/32" | Standard | 0.112" | 0.035" | No. 0 | 100 | $21.06 | Add to Order |
| MSS-4826 | 0-80 | 5/16" | Standard | 0.112" | 0.035" | No. 0 | 100 | $15.86 | Add to Order |
| MSS-6431 | 0-80 | 11/32" | Standard | 0.112" | 0.035" | No. 0 | 100 | $23.00 | Add to Order |
| MSS-5800 | 0-80 | 3/8" | Standard | 0.112" | 0.035" | No. 0 | 100 | $15.81 | Add to Order |
| MSS-6421 | 0-80 | 7/16" | Standard | 0.112" | 0.035" | No. 0 | 100 | $31.16 | Add to Order |
| MSS-5799 | 0-80 | 1/2" | Standard | 0.112" | 0.035" | No. 0 | 100 | $16.34 | Add to Order |
| MSS-5798 | 0-80 | 5/8" | Standard | 0.112" | 0.035" | No. 0 | 100 | $18.77 | Add to Order |
| MSS-5797 | 0-80 | 3/4" | Standard | 0.112" | 0.035" | No. 0 | 100 | $18.35 | Add to Order |
| MSS-5866 | 0-80 | 1" | Standard | 0.112" | 0.035" | No. 0 | 100 | $24.70 | Add to Order |
| MSS-5939 | 1-64 | 1/8" | Undercut | 0.137" | 0.031" | No. 0 | 100 | $16.57 | Add to Order |
| MSS-5938 | 1-64 | 3/16" | Standard | 0.137" | 0.043" | No. 0 | 100 | $17.89 | Add to Order |
| MSS-5936 | 1-64 | 1/4" | Standard | 0.137" | 0.043" | No. 0 | 100 | $19.59 | Add to Order |
| MSS-5933 | 1-64 | 3/8" | Standard | 0.137" | 0.043" | No. 0 | 100 | $20.96 | Add to Order |
| MSS-5930 | 1-64 | 1/2" | Standard | 0.137" | 0.043" | No. 0 | 100 | $23.69 | Add to Order |
| MSS-5925 | 1-64 | 3/4" | Standard | 0.137" | 0.043" | No. 0 | 50 | $17.03 | Add to Order |
| MSS-5897 | 1-72 | 1/8" | Undercut | 0.137" | 0.031" | No. 0 | 100 | $17.58 | Add to Order |
| MSS-5900 | 1-72 | 3/16" | Standard | 0.137" | 0.043" | No. 0 | 100 | $19.49 | Add to Order |
| MSS-5876 | 1-72 | 1/4" | Standard | 0.137" | 0.043" | No. 0 | 100 | $20.50 | Add to Order |
| MSS-4879 | 1-72 | 5/16" | Standard | 0.137" | 0.043" | No. 0 | 100 | $20.62 | Add to Order |
| MSS-5875 | 1-72 | 3/8" | Standard | 0.137" | 0.043" | No. 0 | 100 | $21.82 | Add to Order |
| MSS-4881 | 1-72 | 1/2" | Standard | 0.137" | 0.043" | No. 0 | 100 | $23.50 | Add to Order |
| MSS-5874 | 1-72 | 1" | Standard | 0.137" | 0.043" | No. 0 | 50 | $16.53 | Add to Order |
| MSS-4883 | 2-56 | 1/8" | Undercut | 0.162" | 0.036" | No. 1 | 100 | $7.96 | Add to Order |
| MSS-6432 | 2-56 | 5/32" | Standard | 0.162" | 0.051" | No. 1 | 100 | $12.60 | Add to Order |
| MSS-5873 | 2-56 | 3/16" | Standard | 0.162" | 0.051" | No. 1 | 100 | $6.32 | Add to Order |
| MSS-10017 | 2-56 | 3/16" | Undercut | 0.162" | 0.036" | No. 1 | 100 | $8.25 | Add to Order |
| MSS-6434 | 2-56 | 7/32" | Standard | 0.162" | 0.051" | No. 1 | 100 | $12.87 | Add to Order |
| MSS-5858 | 2-56 | 1/4" | Standard | 0.162" | 0.051" | No. 1 | 100 | $6.34 | Add to Order |
| MSS-10018 | 2-56 | 1/4" | Undercut | 0.162" | 0.036" | No. 1 | 100 | $8.72 | Add to Order |
| MSS-4887 | 2-56 | 5/16" | Standard | 0.162" | 0.051" | No. 1 | 100 | $10.19 | Add to Order |
| MSS-10019 | 2-56 | 5/16" | Undercut | 0.162" | 0.036" | No. 1 | 100 | $8.95 | Add to Order |
| MSS-5877 | 2-56 | 3/8" | Standard | 0.162" | 0.051" | No. 1 | 100 | $5.54 | Add to Order |
| MSS-10020 | 2-56 | 3/8" | Undercut | 0.162" | 0.036" | No. 1 | 100 | $9.47 | Add to Order |
| MSS-4878 | 2-56 | 7/16" | Standard | 0.162" | 0.051" | No. 1 | 100 | $6.01 | Add to Order |
| MSS-4876 | 2-56 | 1/2" | Standard | 0.162" | 0.051" | No. 1 | 100 | $6.13 | Add to Order |
| MSS-10021 | 2-56 | 1/2" | Undercut | 0.162" | 0.036" | No. 1 | 100 | $10.14 | Add to Order |
| MSS-5865 | 2-56 | 9/16" | Standard | 0.162" | 0.051" | No. 1 | 100 | $7.75 | Add to Order |
| MSS-4845 | 2-56 | 5/8" | Standard | 0.162" | 0.051" | No. 1 | 100 | $4.81 | Add to Order |
| MSS-4846 | 2-56 | 3/4" | Standard | 0.162" | 0.051" | No. 1 | 100 | $5.10 | Add to Order |
| MSS-4847 | 2-56 | 7/8" | Standard | 0.162" | 0.051" | No. 1 | 100 | $12.68 | Add to Order |
| MSS-4848 | 2-56 | 1" | Standard | 0.162" | 0.051" | No. 1 | 100 | $7.46 | Add to Order |
| MSS-4849 | 2-56 | 1 1/4" | Standard | 0.162" | 0.051" | No. 1 | 100 | $10.04 | Add to Order |
| MSS-4850 | 2-56 | 1 1/2" | Standard | 0.162" | 0.051" | No. 1 | 50 | $17.56 | Add to Order |
| MSS-5850 | 3-48 | 1/8" | Undercut | 0.187" | 0.042" | No. 1 | 100 | $14.47 | Add to Order |
| MSS-4560 | 3-48 | 3/16" | Standard | 0.187" | 0.059" | No. 1 | 100 | $14.60 | Add to Order |
| MSS-5849 | 3-48 | 1/4" | Standard | 0.187" | 0.059" | No. 1 | 100 | $14.72 | Add to Order |
| MSS-5921 | 3-48 | 5/16" | Standard | 0.187" | 0.059" | No. 1 | 100 | $15.14 | Add to Order |
| MSS-5856 | 3-48 | 3/8" | Standard | 0.187" | 0.059" | No. 1 | 100 | $15.60 | Add to Order |
| MSS-5917 | 3-48 | 1/2" | Standard | 0.187" | 0.059" | No. 1 | 100 | $16.80 | Add to Order |
| MSS-4835 | 3-48 | 5/8" | Standard | 0.187" | 0.059" | No. 1 | 100 | $18.50 | Add to Order |
| MSS-5916 | 3-48 | 3/4" | Standard | 0.187" | 0.059" | No. 1 | 100 | $21.53 | Add to Order |
| MSS-5915 | 3-48 | 1" | Standard | 0.187" | 0.059" | No. 1 | 50 | $14.03 | Add to Order |
| MSS-4852 | 4-40 | 1/8" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $13.48 | Add to Order |
| MSS-10022 | 4-40 | 3/16" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $9.11 | Add to Order |
| MSS-10023 | 4-40 | 7/32" | Standard | 0.212" | 0.067" | No. 1 | 100 | $21.61 | Add to Order |
| MSS-4854 | 4-40 | 1/4" | Standard | 0.212" | 0.067" | No. 1 | 100 | $6.41 | Add to Order |
| MSS-4710 | 4-40 | 1/4" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $10.02 | Add to Order |
| MSS-4843 | 4-40 | 5/16" | Standard | 0.212" | 0.067" | No. 1 | 100 | $8.30 | Add to Order |
| MSS-4711 | 4-40 | 5/16" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $10.04 | Add to Order |
| MSS-5862 | 4-40 | 3/8" | Standard | 0.212" | 0.067" | No. 1 | 100 | $9.28 | Add to Order |
| MSS-4724 | 4-40 | 3/8" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $11.66 | Add to Order |
| MSS-5861 | 4-40 | 7/16" | Standard | 0.212" | 0.067" | No. 1 | 100 | $7.37 | Add to Order |
| MSS-10024 | 4-40 | 7/16" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $10.48 | Add to Order |
| MSS-4858 | 4-40 | 1/2" | Standard | 0.212" | 0.067" | No. 1 | 100 | $7.12 | Add to Order |
| MSS-4713 | 4-40 | 1/2" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $13.08 | Add to Order |
| MSS-5860 | 4-40 | 9/16" | Standard | 0.212" | 0.067" | No. 1 | 100 | $3.97 | Add to Order |
| MSS-4860 | 4-40 | 5/8" | Standard | 0.212" | 0.067" | No. 1 | 100 | $9.83 | Add to Order |
| MSS-5886 | 4-40 | 5/8" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $8.74 | Add to Order |

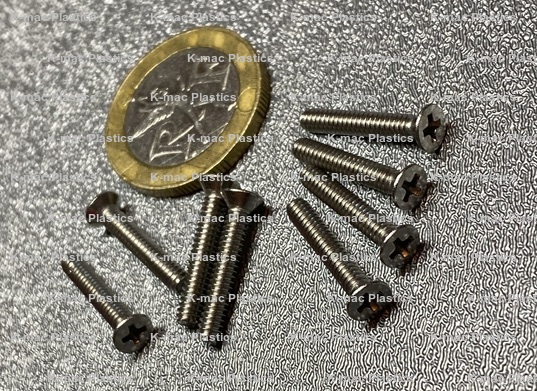

| MSS-6403 | 4-40 | 11/16" | Standard | 0.212" | 0.067" | No. 1 | 100 | $14.11 | Add to Order |
| MSS-4861 | 4-40 | 3/4" | Standard | 0.212" | 0.067" | No. 1 | 100 | $9.05 | Add to Order |
| MSS-10025 | 4-40 | 3/4" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $12.05 | Add to Order |
| MSS-4862 | 4-40 | 7/8" | Standard | 0.212" | 0.067" | No. 1 | 100 | $9.39 | Add to Order |
| MSS-4661 | 4-40 | 1" | Standard | 0.212" | 0.067" | No. 1 | 100 | $13.00 | Add to Order |
| MSS-10026 | 4-40 | 1" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $13.90 | Add to Order |
| MSS-4662 | 4-40 | 1 1/8" | Standard | 0.212" | 0.067" | No. 1 | 50 | $11.11 | Add to Order |
| MSS-4663 | 4-40 | 1 1/4" | Standard | 0.212" | 0.067" | No. 1 | 50 | $4.20 | Add to Order |
| MSS-10027 | 4-40 | 1 1/4" | Undercut | 0.212" | 0.047" | No. 1 | 100 | $16.30 | Add to Order |
| MSS-5823 | 4-40 | 1 1/2" | Standard | 0.212" | 0.067" | No. 1 | 50 | $5.00 | Add to Order |
| MSS-5822 | 4-40 | 1 3/4" | Standard | 0.212" | 0.067" | No. 1 | 50 | $10.94 | Add to Order |
| MSS-4666 | 4-40 | 2" | Standard | 0.212" | 0.067" | No. 1 | 50 | $11.78 | Add to Order |
| MSS-6401 | 4-40 | 2 1/2" | Standard | 0.212" | 0.067" | No. 1 | 50 | $14.30 | Add to Order |
| MSS-10028 | 4-48 | 3/16" | Undercut | 0.212" | 0.067" | No. 1 | 100 | $24.78 | Add to Order |
| MSS-5821 | 4-48 | 1/4" | Standard | 0.212" | 0.067" | No. 1 | 100 | $19.93 | Add to Order |
| MSS-4668 | 4-48 | 3/8" | Standard | 0.212" | 0.067" | No. 1 | 100 | $23.63 | Add to Order |
| MSS-4669 | 4-48 | 1/2" | Standard | 0.212" | 0.067" | No. 1 | 50 | $14.81 | Add to Order |
| MSS-5820 | 4-48 | 1" | Standard | 0.212" | 0.067" | No. 1 | 50 | $20.71 | Add to Order |
| MSS-5819 | 5-40 | 1/4" | Standard | 0.237" | 0.075" | No. 2 | 100 | $9.74 | Add to Order |
| MSS-10029 | 5-40 | 1/4" | Undercut | 0.237" | 0.053" | No. 1 | 100 | $13.90 | Add to Order |
| MSS-5818 | 5-40 | 5/16" | Standard | 0.237" | 0.075" | No. 2 | 100 | $10.35 | Add to Order |
| MSS-4864 | 5-40 | 3/8" | Standard | 0.237" | 0.075" | No. 2 | 100 | $11.95 | Add to Order |
| MSS-10030 | 5-40 | 3/8" | Undercut | 0.237" | 0.053" | No. 1 | 100 | $15.62 | Add to Order |
| MSS-4794 | 5-40 | 1/2" | Standard | 0.237" | 0.075" | No. 2 | 100 | $12.52 | Add to Order |
| MSS-10031 | 5-40 | 1/2" | Undercut | 0.237" | 0.053" | No. 1 | 100 | $18.19 | Add to Order |
| MSS-10032 | 5-40 | 5/8" | Standard | 0.237" | 0.075" | No. 2 | 50 | $15.65 | Add to Order |
| MSS-5889 | 5-40 | 3/4" | Standard | 0.237" | 0.075" | No. 2 | 100 | $13.25 | Add to Order |
| MSS-5868 | 5-40 | 1" | Standard | 0.237" | 0.075" | No. 2 | 50 | $13.40 | Add to Order |
| MSS-10033 | 6-32 | 3/16" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $11.03 | Add to Order |
| MSS-4550 | 6-32 | 1/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $9.24 | Add to Order |
| MSS-4715 | 6-32 | 1/4" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $13.50 | Add to Order |
| MSS-4551 | 6-32 | 5/16" | Standard | 0.262" | 0.083" | No. 2 | 100 | $7.25 | Add to Order |
| MSS-5888 | 6-32 | 5/16" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $13.44 | Add to Order |
| MSS-4552 | 6-32 | 3/8" | Standard | 0.262" | 0.083" | No. 2 | 100 | $7.77 | Add to Order |
| MSS-4717 | 6-32 | 3/8" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $13.27 | Add to Order |
| MSS-6043 | 6-32 | 7/16" | Standard | 0.262" | 0.083" | No. 2 | 100 | $8.65 | Add to Order |
| MSS-10034 | 6-32 | 7/16" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $14.34 | Add to Order |
| MSS-4555 | 6-32 | 1/2" | Standard | 0.262" | 0.083" | No. 2 | 100 | $8.34 | Add to Order |
| MSS-4718 | 6-32 | 1/2" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $15.50 | Add to Order |
| MSS-5857 | 6-32 | 9/16" | Standard | 0.262" | 0.083" | No. 2 | 100 | $6.51 | Add to Order |
| MSS-5845 | 6-32 | 5/8" | Standard | 0.262" | 0.083" | No. 2 | 100 | $5.71 | Add to Order |
| MSS-5891 | 6-32 | 5/8" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $16.95 | Add to Order |
| MSS-5844 | 6-32 | 3/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $14.34 | Add to Order |
| MSS-4720 | 6-32 | 3/4" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $18.92 | Add to Order |
| MSS-5843 | 6-32 | 7/8" | Standard | 0.262" | 0.083" | No. 2 | 100 | $8.51 | Add to Order |
| MSS-10035 | 6-32 | 7/8" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $16.46 | Add to Order |
| MSS-5842 | 6-32 | 1" | Standard | 0.262" | 0.083" | No. 2 | 100 | $15.48 | Add to Order |
| MSS-4721 | 6-32 | 1" | Undercut | 0.262" | 0.059" | No. 2 | 100 | $21.25 | Add to Order |
| MSS-4547 | 6-32 | 1 1/8" | Standard | 0.262" | 0.083" | No. 2 | 100 | $16.74 | Add to Order |
| MSS-4515 | 6-32 | 1 1/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $20.37 | Add to Order |
| MSS-5841 | 6-32 | 1 1/2" | Standard | 0.262" | 0.083" | No. 2 | 100 | $21.59 | Add to Order |
| MSS-4517 | 6-32 | 1 3/4" | Standard | 0.262" | 0.083" | No. 2 | 100 | $15.04 | Add to Order |
| MSS-10036 | 6-32 | 1 7/8" | Standard | 0.262" | 0.083" | No. 2 | 50 | $15.88 | Add to Order |
| MSS-4518 | 6-32 | 2" | Standard | 0.262" | 0.083" | No. 2 | 100 | $25.49 | Add to Order |
| MSS-10037 | 6-32 | 2 1/4" | Standard | 0.262" | 0.083" | No. 2 | 50 | $19.45 | Add to Order |
| MSS-4519 | 6-32 | 2 1/2" | Standard | 0.262" | 0.083" | No. 2 | 50 | $18.94 | Add to Order |
| MSS-10038 | 6-32 | 2 3/4" | Standard | 0.262" | 0.083" | No. 2 | 50 | $19.95 | Add to Order |
| MSS-5840 | 6-32 | 3" | Standard | 0.262" | 0.083" | No. 2 | 50 | $18.25 | Add to Order |
| MSS-4521 | 8-32 | 3/16" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $11.57 | Add to Order |
| MSS-10039 | 8-32 | 1/4" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $15.98 | Add to Order |
| MSS-5838 | 8-32 | 5/16" | Standard | 0.312" | 0.1" | No. 2 | 100 | $5.86 | Add to Order |
| MSS-4722 | 8-32 | 5/16" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $16.21 | Add to Order |
| MSS-5918 | 8-32 | 3/8" | Standard | 0.312" | 0.1" | No. 2 | 100 | $9.43 | Add to Order |
| MSS-5895 | 8-32 | 3/8" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $17.64 | Add to Order |
| MSS-5815 | 8-32 | 7/16" | Standard | 0.312" | 0.1" | No. 2 | 100 | $7.39 | Add to Order |
| MSS-10040 | 8-32 | 7/16" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $18.17 | Add to Order |
| MSS-4514 | 8-32 | 1/2" | Standard | 0.312" | 0.1" | No. 2 | 100 | $8.17 | Add to Order |
| MSS-4712 | 8-32 | 1/2" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $18.52 | Add to Order |
| MSS-5944 | 8-32 | 5/8" | Standard | 0.312" | 0.1" | No. 2 | 100 | $18.63 | Add to Order |
| MSS-4747 | 8-32 | 5/8" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $19.32 | Add to Order |
| MSS-5784 | 8-32 | 3/4" | Standard | 0.312" | 0.1" | No. 2 | 100 | $9.70 | Add to Order |
| MSS-4773 | 8-32 | 3/4" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $25.98 | Add to Order |
| MSS-5825 | 8-32 | 7/8" | Standard | 0.312" | 0.1" | No. 2 | 100 | $10.56 | Add to Order |
| MSS-10041 | 8-32 | 7/8" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $25.20 | Add to Order |
| MSS-4530 | 8-32 | 1" | Standard | 0.312" | 0.1" | No. 2 | 100 | $10.19 | Add to Order |
| MSS-4774 | 8-32 | 1" | Undercut | 0.312" | 0.07" | No. 2 | 100 | $31.42 | Add to Order |
| MSS-5793 | 8-32 | 1 1/8" | Standard | 0.312" | 0.1" | No. 2 | 100 | $23.77 | Add to Order |
| MSS-5792 | 8-32 | 1 1/4" | Standard | 0.312" | 0.1" | No. 2 | 100 | $19.24 | Add to Order |
| MSS-4533 | 8-32 | 1 1/2" | Standard | 0.312" | 0.1" | No. 2 | 50 | $10.35 | Add to Order |
| MSS-4534 | 8-32 | 1 3/4" | Standard | 0.312" | 0.1" | No. 2 | 50 | $20.58 | Add to Order |
| MSS-5791 | 8-32 | 2" | Standard | 0.312" | 0.1" | No. 2 | 50 | $13.76 | Add to Order |
| MSS-5790 | 8-32 | 2 1/4" | Standard | 0.312" | 0.1" | No. 2 | 50 | $29.78 | Add to Order |
| MSS-5789 | 8-32 | 2 1/2" | Standard | 0.312" | 0.1" | No. 2 | 100 | $27.05 | Add to Order |
| MSS-4585 | 8-32 | 2 3/4" | Standard | 0.312" | 0.1" | No. 2 | 50 | $16.13 | Add to Order |
| MSS-5788 | 8-32 | 3" | Standard | 0.312" | 0.1" | No. 2 | 50 | $21.59 | Add to Order |
| MSS-5787 | 8-32 | 3 1/2" | Standard | 0.312" | 0.1" | No. 2 | 10 | $8.53 | Add to Order |
| MSS-5776 | 8-32 | 4" | Standard | 0.312" | 0.1" | No. 2 | 10 | $10.58 | Add to Order |
| MSS-5785 | 10-24 | 1/4" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $23.54 | Add to Order |
| MSS-4590 | 10-24 | 5/16" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $23.16 | Add to Order |
| MSS-5795 | 10-24 | 3/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $12.64 | Add to Order |
| MSS-5859 | 10-24 | 3/8" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $23.65 | Add to Order |
| MSS-4592 | 10-24 | 7/16" | Standard | 0.362" | 0.116" | No. 2 | 100 | $29.13 | Add to Order |
| MSS-5783 | 10-24 | 1/2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $13.44 | Add to Order |
| MSS-4776 | 10-24 | 1/2" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $25.87 | Add to Order |
| MSS-5782 | 10-24 | 5/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $12.83 | Add to Order |
| MSS-10042 | 10-24 | 5/8" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $25.75 | Add to Order |
| MSS-5913 | 10-24 | 3/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $22.95 | Add to Order |
| MSS-4777 | 10-24 | 3/4" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $34.71 | Add to Order |
| MSS-5912 | 10-24 | 7/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $16.13 | Add to Order |
| MSS-5911 | 10-24 | 1" | Standard | 0.362" | 0.116" | No. 2 | 100 | $20.08 | Add to Order |
| MSS-4778 | 10-24 | 1" | Undercut | 0.362" | 0.081" | No. 2 | 50 | $18.40 | Add to Order |
| MSS-4831 | 10-24 | 1 1/8" | Standard | 0.362" | 0.116" | No. 2 | 50 | $20.43 | Add to Order |
| MSS-5899 | 10-24 | 1 1/4" | Standard | 0.362" | 0.116" | No. 2 | 50 | $12.56 | Add to Order |
| MSS-10043 | 10-24 | 1 1/4" | Undercut | 0.362" | 0.081" | No. 2 | 50 | $20.14 | Add to Order |
| MSS-10044 | 10-24 | 1 3/8" | Standard | 0.362" | 0.116" | No. 2 | 50 | $26.42 | Add to Order |
| MSS-4797 | 10-24 | 1 1/2" | Standard | 0.362" | 0.116" | No. 2 | 50 | $10.48 | Add to Order |
| MSS-4798 | 10-24 | 1 3/4" | Standard | 0.362" | 0.116" | No. 2 | 50 | $24.09 | Add to Order |
| MSS-4799 | 10-24 | 2" | Standard | 0.362" | 0.116" | No. 2 | 50 | $16.13 | Add to Order |
| MSS-10045 | 10-24 | 2 1/4" | Standard | 0.362" | 0.116" | No. 2 | 25 | $19.74 | Add to Order |
| MSS-5909 | 10-24 | 2 1/2" | Standard | 0.362" | 0.116" | No. 2 | 50 | $14.64 | Add to Order |
| MSS-10046 | 10-24 | 2 3/4" | Standard | 0.362" | 0.116" | No. 2 | 25 | $19.76 | Add to Order |
| MSS-5919 | 10-24 | 3" | Standard | 0.362" | 0.116" | No. 2 | 50 | $35.89 | Add to Order |
| MSS-5907 | 10-24 | 3 1/2" | Standard | 0.362" | 0.116" | No. 2 | 10 | $10.88 | Add to Order |
| MSS-5904 | 10-24 | 4" | Standard | 0.362" | 0.116" | No. 2 | 10 | $15.56 | Add to Order |
| MSS-4805 | 10-24 | 5" | Standard | 0.362" | 0.116" | No. 2 | 10 | $19.32 | Add to Order |
| MSS-5903 | 10-24 | 6" | Standard | 0.362" | 0.116" | No. 2 | 5 | $12.29 | Add to Order |
| MSS-4727 | 10-32 | 1/4" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $25.10 | Add to Order |
| MSS-10047 | 10-32 | 5/16" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $18.35 | Add to Order |
| MSS-4729 | 10-32 | 3/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $14.07 | Add to Order |
| MSS-4779 | 10-32 | 3/8" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $23.65 | Add to Order |
| MSS-4730 | 10-32 | 7/16" | Standard | 0.362" | 0.116" | No. 2 | 100 | $28.64 | Add to Order |
| MSS-10048 | 10-32 | 7/16" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $21.44 | Add to Order |
| MSS-5896 | 10-32 | 1/2" | Standard | 0.362" | 0.116" | No. 2 | 100 | $13.40 | Add to Order |
| MSS-5864 | 10-32 | 1/2" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $25.87 | Add to Order |
| MSS-10049 | 10-32 | 9/16" | Standard | 0.362" | 0.116" | No. 2 | 100 | $28.67 | Add to Order |
| MSS-4732 | 10-32 | 5/8" | Standard | 0.362" | 0.116" | No. 2 | 100 | $22.05 | Add to Order |
| MSS-4781 | 10-32 | 5/8" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $30.66 | Add to Order |
| MSS-4733 | 10-32 | 3/4" | Standard | 0.362" | 0.116" | No. 2 | 100 | $23.98 | Add to Order |
| MSS-4795 | 10-32 | 3/4" | Undercut | 0.362" | 0.081" | No. 2 | 100 | $34.71 | Add to Order |
| MSS-4734 | 10-32 | 7/8" | Standard | 0.362" | 0.116" | No. 2 | 50 | $21.15 | Add to Order |
| MSS-10050 | 10-32 | 7/8" | Undercut | 0.362" | 0.081" | No. 2 | 50 | $14.76 | Add to Order |
| MSS-4748 | 10-32 | 1" | Standard | 0.362" | 0.116" | No. 2 | 50 | $22.66 | Add to Order |
| MSS-5867 | 10-32 | 1" | Undercut | 0.362" | 0.081" | No. 2 | 50 | $21.90 | Add to Order |
| MSS-5894 | 10-32 | 1 1/8" | Standard | 0.362" | 0.116" | No. 2 | 50 | $20.45 | Add to Order |
| MSS-4725 | 10-32 | 1 1/4" | Standard | 0.362" | 0.116" | No. 2 | 50 | $27.59 | Add to Order |
| MSS-5893 | 10-32 | 1 1/2" | Standard | 0.362" | 0.116" | No. 2 | 50 | $30.16 | Add to Order |
| MSS-5892 | 10-32 | 1 3/4" | Standard | 0.362" | 0.116" | No. 2 | 50 | $21.55 | Add to Order |
| MSS-5890 | 10-32 | 2" | Standard | 0.362" | 0.116" | No. 2 | 50 | $38.72 | Add to Order |
| MSS-5878 | 10-32 | 2 1/4" | Standard | 0.362" | 0.116" | No. 2 | 50 | $35.66 | Add to Order |
| MSS-4595 | 10-32 | 2 1/2" | Standard | 0.362" | 0.116" | No. 2 | 25 | $24.30 | Add to Order |
| MSS-10051 | 10-32 | 2 3/4" | Standard | 0.362" | 0.116" | No. 2 | 25 | $21.76 | Add to Order |
| MSS-5781 | 10-32 | 3" | Standard | 0.362" | 0.116" | No. 2 | 25 | $29.15 | Add to Order |
| MSS-4108 | 10-32 | 3 1/2" | Standard | 0.362" | 0.116" | No. 2 | 10 | $10.88 | Add to Order |
| MSS-4109 | 10-32 | 4" | Standard | 0.362" | 0.116" | No. 2 | 10 | $13.40 | Add to Order |
| MSS-5779 | 12-24 | 3/8" | Undercut | 0.412" | 0.092" | No. 3 | 100 | $22.13 | Add to Order |
| MSS-4600 | 12-24 | 1/2" | Standard | 0.412" | 0.132" | No. 3 | 100 | $30.83 | Add to Order |
| MSS-4772 | 12-24 | 1/2" | Undercut | 0.412" | 0.092" | No. 3 | 100 | $23.29 | Add to Order |
| MSS-4601 | 12-24 | 5/8" | Standard | 0.412" | 0.132" | No. 3 | 100 | $31.08 | Add to Order |
| MSS-10052 | 12-24 | 5/8" | Undercut | 0.412" | 0.092" | No. 3 | 50 | $16.36 | Add to Order |
| MSS-4602 | 12-24 | 3/4" | Standard | 0.412" | 0.132" | No. 3 | 100 | $34.92 | Add to Order |
| MSS-5869 | 12-24 | 3/4" | Undercut | 0.412" | 0.092" | No. 3 | 50 | $19.70 | Add to Order |
| MSS-10053 | 12-24 | 7/8" | Standard | 0.412" | 0.132" | No. 3 | 50 | $16.38 | Add to Order |
| MSS-5778 | 12-24 | 1" | Standard | 0.412" | 0.132" | No. 3 | 50 | $22.64 | Add to Order |
| MSS-5870 | 12-24 | 1" | Undercut | 0.412" | 0.092" | No. 3 | 50 | $22.03 | Add to Order |
| MSS-5777 | 12-24 | 1 1/4" | Standard | 0.412" | 0.132" | No. 3 | 50 | $23.04 | Add to Order |
| MSS-10054 | 12-24 | 1 1/4" | Undercut | 0.412" | 0.092" | No. 3 | 50 | $24.19 | Add to Order |
| MSS-5805 | 12-24 | 1 1/2" | Standard | 0.412" | 0.132" | No. 3 | 50 | $29.67 | Add to Order |
| MSS-10055 | 12-24 | 1 1/2" | Undercut | 0.412" | 0.092" | No. 3 | 25 | $13.94 | Add to Order |
| MSS-4573 | 12-24 | 2" | Standard | 0.412" | 0.132" | No. 3 | 25 | $20.01 | Add to Order |
| MSS-5807 | 12-24 | 3" | Standard | 0.412" | 0.132" | No. 3 | 25 | $26.02 | Add to Order |
| MSS-4594 | 12-24 | 4" | Standard | 0.412" | 0.132" | No. 3 | 10 | $19.09 | Add to Order |
| MSS-5786 | 1/4"-20 | 3/8" | Undercut | 0.477" | 0.107" | No. 3 | 100 | $24.38 | Add to Order |
| MSS-10056 | 1/4"-20 | 7/16" | Standard | 0.477" | 0.153" | No. 3 | 100 | $26.36 | Add to Order |
| MSS-4563 | 1/4"-20 | 1/2" | Standard | 0.477" | 0.153" | No. 3 | 100 | $27.43 | Add to Order |
| MSS-5871 | 1/4"-20 | 1/2" | Undercut | 0.477" | 0.107" | No. 3 | 50 | $16.07 | Add to Order |
| MSS-4564 | 1/4"-20 | 5/8" | Standard | 0.477" | 0.153" | No. 3 | 50 | $13.10 | Add to Order |
| MSS-10057 | 1/4"-20 | 5/8" | Undercut | 0.477" | 0.107" | No. 3 | 50 | $21.04 | Add to Order |
| MSS-5814 | 1/4"-20 | 3/4" | Standard | 0.477" | 0.153" | No. 3 | 50 | $14.22 | Add to Order |
| MSS-4788 | 1/4"-20 | 3/4" | Undercut | 0.477" | 0.107" | No. 3 | 50 | $24.61 | Add to Order |
| MSS-5813 | 1/4"-20 | 7/8" | Standard | 0.477" | 0.153" | No. 3 | 50 | $23.31 | Add to Order |
| MSS-10058 | 1/4"-20 | 7/8" | Undercut | 0.477" | 0.107" | No. 3 | 50 | $25.45 | Add to Order |
| MSS-4567 | 1/4"-20 | 1" | Standard | 0.477" | 0.153" | No. 3 | 50 | $17.39 | Add to Order |
| MSS-4789 | 1/4"-20 | 1" | Undercut | 0.477" | 0.107" | No. 3 | 25 | $16.21 | Add to Order |
| MSS-5812 | 1/4"-20 | 1 1/8" | Standard | 0.477" | 0.153" | No. 3 | 50 | $23.52 | Add to Order |
| MSS-4569 | 1/4"-20 | 1 1/4" | Standard | 0.477" | 0.153" | No. 3 | 25 | $10.92 | Add to Order |
| MSS-10059 | 1/4"-20 | 1 1/4" | Undercut | 0.477" | 0.107" | No. 3 | 25 | $16.93 | Add to Order |
| MSS-10060 | 1/4"-20 | 1 3/8" | Standard | 0.477" | 0.153" | No. 3 | 25 | $13.99 | Add to Order |
| MSS-5811 | 1/4"-20 | 1 1/2" | Standard | 0.477" | 0.153" | No. 3 | 25 | $26.63 | Add to Order |
| MSS-10061 | 1/4"-20 | 1 1/2" | Undercut | 0.477" | 0.107" | No. 3 | 25 | $20.03 | Add to Order |
| MSS-5810 | 1/4"-20 | 1 3/4" | Standard | 0.477" | 0.153" | No. 3 | 50 | $21.36 | Add to Order |
| MSS-5809 | 1/4"-20 | 2" | Standard | 0.477" | 0.153" | No. 3 | 25 | $17.43 | Add to Order |
| MSS-4561 | 1/4"-20 | 2 1/4" | Standard | 0.477" | 0.153" | No. 3 | 25 | $27.49 | Add to Order |
| MSS-4574 | 1/4"-20 | 2 1/2" | Standard | 0.477" | 0.153" | No. 3 | 25 | $39.96 | Add to Order |
| MSS-5808 | 1/4"-20 | 2 3/4" | Standard | 0.477" | 0.153" | No. 3 | 10 | $13.50 | Add to Order |
| MSS-4576 | 1/4"-20 | 3" | Standard | 0.477" | 0.153" | No. 3 | 10 | $19.59 | Add to Order |
| MSS-4577 | 1/4"-20 | 3 1/2" | Standard | 0.477" | 0.153" | No. 3 | 10 | $15.20 | Add to Order |
| MSS-5796 | 1/4"-20 | 4" | Standard | 0.477" | 0.153" | No. 3 | 10 | $17.66 | Add to Order |
| MSS-4579 | 1/4"-20 | 4 1/2" | Standard | 0.477" | 0.153" | No. 3 | 10 | $21.06 | Add to Order |
| MSS-4580 | 1/4"-20 | 5" | Standard | 0.477" | 0.153" | No. 3 | 5 | $13.19 | Add to Order |
| MSS-10062 | 1/4"-20 | 5 1/2" | Standard | 0.477" | 0.153" | No. 3 | 5 | $15.46 | Add to Order |
| MSS-4581 | 1/4"-20 | 6" | Standard | 0.477" | 0.153" | No. 3 | 5 | $15.86 | Add to Order |
| MSS-4726 | 1/4"-28 | 3/8" | Undercut | 0.477" | 0.107" | No. 3 | 50 | $17.60 | Add to Order |
| MSS-5806 | 1/4"-28 | 1/2" | Standard | 0.477" | 0.153" | No. 3 | 50 | $19.28 | Add to Order |
| MSS-10063 | 1/4"-28 | 5/8" | Standard | 0.477" | 0.153" | No. 3 | 100 | $174.93 | Add to Order |
| MSS-4700 | 1/4"-28 | 3/4" | Standard | 0.477" | 0.153" | No. 3 | 100 | $163.17 | Add to Order |
| MSS-5816 | 1/4"-28 | 1" | Standard | 0.477" | 0.153" | No. 3 | 25 | $13.76 | Add to Order |
| MSS-4821 | 1/4"-28 | 1 1/8" | Standard | 0.477" | 0.153" | No. 3 | 25 | $16.78 | Add to Order |
| MSS-5804 | 1/4"-28 | 1 1/4" | Standard | 0.477" | 0.153" | No. 3 | 25 | $18.02 | Add to Order |
| MSS-5803 | 1/4"-28 | 1 1/2" | Standard | 0.477" | 0.153" | No. 3 | 25 | $19.19 | Add to Order |
| MSS-5802 | 1/4"-28 | 2" | Standard | 0.477" | 0.153" | No. 3 | 25 | $26.02 | Add to Order |
| MSS-5801 | 5/16"-18 | 1/2" | Undercut | 0.597" | 0.134" | No. 4 | 25 | $13.88 | Add to Order |
| MSS-4807 | 5/16"-18 | 5/8" | Standard | 0.597" | 0.191" | No. 4 | 25 | $14.68 | Add to Order |
| MSS-4796 | 5/16"-18 | 3/4" | Standard | 0.597" | 0.191" | No. 4 | 25 | $18.42 | Add to Order |
| MSS-10064 | 5/16"-18 | 3/4" | Undercut | 0.597" | 0.134" | No. 4 | 25 | $19.26 | Add to Order |
| MSS-4809 | 5/16"-18 | 7/8" | Standard | 0.597" | 0.191" | No. 4 | 10 | $8.69 | Add to Order |
| MSS-5902 | 5/16"-18 | 1" | Standard | 0.597" | 0.191" | No. 4 | 10 | $10.12 | Add to Order |
| MSS-10065 | 5/16"-18 | 1" | Undercut | 0.597" | 0.134" | No. 4 | 25 | $22.91 | Add to Order |
| MSS-4811 | 5/16"-18 | 1 1/4" | Standard | 0.597" | 0.191" | No. 4 | 25 | $19.36 | Add to Order |
| MSS-4812 | 5/16"-18 | 1 1/2" | Standard | 0.597" | 0.191" | No. 4 | 10 | $11.49 | Add to Order |
| MSS-4813 | 5/16"-18 | 1 3/4" | Standard | 0.597" | 0.191" | No. 4 | 10 | $11.82 | Add to Order |
| MSS-4814 | 5/16"-18 | 2" | Standard | 0.597" | 0.191" | No. 4 | 10 | $12.62 | Add to Order |
| MSS-5929 | 5/16"-18 | 2 1/4" | Standard | 0.597" | 0.191" | No. 4 | 10 | $16.86 | Add to Order |
| MSS-4853 | 5/16"-18 | 2 1/2" | Standard | 0.597" | 0.191" | No. 4 | 10 | $15.65 | Add to Order |
| MSS-4806 | 5/16"-18 | 3" | Standard | 0.597" | 0.191" | No. 4 | 10 | $18.17 | Add to Order |
| MSS-5908 | 5/16"-18 | 3 1/2" | Standard | 0.597" | 0.191" | No. 4 | 5 | $10.63 | Add to Order |
| MSS-4867 | 5/16"-18 | 4" | Standard | 0.597" | 0.191" | No. 4 | 5 | $12.43 | Add to Order |
| MSS-5910 | 5/16"-18 | 5" | Standard | 0.597" | 0.191" | No. 4 | 5 | $22.09 | Add to Order |
| MSS-4742 | 3/8"-16 | 1/2" | Undercut | 0.717" | 0.161" | No. 4 | 10 | $9.79 | Add to Order |
| MSS-4743 | 3/8"-16 | 5/8" | Standard | 0.717" | 0.23" | No. 4 | 10 | $10.75 | Add to Order |
| MSS-5898 | 3/8"-16 | 3/4" | Standard | 0.717" | 0.23" | No. 4 | 10 | $11.42 | Add to Order |
| MSS-5885 | 3/8"-16 | 1" | Standard | 0.717" | 0.23" | No. 4 | 10 | $13.19 | Add to Order |
| MSS-4746 | 3/8"-16 | 1 1/4" | Standard | 0.717" | 0.23" | No. 4 | 10 | $16.09 | Add to Order |
| MSS-5884 | 3/8"-16 | 1 1/2" | Standard | 0.717" | 0.23" | No. 4 | 10 | $17.09 | Add to Order |
| MSS-5883 | 3/8"-16 | 1 3/4" | Standard | 0.717" | 0.23" | No. 4 | 10 | $18.08 | Add to Order |
| MSS-5882 | 3/8"-16 | 2" | Standard | 0.717" | 0.23" | No. 4 | 10 | $18.27 | Add to Order |
| MSS-5880 | 3/8"-16 | 2 1/2" | Standard | 0.717" | 0.23" | No. 4 | 5 | $13.69 | Add to Order |
| MSS-5683 | 3/8"-16 | 2 3/4" | Standard | 0.717" | 0.23" | No. 4 | 5 | $14.55 | Add to Order |
| MSS-4705 | 3/8"-16 | 3" | Standard | 0.717" | 0.23" | No. 4 | 5 | $14.45 | Add to Order |
| MSS-5852 | 3/8"-16 | 3 1/2" | Standard | 0.717" | 0.23" | No. 4 | 5 | $15.90 | Add to Order |
| MSS-5879 | 3/8"-16 | 4" | Standard | 0.717" | 0.23" | No. 4 | 5 | $20.06 | Add to Order |
| MSS-4708 | 3/8"-16 | 4 1/2" | Standard | 0.717" | 0.23" | No. 4 | 5 | $19.17 | Add to Order |
| MSS-5881 | 3/8"-16 | 5" | Standard | 0.717" | 0.23" | No. 4 | 1 | $5.63 | Add to Order |
| MSS-4110 | 3/8"-16 | 6" | Standard | 0.717" | 0.23" | No. 4 | 1 | $9.18 | Add to Order |
| MSS-10066 | 1/2"-13 | 3/4" | Standard | 0.815" | 0.223" | No. 4 | 5 | $13.23 | Add to Order |
| MSS-10067 | 1/2"-13 | 1" | Standard | 0.815" | 0.223" | No. 4 | 5 | $13.82 | Add to Order |
| MSS-10068 | 1/2"-13 | 1 1/4" | Standard | 0.815" | 0.223" | No. 4 | 5 | $15.44 | Add to Order |
| MSS-10069 | 1/2"-13 | 1 1/2" | Standard | 0.815" | 0.223" | No. 4 | 5 | $16.17 | Add to Order |
| MSS-10070 | 1/2"-13 | 2" | Standard | 0.815" | 0.223" | No. 4 | 5 | $19.45 | Add to Order |
| MSS-10071 | 1/2"-13 | 3" | Standard | 0.815" | 0.223" | No. 4 | 1 | $5.63 | Add to Order |
| MSS-10072 | 1/2"-13 | 4" | Standard | 0.815" | 0.223" | No. 4 | 1 | $8.69 | Add to Order |
| Rev. 03-25, 10-23, 08-23, 02-23 | |||||||||
