Nylon Slotted Fillister Head Machine Screws
Machine Screws - Fillister Head Slotted, Class 2A, Fully Threaded.
Nylon 6/6 - Non conductive. Absorbs moisture, which can affect dimensions and properties. Off White.
| Nylon 6/6 Slotted Fillister Head Machine Screws, Full Threads | |||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|
| MSS-9365 | 0-80 | 1/8" | 0.096" | 0.055" | 100 | $34.88 | Add to Order |
| MSS-9366 | 0-80 | 3/16" | 0.096" | 0.055" | 100 | $36.16 | Add to Order |
| MSS-9367 | 0-80 | 1/4" | 0.096" | 0.055" | 100 | $37.51 | Add to Order |
| MSS-9368 | 2-56 | 1/8" | 0.140" | 0.083" | 100 | $23.21 | Add to Order |
| MSS-9369 | 2-56 | 3/16" | 0.140" | 0.083" | 100 | $23.81 | Add to Order |
| MSS-9370 | 2-56 | 1/4" | 0.140" | 0.083" | 100 | $23.94 | Add to Order |
| MSS-9371 | 2-56 | 5/16" | 0.140" | 0.083" | 100 | $24.09 | Add to Order |
| MSS-9372 | 2-56 | 3/8" | 0.140" | 0.083" | 100 | $24.34 | Add to Order |
| MSS-9373 | 2-56 | 1/2" | 0.140" | 0.083" | 100 | $24.44 | Add to Order |
| MSS-9374 | 2-56 | 3/4" | 0.140" | 0.083" | 100 | $24.72 | Add to Order |
| MSS-9375 | 2-56 | 1" | 0.140" | 0.083" | 100 | $24.95 | Add to Order |
| MSS-9376 | 4-40 | 3/16" | 0.183" | 0.107" | 100 | $15.25 | Add to Order |

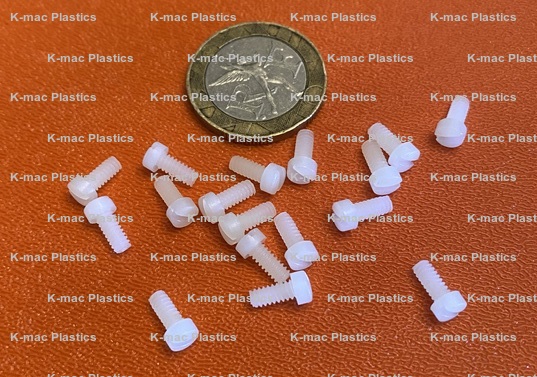

| MSS-9377 | 4-40 | 1/4" | 0.183" | 0.107" | 100 | $23.86 | Add to Order |
| MSS-9378 | 4-40 | 9/32" | 0.183" | 0.107" | 100 | $24.00 | Add to Order |

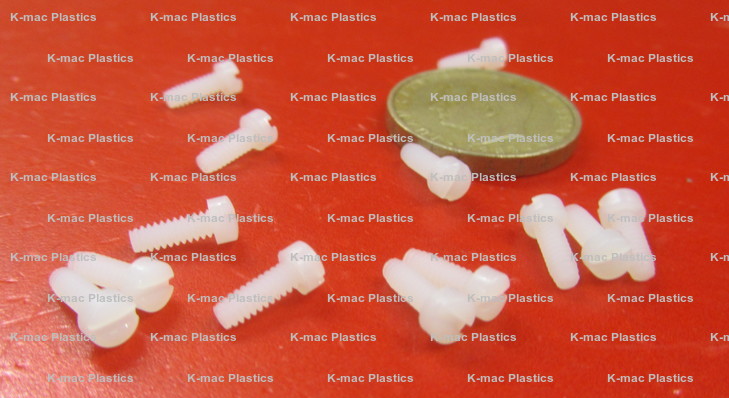

| MSS-9379 | 4-40 | 5/16" | 0.183" | 0.107" | 100 | $24.13 | Add to Order |

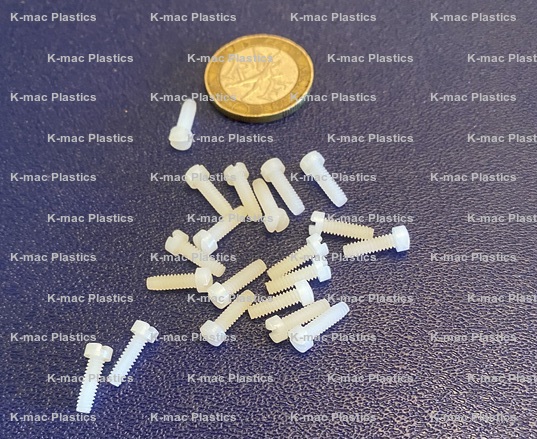

| MSS-9380 | 4-40 | 3/8" | 0.183" | 0.107" | 100 | $24.28 | Add to Order |
| MSS-9381 | 4-40 | 1/2" | 0.183" | 0.107" | 100 | $24.40 | Add to Order |
| MSS-9382 | 4-40 | 5/8" | 0.183" | 0.107" | 100 | $24.55 | Add to Order |
| MSS-9383 | 4-40 | 3/4" | 0.183" | 0.107" | 100 | $24.82 | Add to Order |
| MSS-9384 | 4-40 | 1" | 0.183" | 0.107" | 100 | $24.95 | Add to Order |
| MSS-9385 | 6-32 | 3/16" | 0.226" | 0.132" | 100 | $24.55 | Add to Order |
| MSS-9386 | 6-32 | 1/4" | 0.226" | 0.132" | 100 | $24.82 | Add to Order |
| MSS-9387 | 6-32 | 5/16" | 0.226" | 0.132" | 100 | $24.95 | Add to Order |
| MSS-9388 | 6-32 | 3/8" | 0.226" | 0.132" | 50 | $7.62 | Add to Order |

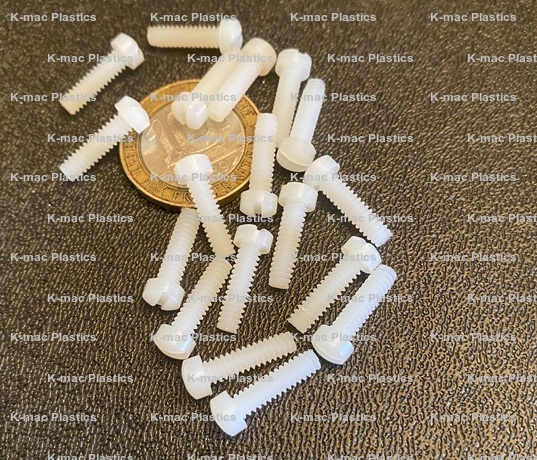

| MSS-9389 | 6-32 | 1/2" | 0.226" | 0.132" | 100 | $25.22 | Add to Order |
| MSS-9390 | 6-32 | 5/8" | 0.226" | 0.132" | 100 | $25.64 | Add to Order |

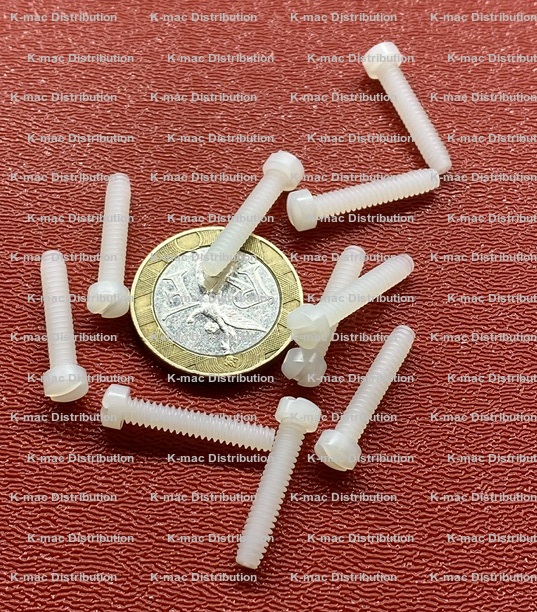

| MSS-9391 | 6-32 | 3/4" | 0.226" | 0.132" | 100 | $25.77 | Add to Order |
| MSS-9392 | 6-32 | 1" | 0.226" | 0.132" | 100 | $25.77 | Add to Order |
| MSS-9393 | 8-32 | 1/4" | 0.270" | 0.156" | 100 | $25.77 | Add to Order |

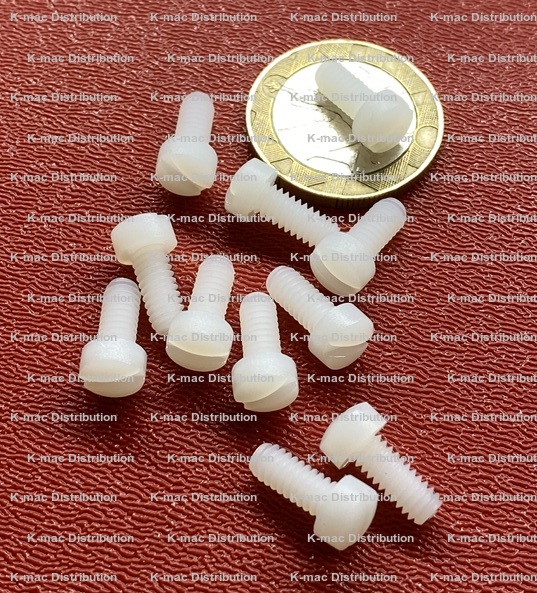

| MSS-9394 | 8-32 | 3/8" | 0.270" | 0.156" | 100 | $25.91 | Add to Order |

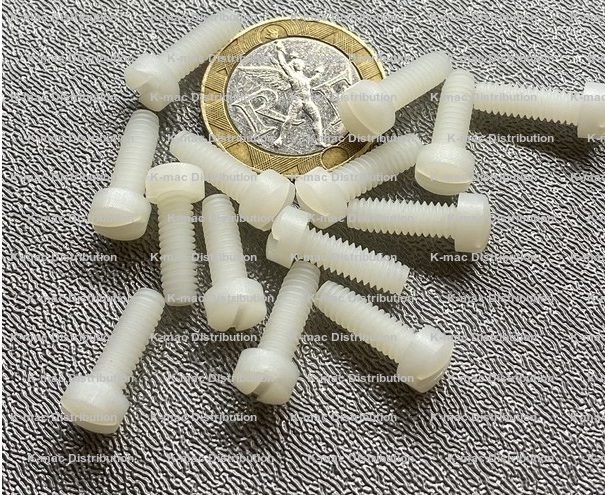

| MSS-9395 | 8-32 | 1/2" | 0.270" | 0.156" | 100 | $26.04 | Add to Order |

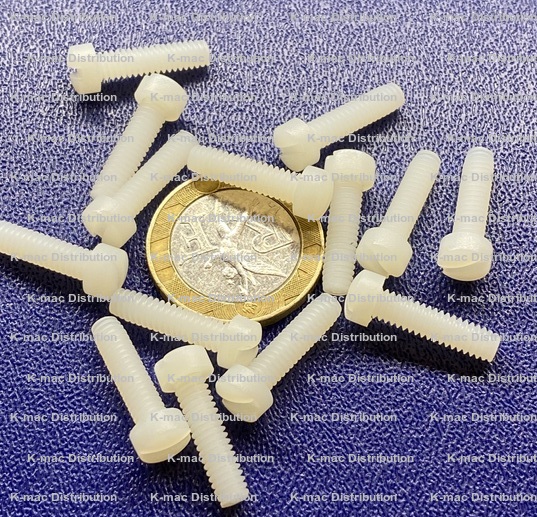

| MSS-9396 | 8-32 | 5/8" | 0.270" | 0.156" | 100 | $26.04 | Add to Order |
| MSS-9397 | 8-32 | 3/4" | 0.270" | 0.156" | 100 | $26.19 | Add to Order |
| MSS-9398 | 8-32 | 1" | 0.270" | 0.156" | 50 | $7.22 | Add to Order |
| MSS-9399 | 8-32 | 1 1/2" | 0.270" | 0.156" | 100 | $27.28 | Add to Order |
| MSS-9400 | 10-24 | 1/4" | 0.313" | 0.180" | 100 | $27.41 | Add to Order |
| MSS-9401 | 10-24 | 1/2" | 0.313" | 0.180" | 100 | $27.95 | Add to Order |
| MSS-9402 | 10-24 | 3/4" | 0.313" | 0.180" | 100 | $28.37 | Add to Order |
| MSS-9403 | 10-24 | 1" | 0.313" | 0.180" | 100 | $28.50 | Add to Order |
| MSS-9404 | 10-24 | 1 1/2" | 0.313" | 0.180" | 100 | $29.19 | Add to Order |
| MSS-9405 | 10-32 | 1/8" | 0.313" | 0.180" | 100 | $27.28 | Add to Order |
| MSS-9406 | 10-32 | 1/4" | 0.313" | 0.180" | 100 | $27.41 | Add to Order |
| MSS-9407 | 10-32 | 3/8" | 0.313" | 0.180" | 100 | $27.83 | Add to Order |
| MSS-9408 | 10-32 | 1/2" | 0.313" | 0.180" | 100 | $27.95 | Add to Order |
| MSS-9409 | 10-32 | 5/8" | 0.313" | 0.180" | 100 | $28.10 | Add to Order |
| MSS-9410 | 10-32 | 3/4" | 0.313" | 0.180" | 100 | $28.37 | Add to Order |
| MSS-9411 | 10-32 | 1" | 0.313" | 0.180" | 100 | $28.50 | Add to Order |
| MSS-9412 | 10-32 | 1 1/2" | 0.313" | 0.180" | 100 | $28.64 | Add to Order |
| MSS-9413 | 10-32 | 2" | 0.313" | 0.180" | 100 | $32.32 | Add to Order |
| MSS-9414 | 1/4"-20 | 1/4" | 0.414" | 0.237" | 100 | $31.23 | Add to Order |
| MSS-9415 | 1/4"-20 | 3/8" | 0.414" | 0.237" | 100 | $17.66 | Add to Order |
| MSS-9416 | 1/4"-20 | 1/2" | 0.414" | 0.237" | 100 | $31.63 | Add to Order |
| MSS-9417 | 1/4"-20 | 5/8" | 0.414" | 0.237" | 100 | $31.77 | Add to Order |
| MSS-9418 | 1/4"-20 | 3/4" | 0.414" | 0.237" | 100 | $31.90 | Add to Order |
| MSS-9419 | 1/4"-20 | 1" | 0.414" | 0.237" | 100 | $32.17 | Add to Order |
| MSS-9420 | 1/4"-20 | 1 1/2" | 0.414" | 0.237" | 100 | $32.99 | Add to Order |
| MSS-9421 | 1/4"-20 | 2" | 0.414" | 0.237" | 50 | $11.80 | Add to Order |
| Rev. 03-25, 10-23, 08-23, 02-23 | |||||||
