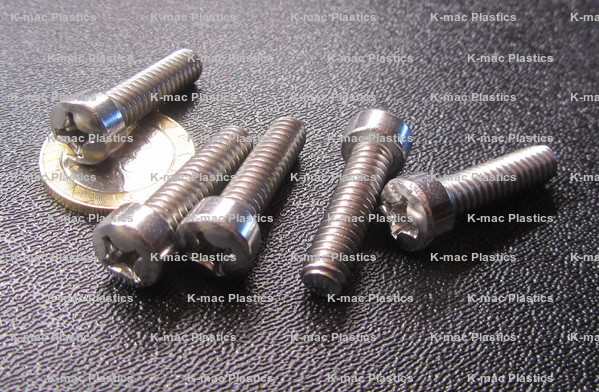

18-8 Stainless Fillister Head Phillips Machine Screws
Machine Screws - Fillister Head Phillips Drive, Class 2A, Fully Threaded.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic.
| 18-8 Stainless Steel Narrow Fillister Head Phillips FT Machine Screws | ||||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-7556 | 2-56 | 1/8" | 0.140" | 0.083" | No. 1 | 100 | $9.26 | Add to Order |
| MSS-370 | 2-56 | 3/16" | 0.140" | 0.083" | No. 1 | 100 | $14.70 | Add to Order |
| MSS-281 | 2-56 | 1/4" | 0.140" | 0.083" | No. 1 | 100 | $9.47 | Add to Order |
| MSS-371 | 2-56 | 5/16" | 0.140" | 0.083" | No. 1 | 100 | $15.31 | Add to Order |
| MSS-372 | 2-56 | 3/8" | 0.140" | 0.083" | No. 1 | 100 | $10.04 | Add to Order |
| MSS-373 | 4-40 | 3/16" | 0.183" | 0.107" | No. 1 | 100 | $10.86 | Add to Order |
| MSS-374 | 4-40 | 1/4" | 0.183" | 0.107" | No. 1 | 100 | $11.21 | Add to Order |
| MSS-342 | 4-40 | 5/16" | 0.183" | 0.107" | No. 1 | 100 | $11.68 | Add to Order |
| MSS-365 | 4-40 | 3/8" | 0.183" | 0.107" | No. 1 | 100 | $13.17 | Add to Order |
| MSS-363 | 4-40 | 1/2" | 0.183" | 0.107" | No. 1 | 100 | $15.14 | Add to Order |
| MSS-7557 | 4-40 | 3/4" | 0.183" | 0.107" | No. 1 | 100 | $18.90 | Add to Order |
| MSS-331 | 6-32 | 1/4" | 0.226" | 0.132" | No. 2 | 100 | $14.76 | Add to Order |
| MSS-332 | 6-32 | 5/16" | 0.226" | 0.132" | No. 2 | 100 | $14.87 | Add to Order |
| MSS-333 | 6-32 | 3/8" | 0.226" | 0.132" | No. 2 | 100 | $15.60 | Add to Order |
| MSS-334 | 6-32 | 1/2" | 0.226" | 0.132" | No. 2 | 100 | $15.98 | Add to Order |
| MSS-335 | 6-32 | 3/4" | 0.226" | 0.132" | No. 2 | 100 | $20.14 | Add to Order |
| MSS-7558 | 6-32 | 1" | 0.226" | 0.132" | No. 2 | 100 | $22.58 | Add to Order |
| MSS-336 | 8-32 | 1/4" | 0.270" | 0.156" | No. 2 | 100 | $23.65 | Add to Order |
| MSS-337 | 8-32 | 5/16" | 0.270" | 0.156" | No. 2 | 100 | $24.74 | Add to Order |
| MSS-6042 | 8-32 | 3/8" | 0.270" | 0.156" | No. 2 | 100 | $25.37 | Add to Order |
| MSS-339 | 8-32 | 1/2" | 0.270" | 0.156" | No. 2 | 100 | $25.60 | Add to Order |
| MSS-352 | 8-32 | 5/8" | 0.270" | 0.156" | No. 2 | 50 | $18.04 | Add to Order |
| MSS-341 | 8-32 | 3/4" | 0.270" | 0.156" | No. 2 | 50 | $19.28 | Add to Order |
| MSS-6041 | 8-32 | 1" | 0.270" | 0.156" | No. 2 | 50 | $19.80 | Add to Order |
| MSS-330 | 10-24 | 3/8" | 0.313" | 0.180" | No. 2 | 50 | $17.75 | Add to Order |
| MSS-343 | 10-24 | 1/2" | 0.313" | 0.180" | No. 2 | 50 | $20.03 | Add to Order |
| MSS-344 | 10-24 | 3/4" | 0.313" | 0.180" | No. 2 | 50 | $23.81 | Add to Order |
| MSS-345 | 10-32 | 1/4" | 0.313" | 0.180" | No. 2 | 100 | $28.52 | Add to Order |
| MSS-346 | 10-32 | 3/8" | 0.313" | 0.180" | No. 2 | 50 | $17.75 | Add to Order |
| MSS-347 | 10-32 | 1/2" | 0.313" | 0.180" | No. 2 | 50 | $20.03 | Add to Order |
| MSS-348 | 10-32 | 3/4" | 0.313" | 0.180" | No. 2 | 50 | $23.81 | Add to Order |
| MSS-7559 | 10-32 | 1" | 0.313" | 0.180" | No. 2 | 50 | $26.31 | Add to Order |
| MSS-349 | 1/4"-20 | 1/2" | 0.414" | 0.237" | No. 3 | 25 | $14.57 | Add to Order |
| MSS-350 | 1/4"-20 | 3/4" | 0.414" | 0.237" | No. 3 | 50 | $23.94 | Add to Order |
| MSS-351 | 1/4"-20 | 1" | 0.414" | 0.237" | No. 3 | 50 | $27.28 | Add to Order |
| MSS-7560 | 1/4"-20 | 1 1/2" | 0.414" | 0.237" | No. 3 | 50 | $22.13 | Add to Order |
| Rev. 10-23, 08-23, 02-23, 11-22 | ||||||||
