18-8 Stainless Button Head Hex Metric Machine Screws
Machine Screws - Button Head Hex Drive, Fully Threaded.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic.
| Metric 18-8 Passivated Stainless Steel Button Head Hex Drive Machine Screws | ||||||||||
| Part # | Thread Size | Pitch | Length (mm) | Min. Thread Length | Head Dia. (mm) | Head Height (mm) | Drive Size | Pkg Qty. | Pkg Price | Order Online |
|---|---|---|---|---|---|---|---|---|---|---|
| MSS-7911 | M1.6 | .35 mm | 3 | __ | 2.9 | 0.8 | 0.9 | 50 | $11.95 | Add to Order |
| MSS-7912 | M1.6 | .35 mm | 4 | __ | 2.9 | 0.8 | 0.9 | 50 | $17.30 | Add to Order |
| MSS-7913 | M1.6 | .35 mm | 5 | __ | 2.9 | 0.8 | 0.9 | 50 | $20.90 | Add to Order |
| MSS-7914 | M2 | 0.4 mm | 3 | __ | 3.5 | 1.3 | 1.3 | 100 | $20.60 | Add to Order |
| MSS-7915 | M2 | 0.4 mm | 4 | __ | 3.5 | 1.3 | 1.3 | 25 | $9.45 | Add to Order |
| MSS-7916 | M2 | 0.4 mm | 5 | __ | 3.5 | 1.3 | 1.3 | 25 | $13.65 | Add to Order |
| MSS-7917 | M2 | 0.4 mm | 6 | __ | 3.5 | 1.3 | 1.3 | 25 | $15.56 | Add to Order |
| MSS-7918 | M2 | 0.4 mm | 8 | __ | 3.5 | 1.3 | 1.3 | 25 | $13.40 | Add to Order |
| MSS-7919 | M2 | 0.4 mm | 10 | __ | 3.8 | 0.9 | 1.3 | 50 | $32.97 | Add to Order |
| MSS-7920 | M2 | 0.4 mm | 12 | __ | 3.5 | 1.3 | 1.3 | 25 | $15.62 | Add to Order |
| MSS-7921 | M2 | 0.4 mm | 20 | __ | 3.8 | 0.9 | 1.3 | 25 | $15.27 | Add to Order |
| MSS-7922 | M2.2 | 0.45 mm | 6 | __ | 3.8 | 0.9 | 1.3 | 50 | $40.70 | Add to Order |
| MSS-7923 | M2.5 | 0.45 mm | 4 | __ | 4.5 | 1.5 | 1.5 | 25 | $11.26 | Add to Order |
| MSS-7924 | M2.5 | 0.45 mm | 5 | __ | 4.5 | 1.5 | 1.5 | 25 | $14.66 | Add to Order |
| MSS-7925 | M2.5 | 0.45 mm | 6 | __ | 4.5 | 1.5 | 1.5 | 25 | $14.85 | Add to Order |
| MSS-7926 | M2.5 | 0.45 mm | 8 | __ | 4.5 | 1.5 | 1.5 | 25 | $14.99 | Add to Order |
| MSS-7927 | M2.5 | 0.45 mm | 10 | __ | 4.5 | 1.5 | 1.5 | 25 | $17.87 | Add to Order |
| MSS-7928 | M2.5 | 0.45 mm | 12 | __ | 4.5 | 1.5 | 1.5 | 25 | $20.10 | Add to Order |
| MSS-7929 | M2.6 | 0.45 mm | 8 | __ | 4.6 | 1.25 | 2 | 50 | $40.70 | Add to Order |
| MSS-7930 | M3 | 0.5 mm | 3 | __ | 5.7 | 1.65 | 2 | 100 | $24.04 | Add to Order |
| MSS-7931 | M3 | 0.5 mm | 4 | __ | 5.7 | 1.65 | 2 | 100 | $11.55 | Add to Order |
| MSS-7932 | M3 | 0.5 mm | 5 | __ | 5.7 | 1.65 | 2 | 100 | $15.52 | Add to Order |
| MSS-7933 | M3 | 0.5 mm | 6 | __ | 5.7 | 1.65 | 2 | 100 | $12.24 | Add to Order |
| MSS-7934 | M3 | 0.5 mm | 8 | __ | 5.7 | 1.65 | 2 | 100 | $16.80 | Add to Order |
| MSS-7935 | M3 | 0.5 mm | 10 | __ | 5.7 | 1.65 | 2 | 100 | $15.10 | Add to Order |
| MSS-7936 | M3 | 0.5 mm | 12 | __ | 5.7 | 1.65 | 2 | 100 | $14.22 | Add to Order |
| MSS-7937 | M3 | 0.5 mm | 14 | __ | 5.7 | 1.65 | 2 | 50 | $16.59 | Add to Order |
| MSS-7938 | M3 | 0.5 mm | 16 | __ | 5.7 | 1.65 | 2 | 100 | $19.49 | Add to Order |
| MSS-7939 | M3 | 0.5 mm | 18 | __ | 5.7 | 1.65 | 2 | 100 | $18.27 | Add to Order |
| MSS-7940 | M3 | 0.5 mm | 20 | __ | 5.7 | 1.65 | 2 | 50 | $11.13 | Add to Order |
| MSS-7941 | M3 | 0.5 mm | 22 | __ | 5.7 | 1.65 | 2 | 50 | $12.45 | Add to Order |
| MSS-7942 | M3 | 0.5 mm | 25 | __ | 5.7 | 1.65 | 2 | 50 | $13.31 | Add to Order |
| MSS-7943 | M3 | 0.5 mm | 30 | __ | 5.7 | 1.65 | 2 | 50 | $16.49 | Add to Order |
| MSS-7944 | M3 | 0.5 mm | 35 | __ | 5.7 | 1.65 | 2 | 25 | $8.44 | Add to Order |
| MSS-7945 | M3 | 0.5 mm | 40 | __ | 5.7 | 1.65 | 2 | 25 | $12.20 | Add to Order |
| MSS-7946 | M3 | 0.5 mm | 45 | __ | 5.7 | 1.65 | 2 | 25 | $8.15 | Add to Order |
| MSS-7947 | M3 | 0.5 mm | 50 | __ | 5.7 | 1.65 | 2 | 25 | $10.50 | Add to Order |
| MSS-7948 | M3.5 | 0.6 mm | 6 | __ | 5.7 | 1.65 | 2 | 100 | $10.42 | Add to Order |
| MSS-7949 | M3.5 | 0.6 mm | 8 | __ | 5.7 | 1.65 | 2 | 100 | $12.52 | Add to Order |
| MSS-7950 | M3.5 | 0.6 mm | 10 | __ | 5.7 | 1.65 | 2 | 100 | $11.59 | Add to Order |
| MSS-7951 | M4 | 0.7 mm | 4 | __ | 7.6 | 2.2 | 2.5 | 100 | $23.10 | Add to Order |
| MSS-7952 | M4 | 0.7 mm | 5 | __ | 7.6 | 2.2 | 2.5 | 100 | $18.14 | Add to Order |
| MSS-7953 | M4 | 0.7 mm | 6 | __ | 7.6 | 2.2 | 2.5 | 100 | $25.43 | Add to Order |
| MSS-7954 | M4 | 0.7 mm | 8 | __ | 7.6 | 2.2 | 2.5 | 100 | $21.19 | Add to Order |
| MSS-7955 | M4 | 0.7 mm | 10 | __ | 7.6 | 2.2 | 2.5 | 100 | $19.82 | Add to Order |
| MSS-7956 | M4 | 0.7 mm | 12 | __ | 7.6 | 2.2 | 2.5 | 100 | $28.14 | Add to Order |
| MSS-7957 | M4 | 0.7 mm | 14 | __ | 7.6 | 2.2 | 2.5 | 50 | $22.68 | Add to Order |
| MSS-7958 | M4 | 0.7 mm | 16 | __ | 7.6 | 2.2 | 2.5 | 100 | $29.86 | Add to Order |
| MSS-7959 | M4 | 0.7 mm | 18 | __ | 7.6 | 2.2 | 2.5 | 100 | $27.80 | Add to Order |
| MSS-7960 | M4 | 0.7 mm | 20 | __ | 7.6 | 2.2 | 2.5 | 50 | $18.25 | Add to Order |
| MSS-7961 | M4 | 0.7 mm | 22 | __ | 7.6 | 2.2 | 2.5 | 50 | $14.47 | Add to Order |

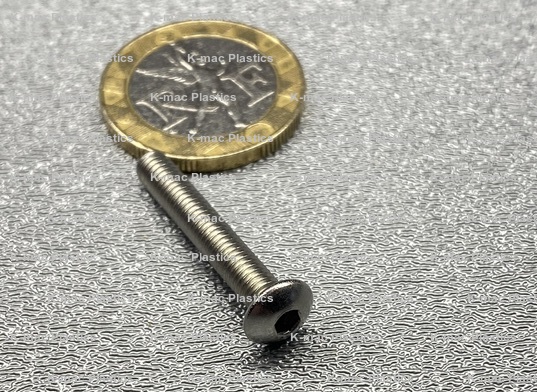

| MSS-7962 | M4 | 0.7 mm | 25 | 20 | 7.6 | 2.2 | 2.5 | 50 | $21.02 | Add to Order |
| MSS-7963 | M4 | 0.7 mm | 30 | 20 | 7.6 | 2.2 | 2.5 | 50 | $28.20 | Add to Order |

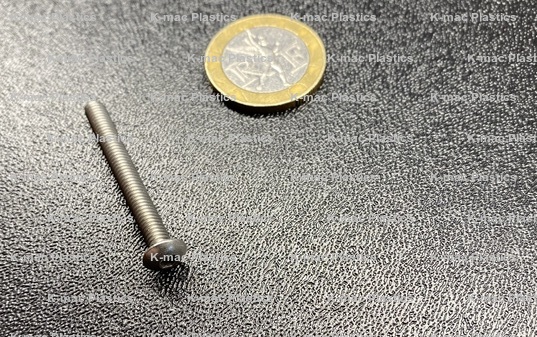

| MSS-7964 | M4 | 0.7 mm | 35 | __ | 7.6 | 2.2 | 2.5 | 25 | $16.02 | Add to Order |
| MSS-7965 | M4 | 0.7 mm | 40 | __ | 7.6 | 2.2 | 2.5 | 25 | $17.72 | Add to Order |
| MSS-7966 | M4 | 0.7 mm | 45 | __ | 7.6 | 2.2 | 2.5 | 25 | $15.60 | Add to Order |
| MSS-7967 | M4 | 0.7 mm | 50 | 20 | 7.6 | 2.2 | 2.5 | 10 | $13.19 | Add to Order |
| MSS-7968 | M4 | 0.7 mm | 60 | __ | 7.6 | 2.2 | 2.5 | 10 | $6.78 | Add to Order |
| MSS-7969 | M4 | 0.7 mm | 70 | __ | 7.6 | 2.2 | 2.5 | 50 | $37.09 | Add to Order |
| MSS-7970 | M4 | 0.7 mm | 80 | __ | 7.6 | 2.2 | 2.5 | 50 | $31.25 | Add to Order |
| MSS-7971 | M5 | 0.8 mm | 5 | __ | 9.5 | 2.75 | 3 | 50 | $29.19 | Add to Order |
| MSS-7972 | M5 | 0.8 mm | 6 | __ | 9.5 | 2.75 | 3 | 25 | $21.00 | Add to Order |

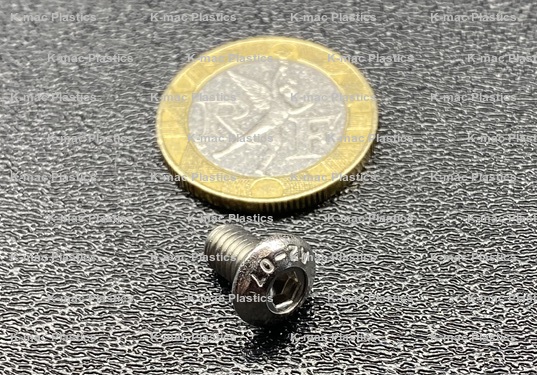

| MSS-7973 | M5 | 0.8 mm | 8 | __ | 9.5 | 2.75 | 3 | 100 | $34.29 | Add to Order |
| MSS-7974 | M5 | 0.8 mm | 10 | __ | 9.5 | 2.75 | 3 | 100 | $34.29 | Add to Order |
| MSS-7975 | M5 | 0.8 mm | 12 | __ | 9.5 | 2.75 | 3 | 50 | $21.02 | Add to Order |

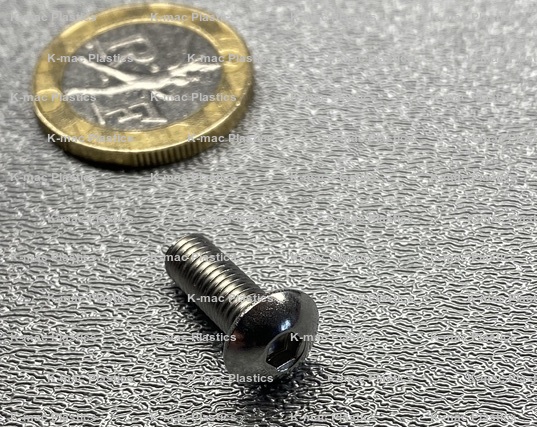

| MSS-7976 | M5 | 0.8 mm | 14 | __ | 9.5 | 2.75 | 3 | 25 | $21.02 | Add to Order |

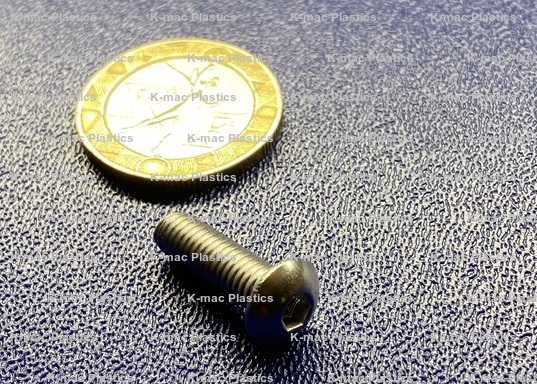

| MSS-7977 | M5 | 0.8 mm | 16 | __ | 9.5 | 2.75 | 3 | 50 | $23.77 | Add to Order |
| MSS-7978 | M5 | 0.8 mm | 18 | __ | 9.5 | 2.75 | 3 | 50 | $21.95 | Add to Order |

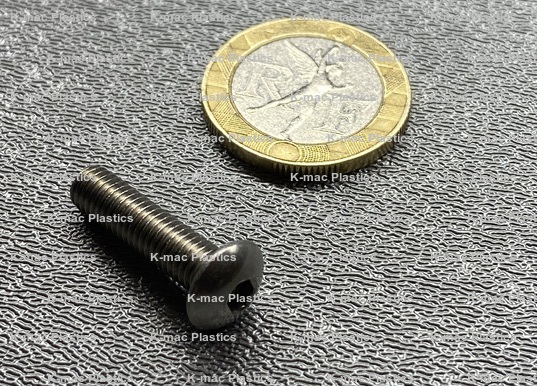

| MSS-7979 | M5 | 0.8 mm | 20 | __ | 9.5 | 2.75 | 3 | 50 | $26.00 | Add to Order |
| MSS-7980 | M5 | 0.8 mm | 22 | __ | 9.5 | 2.75 | 3 | 50 | $23.10 | Add to Order |
| MSS-7981 | M5 | 0.8 mm | 25 | __ | 9.5 | 2.75 | 3 | 25 | $16.04 | Add to Order |

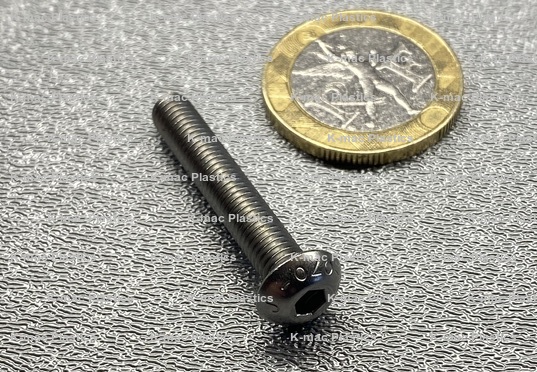

| MSS-7982 | M5 | 0.8 mm | 30 | __ | 9.5 | 2.75 | 3 | 25 | $19.36 | Add to Order |
| MSS-7983 | M5 | 0.8 mm | 35 | 22 | 9.5 | 2.75 | 3 | 25 | $21.02 | Add to Order |
| MSS-7984 | M5 | 0.8 mm | 40 | 22 | 9.5 | 2.75 | 3 | 25 | $27.93 | Add to Order |

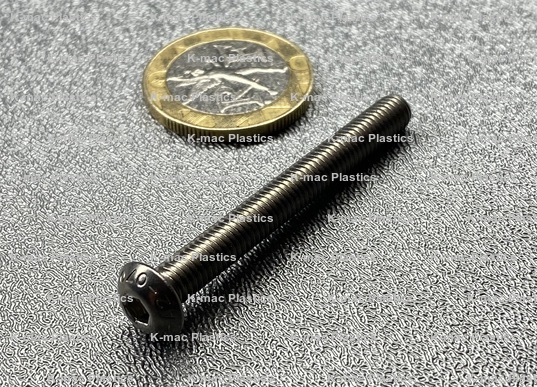

| MSS-7985 | M5 | 0.8 mm | 45 | __ | 9.5 | 2.75 | 3 | 25 | $21.00 | Add to Order |

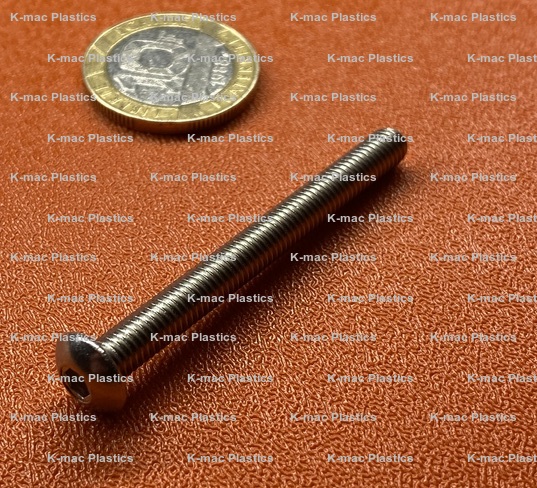

| MSS-7986 | M5 | 0.8 mm | 50 | 22 | 9.5 | 2.75 | 3 | 25 | $31.79 | Add to Order |
| MSS-7987 | M5 | 0.8 mm | 55 | __ | 9.5 | 2.75 | 3 | 25 | $27.49 | Add to Order |

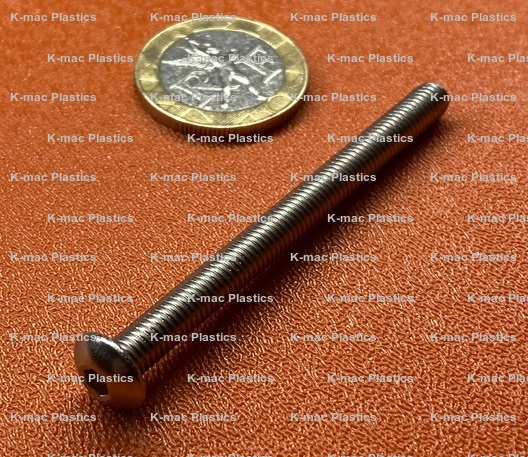

| MSS-7988 | M5 | 0.8 mm | 60 | 22 | 9.5 | 2.75 | 3 | 10 | $23.58 | Add to Order |
| MSS-7989 | M5 | 0.8 mm | 70 | __ | 9.5 | 2.75 | 3 | 10 | $14.74 | Add to Order |
| MSS-7990 | M5 | 0.8 mm | 80 | __ | 9.5 | 2.75 | 3 | 10 | $16.84 | Add to Order |
| MSS-7991 | M5 | 0.8 mm | 100 | __ | 9.5 | 2.75 | 3 | 10 | $17.03 | Add to Order |

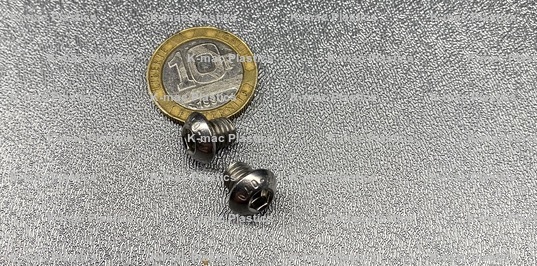

| MSS-7992 | M6 | 1 mm | 6 | __ | 10.5 | 3.3 | 4 | 100 | $51.32 | Add to Order |

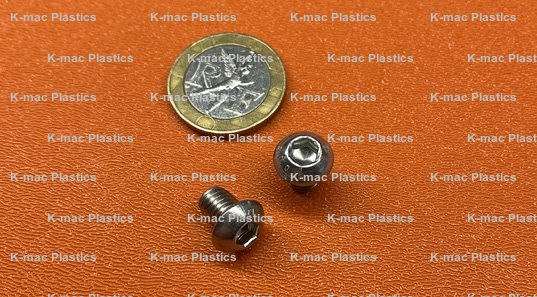

| MSS-7993 | M6 | 1 mm | 8 | __ | 10.5 | 3.3 | 4 | 25 | $21.29 | Add to Order |
| MSS-7994 | M6 | 1 mm | 10 | __ | 10.5 | 3.3 | 4 | 50 | $24.34 | Add to Order |

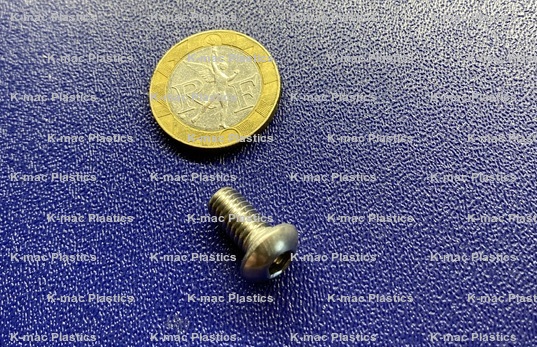

| MSS-7995 | M6 | 1 mm | 12 | __ | 10.5 | 3.3 | 4 | 50 | $26.54 | Add to Order |
| MSS-7996 | M6 | 1 mm | 14 | __ | 10.5 | 3.3 | 4 | 25 | $28.48 | Add to Order |

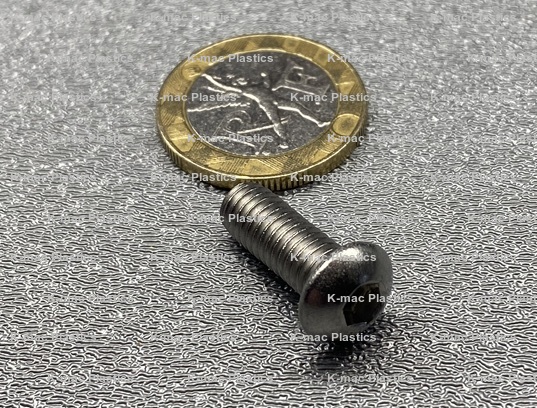

| MSS-7997 | M6 | 1 mm | 16 | __ | 10.5 | 3.3 | 4 | 25 | $15.48 | Add to Order |
| MSS-7998 | M6 | 1 mm | 18 | __ | 10.5 | 3.3 | 4 | 25 | $13.25 | Add to Order |

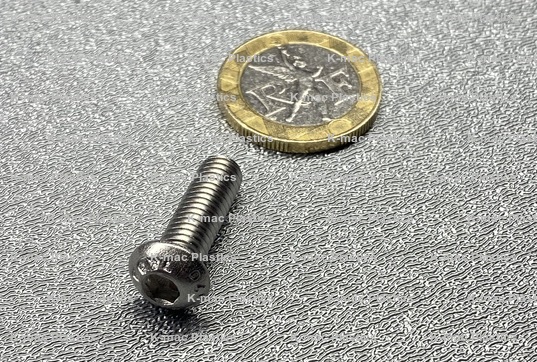

| MSS-7999 | M6 | 1 mm | 20 | __ | 10.5 | 3.3 | 4 | 25 | $17.98 | Add to Order |
| MSS-8000 | M6 | 1 mm | 22 | __ | 10.5 | 3.3 | 4 | 25 | $15.54 | Add to Order |

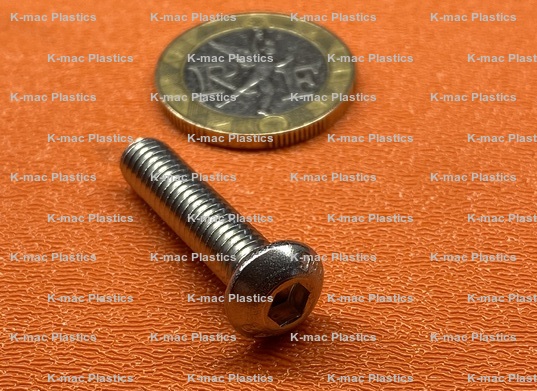

| MSS-8001 | M6 | 1 mm | 25 | __ | 10.5 | 3.3 | 4 | 25 | $20.75 | Add to Order |

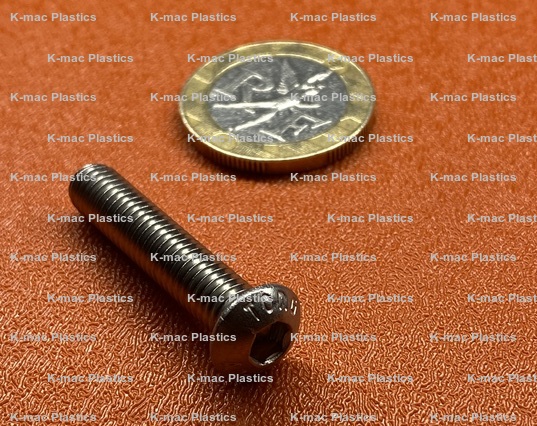

| MSS-8002 | M6 | 1 mm | 30 | __ | 10.5 | 3.3 | 4 | 25 | $23.77 | Add to Order |

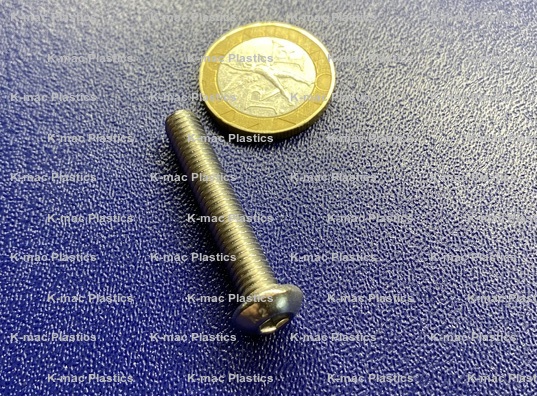

| MSS-8003 | M6 | 1 mm | 35 | 24 | 10.5 | 3.3 | 4 | 25 | $26.82 | Add to Order |
| MSS-8004 | M6 | 1 mm | 40 | 24 | 10.5 | 3.3 | 4 | 25 | $31.52 | Add to Order |
| MSS-8005 | M6 | 1 mm | 45 | __ | 10.5 | 3.3 | 4 | 10 | $12.92 | Add to Order |
| MSS-8006 | M6 | 1 mm | 50 | 24 | 10.5 | 3.3 | 4 | 10 | $20.35 | Add to Order |
| MSS-8007 | M6 | 1 mm | 55 | 24 | 10.5 | 3.3 | 4 | 10 | $20.45 | Add to Order |

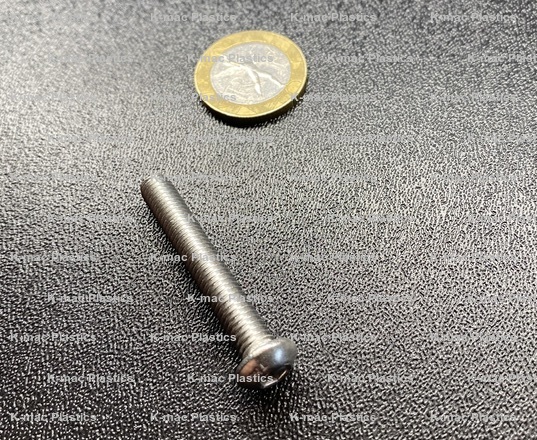

| MSS-8008 | M6 | 1 mm | 60 | 24 | 10.5 | 3.3 | 4 | 10 | $21.90 | Add to Order |
| MSS-8009 | M6 | 1 mm | 65 | __ | 10.5 | 3.3 | 4 | 10 | $22.45 | Add to Order |
| MSS-8010 | M6 | 1 mm | 70 | __ | 10.5 | 3.3 | 4 | 10 | $22.09 | Add to Order |
| MSS-8011 | M6 | 1 mm | 80 | __ | 10.5 | 3.3 | 4 | 10 | $22.30 | Add to Order |
| MSS-8012 | M6 | 1 mm | 100 | __ | 10.5 | 3.3 | 4 | 10 | $21.92 | Add to Order |
| MSS-8013 | M8 | 1.25 mm | 8 | __ | 14 | 4.4 | 5 | 10 | $13.33 | Add to Order |
| MSS-8014 | M8 | 1.25 mm | 10 | __ | 14 | 4.4 | 5 | 10 | $17.26 | Add to Order |
| MSS-8015 | M8 | 1.25 mm | 12 | __ | 14 | 4.4 | 5 | 25 | $32.36 | Add to Order |
| MSS-8016 | M8 | 1.25 mm | 14 | __ | 14 | 4.4 | 5 | 25 | $24.95 | Add to Order |
| MSS-8017 | M8 | 1.25 mm | 16 | __ | 14 | 4.4 | 5 | 25 | $30.70 | Add to Order |
| MSS-8018 | M8 | 1.25 mm | 18 | __ | 14 | 4.4 | 5 | 25 | $30.89 | Add to Order |

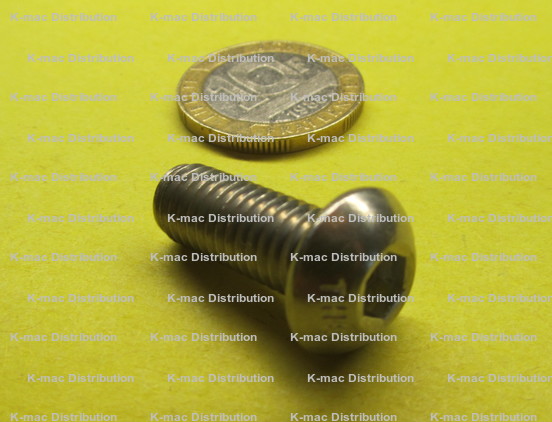

| MSS-8019 | M8 | 1.25 mm | 20 | __ | 14 | 4.4 | 5 | 25 | $34.57 | Add to Order |
| MSS-8020 | M8 | 1.25 mm | 22 | __ | 14 | 4.4 | 5 | 10 | $11.91 | Add to Order |
| MSS-8021 | M8 | 1.25 mm | 25 | __ | 14 | 4.4 | 5 | 10 | $16.49 | Add to Order |
| MSS-8022 | M8 | 1.25 mm | 30 | __ | 14 | 4.4 | 5 | 10 | $18.59 | Add to Order |
| MSS-8023 | M8 | 1.25 mm | 35 | __ | 14 | 4.4 | 5 | 10 | $20.14 | Add to Order |
| MSS-8024 | M8 | 1.25 mm | 40 | __ | 14 | 4.4 | 5 | 10 | $21.13 | Add to Order |
| MSS-8025 | M8 | 1.25 mm | 45 | 28 | 14 | 4.4 | 5 | 10 | $33.62 | Add to Order |
| MSS-8026 | M8 | 1.25 mm | 50 | 28 | 14 | 4.4 | 5 | 5 | $15.98 | Add to Order |
| MSS-8027 | M8 | 1.25 mm | 55 | 28 | 14 | 4.4 | 5 | 5 | $26.71 | Add to Order |
| MSS-8028 | M8 | 1.25 mm | 60 | 28 | 14 | 4.4 | 5 | 5 | $21.02 | Add to Order |
| MSS-8029 | M8 | 1.25 mm | 70 | __ | 14 | 4.4 | 5 | 5 | $18.06 | Add to Order |
| MSS-8030 | M8 | 1.25 mm | 80 | __ | 14 | 4.4 | 5 | 5 | $17.81 | Add to Order |
| MSS-8031 | M8 | 1.25 mm | 100 | __ | 14 | 4.4 | 5 | 5 | $21.71 | Add to Order |
| MSS-8032 | M10 | 1.5 mm | 12 | __ | 17.5 | 5.5 | 6 | 10 | $32.63 | Add to Order |
| MSS-8033 | M10 | 1.5 mm | 16 | __ | 17.5 | 5.5 | 6 | 10 | $23.67 | Add to Order |
| MSS-8034 | M10 | 1.5 mm | 20 | __ | 17.5 | 5.5 | 6 | 10 | $24.78 | Add to Order |
| MSS-8035 | M10 | 1.5 mm | 25 | __ | 17.5 | 5.5 | 6 | 10 | $29.76 | Add to Order |
| MSS-8036 | M10 | 1.5 mm | 30 | __ | 17.5 | 5.5 | 6 | 10 | $30.98 | Add to Order |
| MSS-8037 | M10 | 1.5 mm | 35 | __ | 17.5 | 5.5 | 6 | 5 | $17.12 | Add to Order |
| MSS-8038 | M10 | 1.5 mm | 40 | __ | 17.5 | 5.5 | 6 | 10 | $34.06 | Add to Order |
| MSS-8039 | M10 | 1.5 mm | 45 | 32 | 17.5 | 5.5 | 6 | 5 | $23.44 | Add to Order |
| MSS-8040 | M10 | 1.5 mm | 50 | 32 | 17.5 | 5.5 | 6 | 5 | $21.80 | Add to Order |
| MSS-8041 | M10 | 1.5 mm | 55 | 32 | 17.5 | 5.5 | 6 | 5 | $33.29 | Add to Order |
| MSS-8042 | M10 | 1.5 mm | 60 | 32 | 17.5 | 5.5 | 6 | 1 | $7.43 | Add to Order |
| MSS-8043 | M10 | 1.5 mm | 80 | __ | 17.5 | 5.5 | 6 | 1 | $6.49 | Add to Order |
| MSS-8044 | M10 | 1.5 mm | 100 | __ | 17.5 | 5.5 | 6 | 5 | $31.37 | Add to Order |
| MSS-8045 | M12 | 1.75 mm | 16 | __ | 21 | 6.6 | 8 | 10 | $21.76 | Add to Order |
| MSS-8046 | M12 | 1.75 mm | 20 | __ | 21 | 6.6 | 8 | 5 | $19.09 | Add to Order |
| MSS-8047 | M12 | 1.75 mm | 25 | __ | 21 | 6.6 | 8 | 5 | $19.26 | Add to Order |
| MSS-8048 | M12 | 1.75 mm | 30 | __ | 21 | 6.6 | 8 | 5 | $21.29 | Add to Order |
| MSS-8049 | M12 | 1.75 mm | 35 | __ | 21 | 6.6 | 8 | 5 | $30.09 | Add to Order |
| MSS-8050 | M12 | 1.75 mm | 40 | __ | 21 | 6.6 | 8 | 1 | $5.33 | Add to Order |
| MSS-8051 | M12 | 1.75 mm | 45 | __ | 21 | 6.6 | 8 | 1 | $6.99 | Add to Order |
| MSS-8052 | M12 | 1.75 mm | 50 | __ | 21 | 6.6 | 8 | 1 | $6.28 | Add to Order |
| MSS-8053 | M12 | 1.75 mm | 55 | 36 | 21 | 6.6 | 8 | 1 | $9.68 | Add to Order |
| MSS-8054 | M12 | 1.75 mm | 60 | 36 | 21 | 6.6 | 8 | 1 | $9.05 | Add to Order |
| MSS-8055 | M12 | 1.75 mm | 70 | __ | 21 | 6.6 | 8 | 1 | $12.60 | Add to Order |
| MSS-8056 | M12 | 1.75 mm | 80 | __ | 21 | 6.6 | 8 | 1 | $7.56 | Add to Order |
| MSS-8057 | M12 | 1.75 mm | 100 | __ | 21 | 6.6 | 8 | 1 | $8.09 | Add to Order |
| Rev. 08-23, 11-22, 03-22 | ||||||||||
