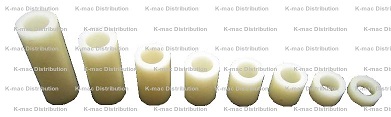

Nylon 6/6 Spacers
| Nylon 6/6 Spacers, Metric
Rockwell R100, OD Tol. +/- .1mm, ID Tol. .0mm |
|||||
| Part # | Screw Size | OD | Length | Price Each | Order Online |
|---|---|---|---|---|---|
| Spacer-4151 | M2.5 | 4.5mm | 2mm | $2.90 | Add to Order |
| Spacer-4152 | M2.5 | 4.5mm | 3MM | $2.98 | Add to Order |
| Spacer-4153 | M2.5 | 4.5mm | 4MM | $3.00 | Add to Order |
| Spacer-4154 | M2.5 | 4.5mm | 5MM | $3.07 | Add to Order |
| Spacer-4155 | M2.5 | 4.5mm | 6MM | $3.15 | Add to Order |
| Spacer-4156 | M2.5 | 4.5mm | 8MM | $3.49 | Add to Order |
| Spacer-4157 | M2.5 | 4.5mm | 10mm | $3.59 | Add to Order |
| Spacer-4158 | M2.5 | 4.5mm | 13mm | $3.72 | Add to Order |
| Spacer-4159 | M2.5 | 4.5mm | 14mm | $3.80 | Add to Order |
| Spacer-4160 | M2.5 | 4.5mm | 16mm | $3.99 | Add to Order |
| Spacer-4161 | M2.5 | 4.5mm | 19mm | $4.14 | Add to Order |
| Spacer-4162 | M2.5 | 4.5mm | 20mm | $4.18 | Add to Order |
| Spacer-4163 | M2.5 | 4.5mm | 25mm | $4.31 | Add to Order |
| Spacer-2640 | M3 | 6mm | 2mm | $3.23 | Add to Order |
| Spacer-2641 | M3 | 6mm | 3mm | $3.26 | Add to Order |
| Spacer-2642 | M3 | 6mm | 4mm | $3.26 | Add to Order |
| Spacer-2643 | M3 | 6mm | 5mm | $3.30 | Add to Order |
| Spacer-2644 | M3 | 6mm | 6mm | $3.30 | Add to Order |
| Spacer-2645 | M3 | 6mm | 8mm | $3.36 | Add to Order |
| Spacer-2646 | M3 | 6mm | 10mm | $3.44 | Add to Order |
| Spacer-2647 | M3 | 6mm | 13mm | $3.72 | Add to Order |
| Spacer-2648 | M3 | 6mm | 14mm | $4.49 | Add to Order |
| Spacer-2649 | M3 | 6mm | 16mm | $3.82 | Add to Order |
| Spacer-2650 | M3 | 6mm | 19mm | $4.03 | Add to Order |
| Spacer-2651 | M3 | 6mm | 20mm | $4.10 | Add to Order |
| Spacer-2652 | M3 | 6mm | 25mm | $4.28 | Add to Order |
| Spacer-2666 | M3 | 8mm | 2mm | $3.23 | Add to Order |
| Spacer-2667 | M3 | 8mm | 3mm | $3.28 | Add to Order |
| Spacer-2668 | M3 | 8mm | 4mm | $3.28 | Add to Order |
| Spacer-2669 | M3 | 8mm | 5mm | $3.30 | Add to Order |
| Spacer-2670 | M3 | 8mm | 6mm | $3.34 | Add to Order |
| Spacer-2671 | M3 | 8mm | 8mm | $3.38 | Add to Order |
| Spacer-2672 | M3 | 8mm | 10mm | $3.44 | Add to Order |
| Spacer-2673 | M3 | 8mm | 13mm | $3.65 | Add to Order |
| Spacer-2674 | M3 | 8mm | 14mm | $3.65 | Add to Order |
| Spacer-2675 | M3 | 8mm | 16mm | $3.99 | Add to Order |
| Spacer-2676 | M3 | 8mm | 19mm | $4.14 | Add to Order |
| Spacer-2677 | M3 | 8mm | 20mm | $4.18 | Add to Order |
| Spacer-2678 | M3 | 8mm | 25mm | $4.47 | Add to Order |
| Spacer-2653 | M4 | 6mm | 2mm | $3.23 | Add to Order |
| Spacer-2654 | M4 | 6mm | 3mm | $3.26 | Add to Order |
| Spacer-2655 | M4 | 6mm | 4mm | $3.26 | Add to Order |
| Spacer-2656 | M4 | 6mm | 5mm | $3.30 | Add to Order |
| Spacer-2657 | M4 | 6mm | 6mm | $3.30 | Add to Order |
| Spacer-2658 | M4 | 6mm | 8mm | $3.36 | Add to Order |
| Spacer-2659 | M4 | 6mm | 10mm | $3.44 | Add to Order |
| Spacer-2660 | M4 | 6mm | 13mm | $3.72 | Add to Order |
| Spacer-2661 | M4 | 6mm | 14mm | $4.49 | Add to Order |
| Spacer-2662 | M4 | 6mm | 16mm | $3.82 | Add to Order |
| Spacer-2663 | M4 | 6mm | 19mm | $4.03 | Add to Order |
| Spacer-2664 | M4 | 6mm | 20mm | $4.10 | Add to Order |
| Spacer-2665 | M4 | 6mm | 25mm | $4.28 | Add to Order |
| Spacer-2679 | M4 | 8mm | 2mm | $3.23 | Add to Order |
| Spacer-2680 | M4 | 8mm | 3mm | $3.28 | Add to Order |
| Spacer-2681 | M4 | 8mm | 4mm | $3.28 | Add to Order |
| Spacer-2682 | M4 | 8mm | 5mm | $3.30 | Add to Order |
| Spacer-2683 | M4 | 8mm | 6mm | $3.34 | Add to Order |
| Spacer-2684 | M4 | 8mm | 8mm | $3.38 | Add to Order |
| Spacer-2685 | M4 | 8mm | 10mm | $3.44 | Add to Order |
| Spacer-2686 | M4 | 8mm | 13mm | $3.65 | Add to Order |
| Spacer-2687 | M4 | 8mm | 14mm | $3.65 | Add to Order |
| Spacer-2688 | M4 | 8mm | 16mm | $3.99 | Add to Order |
| Spacer-2689 | M4 | 8mm | 19mm | $3.34 | Add to Order |
| Spacer-2690 | M4 | 8mm | 20mm | $4.18 | Add to Order |
| Spacer-2691 | M4 | 8mm | 25mm | $4.47 | Add to Order |
| Spacer-2705 | M4 | 10mm | 2mm | $3.30 | Add to Order |
| Spacer-2706 | M4 | 10mm | 3mm | $3.34 | Add to Order |
| Spacer-2707 | M4 | 10mm | 4mm | $3.38 | Add to Order |
| Spacer-2708 | M4 | 10mm | 5mm | $3.40 | Add to Order |
| Spacer-2709 | M4 | 10mm | 6mm | $3.49 | Add to Order |
| Spacer-2710 | M4 | 10mm | 8mm | $3.55 | Add to Order |
| Spacer-2711 | M4 | 10mm | 10mm | $3.65 | Add to Order |
| Spacer-2712 | M4 | 10mm | 13mm | $3.86 | Add to Order |
| Spacer-2713 | M4 | 10mm | 14mm | $3.91 | Add to Order |
| Spacer-2714 | M4 | 10mm | 16mm | $4.31 | Add to Order |
| Spacer-2715 | M4 | 10mm | 19mm | $4.45 | Add to Order |
| Spacer-2716 | M4 | 10mm | 20mm | $4.47 | Add to Order |
| Spacer-2692 | M5 | 8mm | 2mm | $3.23 | Add to Order |
| Spacer-2693 | M5 | 8mm | 3mm | $3.28 | Add to Order |
| Spacer-2694 | M5 | 8mm | 4mm | $3.28 | Add to Order |
| Spacer-2695 | M5 | 8mm | 5mm | $3.30 | Add to Order |
| Spacer-2696 | M5 | 8mm | 6mm | $3.34 | Add to Order |
| Spacer-2697 | M5 | 8mm | 8mm | $3.38 | Add to Order |
| Spacer-2698 | M5 | 8mm | 10mm | $3.44 | Add to Order |
| Spacer-2699 | M5 | 8mm | 13mm | $3.65 | Add to Order |
| Spacer-2700 | M5 | 8mm | 14mm | $3.65 | Add to Order |
| Spacer-2701 | M5 | 8mm | 16mm | $3.99 | Add to Order |
| Spacer-2702 | M5 | 8mm | 19mm | $4.14 | Add to Order |
| Spacer-2703 | M5 | 8mm | 20mm | $4.18 | Add to Order |
| Spacer-2704 | M5 | 8mm | 25mm | $4.47 | Add to Order |
| Spacer-2717 | M5 | 10mm | 2mm | $3.30 | Add to Order |
| Spacer-2718 | M5 | 10mm | 3mm | $3.34 | Add to Order |
| Spacer-2719 | M5 | 10mm | 4mm | $3.38 | Add to Order |
| Spacer-2720 | M5 | 10mm | 5mm | $3.40 | Add to Order |
| Spacer-2721 | M5 | 10mm | 6mm | $3.49 | Add to Order |
| Spacer-2722 | M5 | 10mm | 8mm | $3.55 | Add to Order |
| Spacer-2723 | M5 | 10mm | 10mm | $3.65 | Add to Order |
| Spacer-2724 | M5 | 10mm | 13mm | $3.86 | Add to Order |
| Spacer-2725 | M5 | 10mm | 14mm | $3.91 | Add to Order |
| Spacer-2726 | M5 | 10mm | 16mm | $4.31 | Add to Order |
| Spacer-2727 | M5 | 10mm | 19mm | $4.45 | Add to Order |
| Spacer-2728 | M5 | 10mm | 20mm | $4.47 | Add to Order |
| Rev. 08-23, 03-23, 06-22 | |||||
|
Screw size number |
SAE diameter (inch) |
Metric diameter (mm) |
Screw size number |
SAE diameter (inch) |
Metric diameter (mm) |
|
| #0 | 0.060 | 1.524 | #9 | 0.177 | 4.496 | |
| #1 | 0.073 | 1.854 | #10 | 0.190 | 4.826 | |
| #2 | 0.086 | 2.184 | #11 | 0.203 | 5.156 | |
| #3 | 0.099 | 2.515 | #12 | 0.216 | 5.486 | |
| #4 | 0.122 | 3.099 | #14 | 0.242 | 6.147 | |
| #5 | 0.125 | 3.175 | #16 | 0.268 | 6.807 | |
| #6 | 0.138 | 3.505 | #18 | 0.294 | 7.468 | |
| #7 | 0.151 | 3.835 | #20 | 0.320 | 8.128 | |
| #8 | 0.164 | 4.166 | #24 | 0.372 | 9.449 |
