Slotted Carbon Steel Spring Pins

Reference Diagram:
Spring Pin Comparison
Choosing the Strongest Spring Pin for Various Applications

Click here for Metric HCS Spring Pin Sizes

Steel Slotted Spring Pins
Rockwell C43, ASME B18.8.2
Part # Dia Length Wall Thickness Breaking Strength LBS Pkg Qty Pkg. Price Order Online
SP-1222 1/16" 3/16" 0.012" 430 500 $15.75 Add to Order
SP-1220 1/16" 1/4" 0.012" 430 500 $16.91 Add to Order
SP-1219 1/16" 5/16" 0.012" 430 500 $16.28 Add to Order
SP-1217 1/16" 3/8" 0.012" 430 500 $16.49 Add to Order
SP-1216 1/16" 7/16" 0.012" 430 500 $17.85 Add to Order
SP-072 1/16" 1/2" 0.012" 430 250 $16.59 Add to Order
SP-1202 1/16" 9/16" 0.012" 430 250 $28.41 Add to Order
SP-073 1/16" 5/8" 0.012" 430 250 $18.42 Add to Order
SP-1214 1/16" 11/16" 0.012" 430 250 $35.72 Add to Order
SP-074 1/16" 3/4" 0.012" 430 250 $19.05 Add to Order

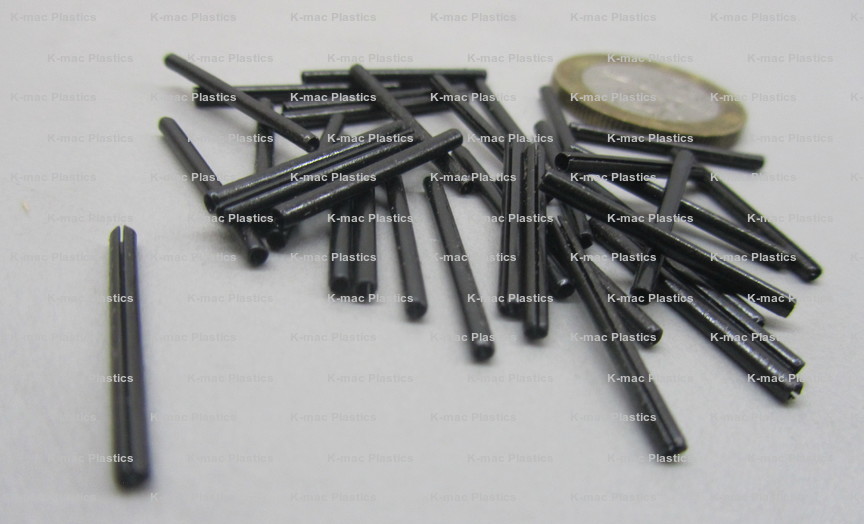

SP-011 1/16" 13/16" 0.012" 430 100 $9.77 Add to Order
SP-075 1/16" 7/8" 0.012" 430 100 $12.12 Add to Order
SP-013 1/16" 15/16" 0.012" 430 100 $19.15 Add to Order
SP-559 1/16" 1" 0.012" 430 100 $13.80 Add to Order
SP-1226 5/64" 3/16" 0.018" 800 100 $8.53 Add to Order
SP-1212 5/64" 1/4" 0.018" 800 250 $19.72 Add to Order

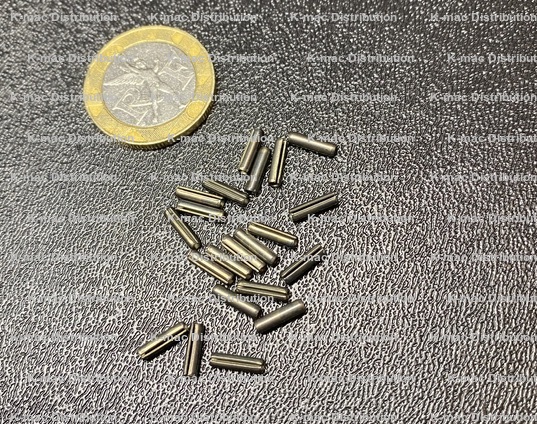

SP-1211 5/64" 5/16" 0.018" 800 250 $24.93 Add to Order
SP-1210 5/64" 3/8" 0.018" 800 250 $18.19 Add to Order
SP-1209 5/64" 7/16" 0.018" 800 250 $26.78 Add to Order
SP-1208 5/64" 1/2" 0.018" 800 250 $23.29 Add to Order

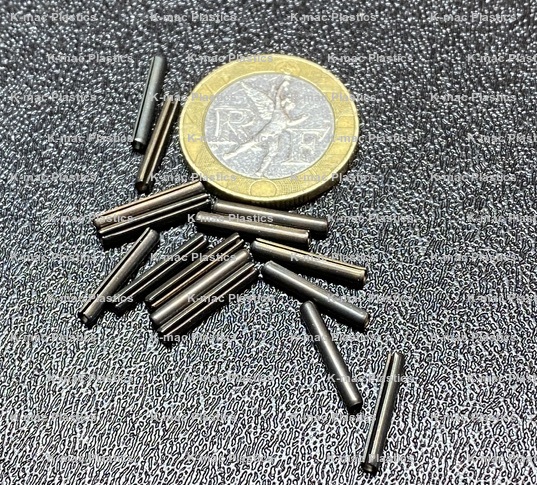

SP-1207 5/64" 9/16" 0.018" 800 250 $26.17 Add to Order
SP-1206 5/64" 5/8" 0.018" 800 250 $20.39 Add to Order
SP-1205 5/64" 11/16" 0.018" 800 100 $10.21 Add to Order
SP-1204 5/64" 3/4" 0.018" 800 250 $26.42 Add to Order
SP-1052 5/64" 13/16" 0.018" 800 100 $10.82 Add to Order
SP-1253 5/64" 7/8" 0.018" 800 250 $29.84 Add to Order
SP-1104 5/64" 1" 0.018" 800 250 $32.13 Add to Order
SP-953 5/64" 1 1/4" 0.018" 800 250 $31.31 Add to Order
SP-952 5/64" 1 1/2" 0.018" 800 250 $53.03 Add to Order
SP-951 3/32" 3/16" 0.022" 1,100 250 $24.53 Add to Order
SP-950 3/32" 1/4" 0.022" 1,100 500 $14.28 Add to Order
SP-949 3/32" 5/16" 0.022" 1,100 500 $16.70 Add to Order
SP-948 3/32" 3/8" 0.022" 1,100 500 $19.43 Add to Order
SP-947 3/32" 7/16" 0.022" 1,100 500 $30.77 Add to Order
SP-077 3/32" 1/2" 0.022" 1,100 500 $32.21 Add to Order
SP-946 3/32" 9/16" 0.022" 1,100 250 $25.26 Add to Order
SP-078 3/32" 5/8" 0.022" 1,100 500 $34.61 Add to Order
SP-945 3/32" 11/16" 0.022" 1,100 250 $22.50 Add to Order
SP-079 3/32" 3/4" 0.022" 1,100 250 $22.60 Add to Order
SP-944 3/32" 13/16" 0.022" 1,100 250 $35.62 Add to Order
SP-080 3/32" 7/8" 0.022" 1,100 250 $28.94 Add to Order
SP-015 3/32" 15/16" 0.022" 1,100 250 $35.76 Add to Order
SP-081 3/32" 1" 0.022" 1,100 250 $30.87 Add to Order

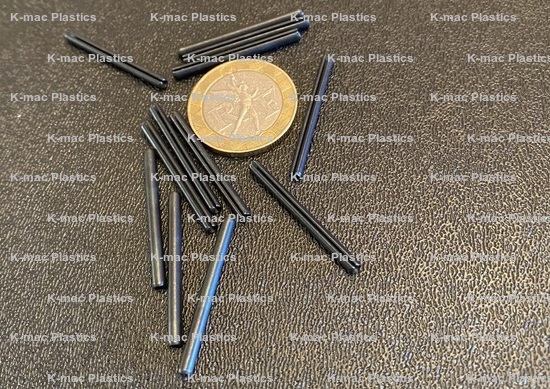

SP-082 3/32" 1 1/8" 0.022" 1,100 250 $30.45 Add to Order
SP-083 3/32" 1 1/4" 0.022" 1,100 250 $34.13 Add to Order
SP-931 3/32" 1 3/8" 0.022" 1,100 250 $50.19 Add to Order
SP-942 3/32" 1 1/2" 0.022" 1,100 250 $38.22 Add to Order
SP-488 1/8" 1/4" 0.028" 1,800 250 $38.93 Add to Order
SP-499 1/8" 5/16" 0.028" 1,800 500 $24.26 Add to Order
SP-511 1/8" 3/8" 0.028" 1,800 500 $20.48 Add to Order
SP-497 1/8" 7/16" 0.028" 1,800 500 $20.06 Add to Order
SP-084 1/8" 1/2" 0.028" 1,800 500 $38.54 Add to Order
SP-496 1/8" 9/16" 0.028" 1,800 250 $24.70 Add to Order
SP-085 1/8" 5/8" 0.028" 1,800 250 $23.69 Add to Order
SP-495 1/8" 11/16" 0.028" 1,800 250 $24.76 Add to Order
SP-086 1/8" 3/4" 0.028" 1,800 250 $28.77 Add to Order
SP-494 1/8" 13/16" 0.028" 1,800 250 $32.53 Add to Order
SP-087 1/8" 7/8" 0.028" 1,800 250 $28.56 Add to Order
SP-019 1/8" 15/16" 0.028" 1,800 100 $20.31 Add to Order
SP-088 1/8" 1" 0.028" 1,800 250 $31.06 Add to Order
SP-089 1/8" 1 1/8" 0.028" 1,800 250 $23.63 Add to Order
SP-754 1/8" 1 1/4" 0.028" 1,800 250 $24.53 Add to Order
SP-091 1/8" 1 3/8" 0.028" 1,800 250 $26.19 Add to Order
SP-092 1/8" 1 1/2" 0.028" 1,800 250 $30.72 Add to Order
SP-093 1/8" 1 5/8" 0.028" 1,800 100 $16.86 Add to Order

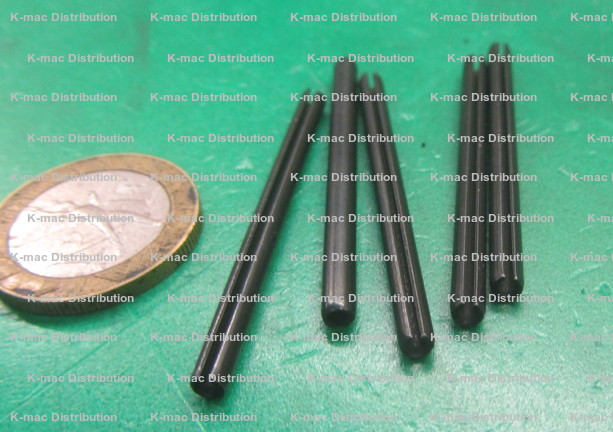

SP-094 1/8" 1 3/4" 0.028" 1,800 100 $17.81 Add to Order

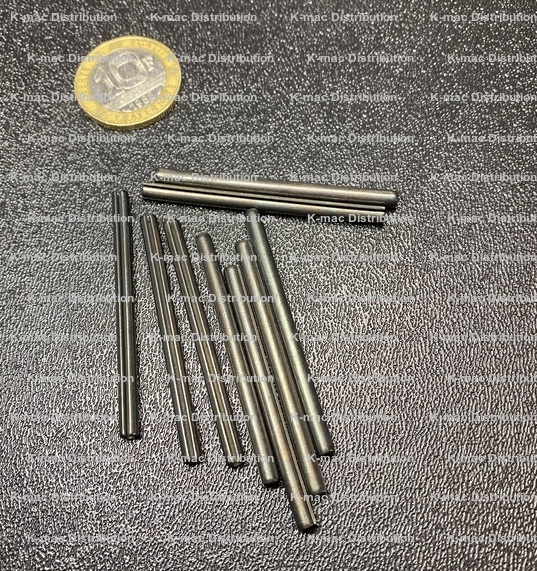

SP-095 1/8" 1 7/8" 0.028" 1,800 100 $31.69 Add to Order
SP-096 1/8" 2" 0.028" 1,800 100 $18.31 Add to Order
SP-493 1/8" 2 1/4" 0.028" 1,800 25 $10.33 Add to Order
SP-491 1/8" 2 1/2" 0.028" 1,800 100 $51.41 Add to Order

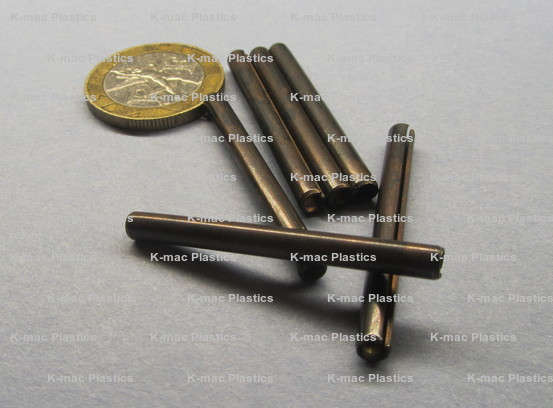

SP-026 9/64" 1 1/2" 0.028" 2,100 50 $20.73 Add to Order
SP-492 5/32" 3/8" 0.032" 2,700 100 $13.97 Add to Order
SP-029 5/32" 7/16" 0.032" 2,700 100 $12.96 Add to Order
SP-490 5/32" 1/2" 0.032" 2,700 100 $10.75 Add to Order
SP-030 5/32" 9/16" 0.032" 2,700 100 $11.47 Add to Order
SP-489 5/32" 5/8" 0.032" 2,700 100 $11.93 Add to Order
SP-523 5/32" 3/4" 0.032" 2,700 100 $12.52 Add to Order
SP-525 5/32" 7/8" 0.032" 2,700 100 $13.19 Add to Order
SP-500 5/32" 1" 0.032" 2,700 100 $17.79 Add to Order
SP-534 5/32" 1 1/8" 0.032" 2,700 100 $19.53 Add to Order
SP-533 5/32" 1 1/4" 0.032" 2,700 50 $8.61 Add to Order
SP-532 5/32" 1 3/8" 0.032" 2,700 50 $8.84 Add to Order
SP-531 5/32" 1 1/2" 0.032" 2,700 250 $27.89 Add to Order
SP-530 5/32" 1 3/4" 0.032" 2,700 100 $30.58 Add to Order
SP-529 5/32" 2" 0.032" 2,700 50 $16.55 Add to Order
SP-528 5/32" 2 1/2" 0.032" 2,700 100 $33.81 Add to Order

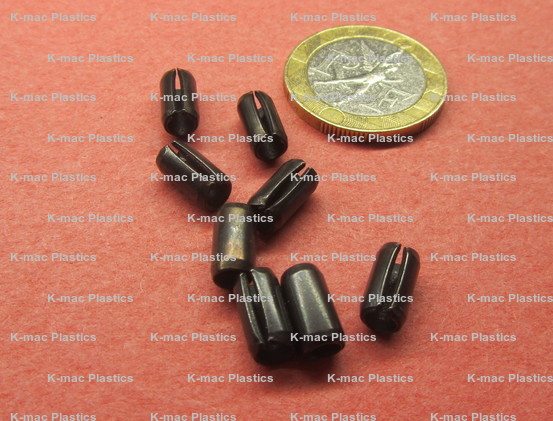

SP-527 3/16" 3/8" 0.04" 4,100 100 $19.95 Add to Order

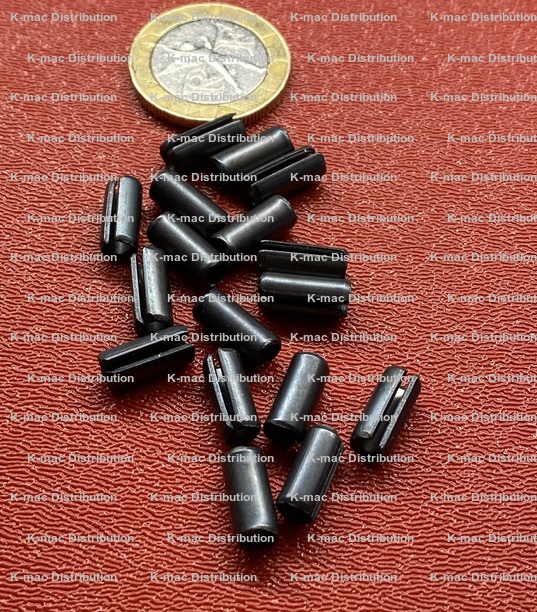

SP-526 3/16" 7/16" 0.04" 4,100 250 $31.23 Add to Order
SP-512 3/16" 1/2" 0.04" 4,100 250 $24.89 Add to Order

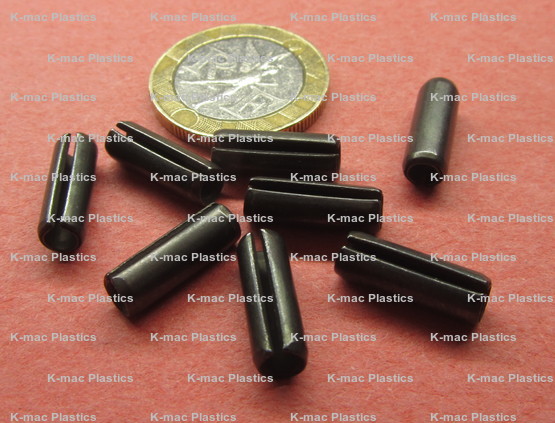

SP-524 3/16" 9/16" 0.04" 4,100 250 $45.00 Add to Order

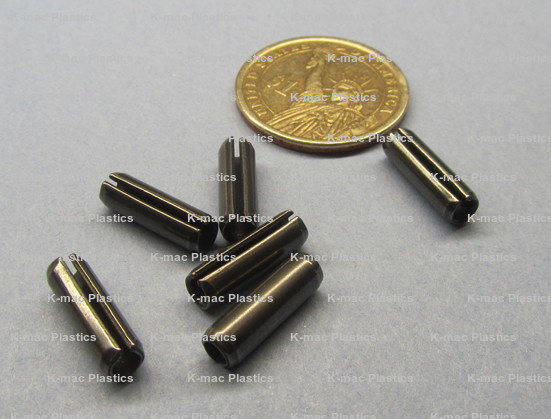

SP-097 3/16" 5/8" 0.04" 4,100 250 $25.31 Add to Order
SP-536 3/16" 11/16" 0.04" 4,100 100 $22.03 Add to Order
SP-1277 3/16" 3/4" 0.04" 4,100 250 $22.04 Add to Order

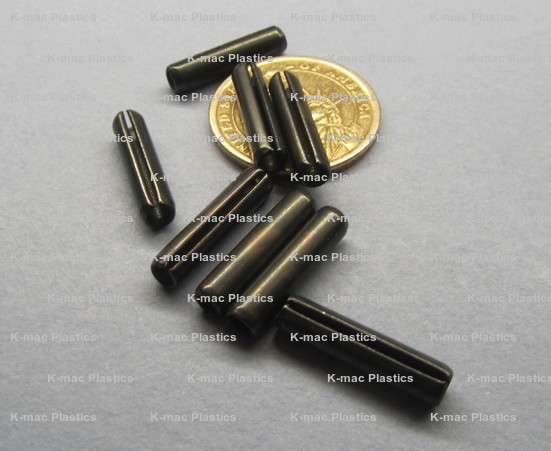

SP-522 3/16" 13/16" 0.04" 4,100 250 $46.07 Add to Order

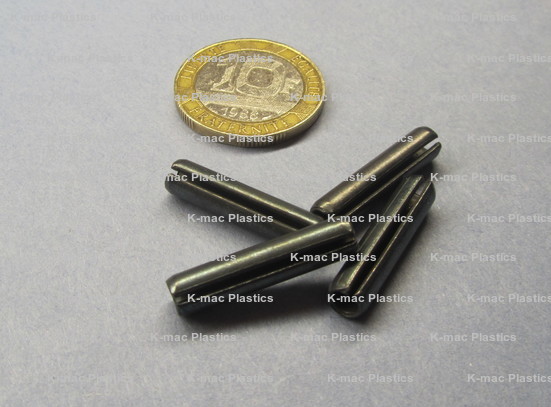

SP-099 3/16" 7/8" 0.04" 4,100 250 $28.46 Add to Order
SP-100 3/16" 1" 0.04" 4,100 250 $35.70 Add to Order
SP-101 3/16" 1 1/8" 0.04" 4,100 100 $19.78 Add to Order
SP-102 3/16" 1 1/4" 0.04" 4,100 100 $21.21 Add to Order

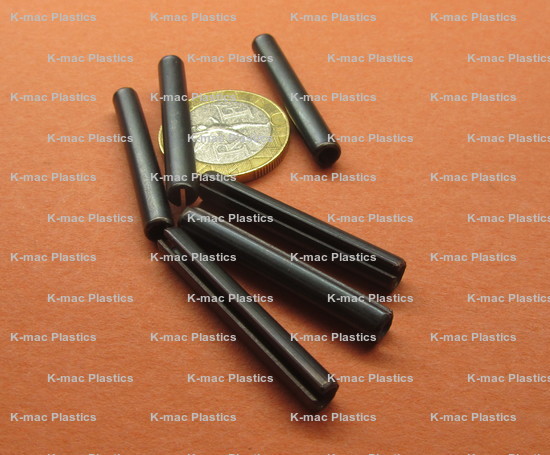

SP-103 3/16" 1 3/8" 0.04" 4,100 100 $22.87 Add to Order
SP-104 3/16" 1 1/2" 0.04" 4,100 100 $24.61 Add to Order
SP-105 3/16" 1 5/8" 0.04" 4,100 100 $27.49 Add to Order
SP-106 3/16" 1 3/4" 0.04" 4,100 100 $28.22 Add to Order
SP-108 3/16" 2" 0.04" 4,100 100 $27.09 Add to Order
SP-109 3/16" 2 1/4" 0.04" 4,100 100 $36.12 Add to Order
SP-110 3/16" 2 1/2" 0.04" 4,100 100 $38.49 Add to Order

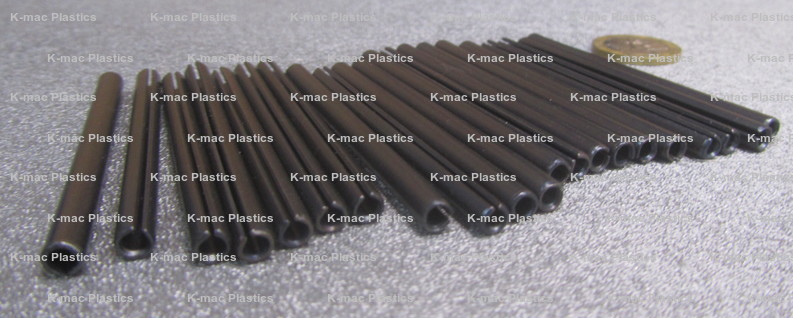

SP-520 3/16" 2 3/4" 0.04" 4,100 50 $56.83 Add to Order

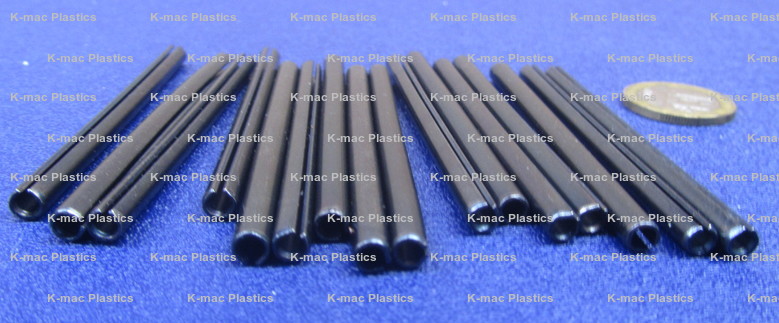

SP-111 3/16" 3" 0.04" 4,100 50 $25.18 Add to Order
SP-519 7/32" 1/2" 0.048" 5,800 100 $27.13 Add to Order

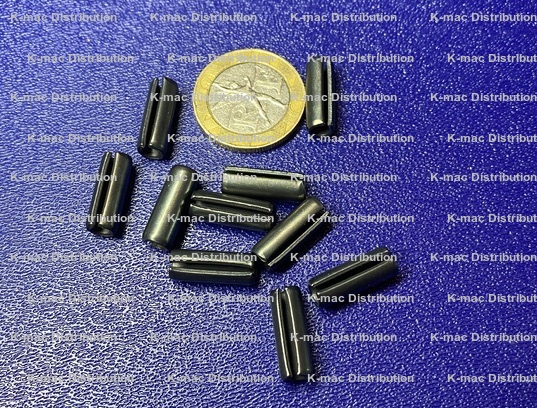

SP-518 7/32" 5/8" 0.048" 5,800 50 $8.82 Add to Order
SP-517 7/32" 3/4" 0.048" 5,800 100 $22.51 Add to Order
SP-516 7/32" 1" 0.048" 5,800 100 $26.27 Add to Order
SP-515 7/32" 1 1/4" 0.048" 5,800 100 $30.62 Add to Order
SP-514 7/32" 1 1/2" 0.048" 5,800 100 $33.35 Add to Order
SP-513 7/32" 1 3/4" 0.048" 5,800 50 $27.85 Add to Order

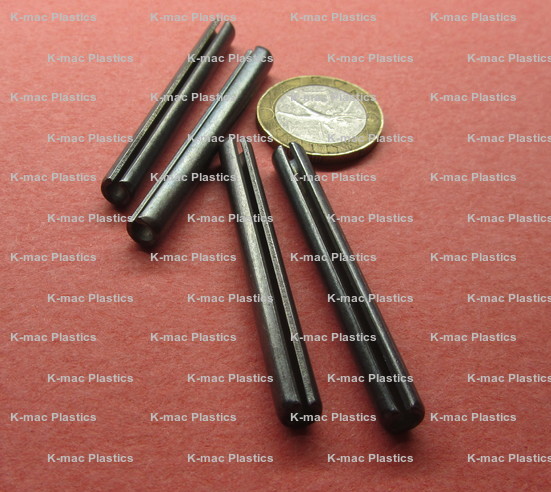

SP-596 7/32" 2" 0.048" 5,800 100 $41.92 Add to Order

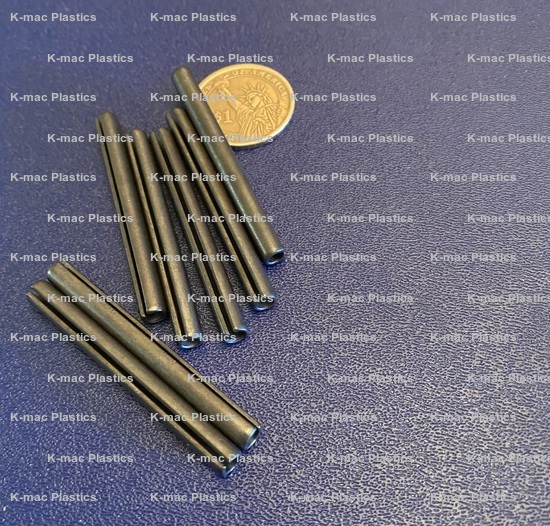

SP-661 7/32" 2 1/4" 0.048" 5,800 50 $22.34 Add to Order
SP-584 7/32" 2 1/2" 0.048" 5,800 25 $12.03 Add to Order

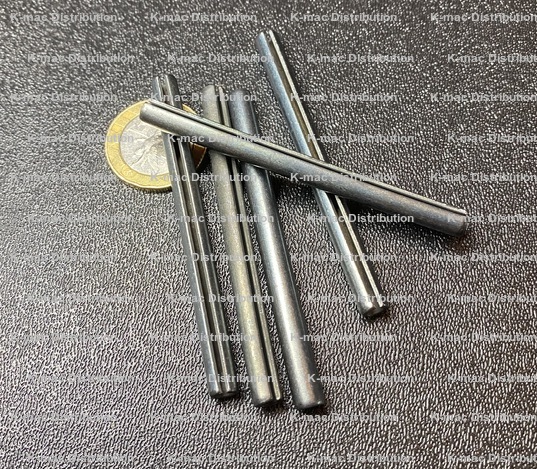

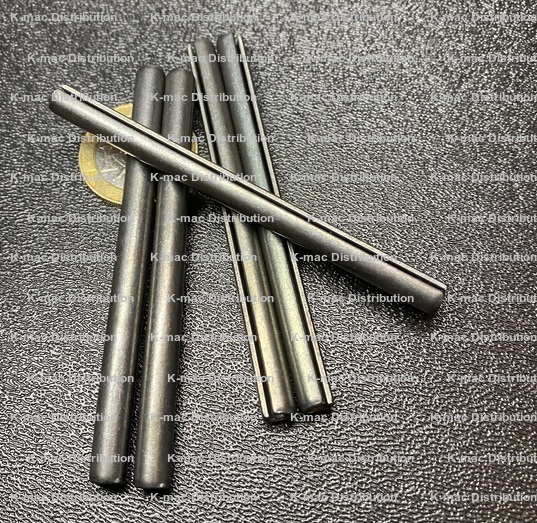

SP-657 7/32" 2 3/4" 0.048" 5,800 25 $13.21 Add to Order
SP-656 7/32" 3" 0.048" 5,800 50 $50.97 Add to Order
SP-003 1/4" 1/2" 0.048" 7,000 125 $23.25 Add to Order
SP-028 1/4" 9/16" 0.048" 7,000 100 $26.80 Add to Order
SP-112 1/4" 5/8" 0.048" 7,000 125 $17.26 Add to Order

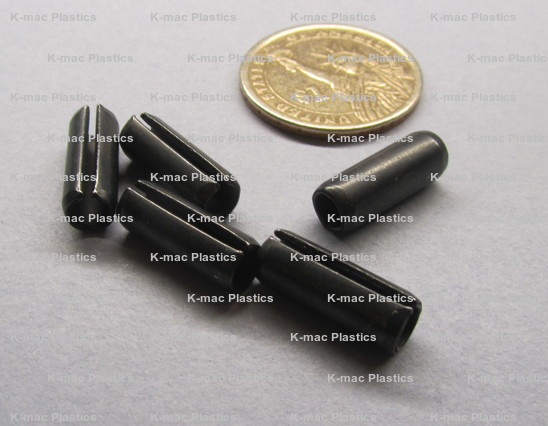

SP-113 1/4" 11/16" 0.048" 7,000 5 $27.50 Add to Order
SP-1061 1/4" 3/4" 0.048" 7,000 100 $12.31 Add to Order
SP-114 1/4" 7/8" 0.048" 7,000 125 $23.86 Add to Order
SP-115 1/4" 1" 0.048" 7,000 100 $25.35 Add to Order
SP-116 1/4" 1 1/8" 0.048" 7,000 125 $24.44 Add to Order
SP-117 1/4" 1 1/4" 0.048" 7,000 100 $33.89 Add to Order
SP-118 1/4" 1 3/8" 0.048" 7,000 125 $38.24 Add to Order

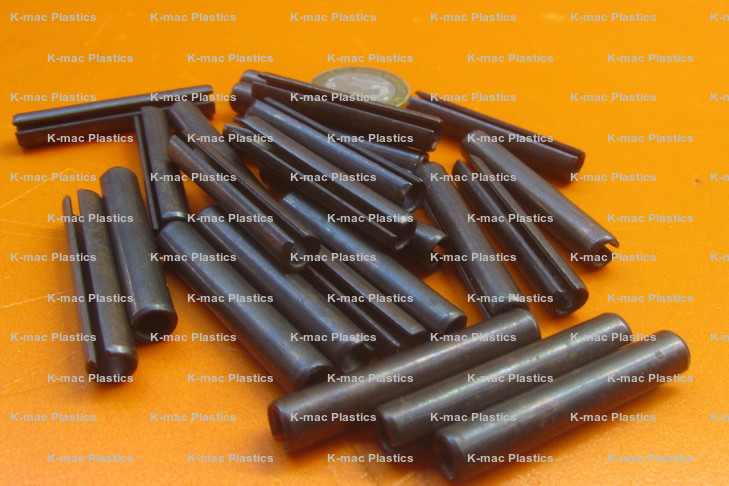

SP-119 1/4" 1 1/2" 0.048" 7,000 125 $26.57 Add to Order
SP-120 1/4" 1 5/8" 0.048" 7,000 125 $35.05 Add to Order
SP-121 1/4" 1 3/4" 0.048" 7,000 125 $38.24 Add to Order
SP-122 1/4" 1 7/8" 0.048" 7,000 50 $23.92 Add to Order
SP-123 1/4" 2" 0.048" 7,000 50 $24.34 Add to Order
SP-124 1/4" 2 1/4" 0.048" 7,000 50 $27.91 Add to Order
SP-125 1/4" 2 1/2" 0.048" 7,000 125 $29.82 Add to Order
SP-126 1/4" 2 3/4" 0.048" 7,000 125 $40.45 Add to Order
SP-127 1/4" 3" 0.048" 7,000 50 $27.50 Add to Order
SP-654 1/4" 3 1/4" 0.048" 7,000 50 $49.94 Add to Order
SP-129 1/4" 3 1/2" 0.048" 7,000 125 $48.57 Add to Order

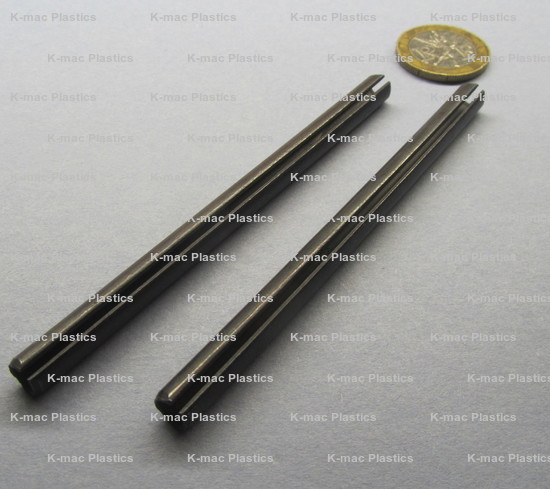

SP-001 1/4" 4" 0.048" 7,000 5 $14.89 Add to Order
SP-130 5/16" 3/4" 0.062" 10,800 50 $25.77 Add to Order
SP-132 5/16" 1" 0.062" 10,800 125 $27.83 Add to Order

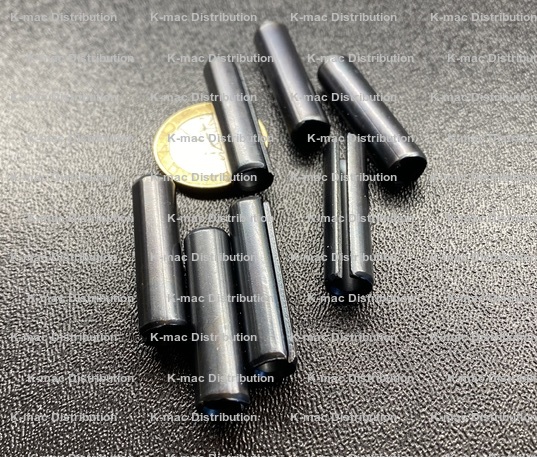

SP-133 5/16" 1 1/4" 0.062" 10,800 125 $36.75 Add to Order
SP-135 5/16" 1 1/2" 0.062" 10,800 125 $45.63 Add to Order
SP-137 5/16" 1 3/4" 0.062" 10,800 125 $48.70 Add to Order

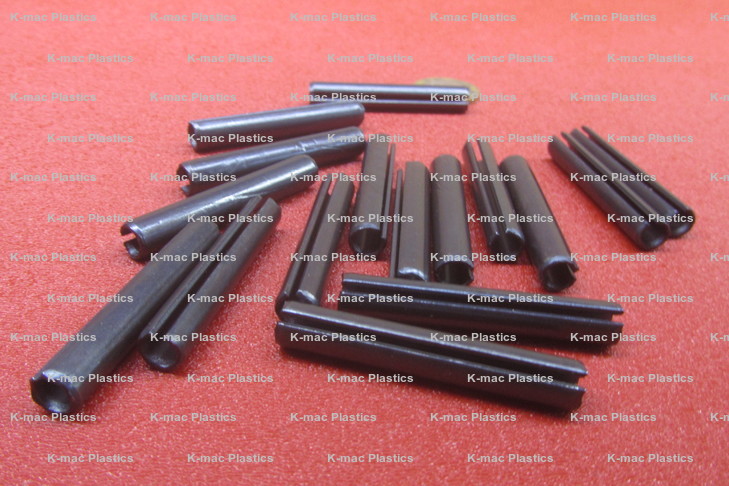

SP-139 5/16" 2" 0.062" 10,800 125 $53.78 Add to Order
SP-140 5/16" 2 1/4" 0.062" 10,800 50 $46.26 Add to Order
SP-141 5/16" 2 1/2" 0.062" 10,800 50 $47.40 Add to Order
SP-142 5/16" 2 3/4" 0.062" 10,800 25 $27.03 Add to Order
SP-143 5/16" 3" 0.062" 10,800 50 $35.36 Add to Order
SP-144 5/16" 3 1/4" 0.062" 10,800 10 $14.45 Add to Order
SP-145 5/16" 3 1/2" 0.062" 10,800 50 $39.08 Add to Order
SP-146 5/16" 3 3/4" 0.062" 10,800 25 $36.31 Add to Order
SP-653 5/16" 4" 0.062" 10,800 25 $39.08 Add to Order
SP-007 3/8" 3/4" 0.077" 16,300 25 $14.70 Add to Order
SP-147 3/8" 1" 0.077" 16,300 50 $52.16 Add to Order
SP-148 3/8" 1 1/4" 0.077" 16,300 50 $56.20 Add to Order
SP-149 3/8" 1 1/2" 0.077" 16,300 50 $61.19 Add to Order

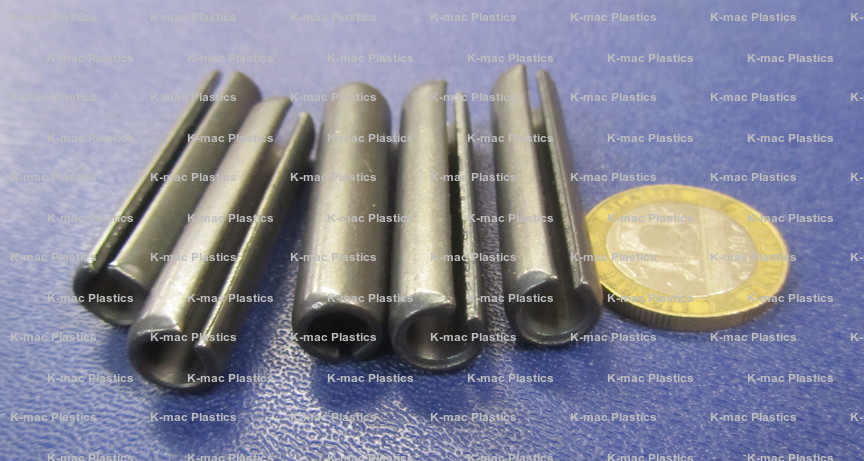

SP-150 3/8" 1 3/4" 0.077" 16,300 10 $9.09 Add to Order
SP-151 3/8" 2" 0.077" 16,300 25 $35.91 Add to Order
SP-152 3/8" 2 1/4" 0.077" 16,300 10 $11.34 Add to Order
SP-153 3/8" 2 1/2" 0.077" 16,300 25 $45.46 Add to Order
SP-154 3/8" 2 3/4" 0.077" 16,300 10 $22.24 Add to Order
SP-155 3/8" 3" 0.077" 16,300 10 $22.72 Add to Order
SP-156 3/8" 3 1/4" 0.077" 16,300 25 $55.44 Add to Order
SP-157 3/8" 3 1/2" 0.077" 16,300 5 $9.58 Add to Order
SP-158 3/8" 3 3/4" 0.077" 16,300 10 $19.87 Add to Order

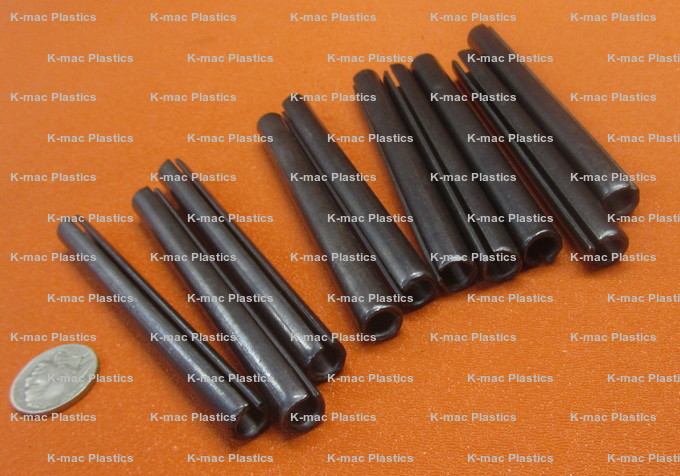

SP-159 3/8" 4" 0.077" 16,300 10 $26.57 Add to Order
SP-163 7/16" 1 3/4" 0.077" 19,800 5 $13.82 Add to Order
SP-164 7/16" 2" 0.077" 19,800 5 $5.69 Add to Order

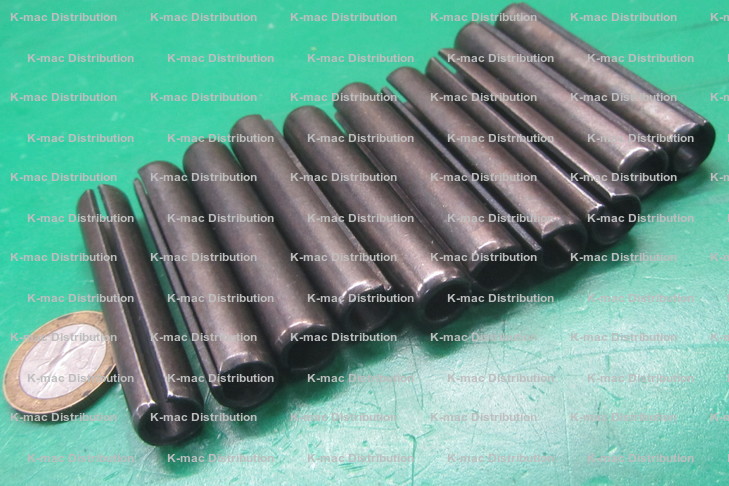

SP-166 7/16" 2 1/2" 0.077" 19,800 10 $22.81 Add to Order
SP-168 7/16" 3" 0.077" 19,800 10 $28.50 Add to Order
SP-652 7/16" 4" 0.077" 19,800 10 $28.75 Add to Order
SP-169 1/2" 1 1/4" 0.094" 27,000 5 $12.37 Add to Order
SP-009 1/2" 1 1/2" 0.094" 27,000 125 $32.38 Add to Order
SP-170 1/2" 1 3/4" 0.094" 27,000 10 $19.32 Add to Order
SP-171 1/2" 2" 0.094" 27,000 10 $25.45 Add to Order
SP-172 1/2" 2 1/4" 0.094" 27,000 10 $24.09 Add to Order
SP-173 1/2" 2 1/2" 0.094" 27,000 10 $30.79 Add to Order
SP-174 1/2" 2 3/4" 0.094" 27,000 10 $26.96 Add to Order
SP-175 1/2" 3" 0.094" 27,000 10 $16.95 Add to Order
SP-176 1/2" 3 1/4" 0.094" 27,000 5 $14.34 Add to Order

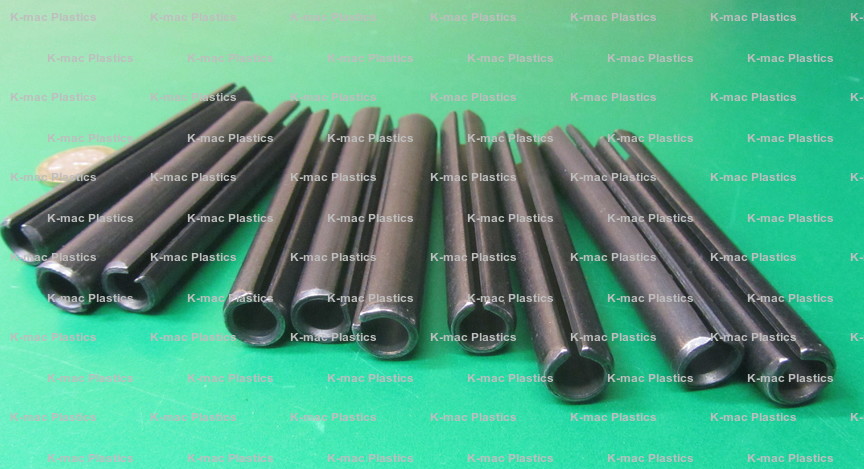

SP-177 1/2" 3 1/2" 0.094" 27,000 5 $15.18 Add to Order
SP-650 1/2" 3 3/4" 0.094" 27,000 10 $39.02 Add to Order

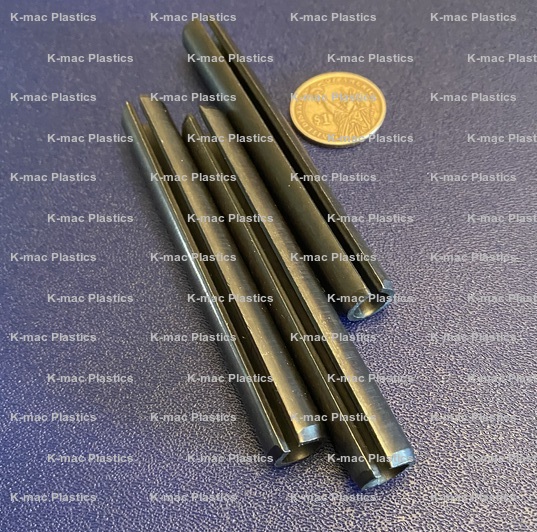

SP-649 1/2" 4" 0.094" 27,000 5 $30.85 Add to Order
SP-635 5/8" 3" 1/8" 46,000 1 $41.48 Add to Order
SP-1228 5/8" 4" 1/8" 46,000 1 $56.76 Add to Order
Rev. 10-23, 04-23, 01-23, 12-22

Tolerances
Lengths 0-1.0" +/-.015"
Lengths 1.125"-2.0" +/-.020"
Lengths 2.25"-3.0" +/-.025"
Lengths  3.25" and up +/-.030"
Lengths 0-24mm +/- .40mm
Lengths 26mm-50mm +/- .50mm
Lengths 55mm-60mm +/- .60mm
Lengths 80mm and up +/- .75mm


Metric Imperial Inches
Nominal Dia.   M2 M2.5 M3 M4 M5 M6 M8 1/16" 5/64" 3/32" 1/8" 5/32" 3/16" 7/32" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8"
Act. Dia Min. mm 2.13 2.65 3.15 4.20 5.25 6.25 8.30 0.066 0.083 0.099 0.131 0.162 0.194 0.226 0.258 0.321 0.385 0.448 0.513 0.640
  Max. mm 2.25 2.78 3.30 4.40 5.50 6.50 8.63 0.069 0.086 0.103 0.135 0.137 0.199 0.232 0.264 0.330 0.395 0.459 0.524 0.653
Wall Thickness   * * * * * * * 0.012 0.018 0.022 0.028 0.032 0.040 0.048 0.048 0.062 0.077 0.077 0.094 0.125
Suggested Min. mm 2.00 2.50 3.00 4.00 5.10 6.00 8.00 0.062 0.078 0.094 0.125 0.156 0.187 0.219 0.250 0.312 0.375 0.437 0.500 0.625
Hole Size Max. mm 2.10 2.60 3.10 4.12 5.12 6.12 8.15 0.065 0.081 0.097 0.129 0.160 0.192 0.224 0.256 0.318 0.382 0.445 0.510 0.636
Shear Strength Lbs   562 876 1236 2158 3372 4945 8767 * * * * * * * * * * * * *
Shear Strength Lbs 18-8 SS   * * * * * * * 250 460 670 1090 1600 2425 3400 4100 6300 9500 11500 15800 18800
Shear Strength Lbs 420 SS   * * * * * * * 430 800 1150 1875 2750 4150 5850 7050 10800 16300 19800 27100 46000
<<
