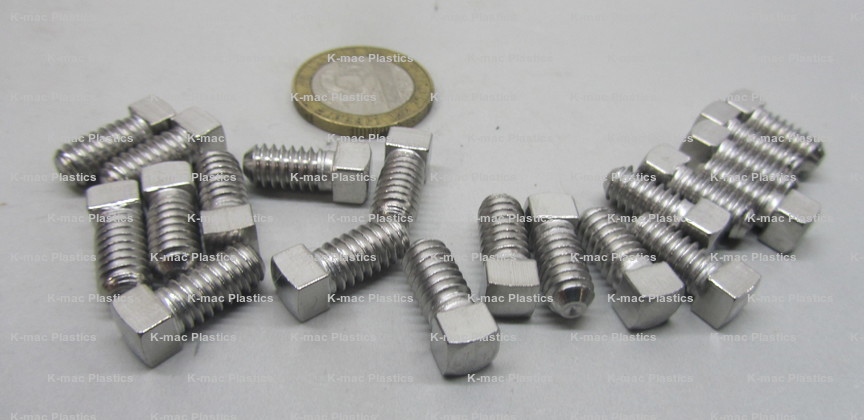

18-8 Stainless Steel Square Head Cup Point Set Screws
| 18-8 Stainless Steel Square Head Cup Point Set Screws, Rockwell B80, ASME B18.6.2 |
|||||||
| Part # | Threads | Overall Length | Head Width | Head Height | Pkg. Qty | Pkg Price | Order Online |
|---|---|---|---|---|---|---|---|
| SSS-12423 | 1/4"-20 | 3/8" | 1/4" | 3/16" | 10 | $13.29 | Add to Order |
| SSS-12424 | 1/4"-20 | 1/2" | 1/4" | 3/16" | 10 | $13.90 | Add to Order |
| SSS-12425 | 1/4"-20 | 5/8" | 1/4" | 3/16" | 10 | $14.49 | Add to Order |
| SSS-12426 | 1/4"-20 | 3/4" | 1/4" | 3/16" | 10 | $16.23 | Add to Order |
| SSS-12427 | 1/4"-20 | 1" | 1/4" | 3/16" | 10 | $17.62 | Add to Order |
| SSS-12428 | 1/4"-20 | 1 1/4" | 1/4" | 3/16" | 10 | $18.79 | Add to Order |
| SSS-12429 | 1/4"-20 | 1 1/2" | 1/4" | 3/16" | 10 | $19.32 | Add to Order |
| SSS-12430 | 5/16"-18 | 1/2" | 5/16" | 1/4" | 10 | $18.25 | Add to Order |
| SSS-12431 | 5/16"-18 | 5/8" | 5/16" | 1/4" | 10 | $20.24 | Add to Order |
| SSS-12432 | 5/16"-18 | 3/4" | 5/16" | 1/4" | 10 | $20.77 | Add to Order |
| SSS-12433 | 5/16"-18 | 1" | 5/16" | 1/4" | 10 | $21.19 | Add to Order |
| SSS-12434 | 5/16"-18 | 1 1/4" | 5/16" | 1/4" | 10 | $25.58 | Add to Order |
| SSS-12435 | 5/16"-18 | 1 1/2" | 5/16" | 1/4" | 10 | $21.46 | Add to Order |
| SSS-12436 | 3/8"-16 | 3/4" | 3/8" | 19/64" | 10 | $27.38 | Add to Order |
| SSS-12437 | 3/8"-16 | 1" | 3/8" | 19/64" | 10 | $27.43 | Add to Order |
| SSS-2438 | 3/8"-16 | 1 1/4" | 3/8" | 19/64" | 5 | $16.78 | Add to Order |
| SSS-2439 | 3/8"-16 | 1 1/2" | 3/8" | 19/64" | 5 | $19.28 | Add to Order |
| SSS-2440 | 3/8"-16 | 2" | 3/8" | 19/64" | 5 | $23.58 | Add to Order |
| SSS-2441 | 3/8"-16 | 2 1/2" | 3/8" | 19/64" | 1 | $4.91 | Add to Order |
| SSS-2442 | 3/8"-16 | 3" | 3/8" | 19/64" | 1 | $6.57 | Add to Order |
| SSS-2443 | 1/2"-13 | 3/4" | 1/2" | 25/64" | 5 | $23.77 | Add to Order |
| SSS-2444 | 1/2"-13 | 1" | 1/2" | 25/64" | 5 | $27.30 | Add to Order |
| SSS-2445 | 1/2"-13 | 1 1/4" | 1/2" | 25/64" | 1 | $5.63 | Add to Order |
| SSS-12446C | 1/2"-13 | 1 1/2" | 1/2" | 25/64" | 1 | $6.32 | Add to Order |
| SSS-2447 | 1/2"-13 | 2" | 1/2" | 25/64" | 1 | $7.12 | Add to Order |
| SSS-2448 | 1/2"-13 | 2 1/2" | 1/2" | 25/64" | 1 | $7.18 | Add to Order |
| SSS-2449 | 1/2"-13 | 3" | 1/2" | 25/64" | 1 | $9.22 | Add to Order |
| SSS-2450 | 1/2"-13 | 3 1/2" | 1/2" | 25/64" | 1 | $10.23 | Add to Order |
| SSS-2451 | 1/2"-13 | 4" | 1/2" | 25/64" | 1 | $12.08 | Add to Order |
| SSS-2331 | 5/8"-11 | 1 1/2" | 5/8" | 31/64" | 1 | $10.10 | Add to Order |
| SSS-2332 | 5/8"-11 | 2" | 5/8" | 31/64" | 1 | $11.30 | Add to Order |
| SSS-2333 | 5/8"-11 | 3" | 5/8" | 31/64" | 1 | $15.48 | Add to Order |
| SSS-2334 | 5/8"-11 | 4" | 5/8" | 31/64" | 1 | $20.54 | Add to Order |
| SSS-2335 | 3/4"-10 | 2" | 3/4" | 37/64" | 1 | $17.30 | Add to Order |
| SSS-2336 | 3/4"-10 | 3" | 3/4" | 37/64" | 1 | $23.42 | Add to Order |
| SSS-2337 | 3/4"-10 | 4" | 3/4" | 37/64" | 1 | $29.59 | Add to Order |
| SSS-2338 | 3/4"-10 | 5" | 3/4" | 37/64" | 1 | $35.26 | Add to Order |
| Rev. 10-23, 04-23, 11-22, 03-22 | |||||||
