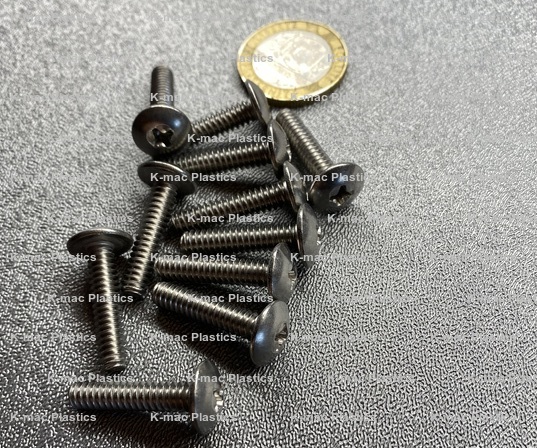

18-8 Stainless Steel Truss Head Phillips Machine Screws
Machine Screws - Truss Head
Phillips Drive, Class 2A
Round low profile head, extra diameter provides bearing surface for holding thin materials.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic
| 18-8 Stainless Steel Truss Head Phillips Machine Screws 70,000 PSI Tensile, ASME B18.6.3 - Rockwell B80 |
||||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Drive Size | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-7451 | 0-80 | 1/8" | 0.131" | 0.037" | No. 0 | 100 | $22.39 | Add to Order |
| MSS-7452 | 0-80 | 3/16" | 0.194" | 0.053" | No. 1 | 100 | $21.15 | Add to Order |
| MSS-7453 | 0-80 | 1/4" | 0.131" | 0.037" | No. 0 | 100 | $24.63 | Add to Order |
| MSS-7454 | 2-56 | 1/8" | 0.194" | 0.053" | No. 1 | 100 | $6.32 | Add to Order |
| MSS-6228 | 2-56 | 3/16" | 0.194" | 0.053" | No. 1 | 100 | $10.25 | Add to Order |
| MSS-6370 | 2-56 | 1/4" | 0.194" | 0.053" | No. 1 | 100 | $14.78 | Add to Order |
| MSS-6371 | 2-56 | 5/16" | 0.194" | 0.053" | No. 1 | 100 | $11.51 | Add to Order |
| MSS-6372 | 2-56 | 3/8" | 0.194" | 0.053" | No. 1 | 100 | $13.19 | Add to Order |
| MSS-6373 | 2-56 | 7/16" | 0.194" | 0.053" | No. 1 | 100 | $10.84 | Add to Order |
| MSS-6346 | 2-56 | 1/2" | 0.194" | 0.053" | No. 1 | 100 | $12.35 | Add to Order |
| MSS-7455 | 4-40 | 1/8" | 0.257" | 0.069" | No. 1 | 50 | $15.65 | Add to Order |
| MSS-1954 | 4-40 | 3/16" | 0.257" | 0.069" | No. 1 | 100 | $9.37 | Add to Order |
| MSS-1955 | 4-40 | 1/4" | 0.257" | 0.069" | No. 1 | 100 | $5.75 | Add to Order |
| MSS-1956 | 4-40 | 5/16" | 0.257" | 0.069" | No. 1 | 100 | $6.49 | Add to Order |
| MSS-1957 | 4-40 | 3/8" | 0.257" | 0.069" | No. 1 | 100 | $5.12 | Add to Order |
| MSS-1958 | 4-40 | 1/2" | 0.257" | 0.069" | No. 1 | 100 | $5.21 | Add to Order |
| MSS-6151 | 4-40 | 5/8" | 0.257" | 0.069" | No. 1 | 100 | $13.42 | Add to Order |
| MSS-1959 | 4-40 | 3/4" | 0.257" | 0.069" | No. 1 | 100 | $11.72 | Add to Order |
| MSS-1972 | 4-40 | 7/8" | 0.257" | 0.069" | No. 1 | 100 | $16.17 | Add to Order |
| MSS-1960 | 4-40 | 1" | 0.257" | 0.069" | No. 1 | 100 | $15.29 | Add to Order |
| MSS-1974 | 4-40 | 1 1/4" | 0.257" | 0.069" | No. 1 | 100 | $18.90 | Add to Order |
| MSS-6152 | 4-40 | 1 1/2" | 0.257" | 0.069" | No. 1 | 100 | $23.27 | Add to Order |
| MSS-1962 | 5-40 | 1/4" | 0.289" | 0.078" | No. 1 | 100 | $11.07 | Add to Order |
| MSS-1951 | 5-40 | 3/8" | 0.289" | 0.078" | No. 1 | 100 | $19.66 | Add to Order |
| MSS-1745 | 5-40 | 1/2" | 0.289" | 0.078" | No. 1 | 100 | $22.58 | Add to Order |
| MSS-7456 | 6-32 | 1/8" | 0.321" | 0.086" | No. 2 | 50 | $17.18 | Add to Order |
| MSS-1964 | 6-32 | 3/16" | 0.321" | 0.086" | No. 2 | 100 | $11.70 | Add to Order |
| MSS-1965 | 6-32 | 1/4" | 0.321" | 0.086" | No. 2 | 100 | $10.40 | Add to Order |
| MSS-1966 | 6-32 | 5/16" | 0.321" | 0.086" | No. 2 | 100 | $8.19 | Add to Order |
| MSS-1967 | 6-32 | 3/8" | 0.321" | 0.086" | No. 2 | 100 | $7.88 | Add to Order |
| MSS-1968 | 6-32 | 7/16" | 0.321" | 0.086" | No. 2 | 100 | $6.11 | Add to Order |
| MSS-1969 | 6-32 | 1/2" | 0.321" | 0.086" | No. 2 | 100 | $7.06 | Add to Order |
| MSS-1970 | 6-32 | 5/8" | 0.321" | 0.086" | No. 2 | 100 | $7.25 | Add to Order |
| MSS-1971 | 6-32 | 3/4" | 0.321" | 0.086" | No. 2 | 100 | $7.56 | Add to Order |
| MSS-6153 | 6-32 | 7/8" | 0.321" | 0.086" | No. 2 | 100 | $17.09 | Add to Order |
| MSS-1940 | 6-32 | 1" | 0.321" | 0.086" | No. 2 | 100 | $13.06 | Add to Order |
| MSS-1963 | 6-32 | 1 1/4" | 0.321" | 0.086" | No. 2 | 100 | $19.85 | Add to Order |
| MSS-1961 | 6-32 | 1 1/2" | 0.321" | 0.086" | No. 2 | 100 | $22.87 | Add to Order |
| MSS-6154 | 6-32 | 1 3/4" | 0.321" | 0.086" | No. 2 | 50 | $17.14 | Add to Order |
| MSS-6155 | 6-32 | 2" | 0.321" | 0.086" | No. 2 | 50 | $20.12 | Add to Order |
| MSS-1930 | 8-32 | 3/16" | 0.384" | 0.102" | No. 2 | 100 | $16.38 | Add to Order |
| MSS-1929 | 8-32 | 1/4" | 0.384" | 0.102" | No. 2 | 100 | $6.15 | Add to Order |
| MSS-1931 | 8-32 | 5/16" | 0.384" | 0.102" | No. 2 | 100 | $7.06 | Add to Order |
| MSS-1932 | 8-32 | 3/8" | 0.384" | 0.102" | No. 2 | 100 | $5.67 | Add to Order |
| MSS-1933 | 8-32 | 7/16" | 0.384" | 0.102" | No. 2 | 100 | $9.53 | Add to Order |
| MSS-1934 | 8-32 | 1/2" | 0.384" | 0.102" | No. 2 | 100 | $15.56 | Add to Order |
| MSS-1935 | 8-32 | 5/8" | 0.384" | 0.102" | No. 2 | 100 | $15.02 | Add to Order |
| MSS-1936 | 8-32 | 3/4" | 0.384" | 0.102" | No. 2 | 100 | $7.81 | Add to Order |
| MSS-1937 | 8-32 | 7/8" | 0.384" | 0.102" | No. 2 | 100 | $22.74 | Add to Order |
| MSS-1950 | 8-32 | 1" | 0.384" | 0.102" | No. 2 | 100 | $16.67 | Add to Order |
| MSS-1939 | 8-32 | 1 1/4" | 0.384" | 0.102" | No. 2 | 100 | $25.12 | Add to Order |
| MSS-1928 | 8-32 | 1 1/2" | 0.384" | 0.102" | No. 2 | 50 | $23.18 | Add to Order |
| MSS-1941 | 8-32 | 1 3/4" | 0.384" | 0.102" | No. 2 | 50 | $23.52 | Add to Order |
| MSS-1942 | 8-32 | 2" | 0.384" | 0.102" | No. 2 | 50 | $26.19 | Add to Order |
| MSS-7457 | 8-32 | 2 1/2" | 0.384" | 0.102" | No. 2 | 50 | $31.40 | Add to Order |
| MSS-7458 | 8-32 | 3" | 0.384" | 0.102" | No. 2 | 50 | $38.60 | Add to Order |
| MSS-1943 | 10-24 | 1/4" | 0.448" | 0.118" | No. 2 | 100 | $21.23 | Add to Order |
| MSS-7459 | 10-24 | 5/16" | 0.448" | 0.118" | No. 2 | 100 | $25.56 | Add to Order |
| MSS-1944 | 10-24 | 3/8" | 0.448" | 0.118" | No. 2 | 100 | $8.57 | Add to Order |
| MSS-1945 | 10-24 | 1/2" | 0.448" | 0.118" | No. 2 | 100 | $14.93 | Add to Order |
| MSS-1946 | 10-24 | 5/8" | 0.448" | 0.118" | No. 2 | 100 | $16.74 | Add to Order |
| MSS-1947 | 10-24 | 3/4" | 0.448" | 0.118" | No. 2 | 100 | $12.60 | Add to Order |
| MSS-1948 | 10-24 | 7/8" | 0.448" | 0.118" | No. 2 | 50 | $18.52 | Add to Order |
| MSS-2093 | 10-24 | 1" | 0.448" | 0.118" | No. 2 | 100 | $23.25 | Add to Order |
| MSS-1746 | 10-24 | 1 1/4" | 0.448" | 0.118" | No. 2 | 50 | $26.99 | Add to Order |
| MSS-2648 | 10-24 | 1 1/2" | 0.448" | 0.118" | No. 2 | 50 | $31.44 | Add to Order |
| MSS-2649 | 10-24 | 1 3/4" | 0.448" | 0.118" | No. 2 | 50 | $33.10 | Add to Order |
| MSS-1747 | 10-24 | 2" | 0.448" | 0.118" | No. 2 | 25 | $19.76 | Add to Order |
| MSS-1748 | 10-24 | 2 1/2" | 0.448" | 0.118" | No. 2 | 25 | $20.18 | Add to Order |
| MSS-1749 | 10-24 | 3" | 0.448" | 0.118" | No. 2 | 25 | $28.71 | Add to Order |
| MSS-1762 | 10-32 | 1/4" | 0.448" | 0.118" | No. 2 | 100 | $21.23 | Add to Order |
| MSS-1751 | 10-32 | 5/16" | 0.448" | 0.118" | No. 2 | 100 | $24.57 | Add to Order |
| MSS-1740 | 10-32 | 3/8" | 0.448" | 0.118" | No. 2 | 100 | $20.96 | Add to Order |
| MSS-1753 | 10-32 | 1/2" | 0.448" | 0.118" | No. 2 | 100 | $24.32 | Add to Order |
| MSS-1754 | 10-32 | 5/8" | 0.448" | 0.118" | No. 2 | 100 | $30.16 | Add to Order |
| MSS-1755 | 10-32 | 3/4" | 0.448" | 0.118" | No. 2 | 100 | $33.50 | Add to Order |
| MSS-7460 | 10-32 | 7/8" | 0.448" | 0.118" | No. 2 | 100 | $40.30 | Add to Order |
| MSS-1756 | 10-32 | 1" | 0.448" | 0.118" | No. 2 | 50 | $23.67 | Add to Order |
| MSS-1757 | 10-32 | 1 1/4" | 0.448" | 0.118" | No. 2 | 50 | $26.99 | Add to Order |
| MSS-1758 | 10-32 | 1 1/2" | 0.448" | 0.118" | No. 2 | 50 | $31.25 | Add to Order |
| MSS-1759 | 10-32 | 1 3/4" | 0.448" | 0.118" | No. 2 | 50 | $33.12 | Add to Order |
| MSS-1760 | 10-32 | 2" | 0.448" | 0.118" | No. 2 | 25 | $19.76 | Add to Order |
| MSS-1761 | 10-32 | 2 1/2" | 0.448" | 0.118" | No. 2 | 25 | $20.18 | Add to Order |
| MSS-2325 | 10-32 | 3" | 0.448" | 0.118" | No. 2 | 25 | $28.73 | Add to Order |
| MSS-7461 | 12-24 | 3/8" | 0.511" | 0.134" | No. 3 | 100 | $30.24 | Add to Order |
| MSS-2889 | 12-24 | 1/2" | 0.511" | 0.134" | No. 3 | 25 | $12.26 | Add to Order |
| MSS-2255 | 12-24 | 3/4" | 0.511" | 0.134" | No. 3 | 25 | $14.70 | Add to Order |
| MSS-7462 | 12-24 | 1" | 0.511" | 0.134" | No. 3 | 50 | $21.19 | Add to Order |
| MSS-7463 | 1/4"-20 | 5/16" | 0.573" | 0.150" | No. 3 | 50 | $21.57 | Add to Order |
| MSS-2752 | 1/4"-20 | 3/8" | 0.573" | 0.150" | No. 3 | 50 | $18.04 | Add to Order |
| MSS-2746 | 1/4"-20 | 1/2" | 0.573" | 0.150" | No. 3 | 50 | $22.81 | Add to Order |
| MSS-2747 | 1/4"-20 | 5/8" | 0.573" | 0.150" | No. 3 | 50 | $20.48 | Add to Order |
| MSS-2784 | 1/4"-20 | 3/4" | 0.573" | 0.150" | No. 3 | 50 | $16.97 | Add to Order |
| MSS-2737 | 1/4"-20 | 7/8" | 0.573" | 0.150" | No. 3 | 25 | $19.19 | Add to Order |
| MSS-2772 | 1/4"-20 | 1" | 0.573" | 0.150" | No. 3 | 25 | $17.28 | Add to Order |
| MSS-2798 | 1/4"-20 | 1 1/4" | 0.573" | 0.150" | No. 3 | 25 | $20.29 | Add to Order |
| MSS-2799 | 1/4"-20 | 1 1/2" | 0.573" | 0.150" | No. 3 | 50 | $27.64 | Add to Order |
| MSS-2800 | 1/4"-20 | 1 3/4" | 0.573" | 0.150" | No. 3 | 25 | $26.57 | Add to Order |
| MSS-2801 | 1/4"-20 | 2" | 0.573" | 0.150" | No. 3 | 25 | $26.80 | Add to Order |
| MSS-2802 | 1/4"-20 | 2 1/4" | 0.573" | 0.150" | No. 3 | 10 | $12.96 | Add to Order |
| MSS-2803 | 1/4"-20 | 2 1/2" | 0.573" | 0.150" | No. 3 | 10 | $14.39 | Add to Order |
| MSS-2804 | 1/4"-20 | 2 3/4" | 0.573" | 0.150" | No. 3 | 10 | $16.67 | Add to Order |
| MSS-2805 | 1/4"-20 | 3" | 0.573" | 0.150" | No. 3 | 10 | $18.90 | Add to Order |
| MSS-7464 | 1/4"-20 | 3 1/2" | 0.573" | 0.150" | No. 3 | 25 | $49.77 | Add to Order |
| MSS-2806 | 1/4"-20 | 4" | 0.573" | 0.150" | No. 3 | 10 | $19.97 | Add to Order |
| MSS-7465 | 1/4"-20 | 6" | 0.573" | 0.150" | No. 3 | 5 | $17.60 | Add to Order |
| MSS-7466 | 1/4"-28 | 1/2" | 0.573" | 0.150" | No. 3 | 50 | $27.15 | Add to Order |
| MSS-7467 | 1/4"-28 | 3/4" | 0.573" | 0.150" | No. 3 | 50 | $31.75 | Add to Order |
| MSS-7468 | 1/4"-28 | 1" | 0.573" | 0.150" | No. 3 | 50 | $26.02 | Add to Order |
| MSS-2820 | 5/16"-18 | 1/2" | 0.698" | 0.183" | No. 4 | 10 | $11.57 | Add to Order |
| MSS-2808 | 5/16"-18 | 5/8" | 0.698" | 0.183" | No. 4 | 10 | $10.16 | Add to Order |
| MSS-2797 | 5/16"-18 | 3/4" | 0.698" | 0.183" | No. 4 | 10 | $10.67 | Add to Order |
| MSS-2810 | 5/16"-18 | 1" | 0.698" | 0.183" | No. 4 | 10 | $14.24 | Add to Order |
| MSS-2811 | 5/16"-18 | 1 1/4" | 0.698" | 0.183" | No. 4 | 10 | $14.18 | Add to Order |
| MSS-2812 | 5/16"-18 | 1 1/2" | 0.698" | 0.183" | No. 4 | 10 | $15.14 | Add to Order |
| MSS-2813 | 5/16"-18 | 2" | 0.698" | 0.183" | No. 4 | 10 | $17.41 | Add to Order |
| MSS-2814 | 5/16"-18 | 2 1/2" | 0.698" | 0.183" | No. 4 | 10 | $17.77 | Add to Order |
| MSS-7469 | 5/16"-18 | 3" | 0.698" | 0.183" | No. 4 | 10 | $27.36 | Add to Order |
| MSS-2815 | 3/8"-16 | 1/2" | 0.823" | 0.215" | No. 4 | 10 | $16.44 | Add to Order |
| MSS-2816 | 3/8"-16 | 3/4" | 0.823" | 0.215" | No. 4 | 10 | $18.56 | Add to Order |
| MSS-6046 | 3/8"-16 | 1" | 0.823" | 0.215" | No. 4 | 10 | $18.04 | Add to Order |
| MSS-2650 | 3/8"-16 | 1 1/2" | 0.823" | 0.215" | No. 4 | 5 | $13.29 | Add to Order |
| MSS-2651 | 3/8"-16 | 2" | 0.823" | 0.215" | No. 4 | 5 | $16.74 | Add to Order |
| Rev. 10-23, 08-23, 02-23, 11-22 | ||||||||
