Zinc Plated Steel Flat Head Slotted Drive Metric Machine Screws
Machine Screws - Metric Flat Head Slotted Drive, Zinc Plated, Class 6h, DIN 963, fully threaded, 90° bevel under head provides flush surface within countersunk holes.
Steel - Rockwell Hardness B60, tensile strength 60,000 psi. Zinc Plated - Good rust resistance.
| Metric Zinc
Plated Steel Slotted Flat Head Machine Screws DIN 963, ISO 2009, 60,000 PSI Tensile, FT |
||||||||
| Part # | Thread Size (mm) | Pitch (mm) | Length (mm) | Head Dia. (mm) | Head Height. (mm) | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-10517 | M2 | 0.4 mm | 4 | 3.8 | 1.2 | 100 | $6.89 | Add to Order |
| MSS-10518 | M2 | 0.4 mm | 5 | 3.8 | 1.2 | 100 | $6.70 | Add to Order |
| MSS-10519 | M2 | 0.4 mm | 6 | 3.8 | 1.2 | 100 | $7.14 | Add to Order |
| MSS-3123 | M3 | 0.5 mm | 5 | 5.6 | 1.65 | 100 | $6.49 | Add to Order |
| MSS-3124 | M3 | 0.5 mm | 6 | 5.6 | 1.65 | 100 | $10.21 | Add to Order |
| MSS-3161 | M3 | 0.5 mm | 8 | 5.6 | 1.65 | 100 | $9.45 | Add to Order |
| MSS-3114 | M3 | 0.5 mm | 10 | 5.6 | 1.65 | 100 | $9.60 | Add to Order |

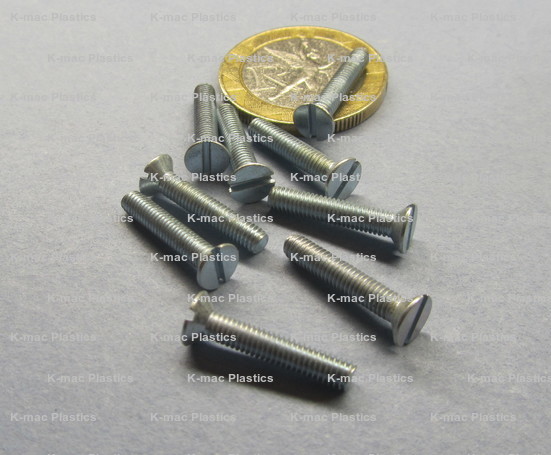

| MSS-3149 | M3 | 0.5 mm | 16 | 5.6 | 1.65 | 100 | $7.83 | Add to Order |
| MSS-10520 | M4 | 0.7 mm | 5 | 7.5 | 2.2 | 100 | $23.63 | Add to Order |
| MSS-3175 | M4 | 0.7 mm | 6 | 7.5 | 2.2 | 100 | $4.28 | Add to Order |

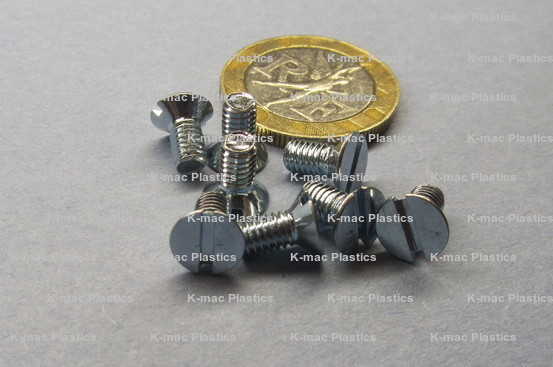

| MSS-3176 | M4 | 0.7 mm | 8 | 7.5 | 2.2 | 100 | $7.46 | Add to Order |
| MSS-3713 | M4 | 0.7 mm | 10 | 7.5 | 2.2 | 100 | $6.49 | Add to Order |
| MSS-3739 | M4 | 0.7 mm | 12 | 7.5 | 2.2 | 100 | $9.03 | Add to Order |
| MSS-3740 | M4 | 0.7 mm | 16 | 7.5 | 2.2 | 100 | $11.34 | Add to Order |
| MSS-3741 | M4 | 0.7 mm | 20 | 7.5 | 2.2 | 100 | $8.84 | Add to Order |
| MSS-3742 | M4 | 0.7 mm | 25 | 7.5 | 2.2 | 100 | $7.77 | Add to Order |
| MSS-3743 | M4 | 0.7 mm | 35 | 7.5 | 2.2 | 100 | $27.66 | Add to Order |
| MSS-3744 | M5 | 0.8 mm | 8 | 9.2 | 2.5 | 100 | $9.41 | Add to Order |
| MSS-3745 | M5 | 0.8 mm | 10 | 9.2 | 2.5 | 100 | $12.39 | Add to Order |
| MSS-3746 | M5 | 0.8 mm | 12 | 9.2 | 2.5 | 100 | $10.82 | Add to Order |
| MSS-3747 | M5 | 0.8 mm | 16 | 9.2 | 2.5 | 100 | $12.26 | Add to Order |
| MSS-3749 | M5 | 0.8 mm | 25 | 9.2 | 2.5 | 100 | $13.33 | Add to Order |
| MSS-3751 | M6 | 1 mm | 10 | 11 | 3 | 100 | $16.42 | Add to Order |
| MSS-3752 | M6 | 1 mm | 12 | 11 | 3 | 100 | $14.51 | Add to Order |
| MSS-3753 | M6 | 1 mm | 16 | 11 | 3 | 100 | $19.19 | Add to Order |
| MSS-3754 | M6 | 1 mm | 20 | 11 | 3 | 100 | $20.87 | Add to Order |
| MSS-3755 | M6 | 1 mm | 25 | 11 | 3 | 100 | $18.94 | Add to Order |
| MSS-3756 | M6 | 1 mm | 40 | 11 | 3 | 50 | $35.28 | Add to Order |
| MSS-3757 | M6 | 1 mm | 50 | 11 | 3 | 50 | $29.40 | Add to Order |
| MSS-3758 | M8 | 1.25 mm | 16 | 14.5 | 4 | 50 | $17.83 | Add to Order |
| MSS-3759 | M8 | 1.25 mm | 25 | 14.5 | 4 | 50 | $33.60 | Add to Order |
| MSS-3727 | M8 | 1.25 mm | 20 | 18 | 5 | 25 | $10.92 | Add to Order |
| MSS-3750 | M10 | 1.5 mm | 25 | 18 | 5 | 25 | $35.99 | Add to Order |
| MSS-15021 | M10 | 1.5 mm | 30 | 18 | 5 | 10 | $19.78 | Add to Order |
| MSS-3748 | M10 | 1.5 mm | 35 | 18 | 5 | 10 | $16.11 | Add to Order |
| MSS-3716 | M10 | 1.5 mm | 40 | 18 | 5 | 10 | $25.10 | Add to Order |
| Rev. 01-24, 10-23, 08-23, 02-23 | ||||||||
