Nylon 6/6 Flat Head Slotted Drive Machine Screws
Machine Screws - 82°Flat Head Slotted Drive, Class 2A, fully threaded.
Nylon 6/6 - Non conductive, chemical and solvent resistant, except mineral acids. Temperature range -40°/+185°F. Absorbs moisture, can affect dimensions and properties. Off White.
| Nylon Slotted Flat Head Machine Screws ASME B18.6.3, Natural, -40° to 185°, FT 82°Countersink Angle |
|||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|
| MSS-10532 | 0-80 | 1/8" | 0.118" | 0.035" | 100 | $30.56 | Add to Order |
| MSS-10533 | 0-80 | 3/16" | 0.118" | 0.035" | 100 | $31.67 | Add to Order |
| MSS-10534 | 0-80 | 1/4" | 0.118" | 0.035" | 100 | $32.84 | Add to Order |
| MSS-10535 | 2-56 | 3/32" | 0.172" | 0.051" | 100 | $22.43 | Add to Order |
| MSS-10536 | 2-56 | 1/8" | 0.172" | 0.051" | 100 | $20.94 | Add to Order |
| MSS-10537 | 2-56 | 3/16" | 0.172" | 0.051" | 100 | $20.90 | Add to Order |
| MSS-10538 | 2-56 | 1/4" | 0.172" | 0.051" | 100 | $20.98 | Add to Order |
| MSS-10539 | 2-56 | 5/16" | 0.172" | 0.051" | 100 | $21.13 | Add to Order |
| MSS-10540 | 2-56 | 3/8" | 0.172" | 0.051" | 100 | $21.29 | Add to Order |
| MSS-10541 | 2-56 | 7/16" | 0.172" | 0.051" | 100 | $21.36 | Add to Order |
| MSS-10542 | 2-56 | 1/2" | 0.172" | 0.051" | 100 | $21.40 | Add to Order |
| MSS-10543 | 2-56 | 3/4" | 0.172" | 0.051" | 100 | $21.74 | Add to Order |
| MSS-10544 | 2-56 | 1" | 0.172" | 0.051" | 100 | $22.11 | Add to Order |
| MSS-10545 | 4-40 | 3/16" | 0.225" | 0.067" | 100 | $20.81 | Add to Order |
| MSS-10546 | 4-40 | 1/4" | 0.225" | 0.067" | 100 | $20.92 | Add to Order |
| MSS-10547 | 4-40 | 9/32" | 0.225" | 0.067" | 100 | $21.02 | Add to Order |
| MSS-10548 | 4-40 | 5/16" | 0.225" | 0.067" | 100 | $21.17 | Add to Order |
| MSS-10549 | 4-40 | 3/8" | 0.225" | 0.067" | 100 | $21.29 | Add to Order |
| MSS-10550 | 4-40 | 1/2" | 0.225" | 0.067" | 100 | $21.40 | Add to Order |
| MSS-10551 | 4-40 | 5/8" | 0.225" | 0.067" | 100 | $21.53 | Add to Order |

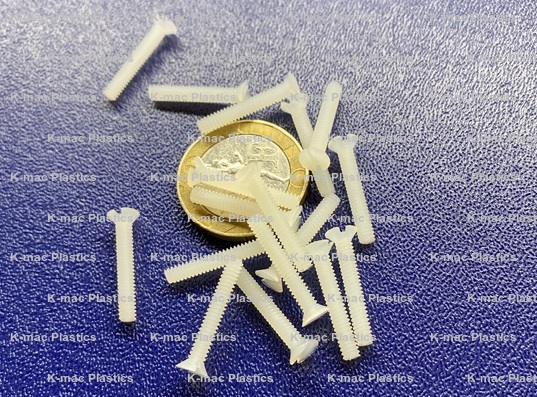

| MSS-10552 | 4-40 | 3/4" | 0.225" | 0.067" | 100 | $21.74 | Add to Order |

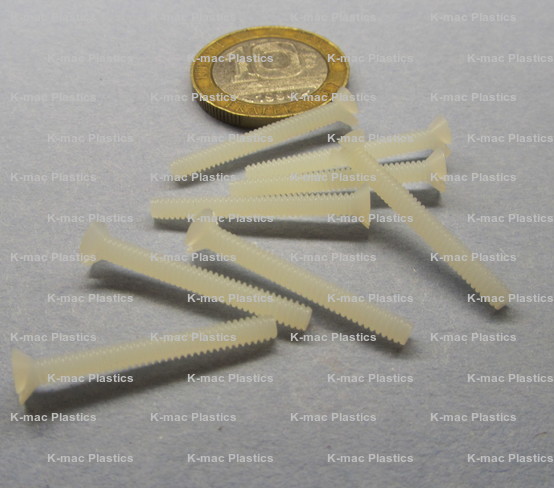

| MSS-10553 | 4-40 | 1" | 0.225" | 0.067" | 100 | $21.88 | Add to Order |
| MSS-10554 | 6-32 | 3/16" | 0.279" | 0.083" | 100 | $21.53 | Add to Order |
| MSS-10555 | 6-32 | 1/4" | 0.279" | 0.083" | 100 | $21.74 | Add to Order |
| MSS-10556 | 6-32 | 5/16" | 0.279" | 0.083" | 100 | $21.86 | Add to Order |
| MSS-10557 | 6-32 | 3/8" | 0.279" | 0.083" | 100 | $22.01 | Add to Order |
| MSS-10558 | 6-32 | 1/2" | 0.279" | 0.083" | 100 | $22.22 | Add to Order |
| MSS-10559 | 6-32 | 5/8" | 0.279" | 0.083" | 100 | $22.34 | Add to Order |
| MSS-10560 | 6-32 | 3/4" | 0.279" | 0.083" | 100 | $22.49 | Add to Order |
| MSS-10561 | 6-32 | 1" | 0.279" | 0.083" | 100 | $22.60 | Add to Order |
| MSS-10562 | 8-32 | 1/4" | 0.332" | 0.100" | 100 | $22.60 | Add to Order |
| MSS-10563 | 8-32 | 5/16" | 0.332" | 0.100" | 100 | $20.01 | Add to Order |
| MSS-10564 | 8-32 | 3/8" | 0.332" | 0.100" | 100 | $22.72 | Add to Order |
| MSS-10565 | 8-32 | 1/2" | 0.332" | 0.100" | 100 | $22.85 | Add to Order |
| MSS-10566 | 8-32 | 5/8" | 0.332" | 0.100" | 100 | $22.85 | Add to Order |
| MSS-10567 | 8-32 | 3/4" | 0.332" | 0.100" | 100 | $23.00 | Add to Order |
| MSS-10568 | 8-32 | 1" | 0.332" | 0.100" | 100 | $23.08 | Add to Order |
| MSS-10569 | 8-32 | 1 1/4" | 0.332" | 0.100" | 100 | $23.60 | Add to Order |
| MSS-10570 | 8-32 | 1 1/2" | 0.332" | 0.100" | 100 | $23.94 | Add to Order |
| MSS-10571 | 10-24 | 1/4" | 0.385" | 0.116" | 100 | $24.07 | Add to Order |
| MSS-10572 | 10-24 | 3/8" | 0.365" | 0.166" | 100 | $27.30 | Add to Order |
| MSS-10573 | 10-24 | 1/2" | 0.385" | 0.116" | 100 | $24.51 | Add to Order |
| MSS-10574 | 10-24 | 5/8" | 0.385" | 0.116" | 50 | $39.40 | Add to Order |
| MSS-10575 | 10-24 | 3/4" | 0.385" | 0.116" | 100 | $24.80 | Add to Order |
| MSS-10576 | 10-24 | 1" | 0.385" | 0.116" | 100 | $24.99 | Add to Order |
| MSS-10577 | 10-24 | 1 1/2" | 0.385" | 0.116" | 100 | $25.60 | Add to Order |
| MSS-10578 | 10-32 | 1/4" | 0.385" | 0.116" | 100 | $24.04 | Add to Order |
| MSS-10579 | 10-32 | 3/8" | 0.385" | 0.116" | 100 | $24.40 | Add to Order |
| MSS-10580 | 10-32 | 1/2" | 0.385" | 0.116" | 100 | $24.51 | Add to Order |
| MSS-10581 | 10-32 | 5/8" | 0.385" | 0.116" | 100 | $24.51 | Add to Order |
| MSS-10582 | 10-32 | 3/4" | 0.385" | 0.116" | 100 | $24.86 | Add to Order |
| MSS-10583 | 10-32 | 1" | 0.385" | 0.116" | 100 | $24.99 | Add to Order |
| MSS-10584 | 10-32 | 1 1/2" | 0.385" | 0.116" | 100 | $25.47 | Add to Order |
| MSS-10585 | 10-32 | 2" | 0.385" | 0.116" | 100 | $28.25 | Add to Order |
| MSS-10586 | 1/4"-20 | 1/4" | 0.507" | 0.153" | 100 | $27.43 | Add to Order |
| MSS-10587 | 1/4"-20 | 3/8" | 0.507" | 0.153" | 25 | $23.63 | Add to Order |
| MSS-10588 | 1/4"-20 | 1/2" | 0.507" | 0.153" | 100 | $27.74 | Add to Order |
| MSS-10589 | 1/4"-20 | 5/8" | 0.507" | 0.153" | 100 | $27.87 | Add to Order |
| MSS-10590 | 1/4"-20 | 3/4" | 0.507" | 0.153" | 100 | $27.97 | Add to Order |
| MSS-10591 | 1/4"-20 | 7/8" | 0.507" | 0.153" | 100 | $25.07 | Add to Order |
| MSS-10592 | 1/4"-20 | 1" | 0.507" | 0.153" | 100 | $28.22 | Add to Order |
| MSS-10593 | 1/4"-20 | 1 1/4" | 0.507" | 0.153" | 100 | $20.41 | Add to Order |
| MSS-10594 | 1/4"-20 | 1 1/2" | 0.507" | 0.153" | 100 | $28.94 | Add to Order |
| MSS-10595 | 1/4"-20 | 1 3/4" | 0.507" | 0.153" | 100 | $26.06 | Add to Order |
| MSS-10596 | 1/4"-20 | 2" | 0.507" | 0.153" | 100 | $31.69 | Add to Order |
| MSS-10597 | 1/4"-20 | 2 1/2" | 0.507" | 0.153" | 100 | $26.63 | Add to Order |
| MSS-10598 | 1/4"-20 | 3" | 0.507" | 0.153" | 10 | $19.95 | Add to Order |
| MSS-10599 | 5/16"-18 | 1/2" | 0.635" | 0.191" | 10 | $13.65 | Add to Order |
| MSS-10600 | 5/16"-18 | 5/8" | 0.635" | 0.191" | 10 | $14.70 | Add to Order |
| MSS-10601 | 5/16"-18 | 3/4" | 0.635" | 0.191" | 10 | $16.80 | Add to Order |
| MSS-10602 | 5/16"-18 | 1" | 0.635" | 0.191" | 10 | $18.38 | Add to Order |
| MSS-10603 | 5/16"-18 | 1 1/4" | 0.635" | 0.191" | 10 | $18.65 | Add to Order |
| MSS-10604 | 5/16"-18 | 1 1/2" | 0.635" | 0.191" | 10 | $18.90 | Add to Order |
| MSS-10605 | 5/16"-18 | 2" | 0.635" | 0.191" | 10 | $21.27 | Add to Order |
| MSS-10606 | 3/8"-16 | 3/4" | 0.725" | 0.230" | 50 | $39.38 | Add to Order |
| MSS-10607 | 3/8"-16 | 1" | 0.725" | 0.230" | 50 | $40.95 | Add to Order |
| MSS-10608 | 3/8"-16 | 1 1/4" | 0.762" | 0.230" | 10 | $18.38 | Add to Order |
| MSS-10609 | 3/8"-16 | 1 1/2" | 0.725" | 0.230" | 50 | $43.34 | Add to Order |
| MSS-10610 | 3/8"-16 | 2" | 0.725" | 0.230" | 50 | $46.26 | Add to Order |
| MSS-10611 | 3/8"-16 | 3" | 0.762" | 0.230" | 10 | $23.10 | Add to Order |
| Rev. 10-23, 08-23, 02-23, 11-22 | |||||||
| Nylon Slotted Flat Head Machine Screws ASME B18.6.3, Natural, -40° to 185°, FT 100°Countersink Angle |
|||||||
| Part # | Thread Size | Length | Head Dia. | Head Height | Pkg. Qty | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|
| MSS-10612 | 2-56 | 3/32" | 0.172" | 0.037" | 100 | $22.43 | Add to Order |
| MSS-10613 | 2-56 | 1/8" | 0.172" | 0.037" | 100 | $37.15 | Add to Order |
| MSS-10614 | 2-56 | 3/16" | 0.172" | 0.037" | 100 | $37.25 | Add to Order |
| MSS-10615 | 2-56 | 1/4" | 0.172" | 0.037" | 100 | $21.19 | Add to Order |
| MSS-10616 | 2-56 | 5/16" | 0.172" | 0.037" | 100 | $37.61 | Add to Order |
| MSS-10617 | 2-56 | 3/8" | 0.172" | 0.037" | 100 | $21.53 | Add to Order |
| MSS-10618 | 2-56 | 7/16" | 0.172" | 0.037" | 100 | $21.59 | Add to Order |
| MSS-10619 | 2-56 | 1/2" | 0.172" | 0.037" | 100 | $38.70 | Add to Order |
| MSS-10620 | 2-56 | 3/4" | 0.172" | 0.037" | 100 | $21.95 | Add to Order |
| MSS-10621 | 2-56 | 1" | 0.172" | 0.037" | 100 | $22.11 | Add to Order |
| MSS-10622 | 4-40 | 3/16" | 0.225" | 0.049" | 100 | $20.90 | Add to Order |
| MSS-10623 | 4-40 | 1/4" | 0.225" | 0.049" | 100 | $20.94 | Add to Order |
| MSS-10624 | 4-40 | 9/32" | 0.225" | 0.049" | 100 | $21.02 | Add to Order |
| MSS-10625 | 4-40 | 5/16" | 0.225" | 0.049" | 100 | $21.15 | Add to Order |
| MSS-10626 | 4-40 | 3/8" | 0.225" | 0.049" | 100 | $21.27 | Add to Order |
| MSS-10627 | 4-40 | 1/2" | 0.225" | 0.049" | 100 | $21.46 | Add to Order |
| MSS-10628 | 4-40 | 5/8" | 0.225" | 0.049" | 100 | $38.89 | Add to Order |
| MSS-10629 | 4-40 | 3/4" | 0.225" | 0.049" | 100 | $21.74 | Add to Order |
| MSS-10630 | 4-40 | 1" | 0.225" | 0.049" | 100 | $27.07 | Add to Order |
| MSS-10631 | 6-32 | 3/16" | 0.279" | 0.060" | 100 | $36.75 | Add to Order |
| MSS-10632 | 6-32 | 1/4" | 0.279" | 0.060" | 100 | $21.76 | Add to Order |
| MSS-10633 | 6-32 | 5/16" | 0.279" | 0.060" | 100 | $21.92 | Add to Order |
| MSS-10634 | 6-32 | 3/8" | 0.279" | 0.060" | 100 | $22.03 | Add to Order |
| MSS-10635 | 6-32 | 1/2" | 0.279" | 0.060" | 100 | $22.16 | Add to Order |
| MSS-10636 | 6-32 | 5/8" | 0.279" | 0.060" | 100 | $37.57 | Add to Order |
| MSS-10637 | 6-32 | 3/4" | 0.279" | 0.060" | 100 | $22.45 | Add to Order |
| MSS-10638 | 6-32 | 1" | 0.279" | 0.060" | 100 | $22.62 | Add to Order |
| MSS-10639 | 8-32 | 1/4" | 0.332" | 0.072" | 100 | $22.53 | Add to Order |
| MSS-10640 | 8-32 | 3/8" | 0.332" | 0.072" | 100 | $22.66 | Add to Order |
| MSS-10641 | 8-32 | 1/2" | 0.332" | 0.072" | 100 | $22.16 | Add to Order |
| MSS-10642 | 8-32 | 5/8" | 0.332" | 0.072" | 100 | $22.85 | Add to Order |
| MSS-10643 | 8-32 | 3/4" | 0.332" | 0.072" | 100 | $23.00 | Add to Order |
| MSS-10644 | 8-32 | 1" | 0.332" | 0.072" | 100 | $38.30 | Add to Order |
| MSS-10645 | 8-32 | 1 1/4" | 0.332" | 0.072" | 100 | $23.69 | Add to Order |
| MSS-10646 | 8-32 | 1 1/2" | 0.332" | 0.072" | 100 | $23.84 | Add to Order |
| MSS-10647 | 10-24 | 1/4" | 0.385" | 0.083" | 100 | $24.17 | Add to Order |
| MSS-10648 | 10-24 | 1/2" | 0.385" | 0.083" | 100 | $24.55 | Add to Order |
| MSS-10649 | 10-24 | 3/4" | 0.385" | 0.083" | 100 | $24.82 | Add to Order |
| MSS-10650 | 10-24 | 1" | 0.385" | 0.083" | 100 | $24.99 | Add to Order |
| MSS-10651 | 10-24 | 1 1/2" | 0.385" | 0.083" | 100 | $25.64 | Add to Order |
| MSS-10652 | 10-32 | 1/4" | 0.385" | 0.083" | 100 | $24.07 | Add to Order |
| MSS-10653 | 10-32 | 3/8" | 0.385" | 0.083" | 100 | $24.23 | Add to Order |
| MSS-10654 | 10-32 | 1/2" | 0.385" | 0.083" | 100 | $24.59 | Add to Order |
| MSS-10655 | 10-32 | 5/8" | 0.385" | 0.083" | 100 | $24.65 | Add to Order |
| MSS-10656 | 10-32 | 3/4" | 0.385" | 0.083" | 100 | $24.82 | Add to Order |
| MSS-10657 | 10-32 | 1" | 0.385" | 0.083" | 100 | $24.91 | Add to Order |
| MSS-10658 | 10-32 | 1 1/2" | 0.385" | 0.083" | 100 | $25.56 | Add to Order |
| MSS-10659 | 10-32 | 2" | 0.385" | 0.083" | 100 | $28.33 | Add to Order |
| MSS-10660 | 1/4"-20 | 1/4" | 0.507" | 0.110" | 100 | $27.45 | Add to Order |
| MSS-10661 | 1/4"-20 | 1/2" | 0.507" | 0.110" | 100 | $37.80 | Add to Order |
| MSS-10662 | 1/4"-20 | 5/8" | 0.507" | 0.110" | 100 | $27.91 | Add to Order |
| MSS-10663 | 1/4"-20 | 3/4" | 0.507" | 0.110" | 100 | $28.04 | Add to Order |
| MSS-10664 | 1/4"-20 | 1" | 0.507" | 0.110" | 100 | $28.22 | Add to Order |
| MSS-10665 | 1/4"-20 | 1 1/2" | 0.507" | 0.110" | 100 | $28.96 | Add to Order |
| MSS-10666 | 1/4"-20 | 2" | 0.507" | 0.110" | 100 | $31.73 | Add to Order |
| Rev. 01-24, 08-23, 11-22, 03-22 | |||||||
