18-8 Stainless Steel Metric Cheese Head Slotted Drive Machine Screws
Machine Screws - Cheese Head Slotted Drive, Class 6g, Fully Threaded, DIN 84, combines head height and head diameter to maximize driving power, tapered sides and flat head with a flat bearing surface.
18-8 Stainless Steel - Excellent corrosion resistance, mildly magnetic, Rockwell hardness is B80, tensile strength 75,000 psi.
| 18-8 Stainless Steel Cheese Head Slotted Machine Screws DIN 84, ISO 1207, Tensile Strength 70,000 PSI, FT |
||||||||
| Part # | Thread Size (mm) | Pitch (mm) | Length (mm) | Head Dia. (mm) | Head Height. (mm) | Pkg Qty. | Pkg. Price | Order Online |
|---|---|---|---|---|---|---|---|---|
| MSS-9303 | M0.5 | 0.13 mm | 2 | 0.81 | 0.51 | 1 | $28.62 | Add to Order |
| MSS-9304 | M0.5 | 0.13 mm | 3 | 0.81 | 0.51 | 1 | $28.62 | Add to Order |
| MSS-9305 | M0.8 | 0.2 mm | 2 | 1.27 | 0.76 | 1 | $7.27 | Add to Order |
| MSS-9306 | M0.8 | 0.2 mm | 3 | 1.27 | 0.76 | 1 | $7.39 | Add to Order |
| MSS-9307 | M0.9 | 0.23 mm | 2 | 1.4 | 0.86 | 1 | $7.54 | Add to Order |
| MSS-9308 | M0.9 | 0.23 mm | 3 | 1.4 | 0.86 | 1 | $7.71 | Add to Order |
| MSS-164 | M1 | 0.25 mm | 2 | 2 | 0.7 | 5 | $16.80 | Add to Order |
| MSS-153 | M1 | 0.25 mm | 3 | 2 | 0.7 | 5 | $21.53 | Add to Order |
| MSS-142 | M1 | 0.25 mm | 4 | 2 | 0.7 | 5 | $22.45 | Add to Order |
| MSS-6114 | M1 | 0.25 mm | 5 | 2 | 0.7 | 5 | $15.67 | Add to Order |
| MSS-156 | M1 | 0.25 mm | 6 | 2 | 0.7 | 5 | $16.80 | Add to Order |
| MSS-157 | M1 | 0.25 mm | 8 | 2 | 0.7 | 5 | $18.40 | Add to Order |
| MSS-158 | M1 | 0.25 mm | 10 | 2 | 0.7 | 5 | $16.80 | Add to Order |

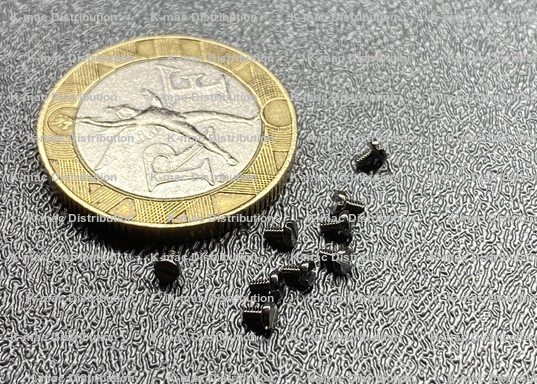

| MSS-159 | M1.2 | 0.25 mm | 2 | 2.3 | 0.8 | 10 | $24.34 | Add to Order |
| MSS-160 | M1.2 | 0.25 mm | 3 | 2.3 | 0.8 | 10 | $20.77 | Add to Order |
| MSS-161 | M1.2 | 0.25 mm | 4 | 2.3 | 0.8 | 10 | $22.45 | Add to Order |
| MSS-162 | M1.2 | 0.25 mm | 5 | 2.3 | 0.8 | 10 | $29.40 | Add to Order |
| MSS-163 | M1.2 | 0.25 mm | 6 | 2.3 | 0.8 | 10 | $28.92 | Add to Order |
| MSS-093 | M1.2 | 0.25 mm | 8 | 2.3 | 0.8 | 10 | $29.34 | Add to Order |
| MSS-022 | M1.2 | 0.25 mm | 10 | 2.3 | 0.8 | 5 | $11.55 | Add to Order |
| MSS-9309 | M1.4 | 0.3 mm | 2 | 2.6 | 0.9 | 25 | $6.89 | Add to Order |
| MSS-116 | M1.4 | 0.3 mm | 3 | 2.6 | 0.9 | 10 | $20.90 | Add to Order |
| MSS-026 | M1.4 | 0.3 mm | 4 | 2.6 | 0.9 | 10 | $20.92 | Add to Order |
| MSS-027 | M1.4 | 0.3 mm | 5 | 2.6 | 0.9 | 10 | $20.96 | Add to Order |
| MSS-028 | M1.4 | 0.3 mm | 6 | 2.6 | 0.9 | 10 | $20.98 | Add to Order |
| MSS-288 | M1.4 | 0.3 mm | 8 | 2.6 | 0.9 | 10 | $21.00 | Add to Order |
| MSS-289 | M1.4 | 0.3 mm | 10 | 2.6 | 0.9 | 10 | $22.05 | Add to Order |
| MSS-9310 | M1.4 | 0.3 mm | 12 | 2.6 | 0.9 | 25 | $36.50 | Add to Order |
| MSS-6416 | M1.6 | 0.35 mm | 2 | 3 | 1 | 5 | $7.50 | Add to Order |
| MSS-6417 | M1.6 | 0.35 mm | 3 | 3 | 1 | 10 | $8.15 | Add to Order |
| MSS-4676 | M1.6 | 0.35 mm | 4 | 3 | 1 | 10 | $9.81 | Add to Order |
| MSS-4677 | M1.6 | 0.35 mm | 5 | 3 | 1 | 25 | $6.93 | Add to Order |
| MSS-4678 | M1.6 | 0.35 mm | 6 | 3 | 1 | 25 | $7.81 | Add to Order |
| MSS-4679 | M1.6 | 0.35 mm | 8 | 3 | 1 | 25 | $6.11 | Add to Order |
| MSS-4680 | M1.6 | 0.35 mm | 10 | 3 | 1 | 25 | $8.51 | Add to Order |
| MSS-5600 | M1.6 | 0.35 mm | 12 | 3 | 1 | 25 | $8.86 | Add to Order |
| MSS-4694 | M1.6 | 0.35 mm | 16 | 3 | 1 | 25 | $15.50 | Add to Order |
| MSS-5601 | M2 | 0.4 mm | 3 | 3.8 | 1.3 | 100 | $12.08 | Add to Order |
| MSS-4672 | M2 | 0.4 mm | 4 | 3.8 | 1.3 | 100 | $12.54 | Add to Order |
| MSS-4685 | M2 | 0.4 mm | 5 | 3.8 | 1.3 | 100 | $13.04 | Add to Order |
| MSS-5602 | M2 | 0.4 mm | 6 | 3.8 | 1.3 | 100 | $8.02 | Add to Order |
| MSS-4687 | M2 | 0.4 mm | 8 | 3.8 | 1.3 | 100 | $9.49 | Add to Order |
| MSS-4688 | M2 | 0.4 mm | 10 | 3.8 | 1.3 | 100 | $8.44 | Add to Order |
| MSS-4689 | M2 | 0.4 mm | 12 | 3.8 | 1.3 | 100 | $8.78 | Add to Order |
| MSS-5610 | M2 | 0.4 mm | 14 | 3.8 | 1.3 | 100 | $19.15 | Add to Order |
| MSS-4691 | M2 | 0.4 mm | 16 | 3.8 | 1.3 | 100 | $6.87 | Add to Order |
| MSS-5612 | M2 | 0.4 mm | 20 | 3.8 | 1.3 | 100 | $9.79 | Add to Order |
| MSS-5589 | M2 | 0.4 mm | 25 | 3.8 | 1.3 | 100 | $27.55 | Add to Order |
| MSS-029 | M2.5 | 0.45 mm | 3 | 4.5 | 1.6 | 100 | $15.62 | Add to Order |
| MSS-030 | M2.5 | 0.45 mm | 4 | 4.5 | 1.6 | 100 | $9.79 | Add to Order |
| MSS-031 | M2.5 | 0.45 mm | 5 | 4.5 | 1.6 | 100 | $8.78 | Add to Order |
| MSS-032 | M2.5 | 0.45 mm | 6 | 4.5 | 1.6 | 100 | $9.87 | Add to Order |
| MSS-033 | M2.5 | 0.45 mm | 8 | 4.5 | 1.6 | 100 | $17.26 | Add to Order |
| MSS-047 | M2.5 | 0.45 mm | 10 | 4.5 | 1.6 | 100 | $10.71 | Add to Order |
| MSS-035 | M2.5 | 0.45 mm | 12 | 4.5 | 1.6 | 100 | $16.13 | Add to Order |
| MSS-024 | M2.5 | 0.45 mm | 14 | 4.5 | 1.6 | 100 | $20.08 | Add to Order |
| MSS-037 | M2.5 | 0.45 mm | 16 | 4.5 | 1.6 | 100 | $10.23 | Add to Order |
| MSS-038 | M2.5 | 0.45 mm | 20 | 4.5 | 1.6 | 100 | $37.38 | Add to Order |
| MSS-039 | M2.5 | 0.45 mm | 25 | 4.5 | 1.6 | 100 | $16.19 | Add to Order |
| MSS-040 | M2.5 | 0.45 mm | 30 | 4.5 | 1.6 | 50 | $24.34 | Add to Order |
| MSS-041 | M3 | 0.5 mm | 4 | 5.5 | 2 | 100 | $12.60 | Add to Order |
| MSS-042 | M3 | 0.5 mm | 5 | 5.5 | 2 | 50 | $6.26 | Add to Order |
| MSS-043 | M3 | 0.5 mm | 6 | 5.5 | 2 | 100 | $10.21 | Add to Order |
| MSS-044 | M3 | 0.5 mm | 8 | 5.5 | 2 | 100 | $9.37 | Add to Order |
| MSS-045 | M3 | 0.5 mm | 10 | 5.5 | 2 | 100 | $10.79 | Add to Order |
| MSS-013 | M3 | 0.5 mm | 12 | 5.5 | 2 | 100 | $15.41 | Add to Order |
| MSS-5617 | M3 | 0.5 mm | 14 | 5.5 | 2 | 100 | $15.65 | Add to Order |
| MSS-5616 | M3 | 0.5 mm | 16 | 5.5 | 2 | 100 | $12.20 | Add to Order |
| MSS-5615 | M3 | 0.5 mm | 20 | 5.5 | 2 | 100 | $21.19 | Add to Order |
| MSS-4744 | M3 | 0.5 mm | 25 | 5.5 | 2 | 100 | $15.16 | Add to Order |
| MSS-4745 | M3 | 0.5 mm | 30 | 5.5 | 2 | 100 | $17.60 | Add to Order |
| MSS-5614 | M3 | 0.5 mm | 35 | 5.5 | 2 | 100 | $24.55 | Add to Order |
| MSS-5613 | M3 | 0.5 mm | 40 | 5.5 | 2 | 100 | $28.16 | Add to Order |
| MSS-5604 | M3 | 0.5 mm | 45 | 5.5 | 2 | 100 | $38.68 | Add to Order |
| MSS-4749 | M3 | 0.5 mm | 50 | 5.5 | 2 | 25 | $20.75 | Add to Order |
| MSS-4750 | M3.5 | 0.6 mm | 6 | 6 | 2.4 | 100 | $20.92 | Add to Order |
| MSS-5611 | M3.5 | 0.6 mm | 8 | 6 | 2.4 | 100 | $28.96 | Add to Order |
| MSS-5619 | M3.5 | 0.6 mm | 10 | 6 | 2.4 | 100 | $20.14 | Add to Order |
| MSS-4753 | M3.5 | 0.6 mm | 12 | 6 | 2.4 | 100 | $29.82 | Add to Order |
| MSS-5609 | M3.5 | 0.6 mm | 16 | 6 | 2.4 | 50 | $17.26 | Add to Order |
| MSS-4755 | M3.5 | 0.6 mm | 20 | 6 | 2.4 | 50 | $21.90 | Add to Order |
| MSS-5608 | M3.5 | 0.6 mm | 25 | 6 | 2.4 | 50 | $27.49 | Add to Order |
| MSS-4757 | M3.5 | 0.6 mm | 40 | 6 | 2.4 | 50 | $33.14 | Add to Order |
| MSS-9311 | M4 | 0.7 mm | 4 | 7 | 2.6 | 50 | $20.52 | Add to Order |
| MSS-4758 | M4 | 0.7 mm | 5 | 7 | 2.6 | 100 | $34.31 | Add to Order |
| MSS-4759 | M4 | 0.7 mm | 6 | 7 | 2.6 | 100 | $13.99 | Add to Order |
| MSS-4760 | M4 | 0.7 mm | 8 | 7 | 2.6 | 100 | $14.99 | Add to Order |
| MSS-036 | M4 | 0.7 mm | 10 | 7 | 2.6 | 100 | $14.34 | Add to Order |
| MSS-034 | M4 | 0.7 mm | 12 | 7 | 2.6 | 100 | $14.91 | Add to Order |
| MSS-002 | M4 | 0.7 mm | 14 | 7 | 2.6 | 100 | $38.18 | Add to Order |
| MSS-003 | M4 | 0.7 mm | 16 | 7 | 2.6 | 100 | $17.58 | Add to Order |
| MSS-004 | M4 | 0.7 mm | 18 | 7 | 2.6 | 100 | $22.01 | Add to Order |
| MSS-005 | M4 | 0.7 mm | 20 | 7 | 2.6 | 100 | $19.72 | Add to Order |
| MSS-006 | M4 | 0.7 mm | 25 | 7 | 2.6 | 100 | $19.61 | Add to Order |
| MSS-007 | M4 | 0.7 mm | 30 | 7 | 2.6 | 50 | $20.71 | Add to Order |
| MSS-008 | M4 | 0.7 mm | 35 | 7 | 2.6 | 50 | $17.68 | Add to Order |
| MSS-009 | M4 | 0.7 mm | 40 | 7 | 2.6 | 50 | $20.20 | Add to Order |
| MSS-010 | M4 | 0.7 mm | 45 | 7 | 2.6 | 50 | $24.78 | Add to Order |
| MSS-023 | M4 | 0.7 mm | 50 | 7 | 2.6 | 100 | $37.38 | Add to Order |
| MSS-012 | M4 | 0.7 mm | 60 | 7 | 2.6 | 25 | $20.20 | Add to Order |
| MSS-001 | M4 | 0.7 mm | 70 | 7 | 2.6 | 25 | $14.89 | Add to Order |
| MSS-014 | M4 | 0.7 mm | 80 | 7 | 2.6 | 25 | $16.38 | Add to Order |
| MSS-015 | M5 | 0.8 mm | 6 | 8.5 | 3.3 | 50 | $21.61 | Add to Order |
| MSS-016 | M5 | 0.8 mm | 8 | 8.5 | 3.3 | 100 | $39.14 | Add to Order |
| MSS-017 | M5 | 0.8 mm | 10 | 8.5 | 3.3 | 50 | $16.13 | Add to Order |
| MSS-018 | M5 | 0.8 mm | 12 | 8.5 | 3.3 | 100 | $19.03 | Add to Order |
| MSS-019 | M5 | 0.8 mm | 14 | 8.5 | 3.3 | 50 | $29.95 | Add to Order |
| MSS-020 | M5 | 0.8 mm | 16 | 8.5 | 3.3 | 100 | $27.01 | Add to Order |
| MSS-021 | M5 | 0.8 mm | 18 | 8.5 | 3.3 | 25 | $19.47 | Add to Order |
| MSS-058 | M5 | 0.8 mm | 20 | 8.5 | 3.3 | 25 | $14.24 | Add to Order |
| MSS-011 | M5 | 0.8 mm | 25 | 8.5 | 3.3 | 25 | $15.65 | Add to Order |
| MSS-046 | M5 | 0.8 mm | 30 | 8.5 | 3.3 | 25 | $18.04 | Add to Order |
| MSS-072 | M5 | 0.8 mm | 35 | 8.5 | 3.3 | 25 | $23.33 | Add to Order |
| MSS-073 | M5 | 0.8 mm | 40 | 8.5 | 3.3 | 25 | $16.80 | Add to Order |
| MSS-074 | M5 | 0.8 mm | 45 | 8.5 | 3.3 | 50 | $24.07 | Add to Order |
| MSS-075 | M5 | 0.8 mm | 50 | 8.5 | 3.3 | 10 | $16.78 | Add to Order |
| MSS-076 | M5 | 0.8 mm | 60 | 8.5 | 3.3 | 25 | $22.68 | Add to Order |
| MSS-077 | M5 | 0.8 mm | 70 | 8.5 | 3.3 | 10 | $10.92 | Add to Order |
| MSS-078 | M5 | 0.8 mm | 80 | 8.5 | 3.3 | 10 | $12.26 | Add to Order |
| MSS-079 | M6 | 1 mm | 8 | 10 | 3.9 | 50 | $30.35 | Add to Order |
| MSS-080 | M6 | 1 mm | 10 | 10 | 3.9 | 50 | $21.46 | Add to Order |
| MSS-094 | M6 | 1 mm | 12 | 10 | 3.9 | 50 | $26.46 | Add to Order |
| MSS-082 | M6 | 1 mm | 16 | 10 | 3.9 | 50 | $20.66 | Add to Order |
| MSS-071 | M6 | 1 mm | 20 | 10 | 3.9 | 50 | $20.90 | Add to Order |
| MSS-084 | M6 | 1 mm | 25 | 10 | 3.9 | 50 | $21.71 | Add to Order |
| MSS-085 | M6 | 1 mm | 30 | 10 | 3.9 | 25 | $20.45 | Add to Order |

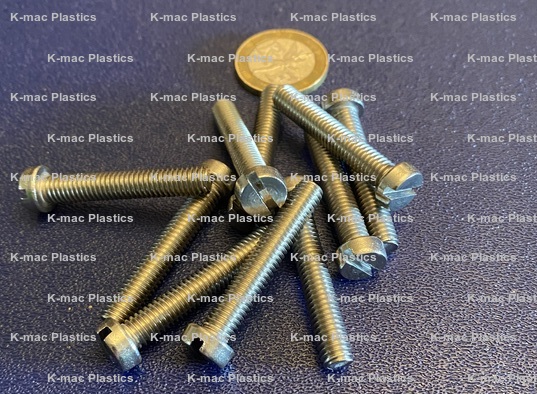

| MSS-086 | M6 | 1 mm | 35 | 10 | 3.9 | 25 | $27.32 | Add to Order |
| MSS-087 | M6 | 1 mm | 40 | 10 | 3.9 | 25 | $30.93 | Add to Order |
| MSS-088 | M6 | 1 mm | 45 | 10 | 3.9 | 25 | $33.16 | Add to Order |
| MSS-089 | M6 | 1 mm | 50 | 10 | 3.9 | 25 | $29.04 | Add to Order |
| MSS-090 | M6 | 1 mm | 60 | 10 | 3.9 | 10 | $20.39 | Add to Order |
| MSS-091 | M6 | 1 mm | 70 | 10 | 3.9 | 10 | $11.70 | Add to Order |

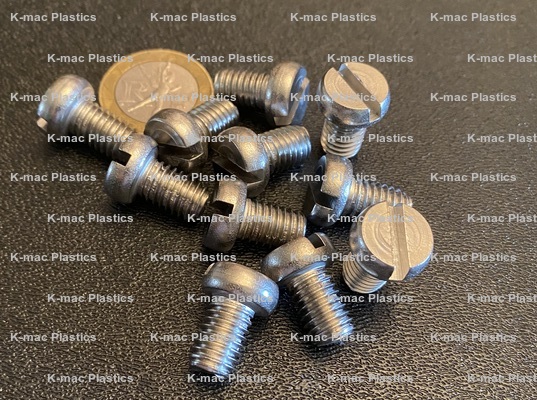

| MSS-092 | M8 | 1.25 mm | 12 | 13 | 5 | 10 | $19.30 | Add to Order |
| MSS-060 | M8 | 1.25 mm | 16 | 13 | 5 | 10 | $20.27 | Add to Order |
| MSS-083 | M8 | 1.25 mm | 20 | 13 | 5 | 10 | $14.39 | Add to Order |
| MSS-081 | M8 | 1.25 mm | 25 | 13 | 5 | 10 | $17.60 | Add to Order |
| MSS-049 | M8 | 1.25 mm | 30 | 13 | 5 | 10 | $24.23 | Add to Order |
| MSS-050 | M8 | 1.25 mm | 40 | 13 | 5 | 10 | $54.43 | Add to Order |
| Rev. 03-24, 10-23, 08-23, 02-23 | ||||||||
